2013 SSANGYONG KORANDO Service Manual

7340-00
Tilt Up
3) Sunroof Tilt Up/Down
This function is to raise or lower the rear section of the sunroof.
When leaving the vehicle, make sure the sunroof is completely closed. The sunroof may look closed
but it might be tilted up.
Tilt Down
The rear side of the sunroof is tilted up when pulling down the sunroof switch with the sunroof
closed. -
The rear side of the sunroof is tilted down when pushing up the sunroof switch with the sunroof
tilted up. -Pull down the switch -
Push up the switch -

When you drive this vehicle with the window or sunroof open at a certain position, you may feel
some pressure upon your ears or hear some noises similar to those from a helicopter. This happens
because of an influx in air through the window or sunroof and its resonance effect. If this happens,
adjust by opening the window or sunroof. - The anti-pinch function is deactivated just before the sunroof closes.
The sunroof safety function is just a safety supplementary system which cannot replace driver's care
and caution. Moreover, it may not be able to operate due to electric part or other conditions. To prevent any body parts from being trapped by the sliding sunroof, an Anti-Pinch Function
automatically opens the sunroof when an object is trapped.
4) Sunroof Safety Function
Wind buffeting

7340-00
3. SUNROOF OPEN WARNING
1) Warning Sound
When removing the key and then opening the door with the sunroof open, the warning sound is heard.
Closing the door stops the warning sound.
2) Message on Instrument Cluster
The following message is displayed on the screen in the instrument cluster.
General precaution for sunroof
Even though the sunroof can be operated when the engine is not running, operating the sunroo
f
repeatedly with the engine turned off will run down the battery. Operate the sunroof while the
engine is running.
When the sunroof operation is completed, release the switch. Keeping pressing the switch can
result in malfunction.
Especially in winter, never operate the sunroof if operation areas are iced. Wait until melted.
Make sure that the sunroof is completely closed when leaving the vehicle. Leaving the vehicle with
the sunroof open result in a theft. In addition, rain or snow can get into the vehicle through the
open sunroof.
When the sunroof is fully open, wind buffeting symptom can be worse. In this case, try to adjust
the sunroof position manually or open the sunroof into 1st first step until the wind buffeting is
disappeared.
Parts of the body can be trapped in the sunroof and can be struck by passing objects. Do not stick
hands, head or anything else out of the openings.
Remove any dirt and foreign material stuck on the edge of the sunroof glass periodically.
Noise can occur due to friction when operating the sunroof. -
-
-
-
-
-
Supervision type

4. CIRCUIT DIAGRAM

Cluster fascia panel
RH cluster fascia panel and molding have been newly applied.
Instrument panel
- The design and material of IP have been
changed.
- An invisible type passenger air bag
module has been applied.LH side fascia panel & molding
The design of LH side fascia panel & molding has
been changed.
1. MAJOR CHANGES
Instrument Panel
Cluster fascia molding
RH cluster
fascia panel

5110-01
Center fascia lower panel
The design of center fascia lower panel has been
changed (lower tray, heater and A/C control
assembly).
Center fascia panel & molding, RH side fascia panel & molding
- The design of center fascia panel & molding has been changed.
- The design of RH side fascia panel & molding has been changed.
- RH center fascia panel has been newly applied.
RH glove box housing
extension
RH glove box housing extension panel
has been newly added on the right side
of glove box housing.
Center fascia panel
RH side fascia panel
Center fascia molding
RH side fascia
molding
LH and RH center fascia panels
RH side fascia panel
Center fascia moldingRH side fascia molding
Crash pad upper cover
The name of crash pad upper tray has been
changed to "crash pad upper cover" and its
design also has been changed.

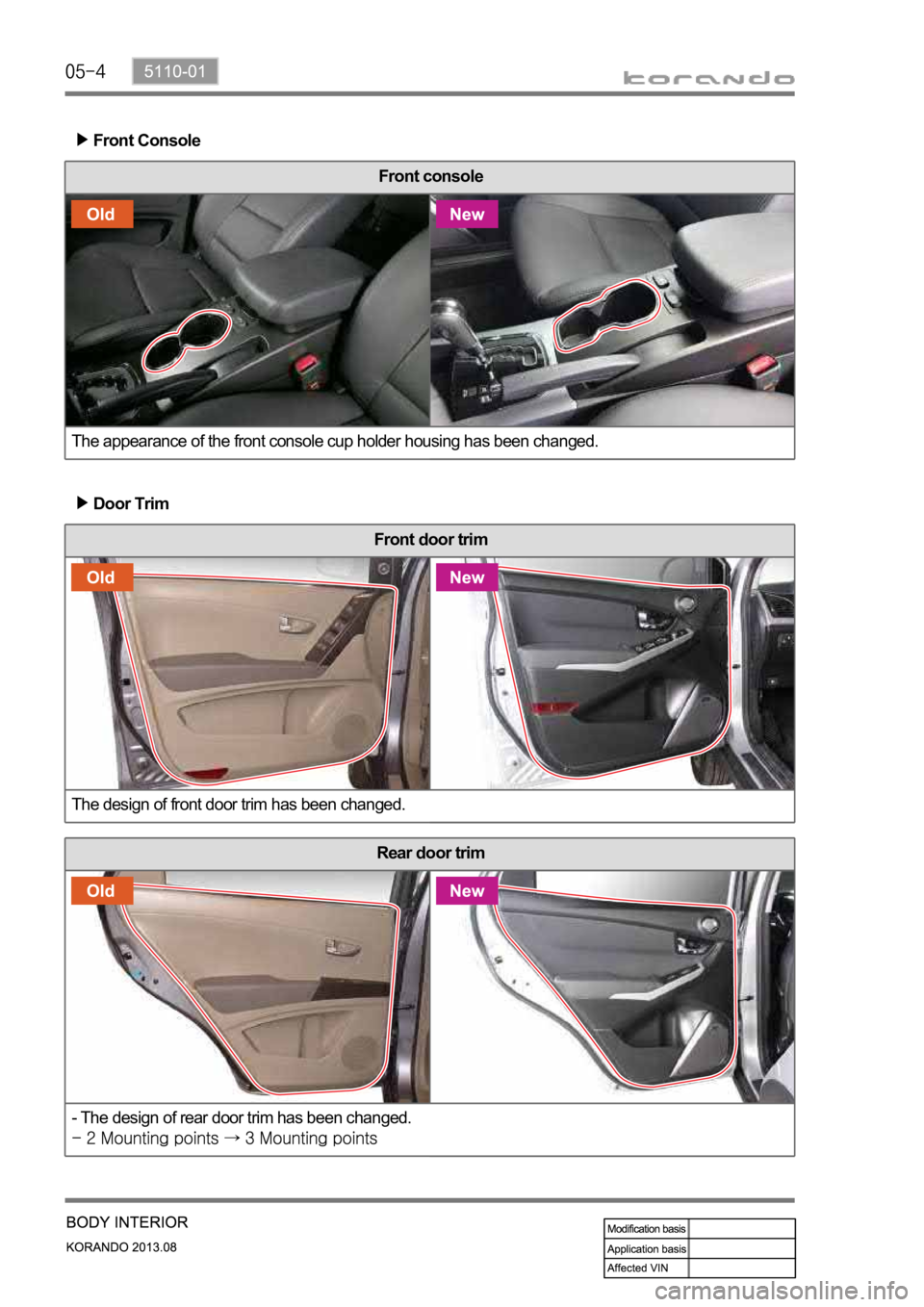

Front console
The appearance of the front console cup holder housing has been changed.
Front Console
Front door trim
The design of front door trim has been changed.
Door Trim
Rear door trim
- The design of rear door trim has been changed.

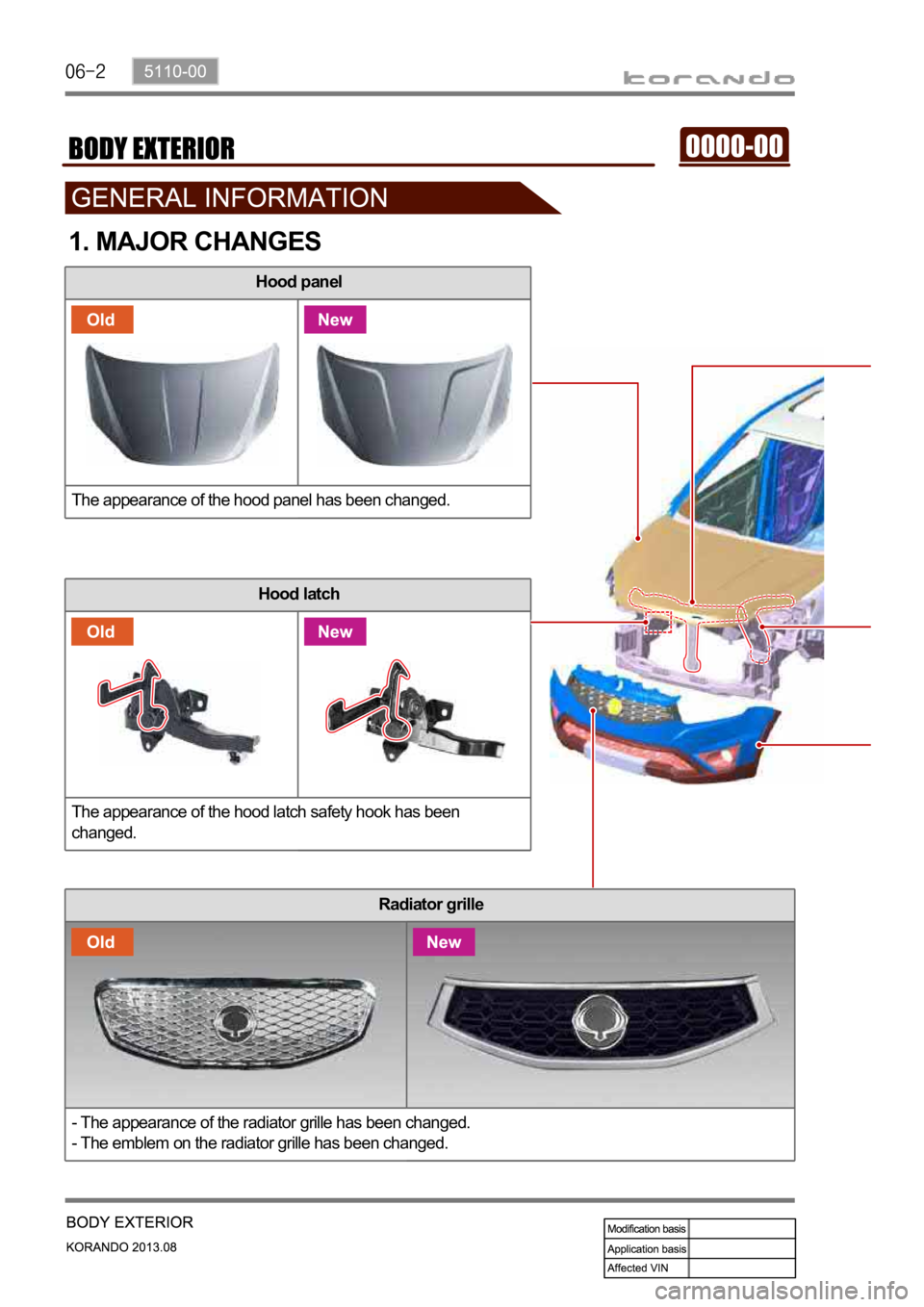

Radiator grille
- The appearance of the radiator grille has been changed.
- The emblem on the radiator grille has been changed.
1. MAJOR CHANGES
Hood panel
The appearance of the hood panel has been changed.
Hood latch
The appearance of the hood latch safety hook has been
changed.
