2013 MITSUBISHI LANCER SPORTBACK Owners Manual

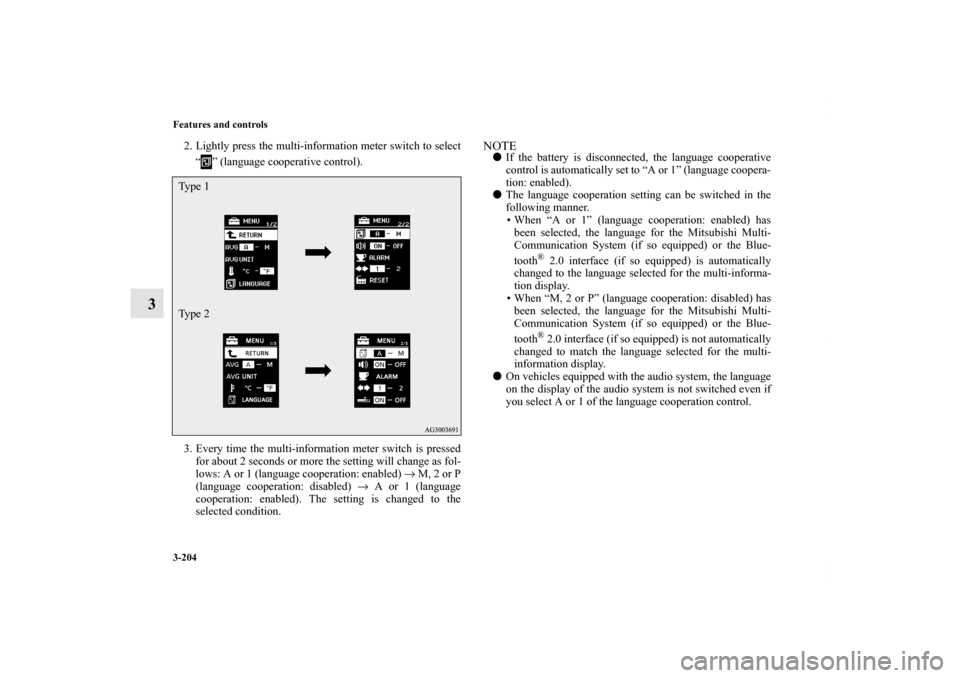

3-204 Features and controls
3
2. Lightly press the multi-information meter switch to select
“ ” (language cooperative control).
3. Every time the multi-information meter switch is pressed
for about 2 seconds or more the setting will change as fol-
lows: A or 1 (language cooperation: enabled) → M, 2 or P
(language cooperation: disabled) → A or 1 (language
cooperation: enabled). The setting is changed to the
selected condition.
NOTE
If the battery is disconnected, the language cooperative
control is automatically set to “A or 1” (language coopera-
tion: enabled).

The language cooperation setting can be switched in the
following manner.
• When “A or 1” (language cooperation: enabled) has
been selected, the language for the Mitsubishi Multi-
Communication System (if so equipped) or the Blue-
tooth
® 2.0 interface (if so equipped) is automatically
changed to the language selected for the multi-informa-
tion display.
• When “M, 2 or P” (language cooperation: disabled) has
been selected, the language for the Mitsubishi Multi-
Communication System (if so equipped) or the Blue-
tooth® 2.0 interface (if so equipped) is not automatically
changed to match the language selected for the multi-
information display.

On vehicles equipped with the audio system, the language
on the display of the audio system is not switched even if
you select A or 1 of the language cooperation control.
Ty p e 1
Ty p e 2BK0151000US.book 204 ページ ２０１２年３月２９日　木曜日　午後６時８分

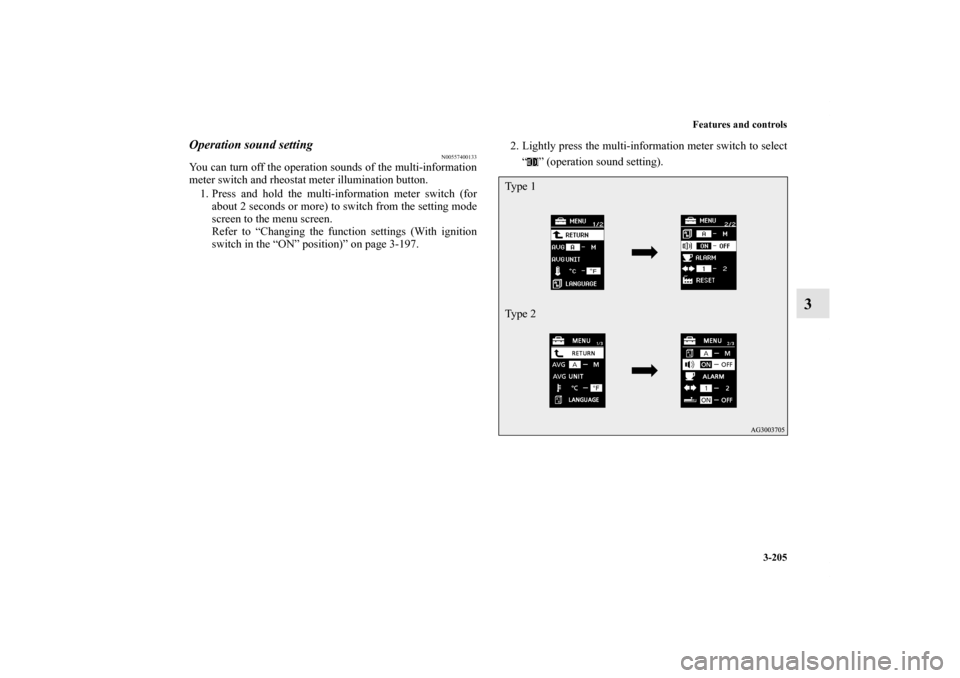

Features and controls
3-205
3
Operation sound setting
N00557400133
You can turn off the operation sounds of the multi-information
meter switch and rheostat meter illumination button.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-197.2. Lightly press the multi-information meter switch to select
“ ” (operation sound setting).
Ty p e 1
Ty p e 2
BK0151000US.book 205 ページ ２０１２年３月２９日　木曜日　午後６時８分

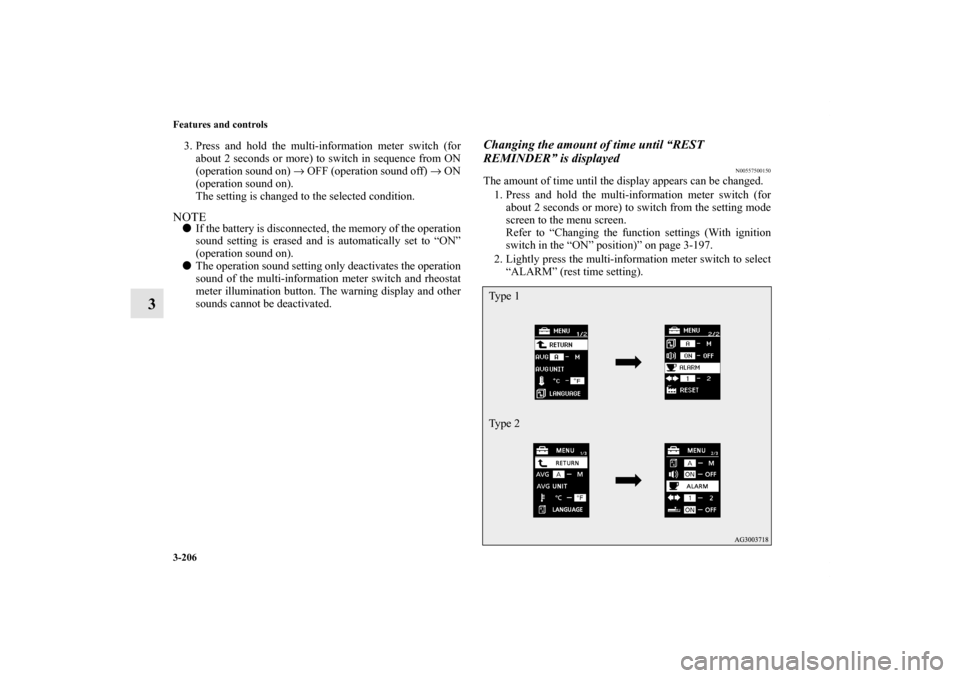

3-206 Features and controls
3
3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch in sequence from ON
(operation sound on) → OFF (operation sound off) → ON
(operation sound on).
The setting is changed to the selected condition.NOTE
If the battery is disconnected, the memory of the operation
sound setting is erased and is automatically set to “ON”
(operation sound on).

The operation sound setting only deactivates the operation
sound of the multi-information meter switch and rheostat
meter illumination button. The warning display and other
sounds cannot be deactivated.
Changing the amount of time until “REST
REMINDER” is displayed
N00557500150
The amount of time until the display appears can be changed.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-197.
2. Lightly press the multi-information meter switch to select
“ALARM” (rest time setting).Ty p e 1
Ty p e 2
BK0151000US.book 206 ページ ２０１２年３月２９日　木曜日　午後６時８分

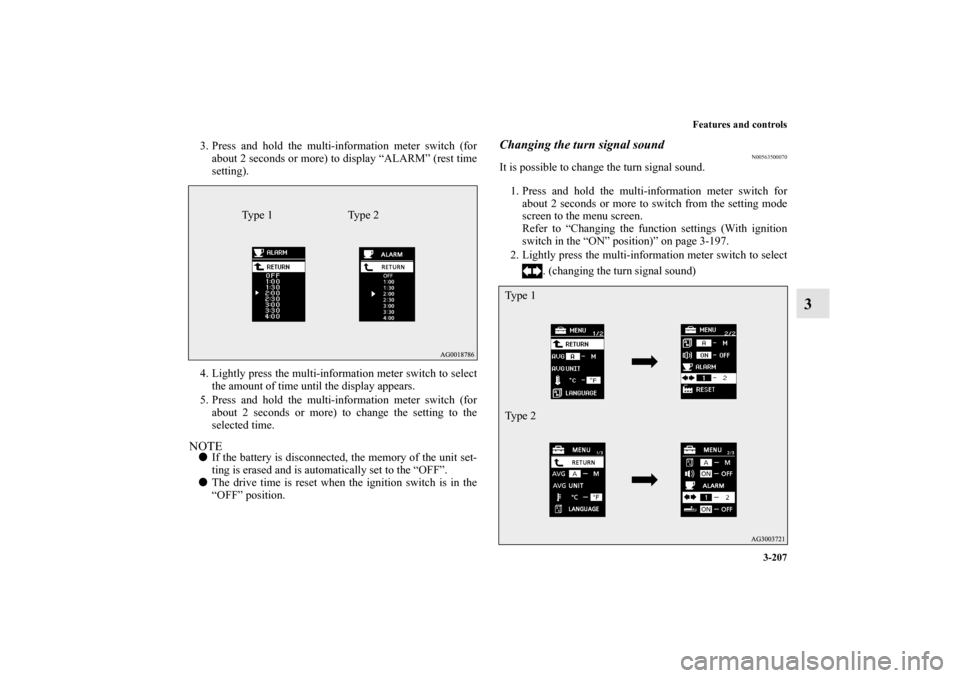

Features and controls
3-207
3
3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to display “ALARM” (rest time
setting).
4. Lightly press the multi-information meter switch to select
the amount of time until the display appears.
5. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change the setting to the
selected time.NOTE
If the battery is disconnected, the memory of the unit set-
ting is erased and is automatically set to the “OFF”.

The drive time is reset when the ignition switch is in the
“OFF” position.
Changing the turn signal sound
N00563500070
It is possible to change the turn signal sound.
1. Press and hold the multi-information meter switch for
about 2 seconds or more to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-197.
2. Lightly press the multi-information meter switch to select
. (changing the turn signal sound)
Type 1 Type 2
Ty p e 1
Ty p e 2
BK0151000US.book 207 ページ ２０１２年３月２９日　木曜日　午後６時８分

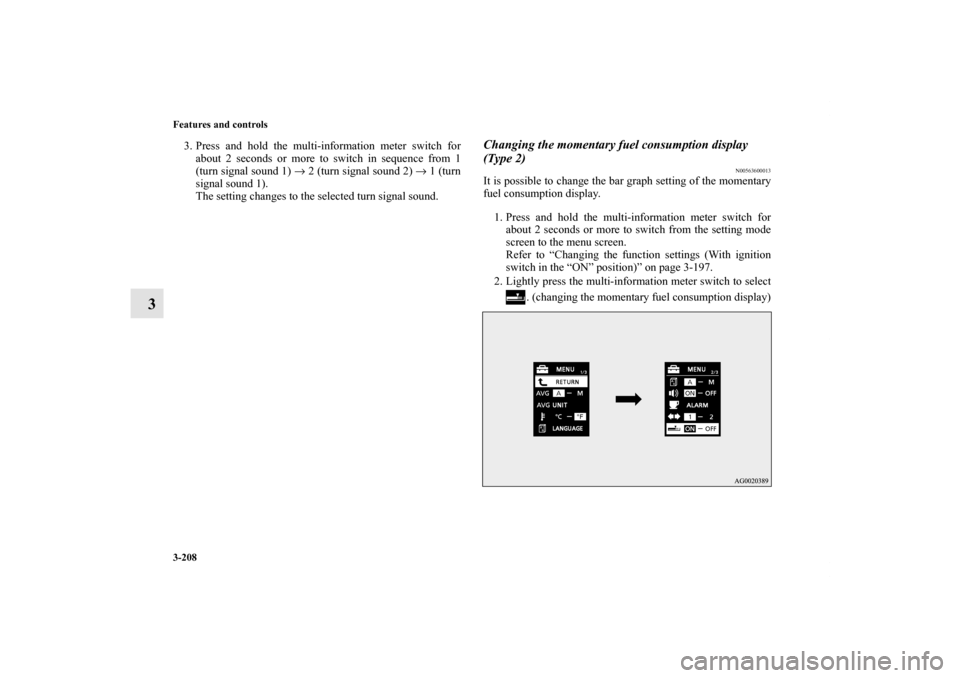

3-208 Features and controls
3
3. Press and hold the multi-information meter switch for
about 2 seconds or more to switch in sequence from 1
(turn signal sound 1) → 2 (turn signal sound 2) → 1 (turn
signal sound 1).
The setting changes to the selected turn signal sound.
Changing the momentary fuel consumption display
(Type 2)
N00563600013
It is possible to change the bar graph setting of the momentary
fuel consumption display.
1. Press and hold the multi-information meter switch for
about 2 seconds or more to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-197.
2. Lightly press the multi-information meter switch to select
. (changing the momentary fuel consumption display)
BK0151000US.book 208 ページ ２０１２年３月２９日　木曜日　午後６時８分

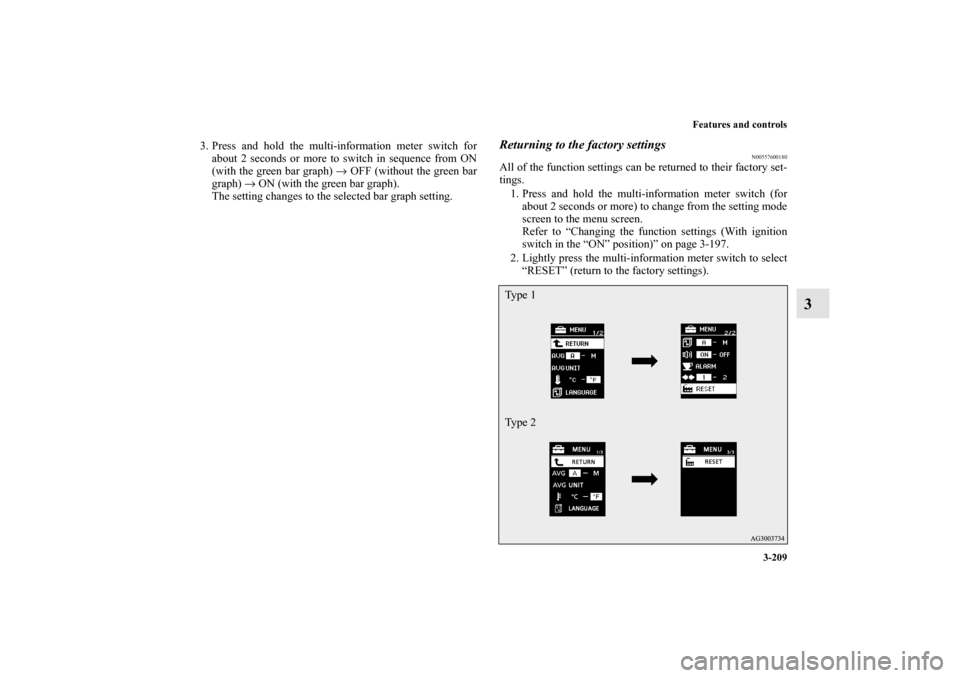

Features and controls
3-209
3
3. Press and hold the multi-information meter switch for
about 2 seconds or more to switch in sequence from ON
(with the green bar graph) → OFF (without the green bar
graph) → ON (with the green bar graph).
The setting changes to the selected bar graph setting.
Returning to the factory settings
N00557600180
All of the function settings can be returned to their factory set-
tings.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-197.
2. Lightly press the multi-information meter switch to select
“RESET” (return to the factory settings).Ty p e 1
Ty p e 2
BK0151000US.book 209 ページ ２０１２年３月２９日　木曜日　午後６時８分

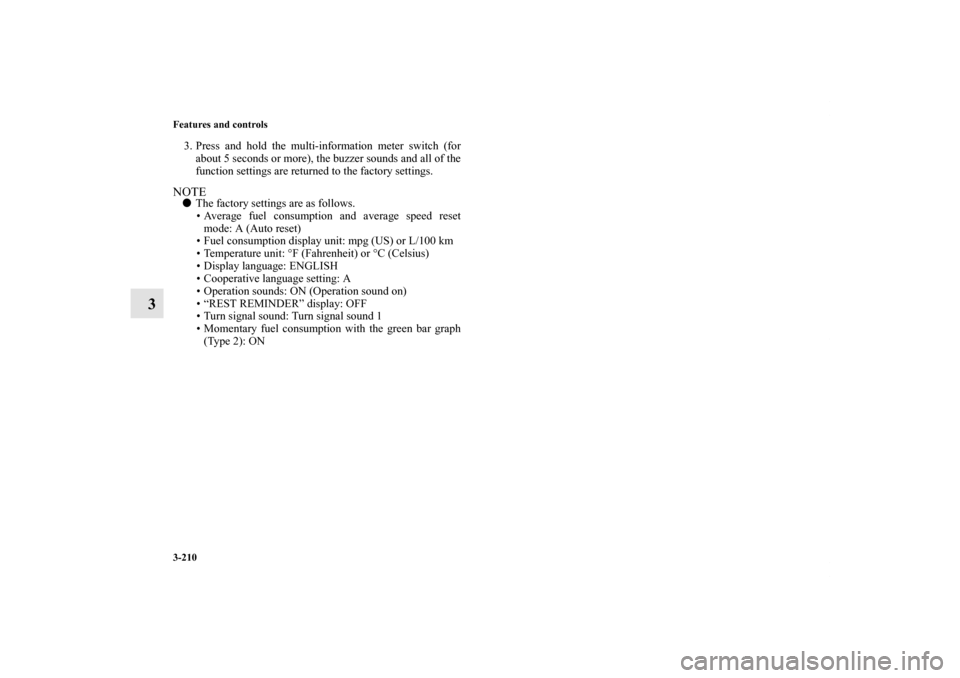

3-210 Features and controls
3
3. Press and hold the multi-information meter switch (for
about 5 seconds or more), the buzzer sounds and all of the
function settings are returned to the factory settings.NOTE
The factory settings are as follows.
• Average fuel consumption and average speed reset
mode: A (Auto reset)
• Fuel consumption display unit: mpg (US) or L/100 km
• Temperature unit: °F (Fahrenheit) or °C (Celsius)
• Display language: ENGLISH
• Cooperative language setting: A
• Operation sounds: ON (Operation sound on)
• “REST REMINDER” display: OFF
• Turn signal sound: Turn signal sound 1
• Momentary fuel consumption with the green bar graph
(Type 2): ON
BK0151000US.book 210 ページ ２０１２年３月２９日　木曜日　午後６時８分

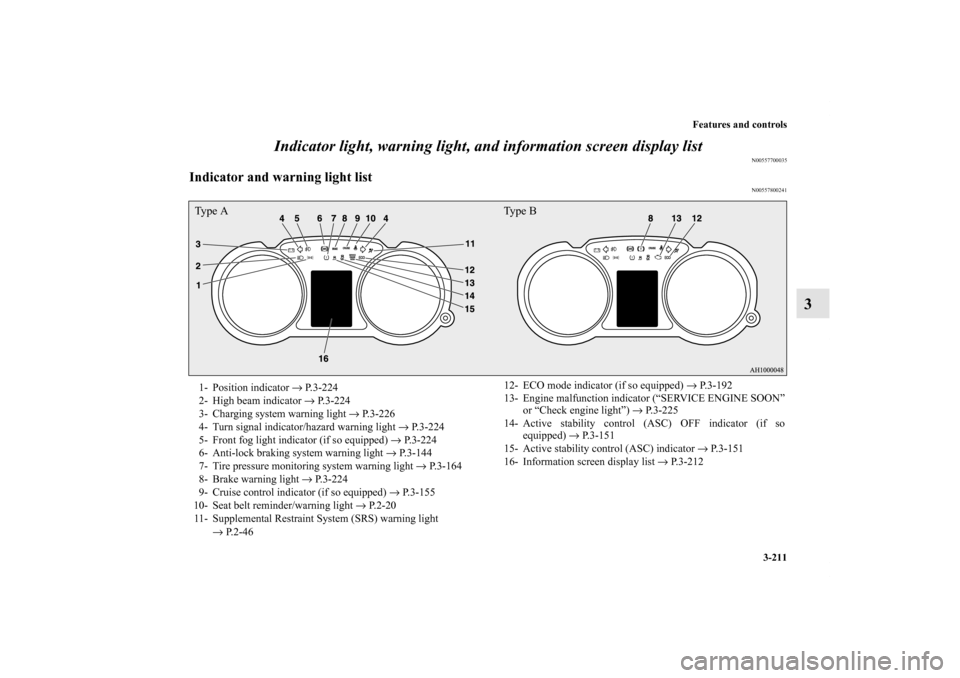

Features and controls
3-211
3 Indicator light, warning light, and information screen display list
N00557700035
Indicator and warning light list
N00557800241
Ty p e A Ty p e B1- Position indicator → P.3-224
2- High beam indicator → P.3-224
3- Charging system warning light → P.3-226
4- Turn signal indicator/hazard warning light → P.3-224
5- Front fog light indicator (if so equipped) → P.3-224
6- Anti-lock braking system warning light → P.3-144
7- Tire pressure monitoring system warning light → P.3-164
8- Brake warning light → P.3-224
9- Cruise control indicator (if so equipped) → P.3-155
10- Seat belt reminder/warning light → P.2-20
11- Supplemental Restraint System (SRS) warning light
→ P.2-4612- ECO mode indicator (if so equipped) → P. 3 - 1 9 2
13- Engine malfunction indicator (“SERVICE ENGINE SOON”
or “Check engine light”) → P.3-225
14- Active stability control (ASC) OFF indicator (if so
equipped) → P. 3 - 1 5 1
15- Active stability control (ASC) indicator → P.3-151
16- Information screen display list → P.3-212
BK0151000US.book 211 ページ ２０１２年３月２９日　木曜日　午後６時８分
