2013 MITSUBISHI LANCER SPORTBACK Owners Manual

3-236 Features and controls
3

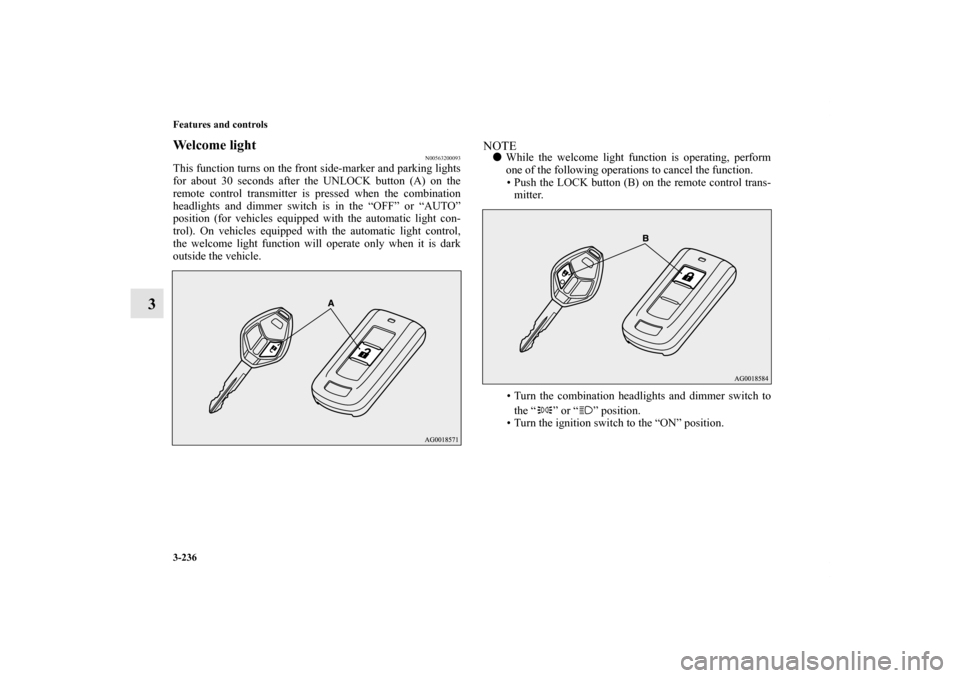

Welcome light
N00563200093
This function turns on the front side-marker and parking lights
for about 30 seconds after the UNLOCK button (A) on the
remote control transmitter is pressed when the combination
headlights and dimmer switch is in the “OFF” or “AUTO”
position (for vehicles equipped with the automatic light con-
trol). On vehicles equipped with the automatic light control,
the welcome light function will operate only when it is dark
outside the vehicle.
NOTE
While the welcome light function is operating, perform
one of the following operations to cancel the function.
• Push the LOCK button (B) on the remote control trans-
mitter.
• Turn the combination headlights and dimmer switch to
the “ ” or “ ” position.
• Turn the ignition switch to the “ON” position.
BK0151000US.book 236 ページ ２０１２年３月２９日　木曜日　午後６時８分

Features and controls
3-237
3

It is possible to modify functions as follows:
• The headlights can be set to come on in the low beam
setting.
• The welcome light function can be deactivated.
For details, consult a Mitsubishi Motors dealer.
On vehicles equipped with a Mitsubishi Multi-Communi-
cation System, screen operations can be used to make the
adjustment.
Refer to the separate owner’s manual for details.

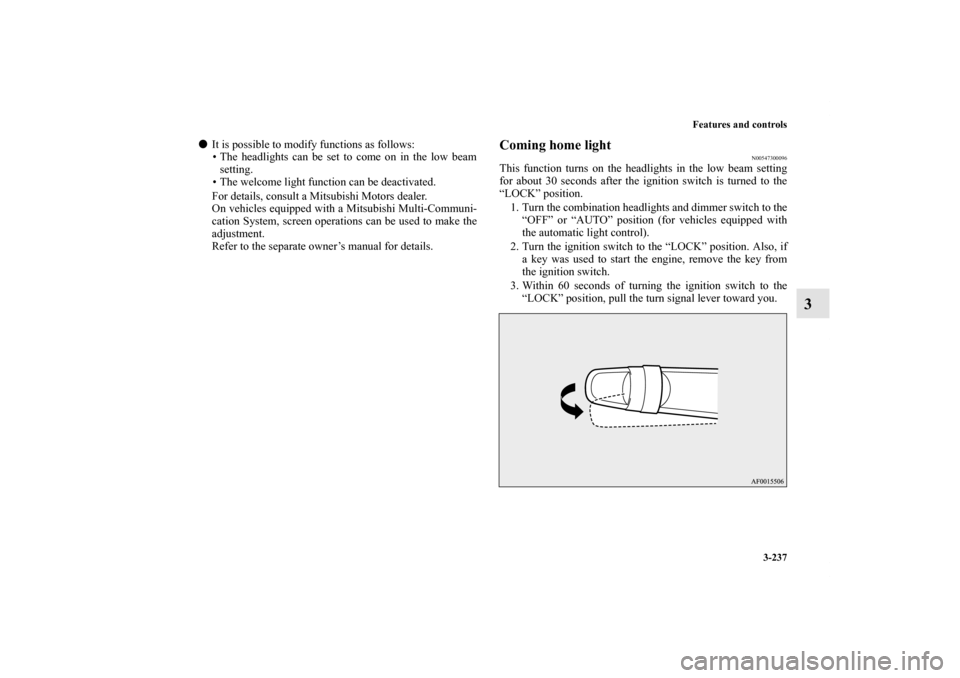

Coming home light
N00547300096
This function turns on the headlights in the low beam setting
for about 30 seconds after the ignition switch is turned to the
“LOCK” position.
1. Turn the combination headlights and dimmer switch to the
“OFF” or “AUTO” position (for vehicles equipped with
the automatic light control).
2. Turn the ignition switch to the “LOCK” position. Also, if
a key was used to start the engine, remove the key from
the ignition switch.
3. Within 60 seconds of turning the ignition switch to the
“LOCK” position, pull the turn signal lever toward you.
BK0151000US.book 237 ページ ２０１２年３月２９日　木曜日　午後６時８分

3-238 Features and controls
3
4. The headlights will come on in the low beam setting for
about 30 seconds. After the headlights go off, the head-
lights can be turned on again in the low beam setting for
about 30 seconds by pulling the turn signal lever toward
you within 60 seconds of turning the ignition switch to the
“LOCK” position. To turn on the headlights again after 60
seconds of turning the ignition switch to the “LOCK”
position, repeat the process from step 1.NOTE
While the coming home light function is operating, per-
form one of the following operations to cancel the func-
tion.
• Pull the turn signal lever toward you.
• Turn the combination headlights and dimmer switch to
the “ ” or “ ” position.
• Turn the ignition switch to the “ON” position.

It is possible to modify functions as follows:
• The time that the headlights remain on can be changed.
• The coming home light function can be deactivated.
For details, consult a Mitsubishi Motors dealer.
On vehicles equipped with a Mitsubishi Multi-Communi-
cation System, screen operations can be used to make the
adjustment.
Refer to the separate owner’s manual for details.

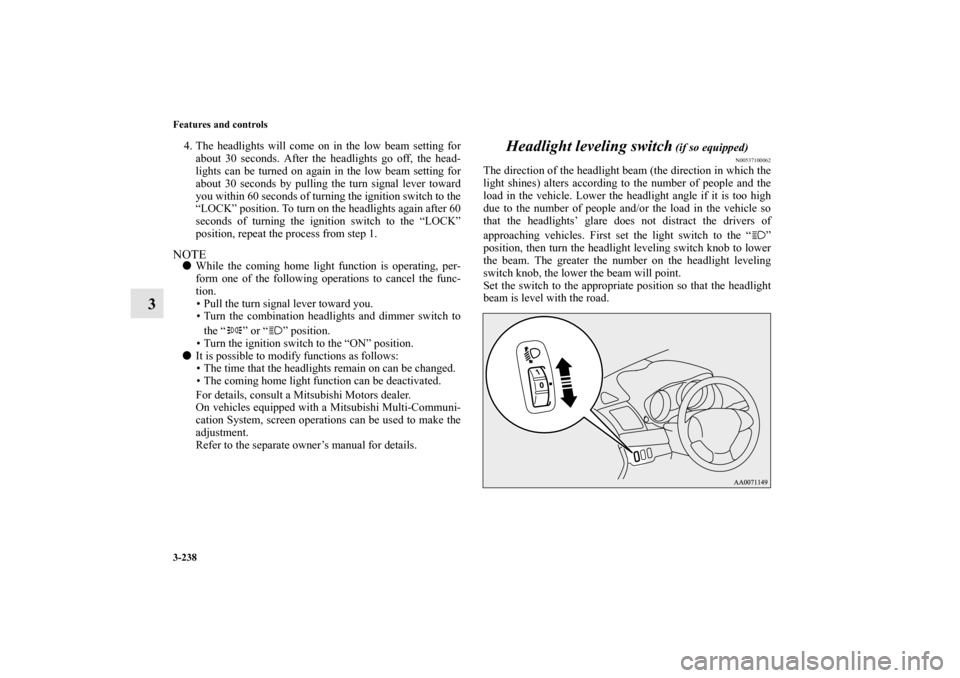

Headlight leveling switch
(if so equipped)
N00537100062
The direction of the headlight beam (the direction in which the
light shines) alters according to the number of people and the
load in the vehicle. Lower the headlight angle if it is too high
due to the number of people and/or the load in the vehicle so
that the headlights’ glare does not distract the drivers of
approaching vehicles. First set the light switch to the “ ”
position, then turn the headlight leveling switch knob to lower
the beam. The greater the number on the headlight leveling
switch knob, the lower the beam will point.
Set the switch to the appropriate position so that the headlight
beam is level with the road.
BK0151000US.book 238 ページ ２０１２年３月２９日　木曜日　午後６時８分

Features and controls
3-239
3
NOTE
Start adjusting when the knob is at the “0” position (when
the beam is at its highest).

Keep the knob in the “0” position except when using the
knob to lower the headlight beam angle.

Always return the knob to the “0” position when the load
is removed and the people have left the vehicle.

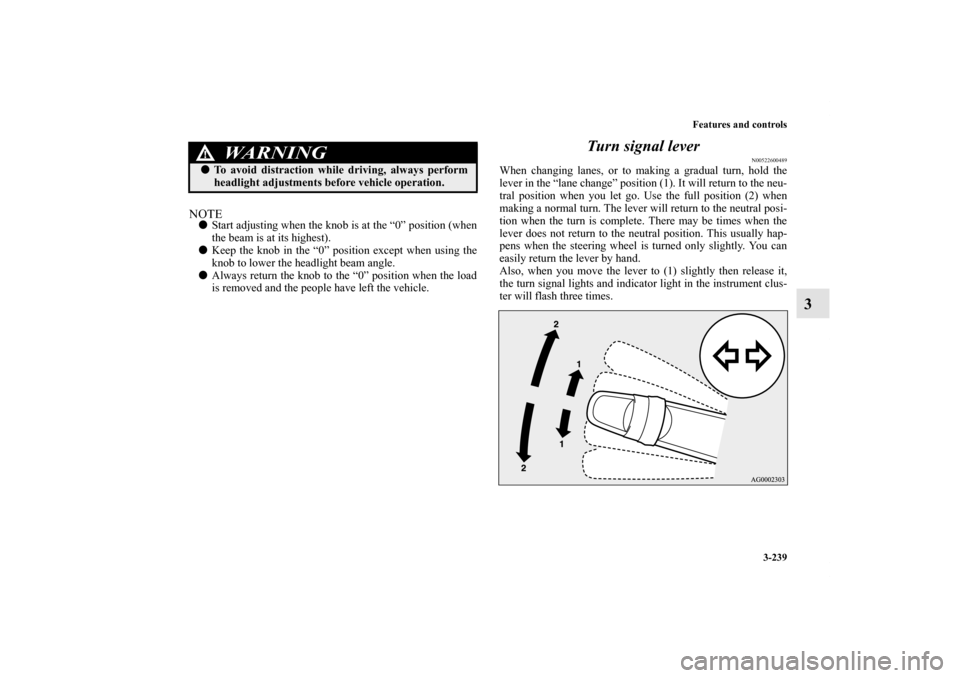

Turn signal lever
N00522600489
When changing lanes, or to making a gradual turn, hold the
lever in the “lane change” position (1). It will return to the neu-
tral position when you let go. Use the full position (2) when
making a normal turn. The lever will return to the neutral posi-
tion when the turn is complete. There may be times when the
lever does not return to the neutral position. This usually hap-
pens when the steering wheel is turned only slightly. You can
easily return the lever by hand.
Also, when you move the lever to (1) slightly then release it,
the turn signal lights and indicator light in the instrument clus-
ter will flash three times.
WA R N I N G
!
To avoid distraction while driving, always perform
headlight adjustments before vehicle operation.
BK0151000US.book 239 ページ ２０１２年３月２９日　木曜日　午後６時８分

3-240 Features and controls
3
NOTE
A light in the instrument panel flashes to show when the
front and rear turn signal lights are working properly.
If this light flashes faster than usual, check for a burned
out light bulb or malfunctioning connection.
If the panel light does not come on when the lever is
moved, check for a blown fuse or a burned out bulb in the
panel.
Have the vehicle inspected by an authorized Mitsubishi
Motors dealer or a repair facility of your choice.

It is possible to modify functions as follows:
• Deactivate the turn signal light 3-flash function for lane
changes.
• Adjust the time required to operate the lever for the 3-
flash function.
See your authorized Mitsubishi Motors dealer for details.
For vehicles equipped with the Mitsubishi Multi-Commu-
nication System, adjustments can be made using screen
operations. For further details, refer to the separate
owner’s manual.

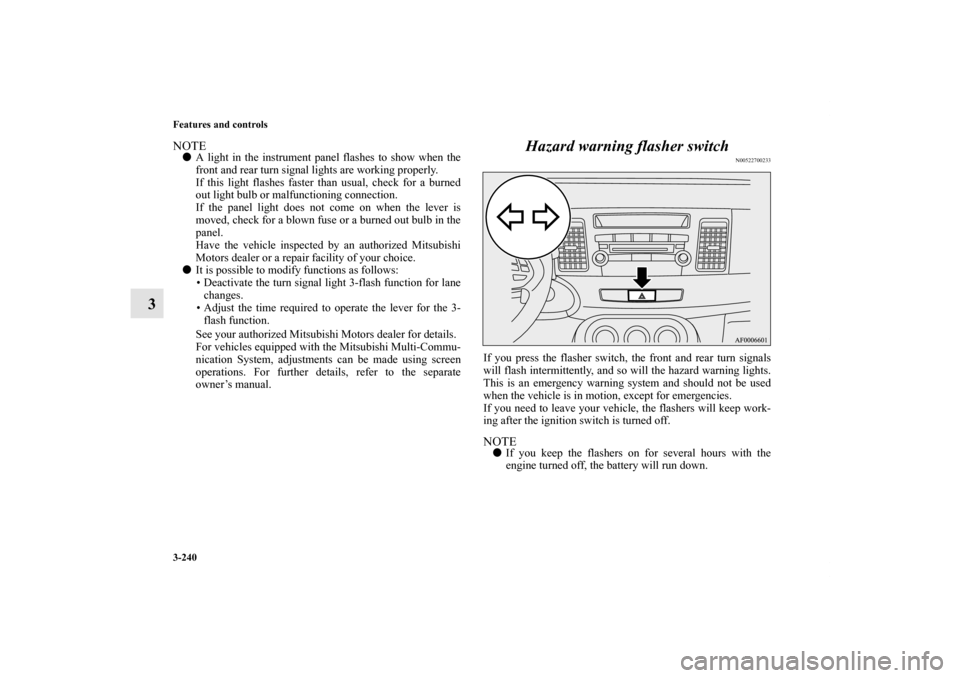

Hazard warning flasher switch
N00522700233
If you press the flasher switch, the front and rear turn signals
will flash intermittently, and so will the hazard warning lights.
This is an emergency warning system and should not be used
when the vehicle is in motion, except for emergencies.
If you need to leave your vehicle, the flashers will keep work-
ing after the ignition switch is turned off. NOTE
If you keep the flashers on for several hours with the
engine turned off, the battery will run down.
BK0151000US.book 240 ページ ２０１２年３月２９日　木曜日　午後６時８分

Features and controls
3-241

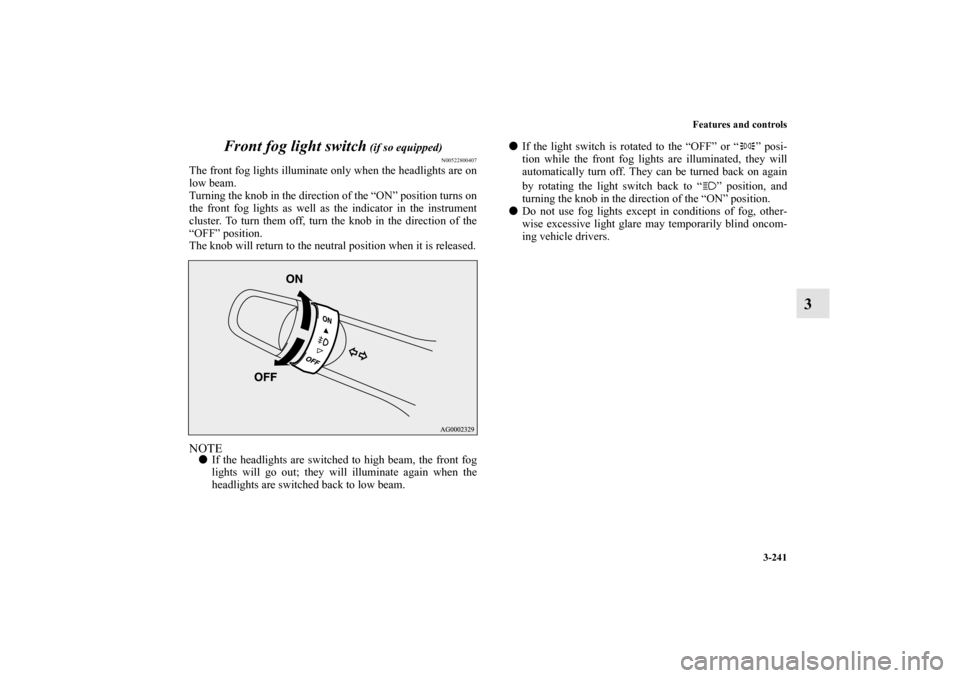

3 Front fog light switch
(if so equipped)
N00522800407
The front fog lights illuminate only when the headlights are on
low beam.
Turning the knob in the direction of the “ON” position turns on
the front fog lights as well as the indicator in the instrument
cluster. To turn them off, turn the knob in the direction of the
“OFF” position.
The knob will return to the neutral position when it is released.NOTE
If the headlights are switched to high beam, the front fog
lights will go out; they will illuminate again when the
headlights are switched back to low beam.
If the light switch is rotated to the “OFF” or “ ” posi-
tion while the front fog lights are illuminated, they will
automatically turn off. They can be turned back on again
by rotating the light switch back to “ ” position, and
turning the knob in the direction of the “ON” position.

Do not use fog lights except in conditions of fog, other-
wise excessive light glare may temporarily blind oncom-
ing vehicle drivers.
BK0151000US.book 241 ページ ２０１２年３月２９日　木曜日　午後６時８分

3-242 Features and controls

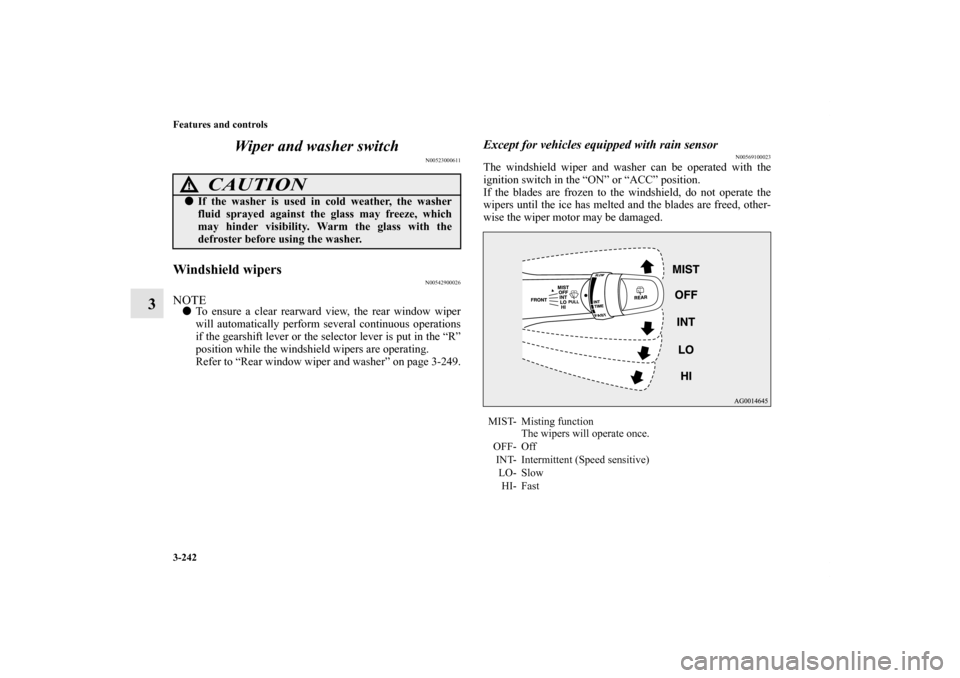

3Wiper and washer switch
N00523000611
Windshield wipers
N00542900026
NOTE
To ensure a clear rearward view, the rear window wiper
will automatically perform several continuous operations
if the gearshift lever or the selector lever is put in the “R”
position while the windshield wipers are operating.
Refer to “Rear window wiper and washer” on page 3-249.
Except for vehicles equipped with rain sensor
N00569100023
The windshield wiper and washer can be operated with the
ignition switch in the “ON” or “ACC” position.
If the blades are frozen to the windshield, do not operate the
wipers until the ice has melted and the blades are freed, other-
wise the wiper motor may be damaged.
CAUTION
!
If the washer is used in cold weather, the washer
fluid sprayed against the glass may freeze, which
may hinder visibility. Warm the glass with the
defroster before using the washer.
MIST- Misting function
The wipers will operate once.
OFF- Off
INT- Intermittent (Speed sensitive)
LO- Slow
HI- Fast
BK0151000US.book 242 ページ ２０１２年３月２９日　木曜日　午後６時８分

Features and controls
3-243
3

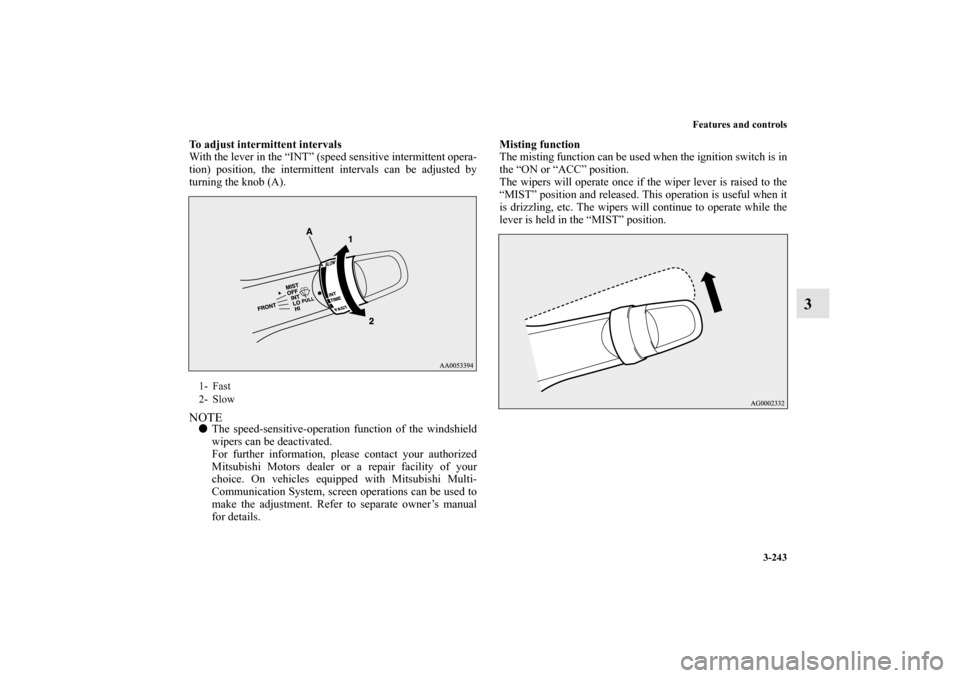

To adjust intermittent intervals
With the lever in the “INT” (speed sensitive intermittent opera-
tion) position, the intermittent intervals can be adjusted by
turning the knob (A). NOTE
The speed-sensitive-operation function of the windshield
wipers can be deactivated.
For further information, please contact your authorized
Mitsubishi Motors dealer or a repair facility of your
choice. On vehicles equipped with Mitsubishi Multi-
Communication System, screen operations can be used to
make the adjustment. Refer to separate owner’s manual
for details.Misting function
The misting function can be used when the ignition switch is in
the “ON or “ACC” position.
The wipers will operate once if the wiper lever is raised to the
“MIST” position and released. This operation is useful when it
is drizzling, etc. The wipers will continue to operate while the
lever is held in the “MIST” position.1- Fast
2- Slow
BK0151000US.book 243 ページ ２０１２年３月２９日　木曜日　午後６時８分
