2013 MITSUBISHI LANCER SPORTBACK Owners Manual

7-12 Vehicle care and maintenance
7

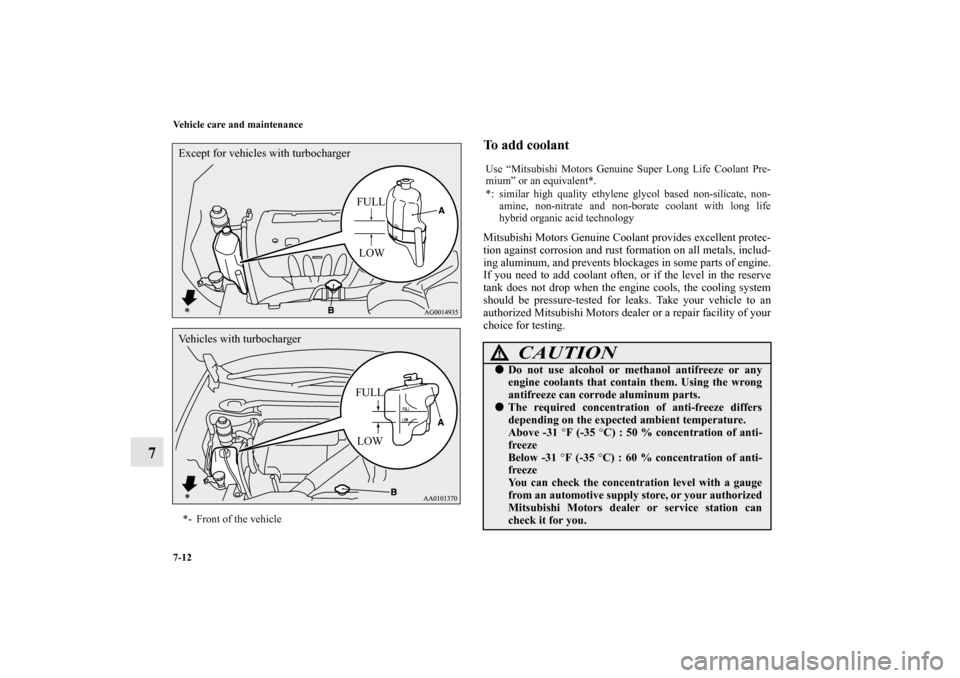

To add coolant Mitsubishi Motors Genuine Coolant provides excellent protec-
tion against corrosion and rust formation on all metals, includ-
ing aluminum, and prevents blockages in some parts of engine.
If you need to add coolant often, or if the level in the reserve
tank does not drop when the engine cools, the cooling system
should be pressure-tested for leaks. Take your vehicle to an
authorized Mitsubishi Motors dealer or a repair facility of your
choice for testing.
*- Front of the vehicle
FULL
LOW Except for vehicles with turbocharger
Vehicles with turbocharger
FULL
LOW
Use “Mitsubishi Motors Genuine Super Long Life Coolant Pre-
mium” or an equivalent*.
*: similar high quality ethylene glycol based non-silicate, non-
amine, non-nitrate and non-borate coolant with long life
hybrid organic acid technology
CAUTION
!
Do not use alcohol or methanol antifreeze or any
engine coolants that contain them. Using the wrong
antifreeze can corrode aluminum parts.
The required concentration of anti-freeze differs
depending on the expected ambient temperature.
Above -31 °F (-35 °C) : 50 % concentration of anti-
freeze
Below -31 °F (-35 °C) : 60 % concentration of anti-
freeze
You can check the concentration level with a gauge
from an automotive supply store, or your authorized
Mitsubishi Motors dealer or service station can
check it for you.
BK0151000US.book 12 ページ ２０１２年３月２９日　木曜日　午後６時８分

Vehicle care and maintenance
7-13
7

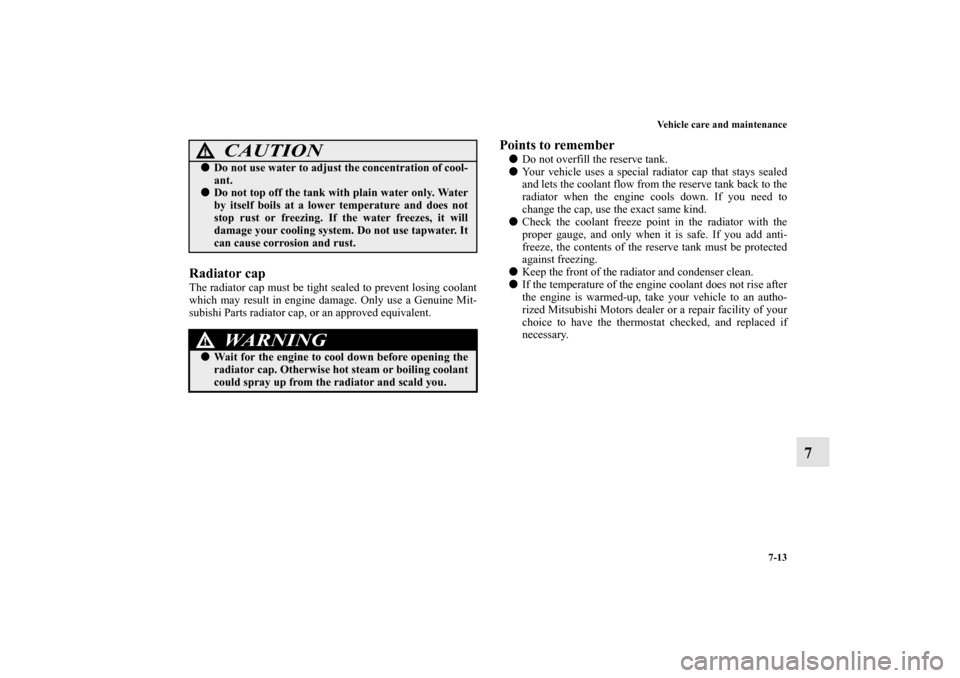

Radiator capThe radiator cap must be tight sealed to prevent losing coolant
which may result in engine damage. Only use a Genuine Mit-
subishi Parts radiator cap, or an approved equivalent.
Points to remember
Do not overfill the reserve tank.

Your vehicle uses a special radiator cap that stays sealed
and lets the coolant flow from the reserve tank back to the
radiator when the engine cools down. If you need to
change the cap, use the exact same kind.

Check the coolant freeze point in the radiator with the
proper gauge, and only when it is safe. If you add anti-
freeze, the contents of the reserve tank must be protected
against freezing.

Keep the front of the radiator and condenser clean.

If the temperature of the engine coolant does not rise after
the engine is warmed-up, take your vehicle to an autho-
rized Mitsubishi Motors dealer or a repair facility of your
choice to have the thermostat checked, and replaced if
necessary.

Do not use water to adjust the concentration of cool-
ant.
Do not top off the tank with plain water only. Water
by itself boils at a lower temperature and does not
stop rust or freezing. If the water freezes, it will
damage your cooling system. Do not use tapwater. It
can cause corrosion and rust.
WA R N I N G
!
Wait for the engine to cool down before opening the
radiator cap. Otherwise hot steam or boiling coolant
could spray up from the radiator and scald you.
CAUTION
!
BK0151000US.book 13 ページ ２０１２年３月２９日　木曜日　午後６時８分

7-14 Vehicle care and maintenance

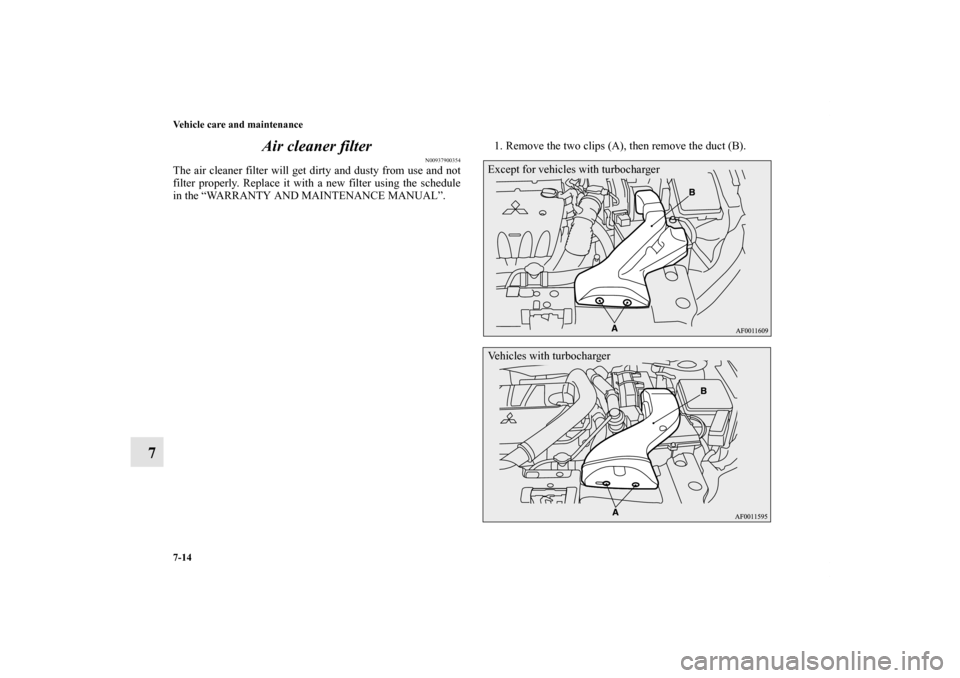

7Air cleaner filter
N00937900354
The air cleaner filter will get dirty and dusty from use and not
filter properly. Replace it with a new filter using the schedule
in the “WARRANTY AND MAINTENANCE MANUAL”. 1. Remove the two clips (A), then remove the duct (B).
Except for vehicles with turbochargerVehicles with turbocharger
BK0151000US.book 14 ページ ２０１２年３月２９日　木曜日　午後６時８分

Vehicle care and maintenance
7-15
7

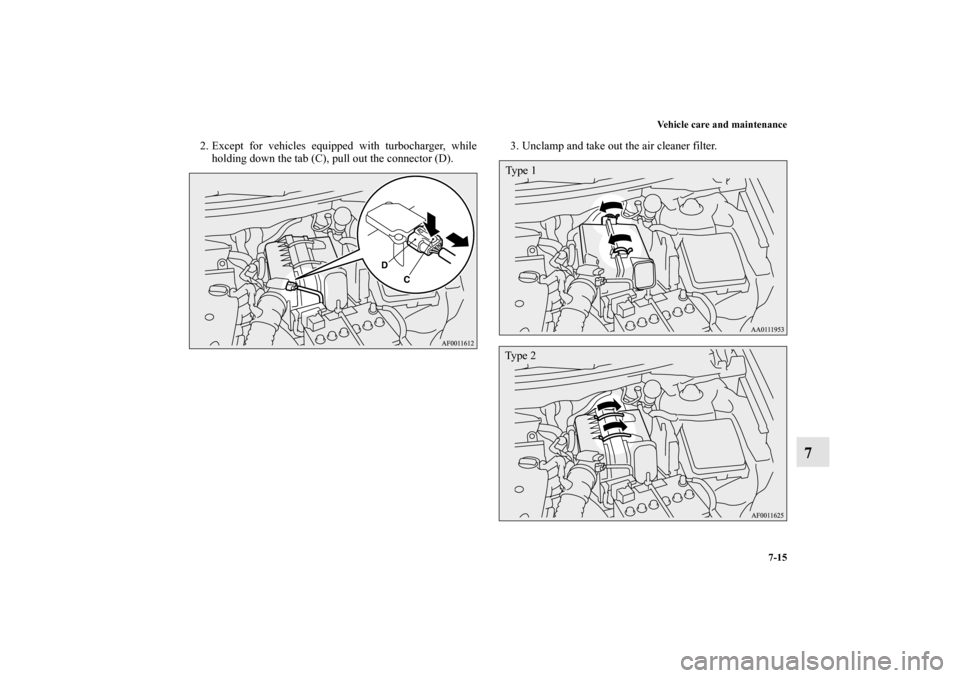

2. Except for vehicles equipped with turbocharger, while
holding down the tab (C), pull out the connector (D).3. Unclamp and take out the air cleaner filter.
Ty p e 1Ty p e 2
BK0151000US.book 15 ページ ２０１２年３月２９日　木曜日　午後６時８分

7-16 Vehicle care and maintenance
7

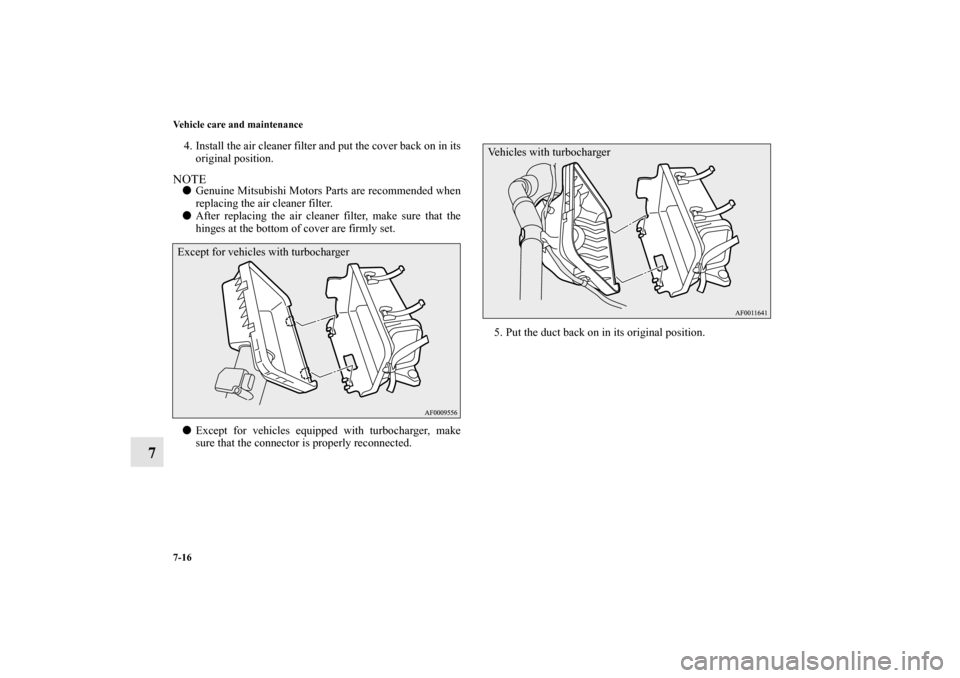

4. Install the air cleaner filter and put the cover back on in its
original position.NOTE
Genuine Mitsubishi Motors Parts are recommended when
replacing the air cleaner filter.

After replacing the air cleaner filter, make sure that the
hinges at the bottom of cover are firmly set.

Except for vehicles equipped with turbocharger, make
sure that the connector is properly reconnected.5. Put the duct back on in its original position.Except for vehicles with turbocharger
Vehicles with turbocharger
BK0151000US.book 16 ページ ２０１２年３月２９日　木曜日　午後６時８分

Vehicle care and maintenance
7-17

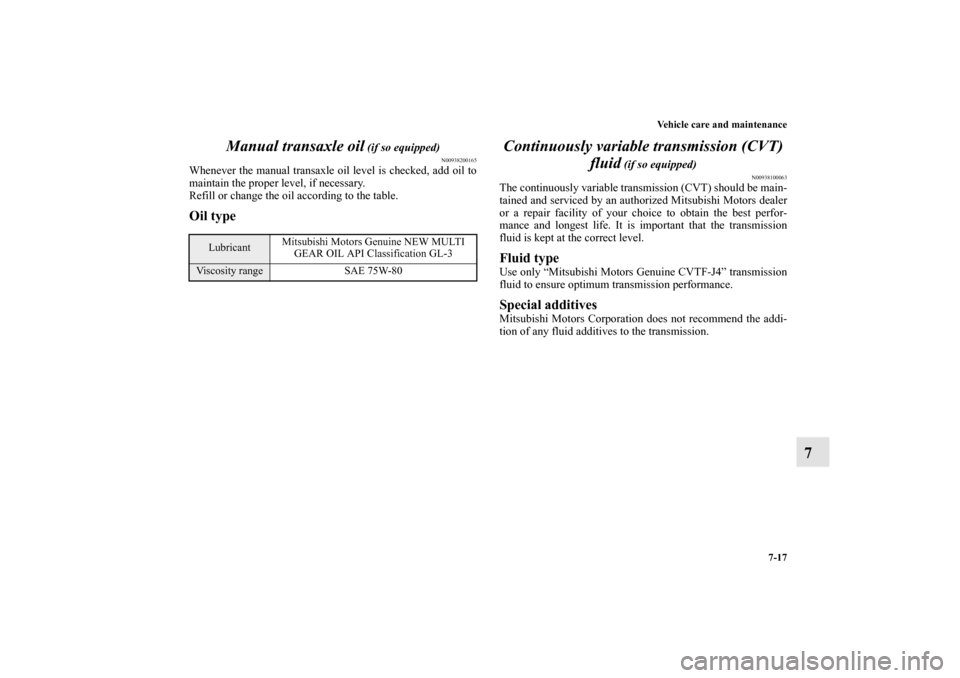

7 Manual transaxle oil
(if so equipped)
N00938200165
Whenever the manual transaxle oil level is checked, add oil to
maintain the proper level, if necessary.
Refill or change the oil according to the table.Oil type
Continuously variable transmission (CVT)
fluid
(if so equipped)
N00938100063
The continuously variable transmission (CVT) should be main-
tained and serviced by an authorized Mitsubishi Motors dealer
or a repair facility of your choice to obtain the best perfor-
mance and longest life. It is important that the transmission
fluid is kept at the correct level. Fluid typeUse only “Mitsubishi Motors Genuine CVTF-J4” transmission
fluid to ensure optimum transmission performance. Special additives Mitsubishi Motors Corporation does not recommend the addi-
tion of any fluid additives to the transmission.
LubricantMitsubishi Motors Genuine NEW MULTI
GEAR OIL API Classification GL-3
Viscosity range SAE 75W-80
BK0151000US.book 17 ページ ２０１２年３月２９日　木曜日　午後６時８分

7-18 Vehicle care and maintenance

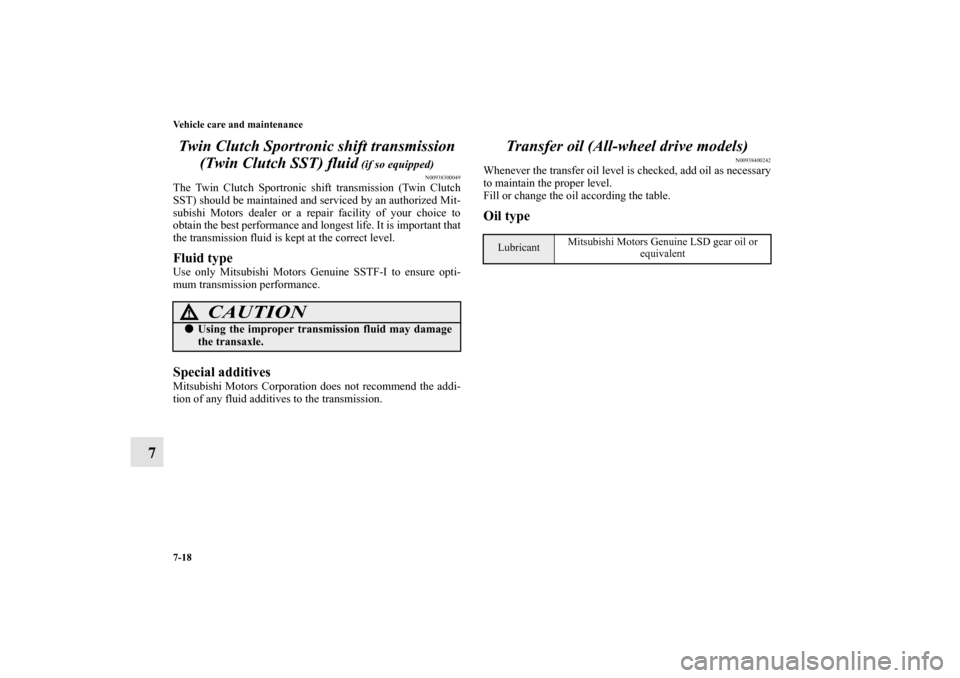

7Twin Clutch Sportronic shift transmission
(Twin Clutch SST) fluid
(if so equipped)
N00938300049
The Twin Clutch Sportronic shift transmission (Twin Clutch
SST) should be maintained and serviced by an authorized Mit-
subishi Motors dealer or a repair facility of your choice to
obtain the best performance and longest life. It is important that
the transmission fluid is kept at the correct level.Fluid typeUse only Mitsubishi Motors Genuine SSTF-I to ensure opti-
mum transmission performance.Special additivesMitsubishi Motors Corporation does not recommend the addi-
tion of any fluid additives to the transmission.
Transfer oil (All-wheel drive models)
N00938400242
Whenever the transfer oil level is checked, add oil as necessary
to maintain the proper level.
Fill or change the oil according the table.Oil type
CAUTION
!
Using the improper transmission fluid may damage
the transaxle.
LubricantMitsubishi Motors Genuine LSD gear oil or
equivalent
BK0151000US.book 18 ページ ２０１２年３月２９日　木曜日　午後６時８分

Vehicle care and maintenance
7-19

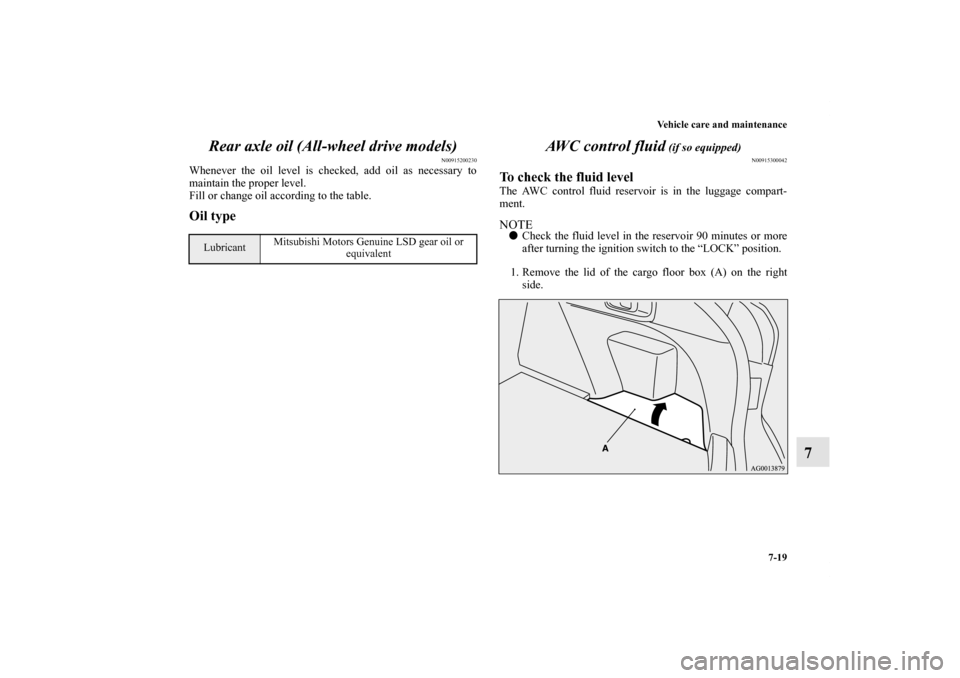

7 Rear axle oil (All-wheel drive models)
N00915200230
Whenever the oil level is checked, add oil as necessary to
maintain the proper level.
Fill or change oil according to the table.Oil type
AW C c o n t r o l f l u i d
(if so equipped)
N00915300042
To check the fluid levelThe AWC control fluid reservoir is in the luggage compart-
ment.NOTE
Check the fluid level in the reservoir 90 minutes or more
after turning the ignition switch to the “LOCK” position.
1. Remove the lid of the cargo floor box (A) on the right
side.
LubricantMitsubishi Motors Genuine LSD gear oil or
equivalent
