7-60 Vehicle care and maintenance
7

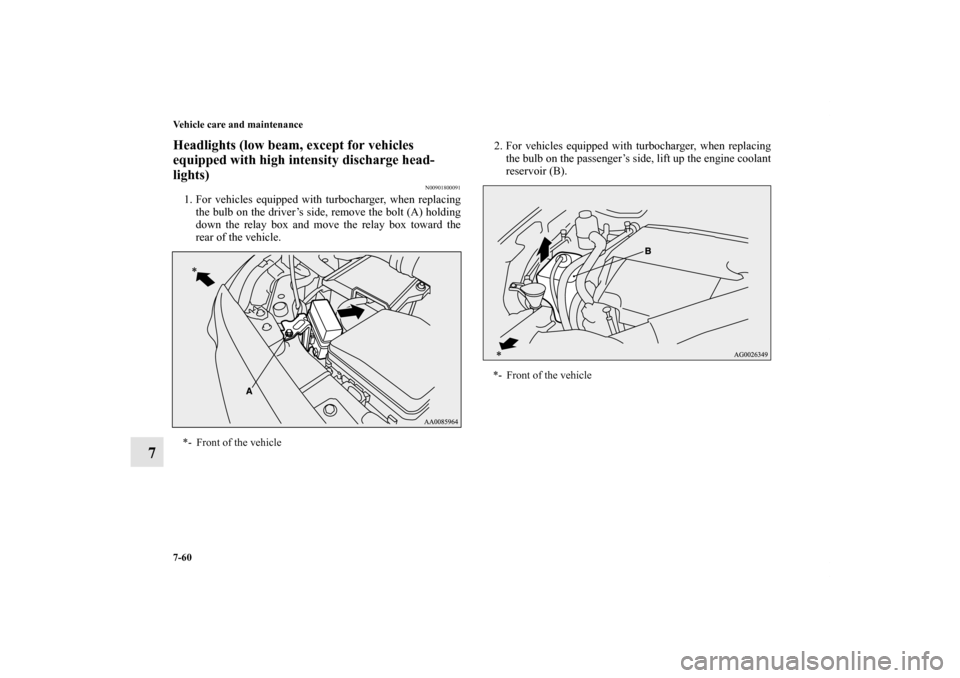

Headlights (low beam, except for vehicles
equipped with high intensity discharge head-
lights)
N00901800091
1. For vehicles equipped with turbocharger, when replacing
the bulb on the driver’s side, remove the bolt (A) holding
down the relay box and move the relay box toward the
rear of the vehicle.2. For vehicles equipped with turbocharger, when replacing
the bulb on the passenger’s side, lift up the engine coolant
reservoir (B).*- Front of the vehicle
*- Front of the vehicle
BK0151000US.book 60 ページ ２０１２年３月２９日　木曜日　午後６時８分

Vehicle care and maintenance
7-61
7

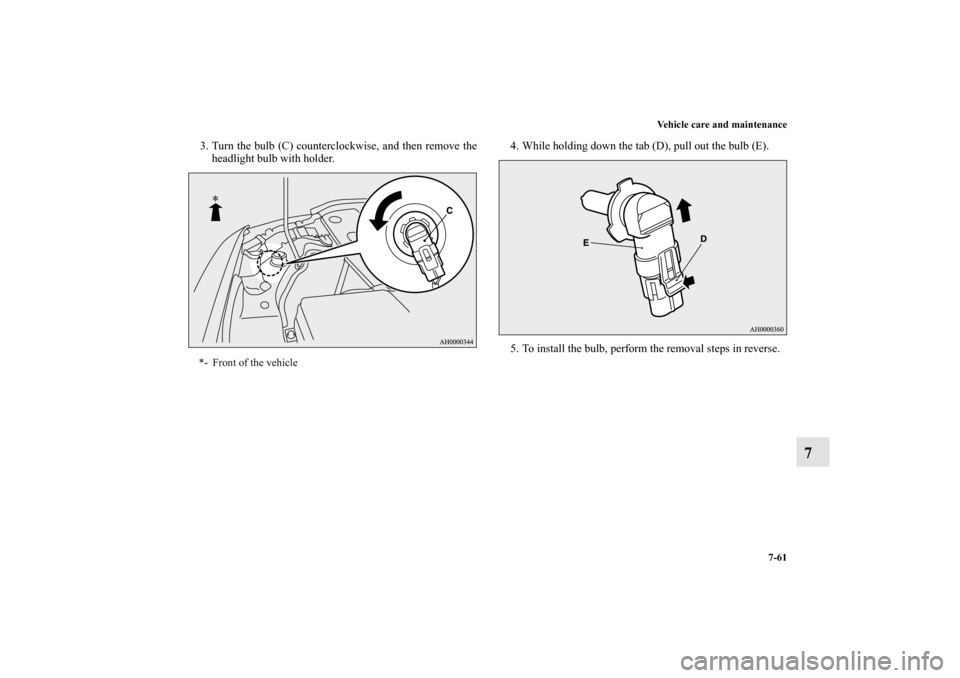

3. Turn the bulb (C) counterclockwise, and then remove the
headlight bulb with holder.4. While holding down the tab (D), pull out the bulb (E).
5. To install the bulb, perform the removal steps in reverse.*- Front of the vehicle
BK0151000US.book 61 ページ ２０１２年３月２９日　木曜日　午後６時８分

7-62 Vehicle care and maintenance
7

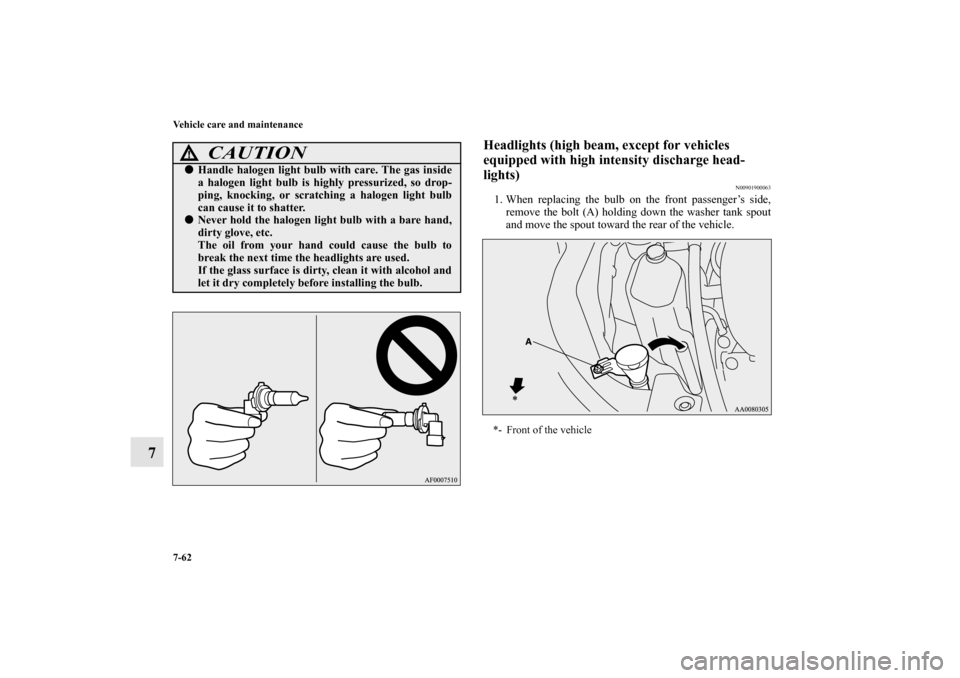

Headlights (high beam, except for vehicles
equipped with high intensity discharge head-
lights)
N00901900063
1. When replacing the bulb on the front passenger’s side,
remove the bolt (A) holding down the washer tank spout
and move the spout toward the rear of the vehicle.
CAUTION
!
Handle halogen light bulb with care. The gas inside
a halogen light bulb is highly pressurized, so drop-
ping, knocking, or scratching a halogen light bulb
can cause it to shatter.
Never hold the halogen light bulb with a bare hand,
dirty glove, etc.
The oil from your hand could cause the bulb to
break the next time the headlights are used.
If the glass surface is dirty, clean it with alcohol and
let it dry completely before installing the bulb.
*- Front of the vehicle
BK0151000US.book 62 ページ ２０１２年３月２９日　木曜日　午後６時８分

Vehicle care and maintenance
7-63
7

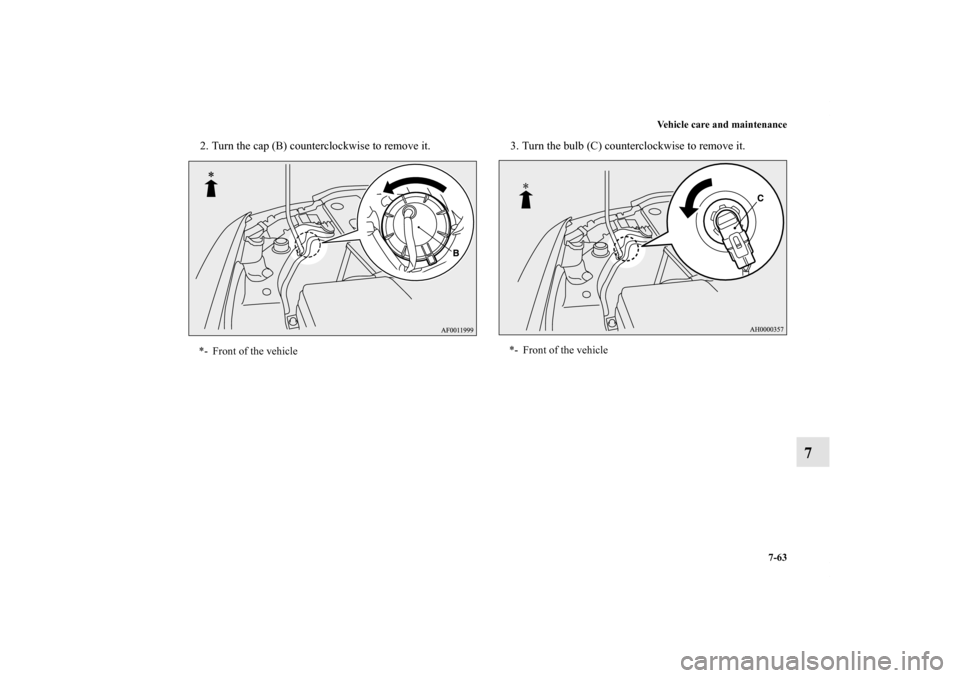

2. Turn the cap (B) counterclockwise to remove it. 3. Turn the bulb (C) counterclockwise to remove it.*- Front of the vehicle
*- Front of the vehicle
BK0151000US.book 63 ページ ２０１２年３月２９日　木曜日　午後６時８分

7-64 Vehicle care and maintenance
7

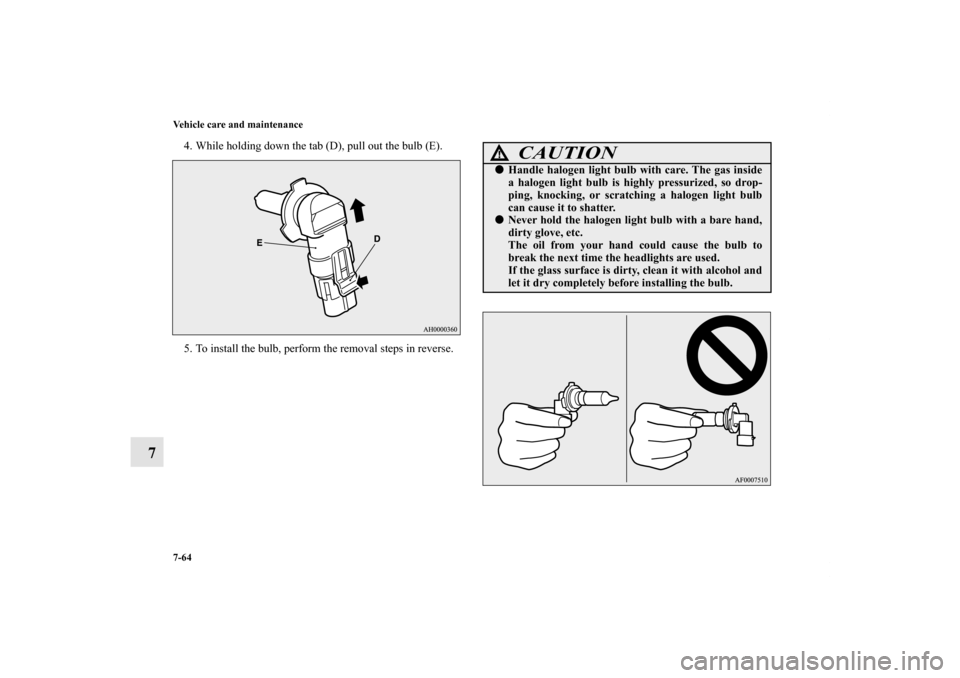

4. While holding down the tab (D), pull out the bulb (E).
5. To install the bulb, perform the removal steps in reverse.
CAUTION
!
Handle halogen light bulb with care. The gas inside
a halogen light bulb is highly pressurized, so drop-
ping, knocking, or scratching a halogen light bulb
can cause it to shatter.
Never hold the halogen light bulb with a bare hand,
dirty glove, etc.
The oil from your hand could cause the bulb to
break the next time the headlights are used.
If the glass surface is dirty, clean it with alcohol and
let it dry completely before installing the bulb.
BK0151000US.book 64 ページ ２０１２年３月２９日　木曜日　午後６時８分

Vehicle care and maintenance
7-65
7

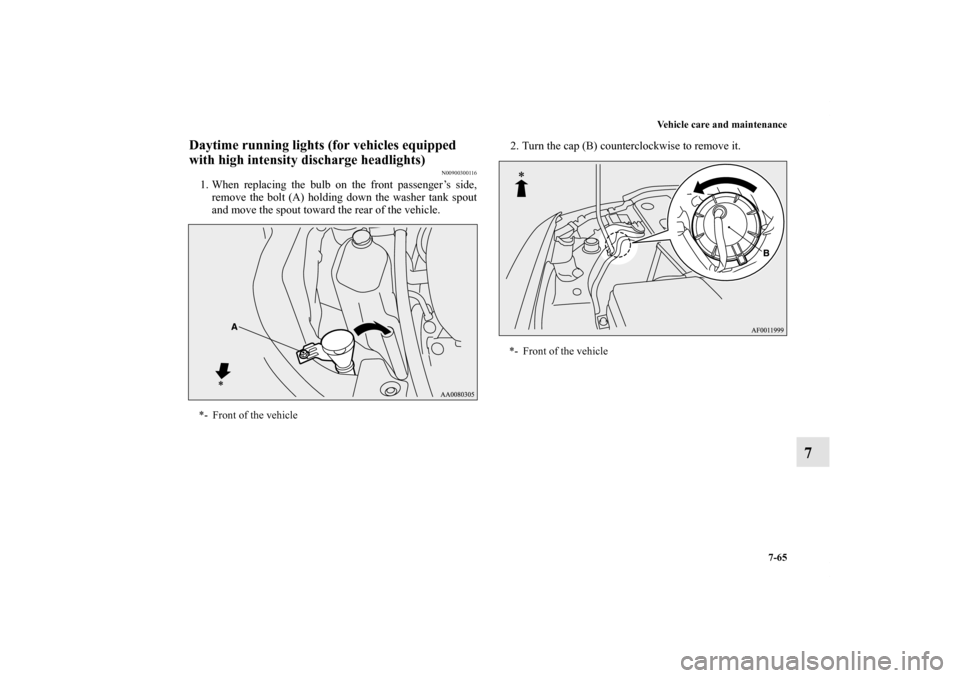

Daytime running lights (for vehicles equipped
with high intensity discharge headlights)
N00900300116
1. When replacing the bulb on the front passenger’s side,
remove the bolt (A) holding down the washer tank spout
and move the spout toward the rear of the vehicle.2. Turn the cap (B) counterclockwise to remove it.*- Front of the vehicle
*- Front of the vehicle
BK0151000US.book 65 ページ ２０１２年３月２９日　木曜日　午後６時８分

7-66 Vehicle care and maintenance
7

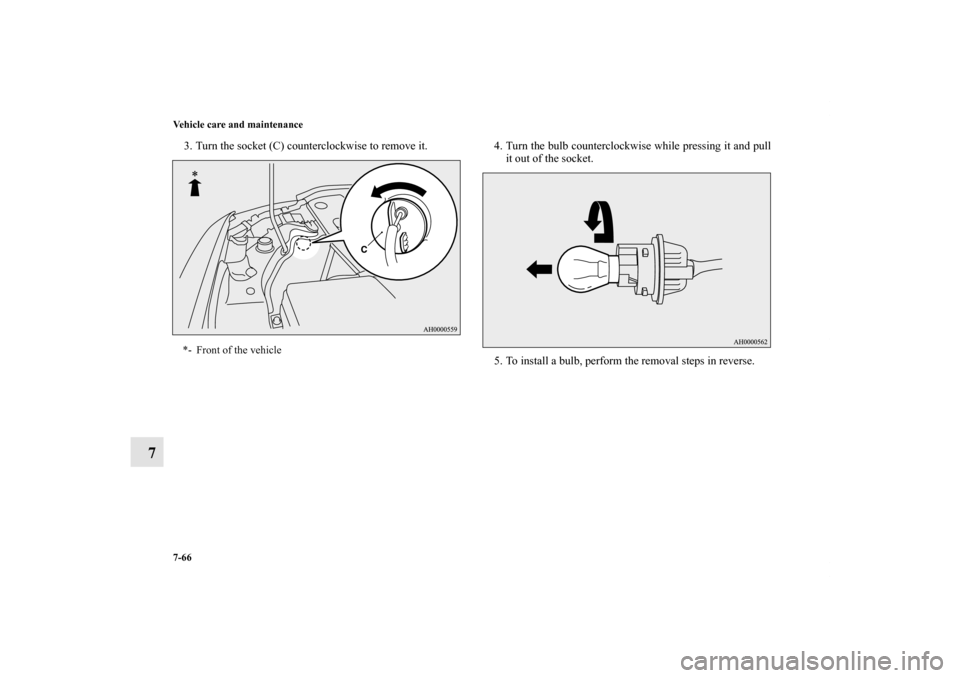

3. Turn the socket (C) counterclockwise to remove it. 4. Turn the bulb counterclockwise while pressing it and pull
it out of the socket.
5. To install a bulb, perform the removal steps in reverse.*- Front of the vehicle
BK0151000US.book 66 ページ ２０１２年３月２９日　木曜日　午後６時８分

Vehicle care and maintenance
7-67
7
Headlights (low/high beam, for vehicles equipped
with high intensity discharge lights)
N00902000029
Do not attempt to disassemble or repair headlights, and do not
attempt to replace their bulbs.Adjustment of headlight aim
N00943200121
The alignment of the headlights should be checked by an
authorized Mitsubishi Motors dealer or a repair facility of your
choice.

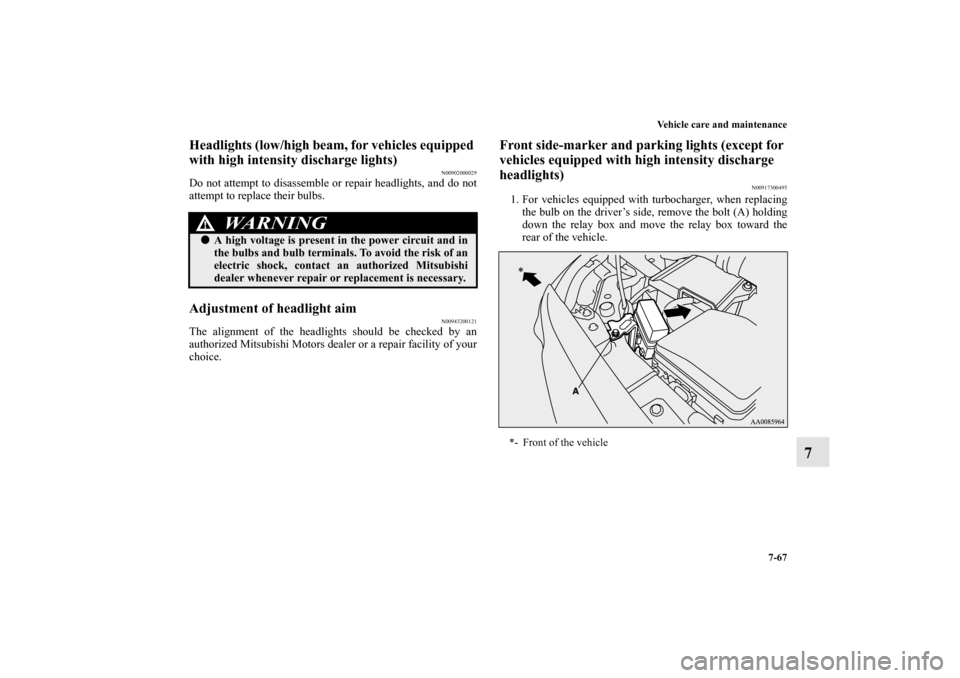

Front side-marker and parking lights (except for
vehicles equipped with high intensity discharge
headlights)
N00917300495
1. For vehicles equipped with turbocharger, when replacing
the bulb on the driver’s side, remove the bolt (A) holding
down the relay box and move the relay box toward the
rear of the vehicle.
WA R N I N G
!
A high voltage is present in the power circuit and in
the bulbs and bulb terminals. To avoid the risk of an
electric shock, contact an authorized Mitsubishi
dealer whenever repair or replacement is necessary.
*- Front of the vehicle
