2013 MITSUBISHI LANCER SPORTBACK Owners Manual

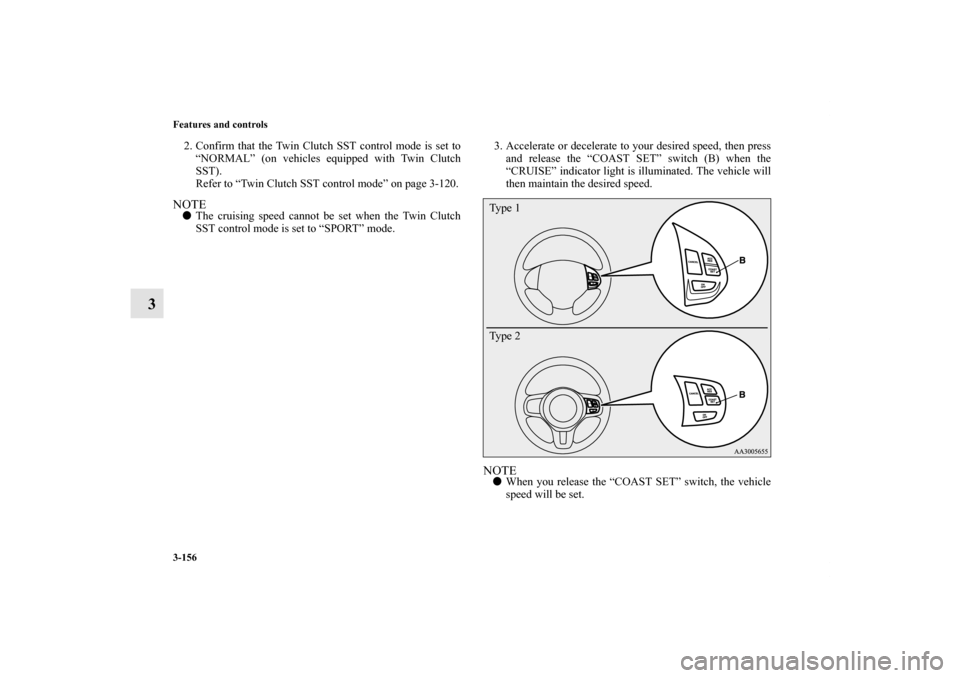

3-156 Features and controls
3
2. Confirm that the Twin Clutch SST control mode is set to
“NORMAL” (on vehicles equipped with Twin Clutch
SST).
Refer to “Twin Clutch SST control mode” on page 3-120.NOTE
The cruising speed cannot be set when the Twin Clutch
SST control mode is set to “SPORT” mode.3. Accelerate or decelerate to your desired speed, then press
and release the “COAST SET” switch (B) when the
“CRUISE” indicator light is illuminated. The vehicle will
then maintain the desired speed.
NOTE
When you release the “COAST SET” switch, the vehicle
speed will be set.Ty p e 1
Ty p e 2
BK0151000US.book 156 ページ ２０１２年３月２９日　木曜日　午後６時８分

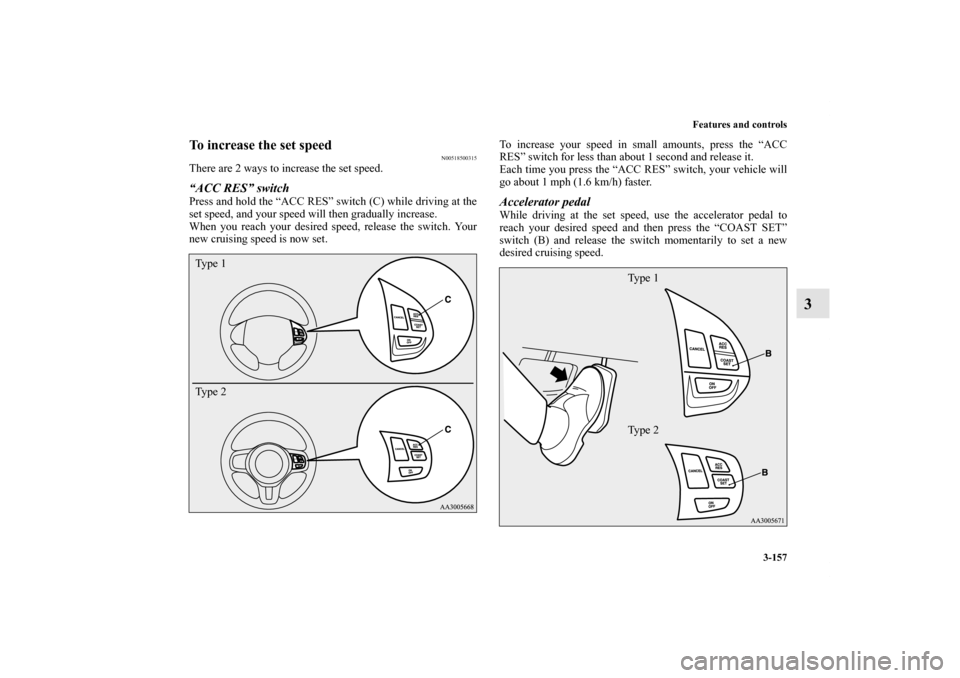

Features and controls
3-157
3
To increase the set speed
N00518500315
There are 2 ways to increase the set speed.“ACC RES” switchPress and hold the “ACC RES” switch (C) while driving at the
set speed, and your speed will then gradually increase.
When you reach your desired speed, release the switch. Your
new cruising speed is now set.To increase your speed in small amounts, press the “ACC
RES” switch for less than about 1 second and release it.
Each time you press the “ACC RES” switch, your vehicle will
go about 1 mph (1.6 km/h) faster.
Accelerator pedalWhile driving at the set speed, use the accelerator pedal to
reach your desired speed and then press the “COAST SET”
switch (B) and release the switch momentarily to set a new
desired cruising speed.
Ty p e 1
Ty p e 2
Ty p e 1
Ty p e 2
BK0151000US.book 157 ページ ２０１２年３月２９日　木曜日　午後６時８分

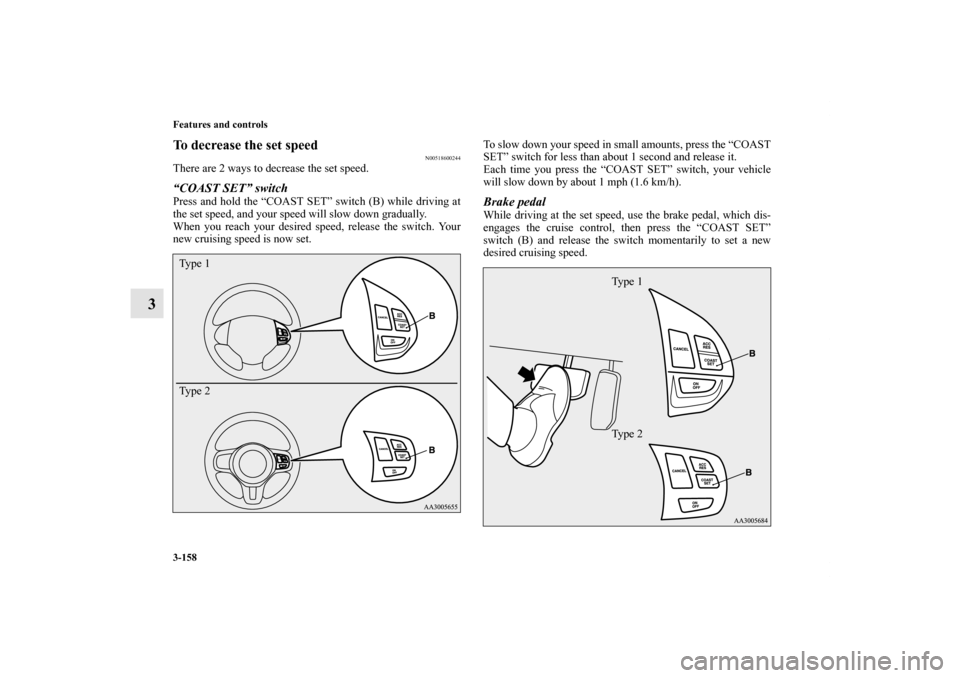

3-158 Features and controls
3
To decrease the set speed
N00518600244
There are 2 ways to decrease the set speed.“COAST SET” switchPress and hold the “COAST SET” switch (B) while driving at
the set speed, and your speed will slow down gradually.
When you reach your desired speed, release the switch. Your
new cruising speed is now set.To slow down your speed in small amounts, press the “COAST
SET” switch for less than about 1 second and release it.
Each time you press the “COAST SET” switch, your vehicle
will slow down by about 1 mph (1.6 km/h).
Brake pedalWhile driving at the set speed, use the brake pedal, which dis-
engages the cruise control, then press the “COAST SET”
switch (B) and release the switch momentarily to set a new
desired cruising speed.
Ty p e 1
Ty p e 2
Ty p e 1
Ty p e 2
BK0151000US.book 158 ページ ２０１２年３月２９日　木曜日　午後６時８分

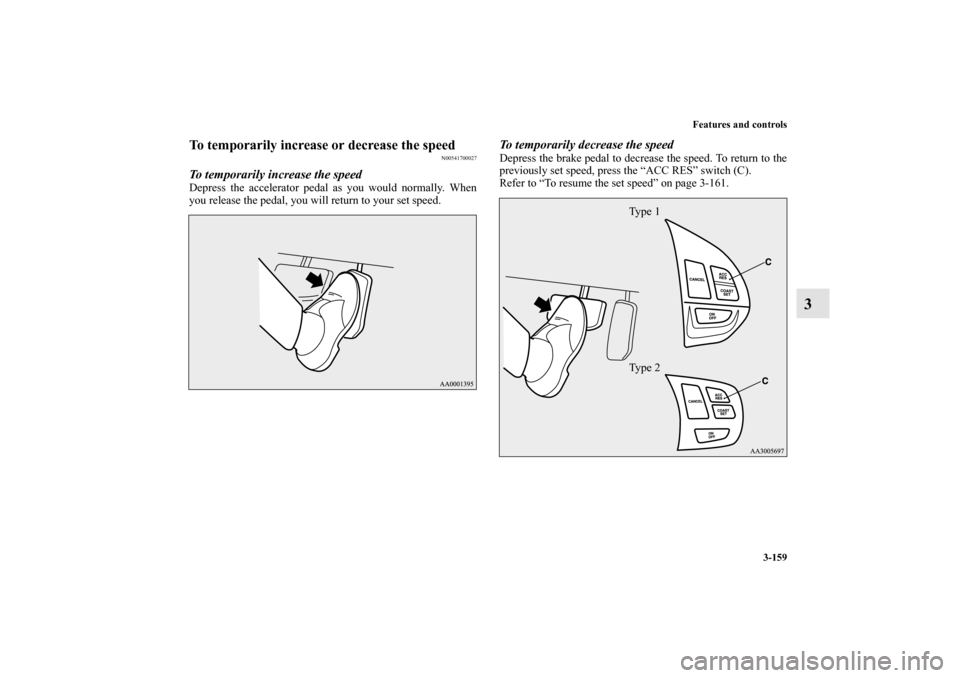

Features and controls
3-159
3
To temporarily increase or decrease the speed
N00541700027
To temporarily increase the speedDepress the accelerator pedal as you would normally. When
you release the pedal, you will return to your set speed.
To temporarily decrease the speedDepress the brake pedal to decrease the speed. To return to the
previously set speed, press the “ACC RES” switch (C).
Refer to “To resume the set speed” on page 3-161.
Type 1
Type 2
BK0151000US.book 159 ページ ２０１２年３月２９日　木曜日　午後６時８分

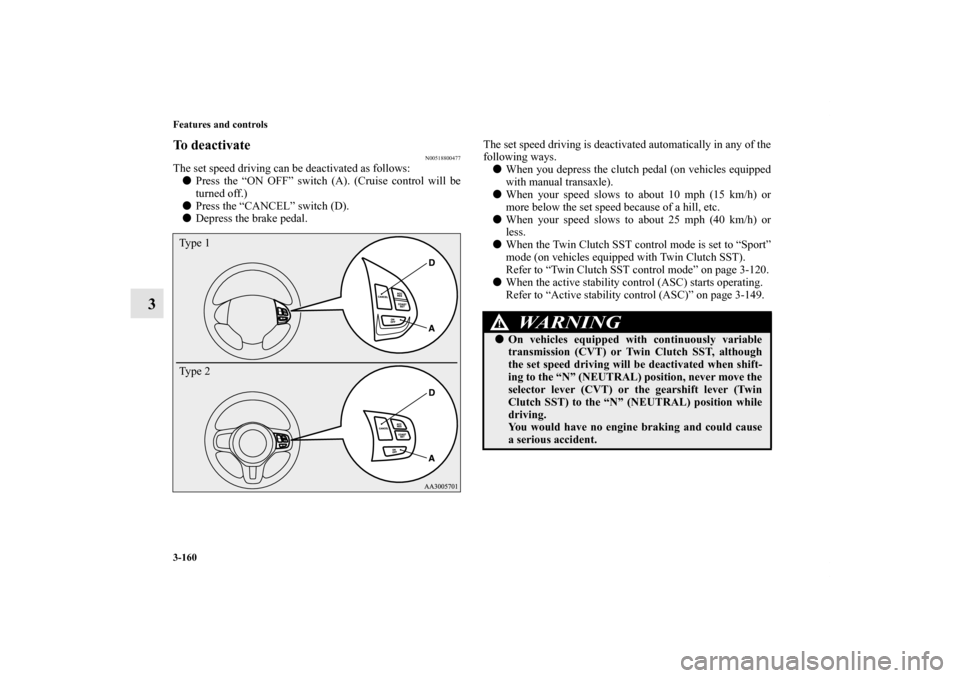

3-160 Features and controls
3
To deactivate
N00518800477
The set speed driving can be deactivated as follows:

Press the “ON OFF” switch (A). (Cruise control will be
turned off.)

Press the “CANCEL” switch (D).

Depress the brake pedal.The set speed driving is deactivated automatically in any of the
following ways.

When you depress the clutch pedal (on vehicles equipped
with manual transaxle).

When your speed slows to about 10 mph (15 km/h) or
more below the set speed because of a hill, etc.

When your speed slows to about 25 mph (40 km/h) or
less.

When the Twin Clutch SST control mode is set to “Sport”
mode (on vehicles equipped with Twin Clutch SST).
Refer to “Twin Clutch SST control mode” on page 3-120.

When the active stability control (ASC) starts operating.
Refer to “Active stability control (ASC)” on page 3-149.Ty p e 1
Ty p e 2
WA R N I N G
!
On vehicles equipped with continuously variable
transmission (CVT) or Twin Clutch SST, although
the set speed driving will be deactivated when shift-
ing to the “N” (NEUTRAL) position, never move the
selector lever (CVT) or the gearshift lever (Twin
Clutch SST) to the “N” (NEUTRAL) position while
driving.
You would have no engine braking and could cause
a serious accident.
BK0151000US.book 160 ページ ２０１２年３月２９日　木曜日　午後６時８分

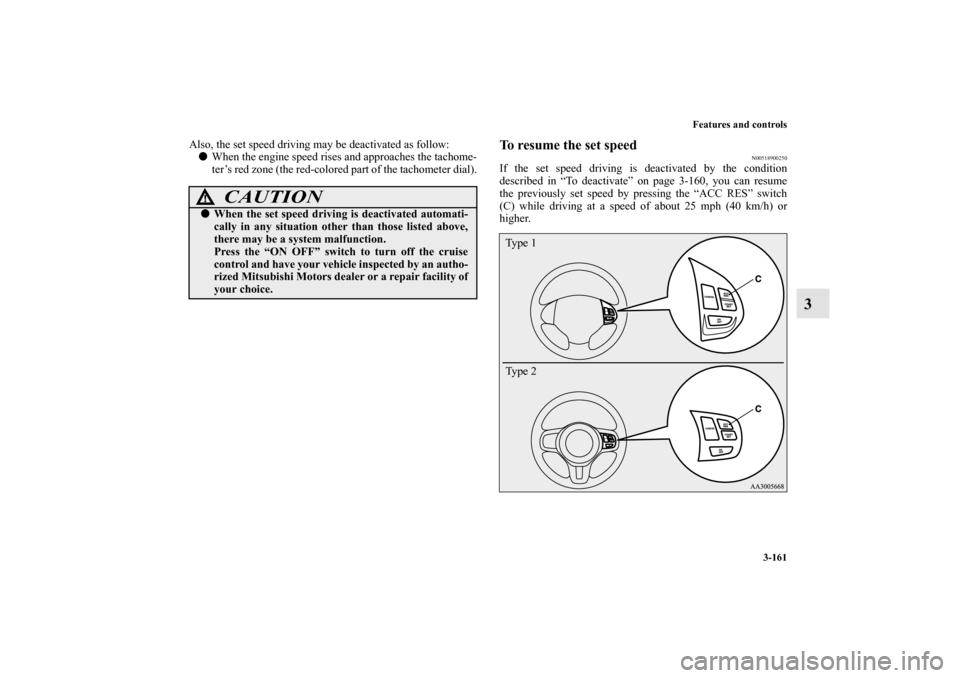

Features and controls
3-161
3
Also, the set speed driving may be deactivated as follow:

When the engine speed rises and approaches the tachome-
ter’s red zone (the red-colored part of the tachometer dial).
To resume the set speed
N00518900250
If the set speed driving is deactivated by the condition
described in “To deactivate” on page 3-160, you can resume
the previously set speed by pressing the “ACC RES” switch
(C) while driving at a speed of about 25 mph (40 km/h) or
higher.
CAUTION
!
When the set speed driving is deactivated automati-
cally in any situation other than those listed above,
there may be a system malfunction.
Press the “ON OFF” switch to turn off the cruise
control and have your vehicle inspected by an autho-
rized Mitsubishi Motors dealer or a repair facility of
your choice.
Ty p e 1
Ty p e 2
BK0151000US.book 161 ページ ２０１２年３月２９日　木曜日　午後６時８分

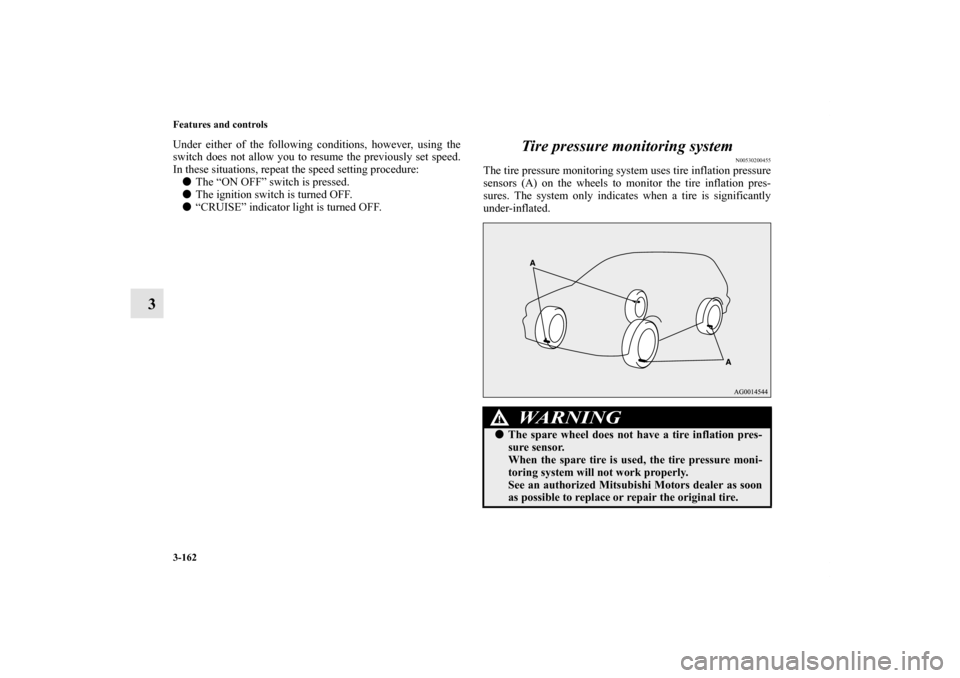

3-162 Features and controls
3
Under either of the following conditions, however, using the
switch does not allow you to resume the previously set speed.
In these situations, repeat the speed setting procedure:

The “ON OFF” switch is pressed.

The ignition switch is turned OFF.

“CRUISE” indicator light is turned OFF.
Tire pressure monitoring system
N00530200455
The tire pressure monitoring system uses tire inflation pressure
sensors (A) on the wheels to monitor the tire inflation pres-
sures. The system only indicates when a tire is significantly
under-inflated.
WA R N I N G
!
The spare wheel does not have a tire inflation pres-
sure sensor.
When the spare tire is used, the tire pressure moni-
toring system will not work properly.
See an authorized Mitsubishi Motors dealer as soon
as possible to replace or repair the original tire.
BK0151000US.book 162 ページ ２０１２年３月２９日　木曜日　午後６時８分

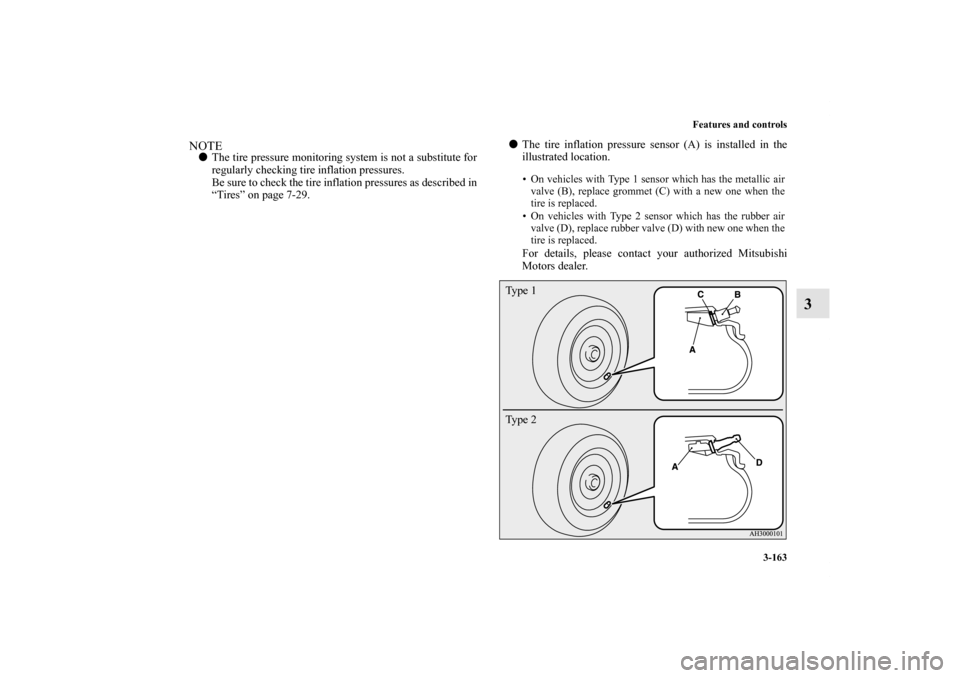

Features and controls
3-163
3
NOTE
The tire pressure monitoring system is not a substitute for
regularly checking tire inflation pressures.
Be sure to check the tire inflation pressures as described in
“Tires” on page 7-29.
The tire inflation pressure sensor (A) is installed in the
illustrated location.
For details, please contact your authorized Mitsubishi
Motors dealer.
• On vehicles with Type 1 sensor which has the metallic air
valve (B), replace grommet (C) with a new one when the
tire is replaced.
• On vehicles with Type 2 sensor which has the rubber air
valve (D), replace rubber valve (D) with new one when the
tire is replaced.
Ty p e 1
Ty p e 2
