7-68 Vehicle care and maintenance
7
2. For vehicles equipped with turbocharger, when replacing
the bulb on the passenger’s side, lift up the engine coolant
reservoir (B).3. Turn the socket (C) counterclockwise to remove it.*- Front of the vehicle
*- Front of the vehicle
BK0151000US.book 68 ページ ２０１２年３月２９日　木曜日　午後６時８分

Vehicle care and maintenance
7-69
7

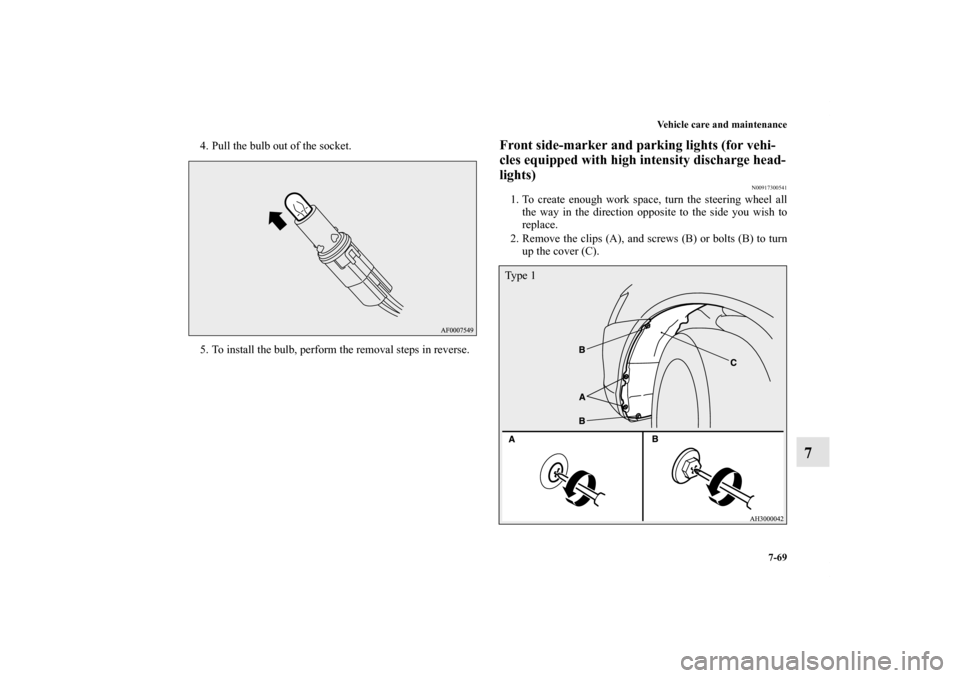

4. Pull the bulb out of the socket.
5. To install the bulb, perform the removal steps in reverse.
Front side-marker and parking lights (for vehi-
cles equipped with high intensity discharge head-
lights)
N00917300541
1. To create enough work space, turn the steering wheel all
the way in the direction opposite to the side you wish to
replace.
2. Remove the clips (A), and screws (B) or bolts (B) to turn
up the cover (C).Ty p e 1
BK0151000US.book 69 ページ ２０１２年３月２９日　木曜日　午後６時８分

7-70 Vehicle care and maintenance
7

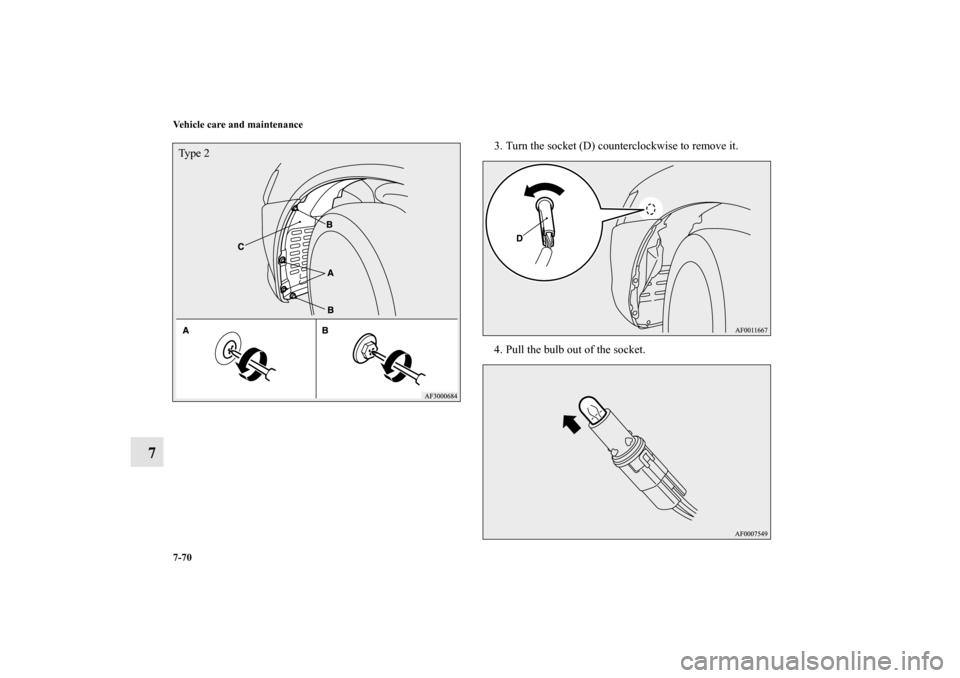

3. Turn the socket (D) counterclockwise to remove it.
4. Pull the bulb out of the socket.
Ty p e 2BK0151000US.book 70 ページ ２０１２年３月２９日　木曜日　午後６時８分

Vehicle care and maintenance
7-71
7
5. To install the bulb, perform the removal steps in reverse.
Front turn signal lights
N00943400325

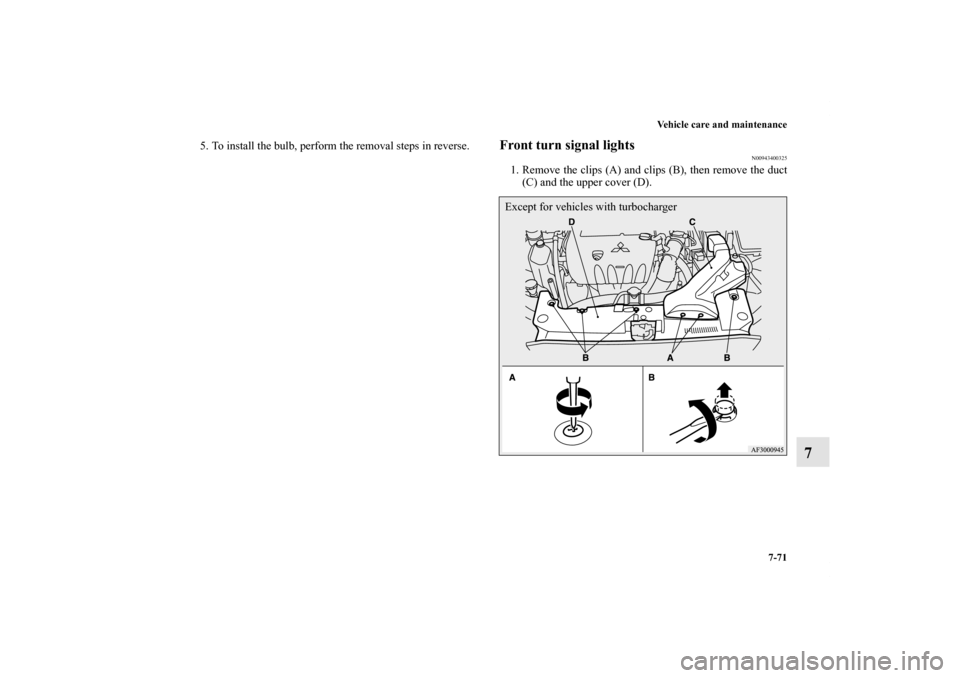

1. Remove the clips (A) and clips (B), then remove the duct
(C) and the upper cover (D).Except for vehicles with turbocharger
BK0151000US.book 71 ページ ２０１２年３月２９日　木曜日　午後６時８分

7-72 Vehicle care and maintenance
7
2. Remove the entire socket and bulb assembly (E) by turn-
ing it counterclockwise.
Vehicles with turbocharger
*- Front of the vehicle
BK0151000US.book 72 ページ ２０１２年３月２９日　木曜日　午後６時８分

Vehicle care and maintenance
7-73
7

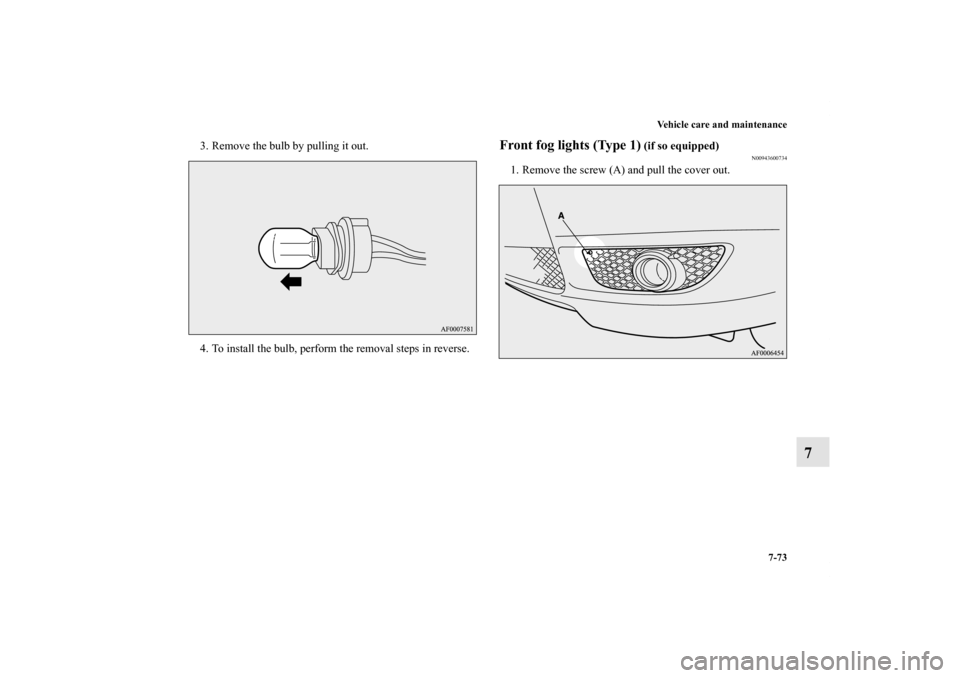

3. Remove the bulb by pulling it out.
4. To install the bulb, perform the removal steps in reverse.
Front fog lights (Type 1)
(if so equipped)
N00943600734
1. Remove the screw (A) and pull the cover out.
BK0151000US.book 73 ページ ２０１２年３月２９日　木曜日　午後６時８分

7-74 Vehicle care and maintenance
7

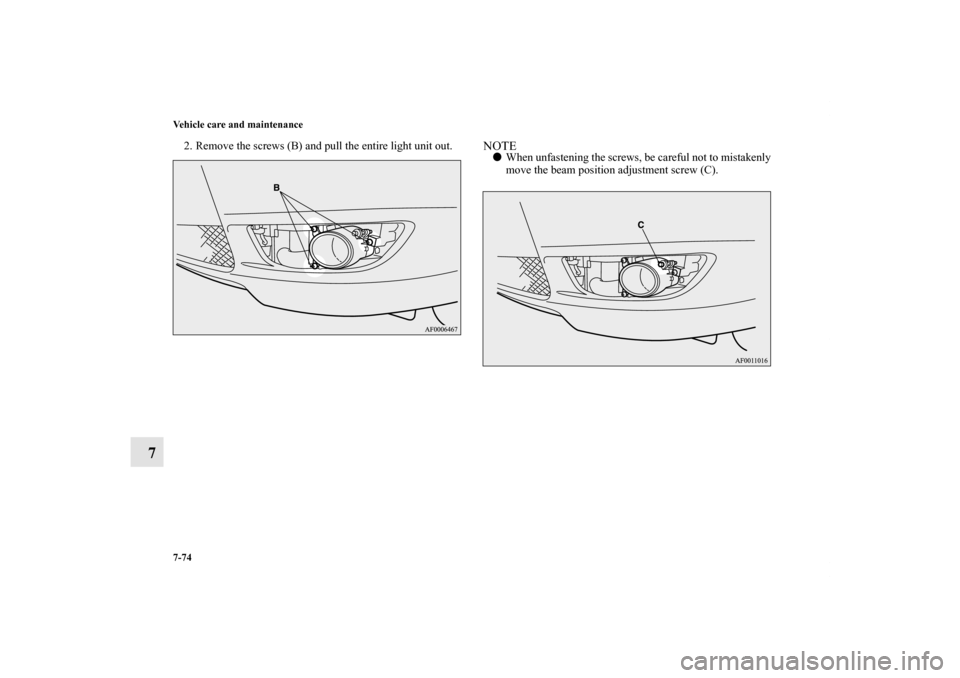

2. Remove the screws (B) and pull the entire light unit out.
NOTE
When unfastening the screws, be careful not to mistakenly
move the beam position adjustment screw (C).
BK0151000US.book 74 ページ ２０１２年３月２９日　木曜日　午後６時８分

Vehicle care and maintenance
7-75
7
3. Push the connector (D) to disconnect and remove the fog
light. 4. Remove the bulb assembly (E) by turning it counterclock-
wise.
5. To install the bulb, perform the removal steps in reverse.
