2013 MITSUBISHI LANCER SPORTBACK Owners Manual

7-76 Vehicle care and maintenance
7

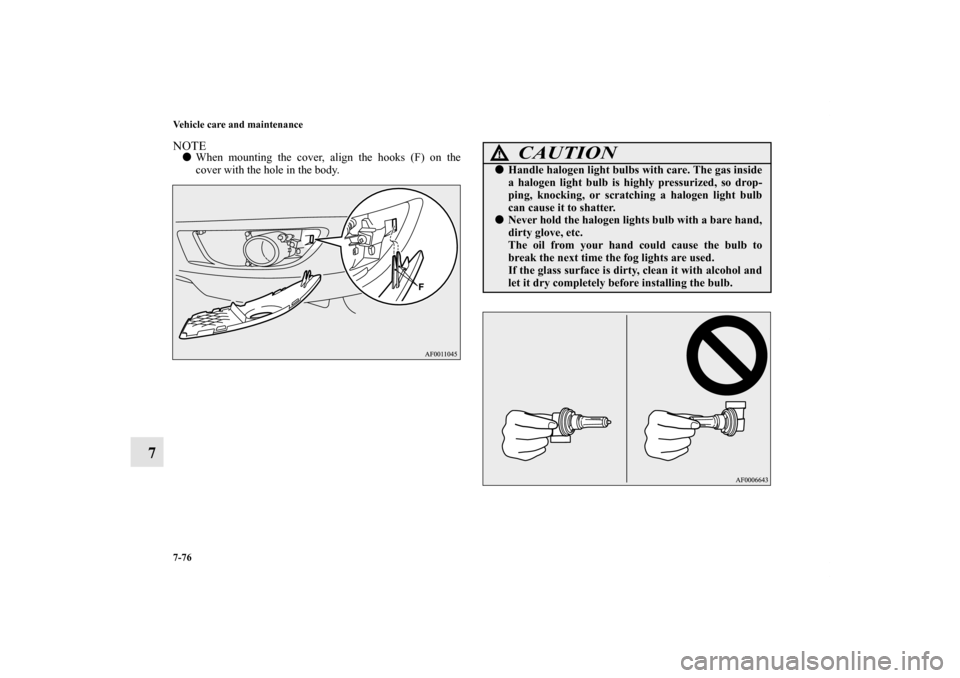

NOTE
When mounting the cover, align the hooks (F) on the
cover with the hole in the body.
CAUTION
!
Handle halogen light bulbs with care. The gas inside
a halogen light bulb is highly pressurized, so drop-
ping, knocking, or scratching a halogen light bulb
can cause it to shatter.
Never hold the halogen lights bulb with a bare hand,
dirty glove, etc.
The oil from your hand could cause the bulb to
break the next time the fog lights are used.
If the glass surface is dirty, clean it with alcohol and
let it dry completely before installing the bulb.
BK0151000US.book 76 ページ ２０１２年３月２９日　木曜日　午後６時８分

Vehicle care and maintenance
7-77
7
Front fog lights (Type 2)
(if so equipped)
N00943600747
1. Remove the screw (A).2. Pull the cover out in the direction of the arrow shown in
the illustration.
BK0151000US.book 77 ページ ２０１２年３月２９日　木曜日　午後６時８分

7-78 Vehicle care and maintenance
7

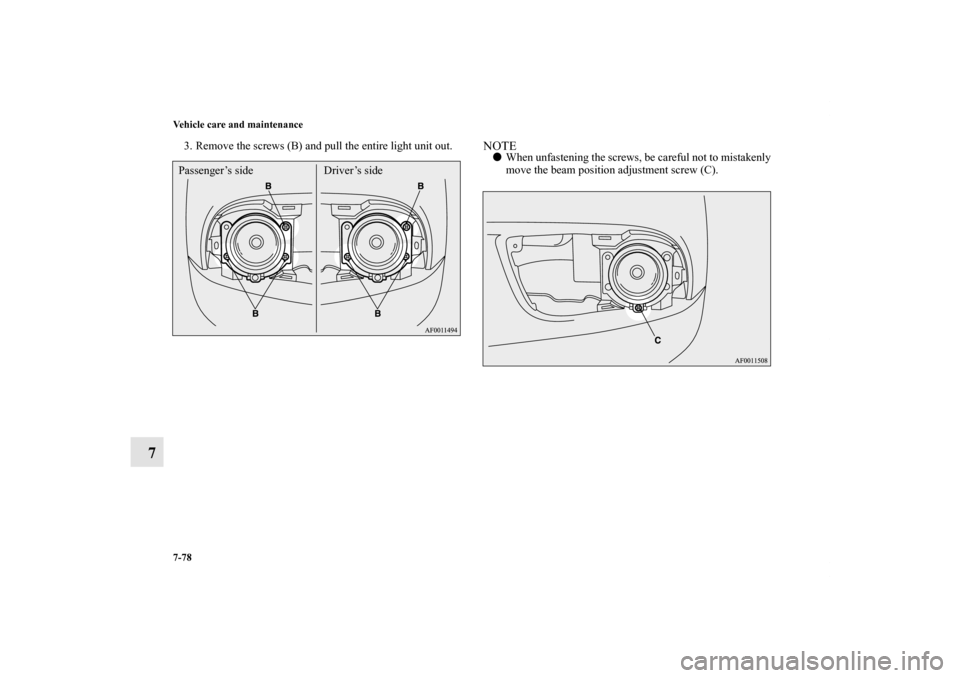

3. Remove the screws (B) and pull the entire light unit out.
NOTE
When unfastening the screws, be careful not to mistakenly
move the beam position adjustment screw (C).
Passenger’s side Driver’s sideBK0151000US.book 78 ページ ２０１２年３月２９日　木曜日　午後６時８分

Vehicle care and maintenance
7-79
7

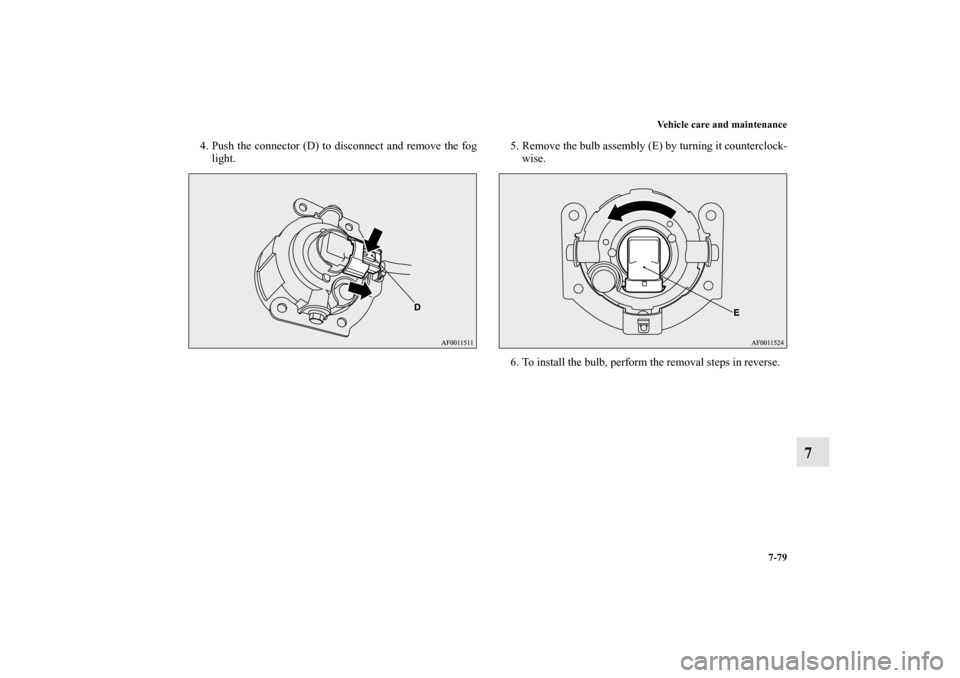

4. Push the connector (D) to disconnect and remove the fog
light. 5. Remove the bulb assembly (E) by turning it counterclock-
wise.
6. To install the bulb, perform the removal steps in reverse.
BK0151000US.book 79 ページ ２０１２年３月２９日　木曜日　午後６時８分

7-80 Vehicle care and maintenance
7

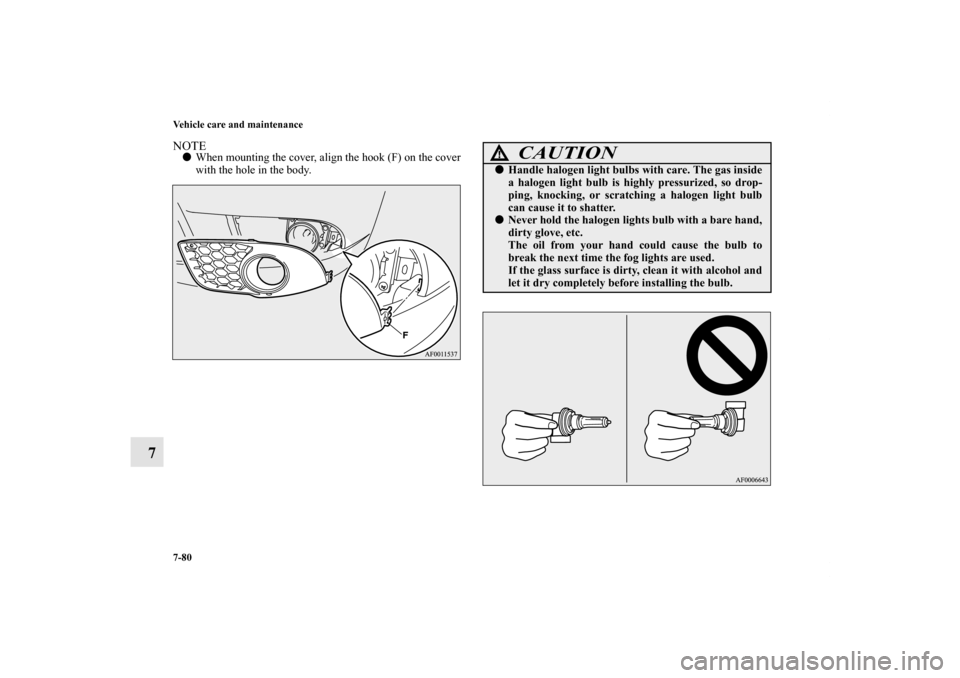

NOTE
When mounting the cover, align the hook (F) on the cover
with the hole in the body.
CAUTION
!
Handle halogen light bulbs with care. The gas inside
a halogen light bulb is highly pressurized, so drop-
ping, knocking, or scratching a halogen light bulb
can cause it to shatter.
Never hold the halogen lights bulb with a bare hand,
dirty glove, etc.
The oil from your hand could cause the bulb to
break the next time the fog lights are used.
If the glass surface is dirty, clean it with alcohol and
let it dry completely before installing the bulb.
BK0151000US.book 80 ページ ２０１２年３月２９日　木曜日　午後６時８分

Vehicle care and maintenance
7-81
7

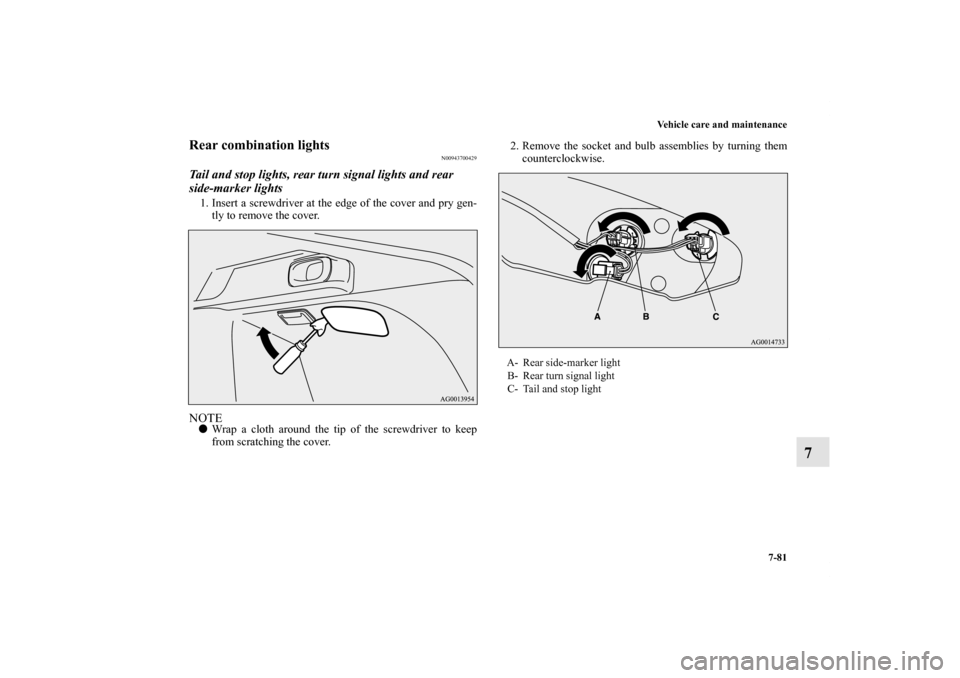

Rear combination lights
N00943700429
Tail and stop lights, rear turn signal lights and rear
side-marker lights1. Insert a screwdriver at the edge of the cover and pry gen-
tly to remove the cover. NOTE
Wrap a cloth around the tip of the screwdriver to keep
from scratching the cover.2. Remove the socket and bulb assemblies by turning them
counterclockwise.
A- Rear side-marker light
B- Rear turn signal light
C- Tail and stop light
BK0151000US.book 81 ページ ２０１２年３月２９日　木曜日　午後６時８分

7-82 Vehicle care and maintenance
7

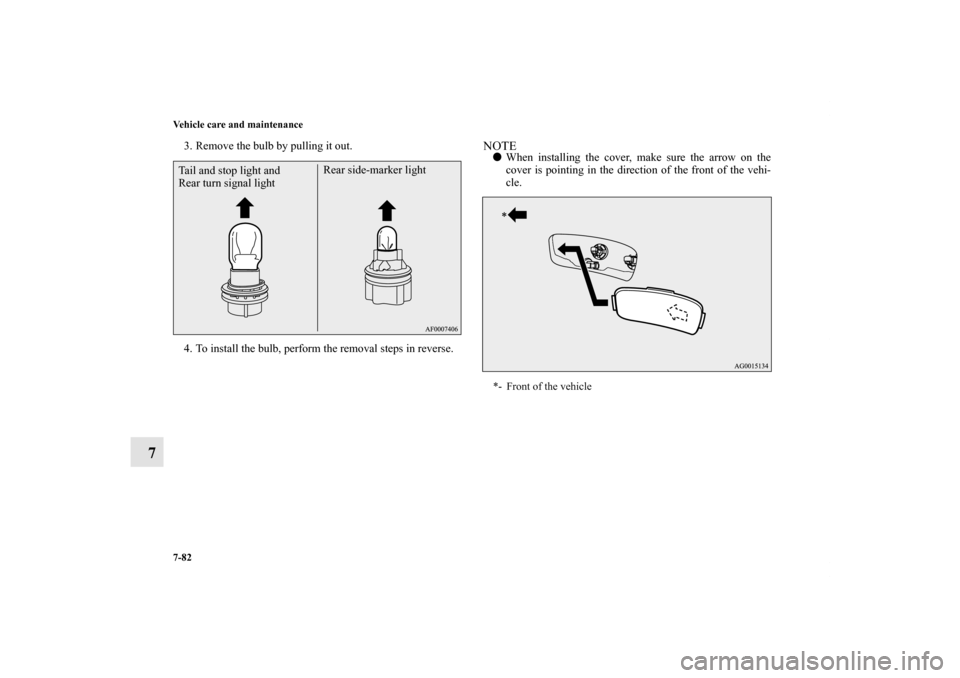

3. Remove the bulb by pulling it out.
4. To install the bulb, perform the removal steps in reverse.
NOTE
When installing the cover, make sure the arrow on the
cover is pointing in the direction of the front of the vehi-
cle.
Tail and stop light and
Rear turn signal lightRear side-marker light
*- Front of the vehicle
BK0151000US.book 82 ページ ２０１２年３月２９日　木曜日　午後６時８分

Vehicle care and maintenance
7-83
7

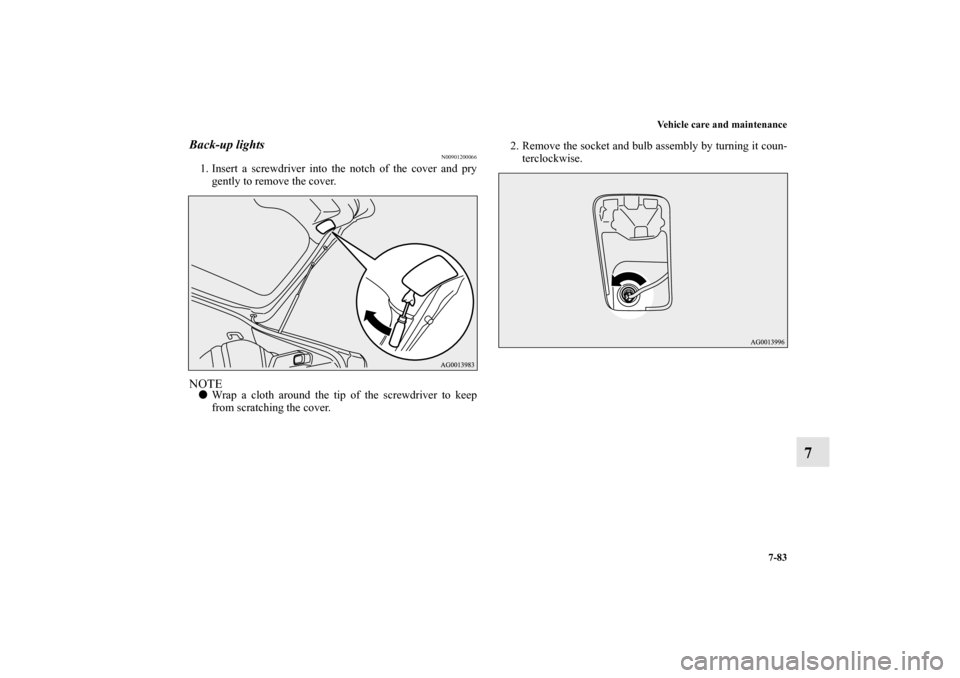

Back-up lights
N00901200066
1. Insert a screwdriver into the notch of the cover and pry
gently to remove the cover.NOTE
Wrap a cloth around the tip of the screwdriver to keep
from scratching the cover.2. Remove the socket and bulb assembly by turning it coun-
terclockwise.
BK0151000US.book 83 ページ ２０１２年３月２９日　木曜日　午後６時８分
