2013 MITSUBISHI LANCER SPORTBACK Owners Manual

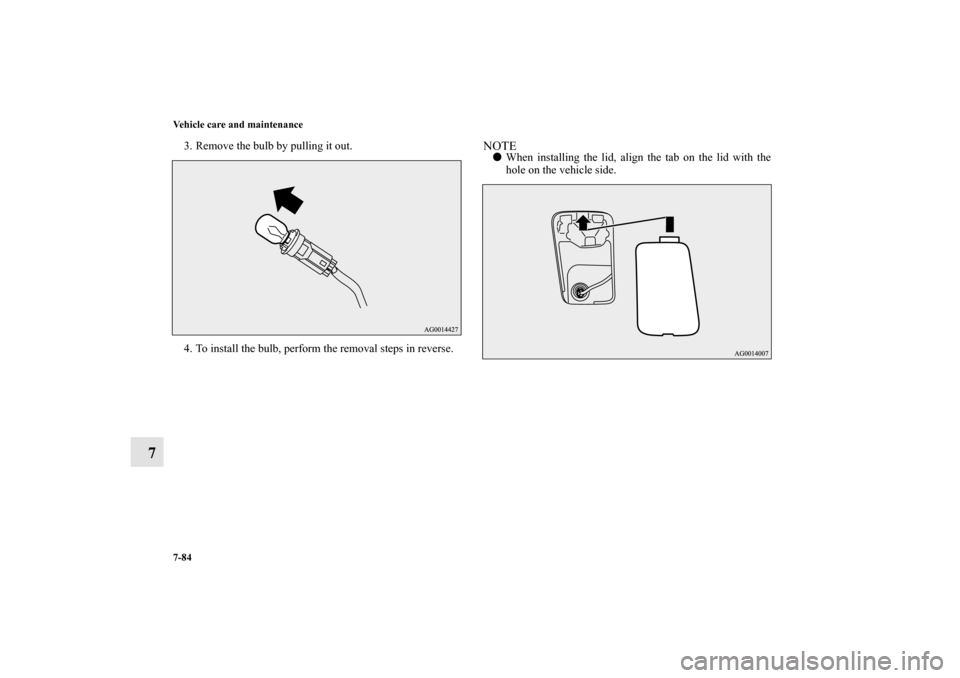

7-84 Vehicle care and maintenance
7
3. Remove the bulb by pulling it out.
4. To install the bulb, perform the removal steps in reverse.
NOTE
When installing the lid, align the tab on the lid with the
hole on the vehicle side.
BK0151000US.book 84 ページ ２０１２年３月２９日　木曜日　午後６時８分

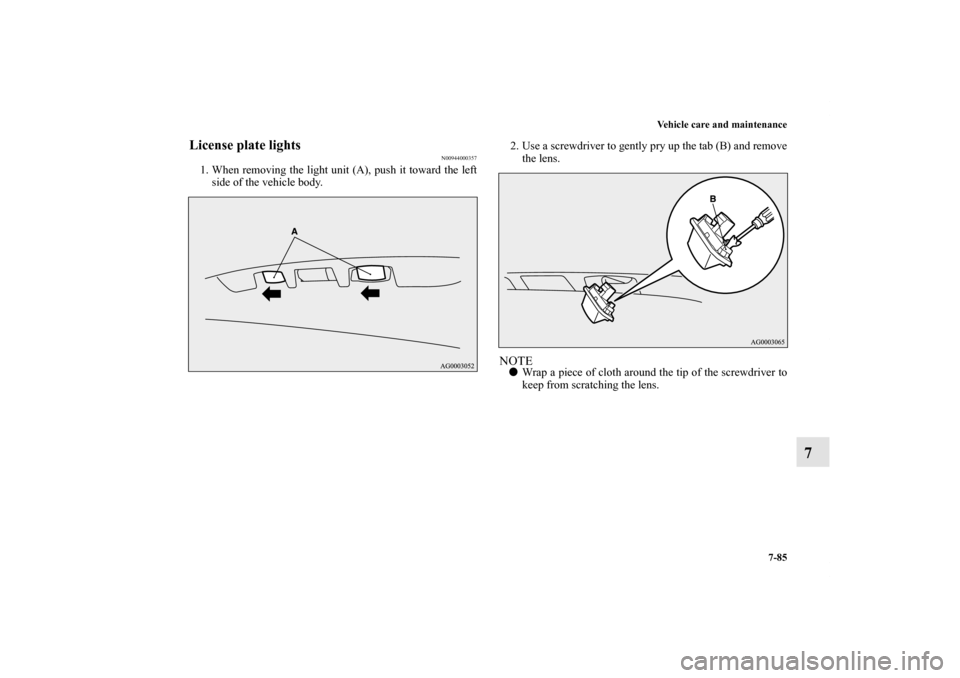

Vehicle care and maintenance
7-85
7
License plate lights
N00944000357
1. When removing the light unit (A), push it toward the left
side of the vehicle body.2. Use a screwdriver to gently pry up the tab (B) and remove
the lens.
NOTE
Wrap a piece of cloth around the tip of the screwdriver to
keep from scratching the lens.
BK0151000US.book 85 ページ ２０１２年３月２９日　木曜日　午後６時８分

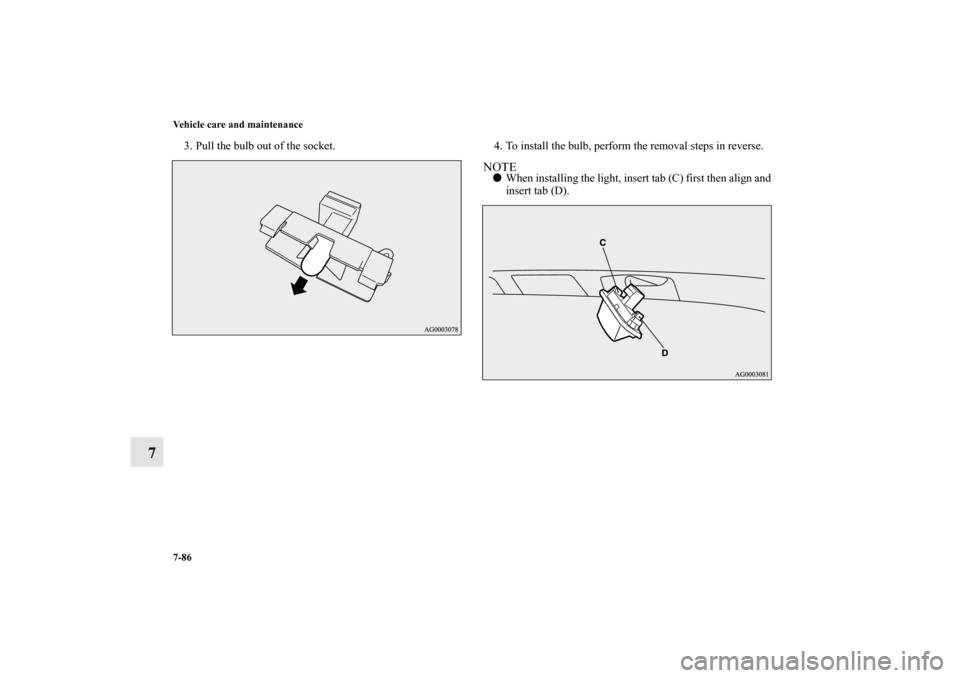

7-86 Vehicle care and maintenance
7
3. Pull the bulb out of the socket. 4. To install the bulb, perform the removal steps in reverse.
NOTE
When installing the light, insert tab (C) first then align and
insert tab (D).
BK0151000US.book 86 ページ ２０１２年３月２９日　木曜日　午後６時８分

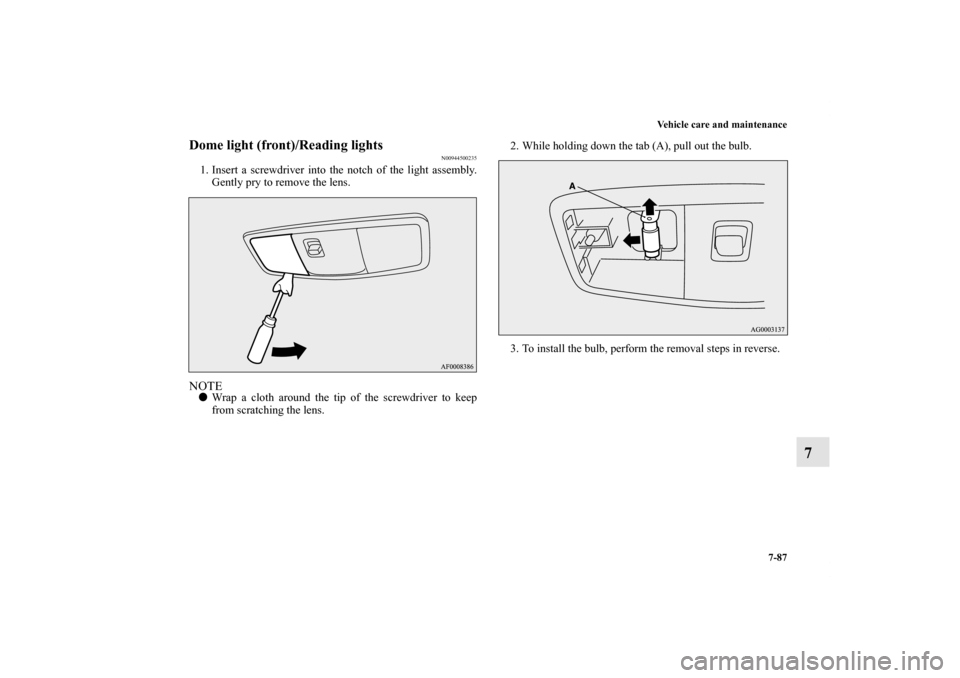

Vehicle care and maintenance
7-87
7
Dome light (front)/Reading lights
N00944500235
1. Insert a screwdriver into the notch of the light assembly.
Gently pry to remove the lens.NOTE
Wrap a cloth around the tip of the screwdriver to keep
from scratching the lens.2. While holding down the tab (A), pull out the bulb.
3. To install the bulb, perform the removal steps in reverse.
BK0151000US.book 87 ページ ２０１２年３月２９日　木曜日　午後６時８分

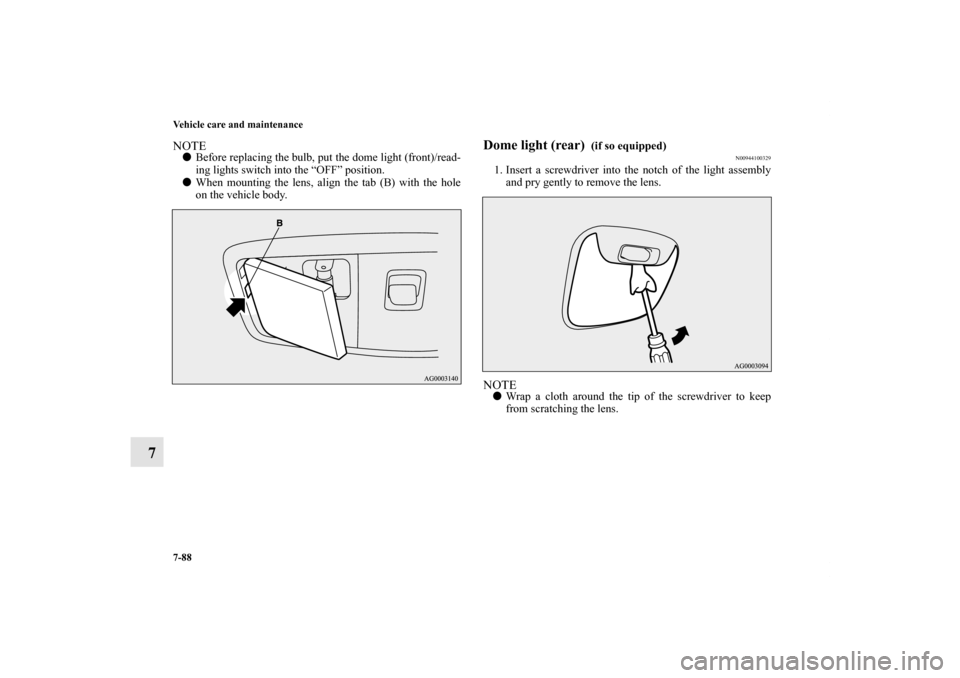

7-88 Vehicle care and maintenance
7
NOTE
Before replacing the bulb, put the dome light (front)/read-
ing lights switch into the “OFF” position.

When mounting the lens, align the tab (B) with the hole
on the vehicle body.
Dome light (rear)
(if so equipped)
N00944100329
1. Insert a screwdriver into the notch of the light assembly
and pry gently to remove the lens.NOTE
Wrap a cloth around the tip of the screwdriver to keep
from scratching the lens.
BK0151000US.book 88 ページ ２０１２年３月２９日　木曜日　午後６時８分

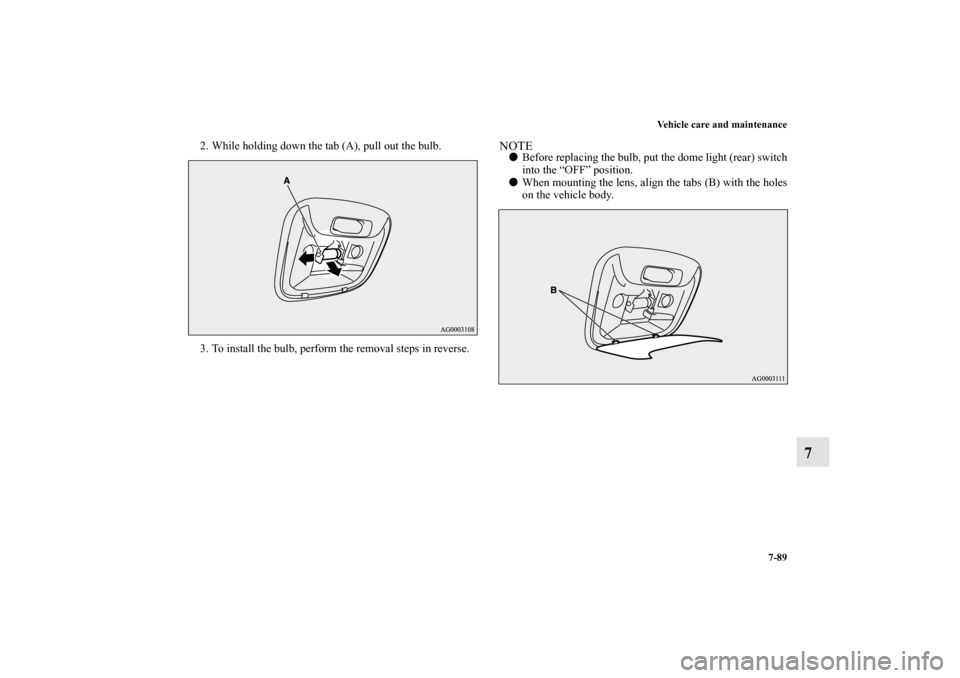

Vehicle care and maintenance
7-89
7
2. While holding down the tab (A), pull out the bulb.
3. To install the bulb, perform the removal steps in reverse.
NOTE
Before replacing the bulb, put the dome light (rear) switch
into the “OFF” position.

When mounting the lens, align the tabs (B) with the holes
on the vehicle body.
BK0151000US.book 89 ページ ２０１２年３月２９日　木曜日　午後６時８分

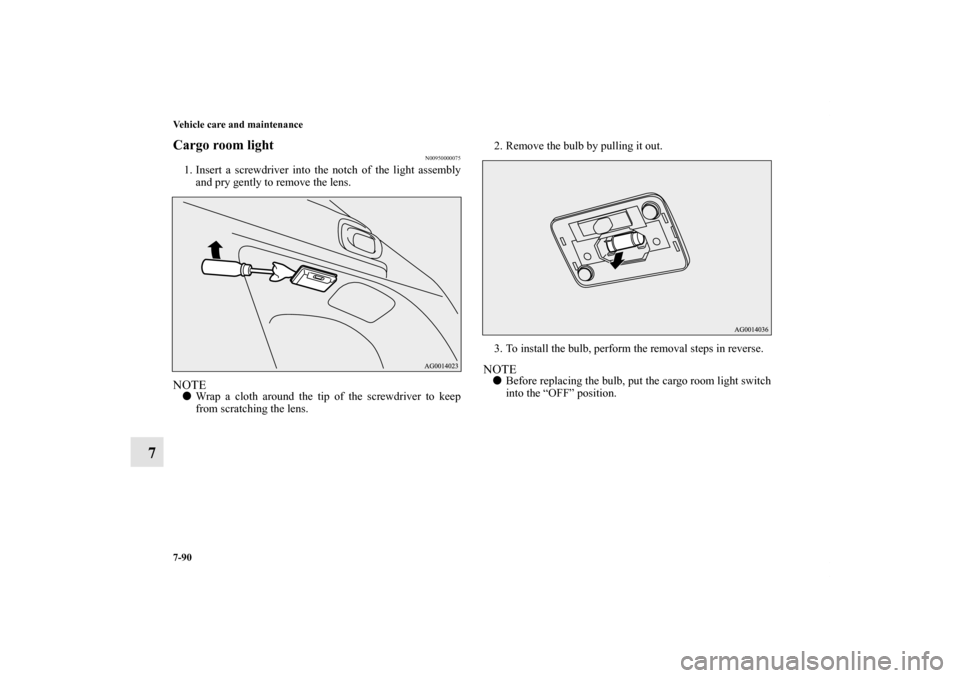

7-90 Vehicle care and maintenance
7
Cargo room light
N00950000075
1. Insert a screwdriver into the notch of the light assembly
and pry gently to remove the lens.NOTE
Wrap a cloth around the tip of the screwdriver to keep
from scratching the lens.2. Remove the bulb by pulling it out.
3. To install the bulb, perform the removal steps in reverse.
NOTE
Before replacing the bulb, put the cargo room light switch
into the “OFF” position.
BK0151000US.book 90 ページ ２０１２年３月２９日　木曜日　午後６時８分

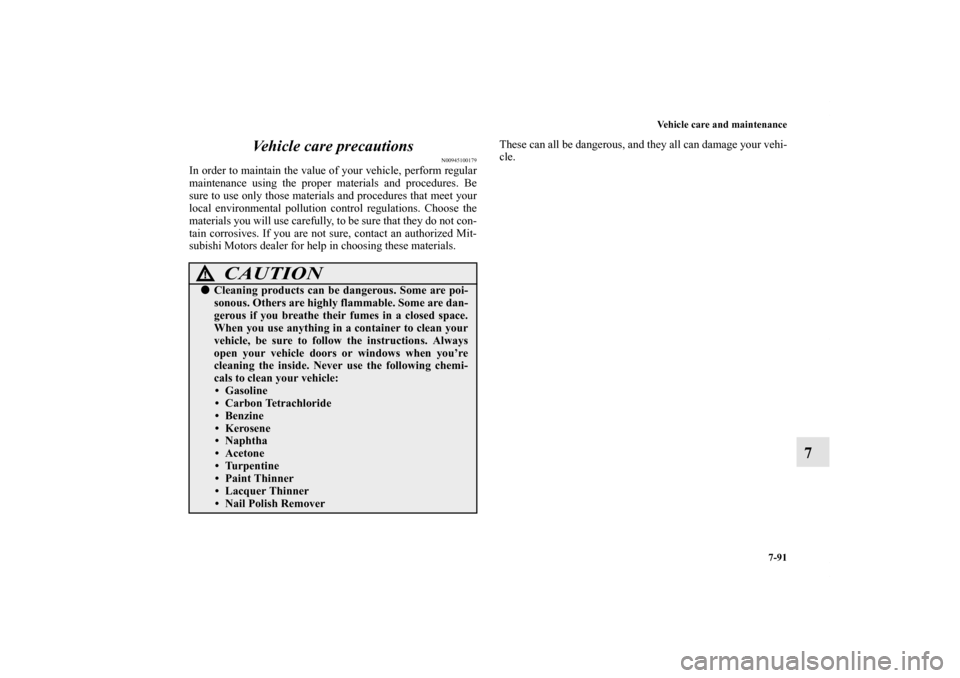

Vehicle care and maintenance
7-91
7 Vehicle care precautions
N00945100179
In order to maintain the value of your vehicle, perform regular
maintenance using the proper materials and procedures. Be
sure to use only those materials and procedures that meet your
local environmental pollution control regulations. Choose the
materials you will use carefully, to be sure that they do not con-
tain corrosives. If you are not sure, contact an authorized Mit-
subishi Motors dealer for help in choosing these materials. These can all be dangerous, and they all can damage your vehi-
cle.
CAUTION
!
Cleaning products can be dangerous. Some are poi-
sonous. Others are highly flammable. Some are dan-
gerous if you breathe their fumes in a closed space.
When you use anything in a container to clean your
vehicle, be sure to follow the instructions. Always
open your vehicle doors or windows when you’re
cleaning the inside. Never use the following chemi-
cals to clean your vehicle:
• Gasoline
• Carbon Tetrachloride
• Benzine
• Kerosene
• Naphtha
• Acetone
• Turpentine
• Paint Thinner
• Lacquer Thinner
• Nail Polish Remover
