2013 MITSUBISHI LANCER SPORTBACK Owners Manual

Overview

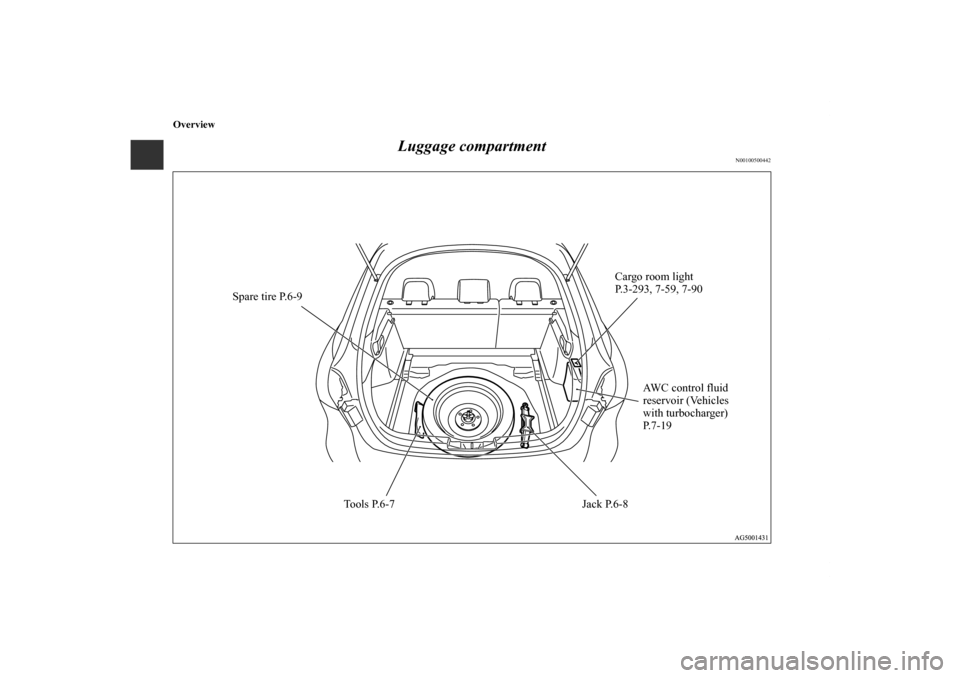

Luggage compartment
N00100500442
Spare tire P.6-9Cargo room light
P.3-293, 7-59, 7-90
AWC control fluid
reservoir (Vehicles
with turbocharger)
P. 7 - 1 9
To o l s P. 6 - 7 J a c k P. 6 - 8
BK0151000US.book 7 ページ ２０１２年３月２９日　木曜日　午後６時８分

Overview

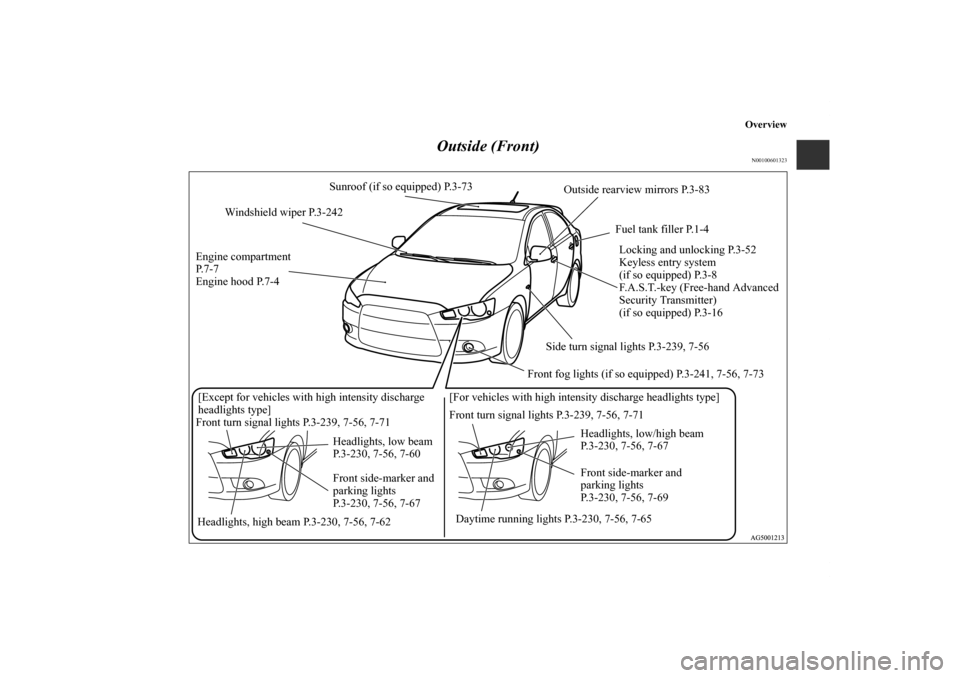

Outside (Front)
N00100601323
Sunroof (if so equipped) P.3-73
Windshield wiper P.3-242
Engine compartment
P. 7 - 7
Engine hood P.7-4
Headlights, high beam P.3-230, 7-56, 7-62 Daytime running lights P.3-230, 7-56, 7-65 [For vehicles with high intensity discharge headlights type]
Front side-marker and
parking lights
P.3-230, 7-56, 7-69 Outside rearview mirrors P.3-83
Fuel tank filler P.1-4
Side turn signal lights P.3-239, 7-56Locking and unlocking P.3-52
Keyless entry system
(if so equipped) P.3-8
F.A.S.T.-key (Free-hand Advanced
Security Transmitter)
(if so equipped) P.3-16
Front fog lights (if so equipped) P.3-241, 7-56, 7-73
[Except for vehicles with high intensity discharge
headlights type]
Front turn signal lights P.3-239, 7-56, 7-71
Front turn signal lights P.3-239, 7-56, 7-71
Headlights, low/high beam
P.3-230, 7-56, 7-67
Front side-marker and
parking lights
P.3-230, 7-56, 7-67 Headlights, low beam
P.3-230, 7-56, 7-60
BK0151000US.book 8 ページ ２０１２年３月２９日　木曜日　午後６時８分

Overview

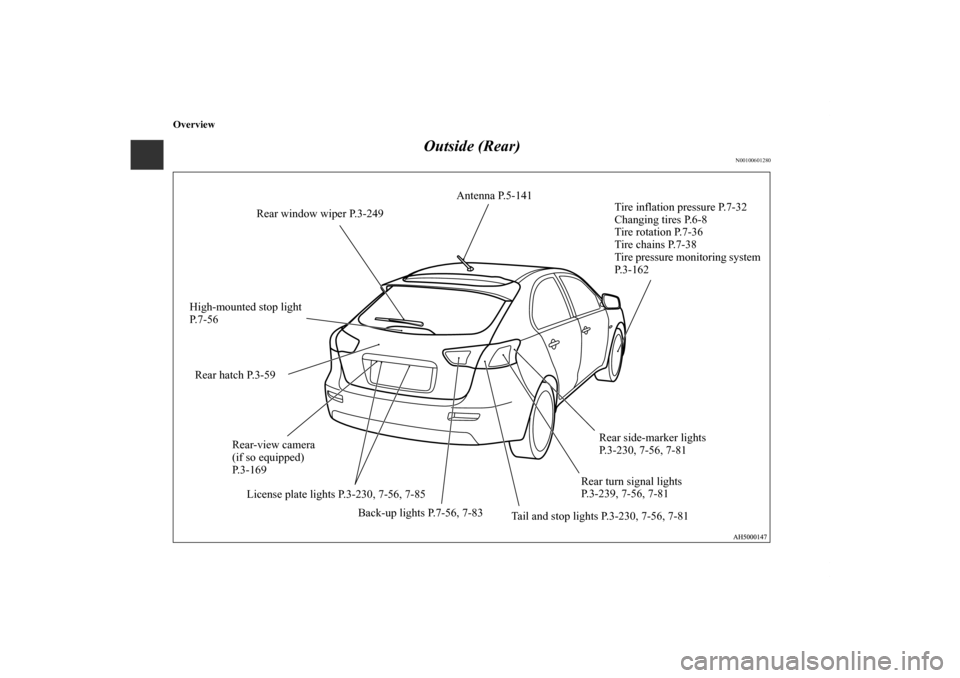

Outside (Rear)
N00100601280
Antenna P.5-141
Tire inflation pressure P.7-32
Changing tires P.6-8
Tire rotation P.7-36
Tire chains P.7-38
Tire pressure monitoring system
P. 3 - 1 6 2
Rear side-marker lights
P.3-230, 7-56, 7-81
Tail and stop lights P.3-230, 7-56, 7-81 Back-up lights P.7-56, 7-83 License plate lights P.3-230, 7-56, 7-85 Rear hatch P.3-59 High-mounted stop light
P. 7 - 5 6Rear window wiper P.3-249
Rear turn signal lights
P.3-239, 7-56, 7-81 Rear-view camera
(if so equipped)
P. 3 - 1 6 9
BK0151000US.book 9 ページ ２０１２年３月２９日　木曜日　午後６時８分

Quick index
1
If this warning light comes on or flashes while you’re driving...
N00200701077
NOTE
For information regarding warning displays in the multi-information display, refer to “Multi-information display” on page 3-
177.

These warning lights will come on for a few seconds for a bulb check when the ignition switch is first turned to “ON”.
Warning light
Do this
Ref. page
Charging system warning light
Park your vehicle in a safe place and stop the engine.
Contact an authorized Mitsubishi Motors dealer or a repair facility of
your choice for assistance.P.3-226
or
Brake warning light
If this light comes on while driving, check to see that the parking
brake is fully released.

If this light stays on after releasing the parking brake, stop and check
the brake fluid level.

If the brake fluid level is correct, there may be a system malfunction.
Avoid hard braking and high speeds, and contact an authorized Mit-
subishi Motors dealer or a repair facility of your choice for assistance.P.3-224
or
Engine malfunction indicator
(“SERVICE ENGINE SOON” or “Check
engine light”)
Although your vehicle will usually be drivable and not need towing,
have the engine system checked at an authorized Mitsubishi Motors
dealer or a repair facility of your choice as soon as possible. If the
vehicle is not drivable, contact emergency roadside assistance at 1-
888-648-7820 (for vehicles sold in U.S.A.) or 1-888-576-4878 (for
vehicles sold in Canada), an authorized Mitsubishi Motors dealer, or
local towing company for assistance.P.3-225
BK0151000US.book 1 ページ ２０１２年３月２９日　木曜日　午後６時８分

2 Quick index
Anti-lock braking system warning light
When this light comes on, the anti-lock braking system is not func-
tioning and only the ordinary braking system is functioning.

Park your vehicle in a safe place and stop the engine.
Test the system as described on page 3-145.

If the light does not go out after the test, or if it comes on again, we
recommend that you have the system checked at an authorized Mit-
subishi Motors dealer or a repair facility of your choice as soon as
possible.P.3-144,
3-145
SRS warning light
It is not necessary to stop the vehicle immediately, but we recommend
that you have the airbag and the pre-tensioner seat belt system
checked at an authorized Mitsubishi Motors dealer as soon as possi-
ble.P. 2 - 2 5 ,
2-46
Tire pressure monitoring system warning light
If the warning light comes on, you should stop and adjust the tires to
the proper inflation pressure as soon as possible.
(See “Tire inflation pressures” on page 7-32.)
Once adjustments have been made, the warning light will go off after
a few minutes of driving.

If the warning light blinks for approximately 1 minute and then
remains continuously illuminated, the system is not operating prop-
erly. If the system returns to normal, the warning light will go off. If
the warning light does not go off, have the vehicle inspected at an
authorized Mitsubishi Motors dealer.P.3-164
Warning light
Do this
Ref. page
BK0151000US.book 2 ページ ２０１２年３月２９日　木曜日　午後６時８分

Quick index
3
If this problem occurs...
N00200900740
Problem
Do this
Ref. Page
Cannot turn the key.
(When using a key to start the
engine)When using a key to start the engine
Will not turn from “LOCK” to “ACC”.
Turn the key while turning the steering wheel in either direction.
P.3-86,
3-88
Will not turn from “ACC” to “LOCK”.Vehicles equipped with continuously variable transmission (CVT) or Twin Clutch
SST:
Check the position of the selector lever (CVT) or the gearshift lever (Twin Clutch SST).
The key cannot be removed unless the selector lever (CVT) or the gearshift lever (Twin
Clutch SST) is set to the “P” (PARK) position.
Vehicles equipped with manual transaxle:
Place the key at the “ACC” position. Push the key in and turn it.
(When using the F.A.S.T.-key
to start the engine)When using the F.A.S.T.-key to start the engine
Will not turn from “LOCK (PUSH OFF)” to “ACC”.
Push the ignition switch again, turn the steering wheel in both directions and then turn the
ignition switch.Will not turn from “ACC” to “LOCK”.Vehicles equipped with CVT or Twin Clutch SST:
Check whether the selector lever (CVT) or the gearshift lever (Twin Clutch SST) is set to
the “P” (PARK) position.
Vehicles equipped with manual transaxle:
Place the ignition switch at the “ACC” position. Push the ignition switch in and turn it.P.3-16
The F.A.S.T.-key does not
operate.
(for vehicles equipped with the
F. A . S . T. - k e y )Use the emergency key to lock and unlock the doors and start the engine. P.3-33
BK0151000US.book 3 ページ ２０１２年３月２９日　木曜日　午後６時８分

4 Quick indexCannot shift the selector lever
(CVT) or the gearshift lever
(Twin Clutch SST) from the
“P” (PARK) position.
(for vehicles equipped with
CVT or Twin Clutch SST)Shift the selector lever (CVT) or the gearshift lever (Twin Clutch SST) while pressing the
brake pedal.
Check that the ignition key or ignition switch is in the “ON” position.P.3-98, 3-112
The windows are fogged up.
1. Set the mode selection dial to the “ ” or “ ” position.
2. Turn on the blower.P.5-33, 5-43
The engine does not start.
The lights do not come on.
The lights are dim.
The horn does not honk.
The horn sound is weak.Have the battery checked. Recharge or replace as needed.P. 6 - 2 ,
7-23
Problem
Do this
Ref. Page
BK0151000US.book 4 ページ ２０１２年３月２９日　木曜日　午後６時８分

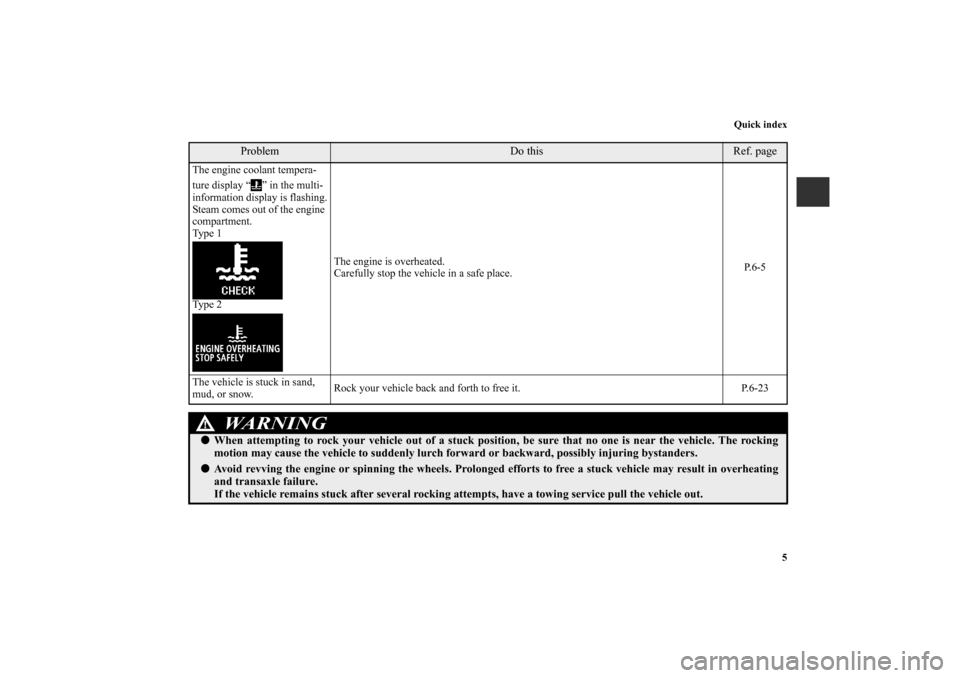

Quick index
5
Problem
Do this
Ref. page
The engine coolant tempera-
ture display “ ” in the multi-
information display is flashing.
Steam comes out of the engine
compartment.
Ty p e 1
Ty p e 2The engine is overheated.
Carefully stop the vehicle in a safe place.P. 6 - 5
The vehicle is stuck in sand,
mud, or snow.Rock your vehicle back and forth to free it. P.6-23
WA R N I N G
!
When attempting to rock your vehicle out of a stuck position, be sure that no one is near the vehicle. The rocking
motion may cause the vehicle to suddenly lurch forward or backward, possibly injuring bystanders.
Avoid revving the engine or spinning the wheels. Prolonged efforts to free a stuck vehicle may result in overheating
and transaxle failure.
If the vehicle remains stuck after several rocking attempts, have a towing service pull the vehicle out.
