Overview
Instruments and controls (Driver’s area)
N00100201446
Combination headlights and
dimmer switch P.3-230
Turn signal lever P.3-239
Front fog light switch
(if so equipped) P.3-241
Supplemental restraint system
- airbag (for driver’s seat)
P. 2 - 3 7
Horn switch P.3-252 Instrument cluster P.3-174
Cruise control switches
(if so equipped) P.3-153 Wiper and washer switch
P. 3 - 2 4 2
Rear window wiper and
washer switch P.3-249
Fuses P.7-46
Engine hood release lever
P. 7 - 4Sportronic steering wheel paddle
shifter (if so equipped) P.3-106
Ignition switch
P.3-23, 3-34, 3-85
Steering wheel tilt lock
lever P.3-78
Supplemental restraint system - driver’s
knee airbag P.2-48
Bluetooth
® 2.0 interface (if so equipped) P.3-253 Headlight leveling switch
(if so equipped) P.3-238Multi-information meter switch P.3-178
Active stability control
(ASC) OFF switch P.3-150 Steering wheel audio remote
control switches
(if so equipped) P.5-127
BK0151000US.book 1 ページ ２０１２年３月２９日　木曜日　午後６時８分

Overview
Interior
N00100301186
Adjustable seat belt shoulder anchor
(for front seats) P.2-22
Seat belts P.2-16
Supplemental restraint system - side airbag
(for front seats) P.2-54Front seats P.2-3Sun visors P.3-286
Vanity mirror P.3-286
Card holder P.3-286 Inside rearview mirror
P.3-79, 3-172
Head restraints (except for RECARO seat) P.2-9 Window lock switch
P. 3 - 7 2
Power window
switches P.3-69Power door lock
switch P.3-56 Electric remote-
controlled outside
mirror switch
P.3-83Dome light (Front)/Reading lights
P.3-290, 7-59, 7-87Sunroof switch
(if so equipped)
P. 3 - 7 3
Bluetooth
® 2.0 interface microphone (if so equipped)
P.3-253
Bottle holder (for front seats)
P.3-301 Rear shelf panel
P. 3 - 3 0 1
BK0151000US.book 5 ページ ２０１２年３月２９日　木曜日　午後６時８分

3

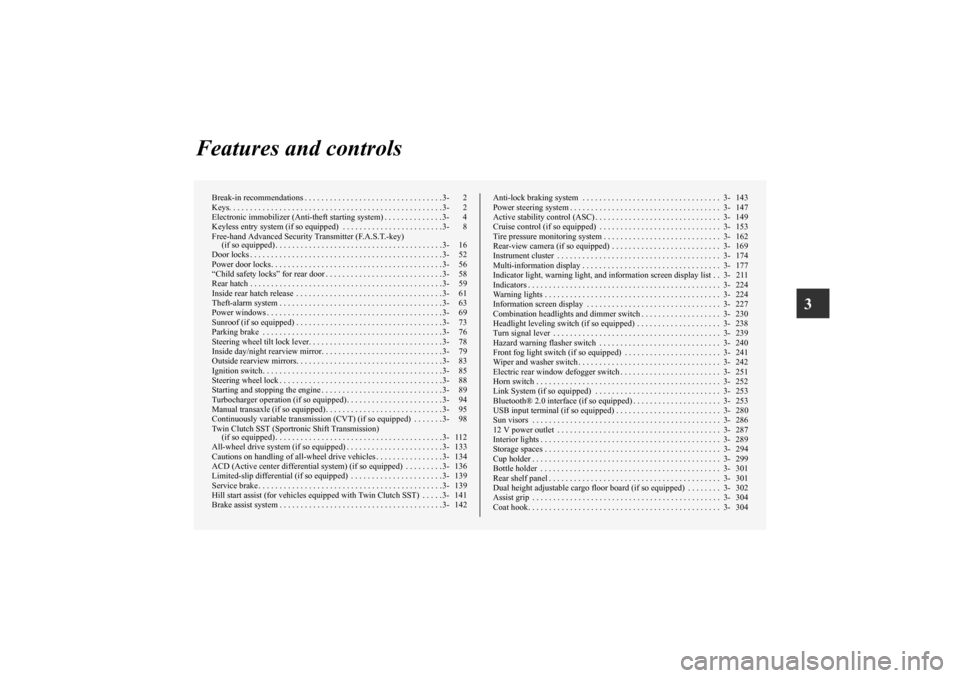

Features and controls
Break-in recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 2
Keys. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 2
Electronic immobilizer (Anti-theft starting system) . . . . . . . . . . . . . . 3- 4
Keyless entry system (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . 3- 8
Free-hand Advanced Security Transmitter (F.A.S.T.-key)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 16
Door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 52
Power door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 56
“Child safety locks” for rear door . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 58
Rear hatch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 59
Inside rear hatch release . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 61
Theft-alarm system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 63
Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 69
Sunroof (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 73
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 76
Steering wheel tilt lock lever. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 78
Inside day/night rearview mirror. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 79
Outside rearview mirrors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 83
Ignition switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 85
Steering wheel lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 88
Starting and stopping the engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 89
Turbocharger operation (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . 3- 94
Manual transaxle (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 95
Continuously variable transmission (CVT) (if so equipped) . . . . . . . 3- 98
Twin Clutch SST (Sportronic Shift Transmission)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 112
All-wheel drive system (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . 3- 133
Cautions on handling of all-wheel drive vehicles . . . . . . . . . . . . . . . . 3- 134
ACD (Active center differential system) (if so equipped) . . . . . . . . . 3- 136
Limited-slip differential (if so equipped) . . . . . . . . . . . . . . . . . . . . . . 3- 139
Service brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 139
Hill start assist (for vehicles equipped with Twin Clutch SST) . . . . . 3- 141
Brake assist system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 142Anti-lock braking system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 143
Power steering system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 147
Active stability control (ASC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 149
Cruise control (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 153
Tire pressure monitoring system . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 162
Rear-view camera (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 169
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 174
Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 177
Indicator light, warning light, and information screen display list . . 3- 211
Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 224
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 224
Information screen display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 227
Combination headlights and dimmer switch . . . . . . . . . . . . . . . . . . . 3- 230
Headlight leveling switch (if so equipped) . . . . . . . . . . . . . . . . . . . . 3- 238
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 239
Hazard warning flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 240
Front fog light switch (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . 3- 241
Wiper and washer switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 242
Electric rear window defogger switch . . . . . . . . . . . . . . . . . . . . . . . . 3- 251
Horn switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 252
Link System (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 253
Bluetooth® 2.0 interface (if so equipped) . . . . . . . . . . . . . . . . . . . . . 3- 253
USB input terminal (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . 3- 280
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 286
12 V power outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 287
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 289
Storage spaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 294
Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 299
Bottle holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 301
Rear shelf panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 301
Dual height adjustable cargo floor board (if so equipped) . . . . . . . . 3- 302
Assist grip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 304
Coat hook. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 304
BK0151000US.book 1 ページ ２０１２年３月２９日　木曜日　午後６時８分

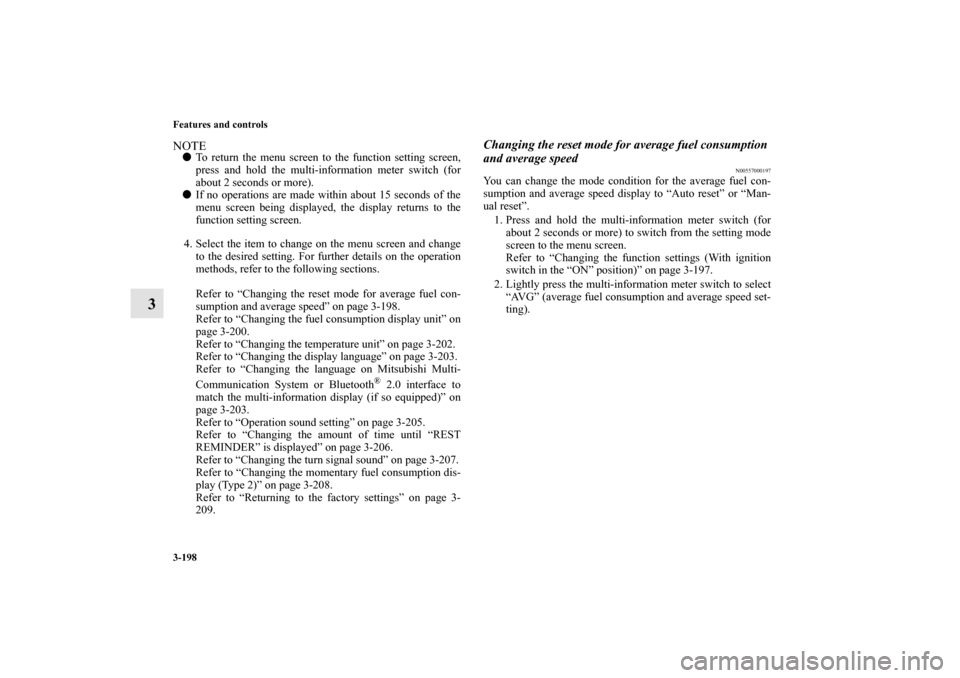

3-198 Features and controls
3
NOTE
To return the menu screen to the function setting screen,
press and hold the multi-information meter switch (for
about 2 seconds or more).

If no operations are made within about 15 seconds of the
menu screen being displayed, the display returns to the
function setting screen.
4. Select the item to change on the menu screen and change
to the desired setting. For further details on the operation
methods, refer to the following sections.
Refer to “Changing the reset mode for average fuel con-
sumption and average speed” on page 3-198.
Refer to “Changing the fuel consumption display unit” on
page 3-200.
Refer to “Changing the temperature unit” on page 3-202.
Refer to “Changing the display language” on page 3-203.
Refer to “Changing the language on Mitsubishi Multi-
Communication System or Bluetooth
® 2.0 interface to
match the multi-information display (if so equipped)” on
page 3-203.
Refer to “Operation sound setting” on page 3-205.
Refer to “Changing the amount of time until “REST
REMINDER” is displayed” on page 3-206.
Refer to “Changing the turn signal sound” on page 3-207.
Refer to “Changing the momentary fuel consumption dis-
play (Type 2)” on page 3-208.
Refer to “Returning to the factory settings” on page 3-
209.
Changing the reset mode for average fuel consumption
and average speed
N00557000197
You can change the mode condition for the average fuel con-
sumption and average speed display to “Auto reset” or “Man-
ual reset”.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-197.
2. Lightly press the multi-information meter switch to select
“AVG” (average fuel consumption and average speed set-
ting).
BK0151000US.book 198 ページ ２０１２年３月２９日　木曜日　午後６時８分

Features and controls
3-203
3

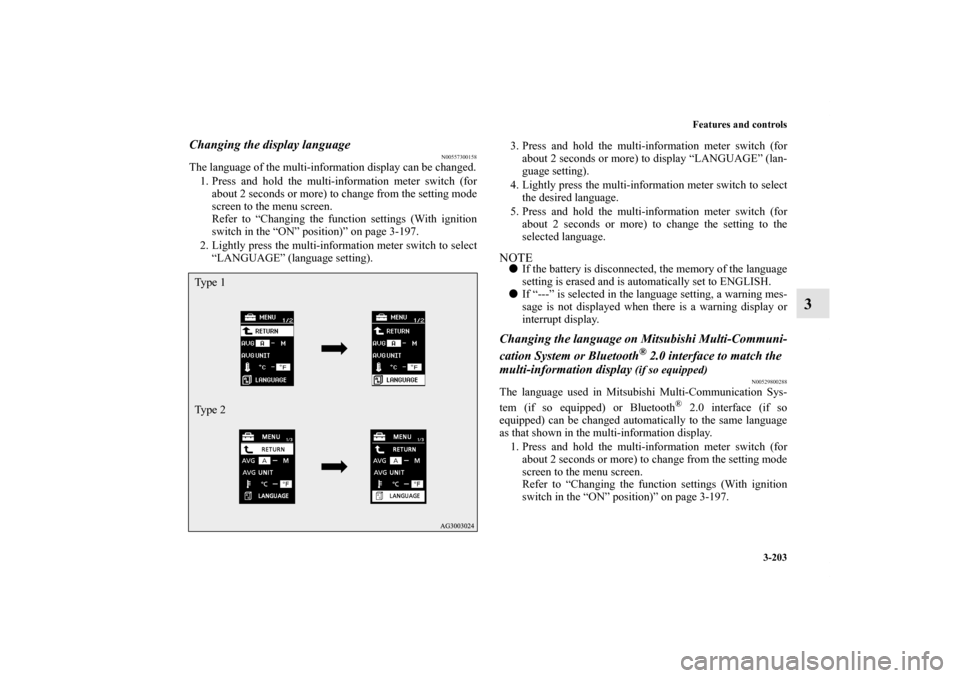

Changing the display language
N00557300158
The language of the multi-information display can be changed.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-197.
2. Lightly press the multi-information meter switch to select
“LANGUAGE” (language setting).3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to display “LANGUAGE” (lan-
guage setting).
4. Lightly press the multi-information meter switch to select
the desired language.
5. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change the setting to the
selected language.
NOTE
If the battery is disconnected, the memory of the language
setting is erased and is automatically set to ENGLISH.

If “---” is selected in the language setting, a warning mes-
sage is not displayed when there is a warning display or
interrupt display.Changing the language on Mitsubishi Multi-Communi-
cation System or Bluetooth
® 2.0 interface to match the
multi-information display
(if so equipped)
N00529800288
The language used in Mitsubishi Multi-Communication Sys-
tem (if so equipped) or Bluetooth
® 2.0 interface (if so
equipped) can be changed automatically to the same language
as that shown in the multi-information display.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-197.
Ty p e 1
Ty p e 2
BK0151000US.book 203 ページ ２０１２年３月２９日　木曜日　午後６時８分

Features and controls
3-253

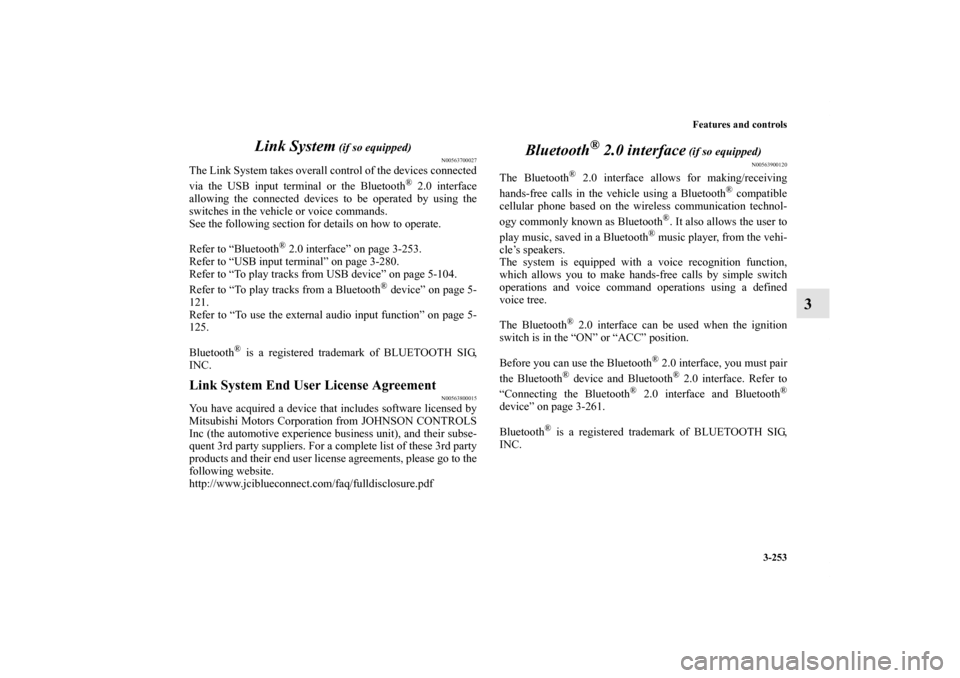

3 Link System
(if so equipped)
N00563700027
The Link System takes overall control of the devices connected
via the USB input terminal or the Bluetooth
® 2.0 interface
allowing the connected devices to be operated by using the
switches in the vehicle or voice commands.
See the following section for details on how to operate.
Refer to “Bluetooth
® 2.0 interface” on page 3-253.
Refer to “USB input terminal” on page 3-280.
Refer to “To play tracks from USB device” on page 5-104.
Refer to “To play tracks from a Bluetooth
® device” on page 5-
121.
Refer to “To use the external audio input function” on page 5-
125.
Bluetooth
® is a registered trademark of BLUETOOTH SIG,
INC.
Link System End User License Agreement
N00563800015
You have acquired a device that includes software licensed by
Mitsubishi Motors Corporation from JOHNSON CONTROLS
Inc (the automotive experience business unit), and their subse-
quent 3rd party suppliers. For a complete list of these 3rd party
products and their end user license agreements, please go to the
following website.
http://www.jciblueconnect.com/faq/fulldisclosure.pdf
Bluetooth
® 2.0 interface
(if so equipped)
N00563900120
The Bluetooth
® 2.0 interface allows for making/receiving
hands-free calls in the vehicle using a Bluetooth
® compatible
cellular phone based on the wireless communication technol-
ogy commonly known as Bluetooth
®. It also allows the user to
play music, saved in a Bluetooth
® music player, from the vehi-
cle’s speakers.
The system is equipped with a voice recognition function,
which allows you to make hands-free calls by simple switch
operations and voice command operations using a defined
voice tree.
The Bluetooth
® 2.0 interface can be used when the ignition
switch is in the “ON” or “ACC” position.
Before you can use the Bluetooth
® 2.0 interface, you must pair
the Bluetooth
® device and Bluetooth
® 2.0 interface. Refer to
“Connecting the Bluetooth
® 2.0 interface and Bluetooth
®
device” on page 3-261.
Bluetooth
® is a registered trademark of BLUETOOTH SIG,
INC.
BK0151000US.book 253 ページ ２０１２年３月２９日　木曜日　午後６時８分

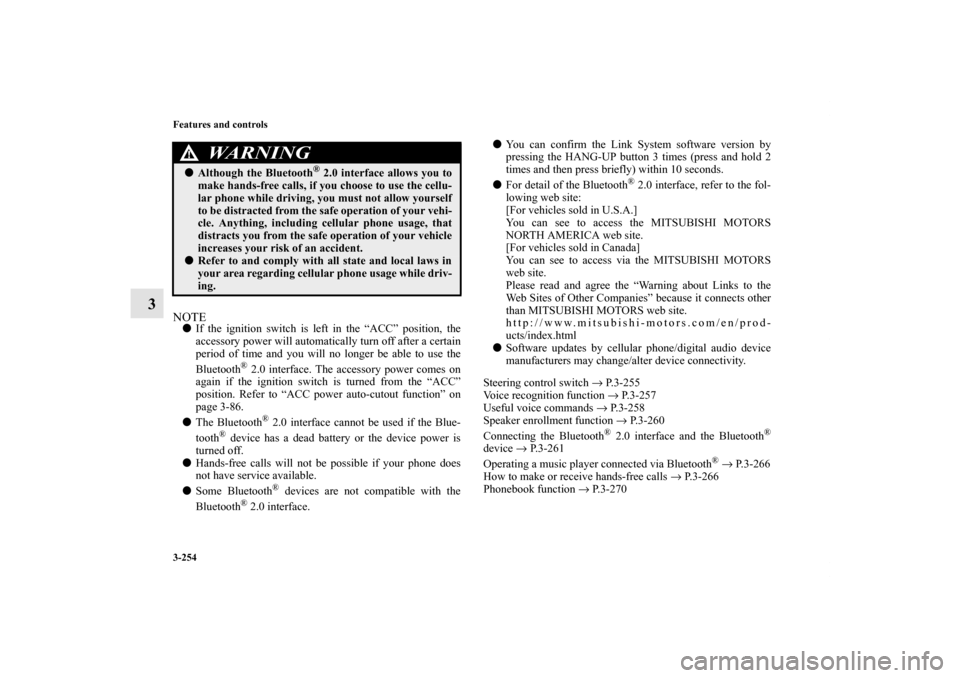

3-254 Features and controls
3
NOTE
If the ignition switch is left in the “ACC” position, the
accessory power will automatically turn off after a certain
period of time and you will no longer be able to use the
Bluetooth
® 2.0 interface. The accessory power comes on
again if the ignition switch is turned from the “ACC”
position. Refer to “ACC power auto-cutout function” on
page 3-86.

The Bluetooth
® 2.0 interface cannot be used if the Blue-
tooth
® device has a dead battery or the device power is
turned off.

Hands-free calls will not be possible if your phone does
not have service available.

Some Bluetooth
® devices are not compatible with the
Bluetooth
® 2.0 interface.
You can confirm the Link System software version by
pressing the HANG-UP button 3 times (press and hold 2
times and then press briefly) within 10 seconds.

For detail of the Bluetooth
® 2.0 interface, refer to the fol-
lowing web site:
[For vehicles sold in U.S.A.]
You can see to access the MITSUBISHI MOTORS
NORTH AMERICA web site.
[For vehicles sold in Canada]
You can see to access via the MITSUBISHI MOTORS
web site.
Please read and agree the “Warning about Links to the
Web Sites of Other Companies” because it connects other
than MITSUBISHI MOTORS web site.
http://www.mitsubishi-motors.com/en/prod-
ucts/index.html

Software updates by cellular phone/digital audio device
manufacturers may change/alter device connectivity.
Steering control switch → P. 3 - 2 5 5
Voice recognition function → P. 3 - 2 5 7
Useful voice commands → P. 3 - 2 5 8
Speaker enrollment function → P.3-260
Connecting the Bluetooth
® 2.0 interface and the Bluetooth
®
device→ P.3-261
Operating a music player connected via Bluetooth
® → P. 3 - 2 6 6
How to make or receive hands-free calls → P. 3 - 2 6 6
Phonebook function → P. 3 - 2 7 0
WA R N I N G
!
Although the Bluetooth
® 2.0 interface allows you to
make hands-free calls, if you choose to use the cellu-
lar phone while driving, you must not allow yourself
to be distracted from the safe operation of your vehi-
cle. Anything, including cellular phone usage, that
distracts you from the safe operation of your vehicle
increases your risk of an accident.

Refer to and comply with all state and local laws in
your area regarding cellular phone usage while driv-
ing.
BK0151000US.book 254 ページ ２０１２年３月２９日　木曜日　午後６時８分

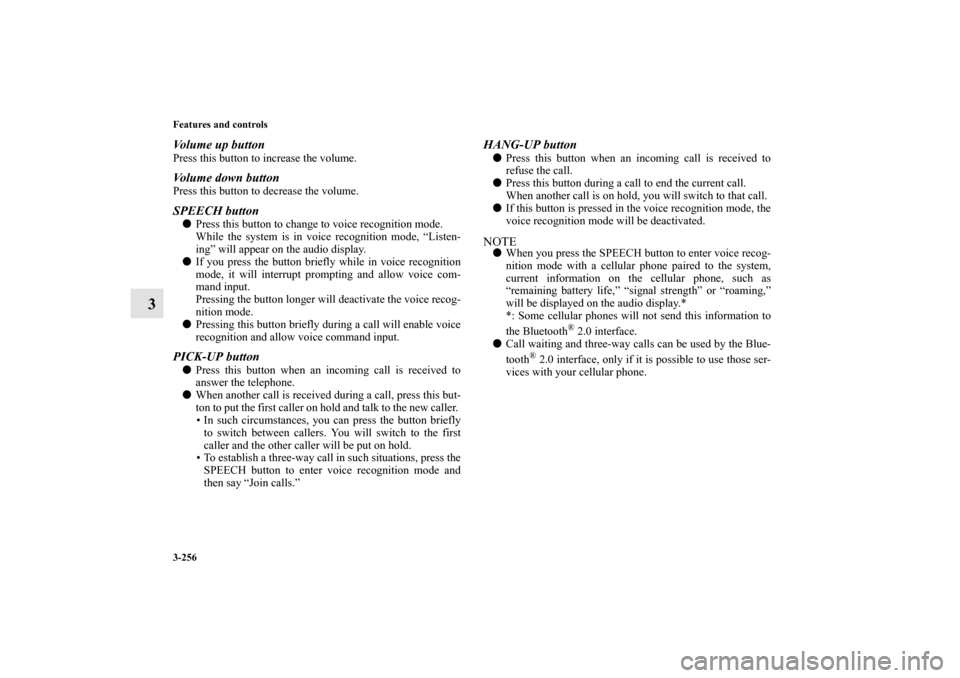

3-256 Features and controls
3
Volume up buttonPress this button to increase the volume. Volume down buttonPress this button to decrease the volume.SPEECH button
Press this button to change to voice recognition mode.
While the system is in voice recognition mode, “Listen-
ing” will appear on the audio display.

If you press the button briefly while in voice recognition
mode, it will interrupt prompting and allow voice com-
mand input.
Pressing the button longer will deactivate the voice recog-
nition mode.

Pressing this button briefly during a call will enable voice
recognition and allow voice command input.PICK-UP button
Press this button when an incoming call is received to
answer the telephone.

When another call is received during a call, press this but-
ton to put the first caller on hold and talk to the new caller.
• In such circumstances, you can press the button briefly
to switch between callers. You will switch to the first
caller and the other caller will be put on hold.
• To establish a three-way call in such situations, press the
SPEECH button to enter voice recognition mode and
then say “Join calls.”
HANG-UP button
Press this button when an incoming call is received to
refuse the call.

Press this button during a call to end the current call.
When another call is on hold, you will switch to that call.

If this button is pressed in the voice recognition mode, the
voice recognition mode will be deactivated.NOTE
When you press the SPEECH button to enter voice recog-
nition mode with a cellular phone paired to the system,
current information on the cellular phone, such as
“remaining battery life,” “signal strength” or “roaming,”
will be displayed on the audio display.*
*: Some cellular phones will not send this information to
the Bluetooth
® 2.0 interface.

Call waiting and three-way calls can be used by the Blue-
tooth
® 2.0 interface, only if it is possible to use those ser-
vices with your cellular phone.
BK0151000US.book 256 ページ ２０１２年３月２９日　木曜日　午後６時８分
