2013 MITSUBISHI LANCER SPORTBACK Owners Manual

2-60 Seat and restraint systems
2

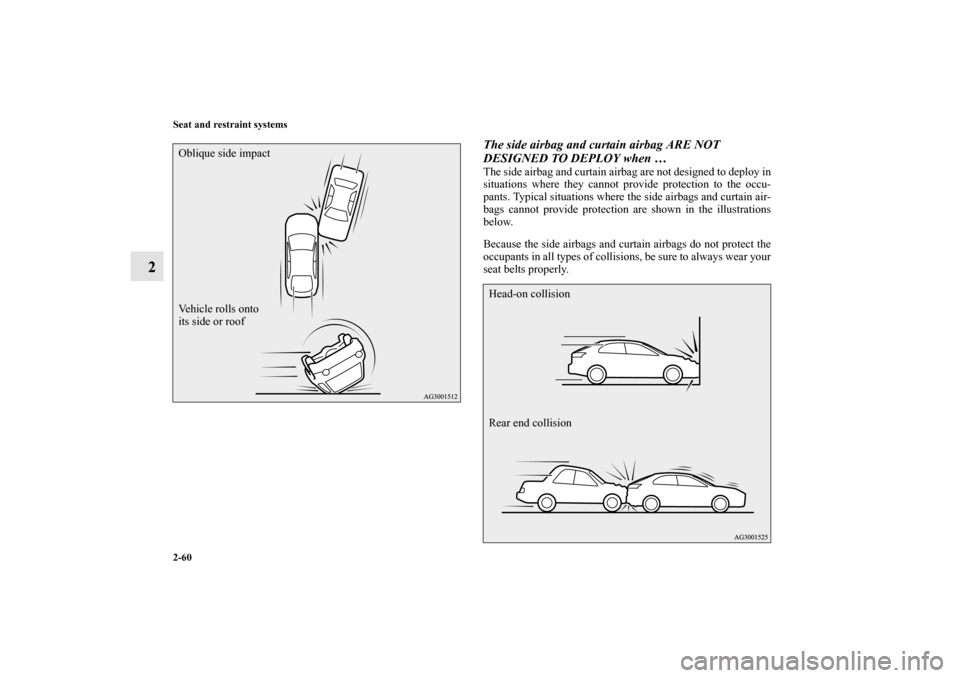

The side airbag and curtain airbag ARE NOT
DESIGNED TO DEPLOY when …The side airbag and curtain airbag are not designed to deploy in
situations where they cannot provide protection to the occu-
pants. Typical situations where the side airbags and curtain air-
bags cannot provide protection are shown in the illustrations
below.
Because the side airbags and curtain airbags do not protect the
occupants in all types of collisions, be sure to always wear your
seat belts properly.
Oblique side impact
Vehicle rolls onto
its side or roof
Head-on collision
Rear end collision
BK0151000US.book 60 ページ ２０１２年３月２９日　木曜日　午後６時８分

Seat and restraint systems
2-61
2

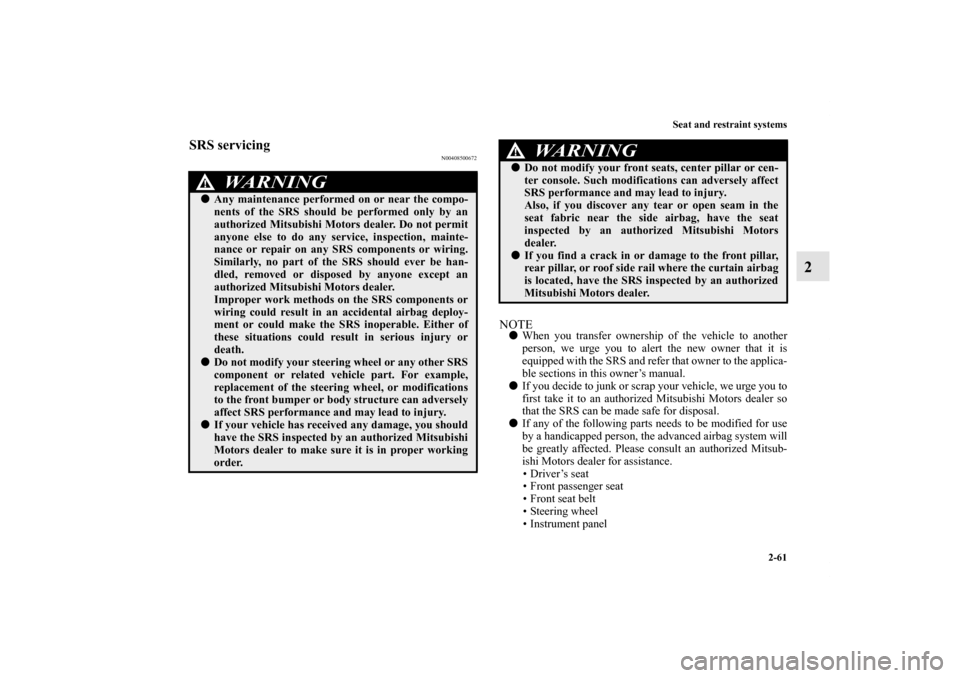

SRS servicing
N00408500672
NOTE
When you transfer ownership of the vehicle to another
person, we urge you to alert the new owner that it is
equipped with the SRS and refer that owner to the applica-
ble sections in this owner’s manual.

If you decide to junk or scrap your vehicle, we urge you to
first take it to an authorized Mitsubishi Motors dealer so
that the SRS can be made safe for disposal.

If any of the following parts needs to be modified for use
by a handicapped person, the advanced airbag system will
be greatly affected. Please consult an authorized Mitsub-
ishi Motors dealer for assistance.
• Driver’s seat
• Front passenger seat
• Front seat belt
• Steering wheel
• Instrument panel
WA R N I N G
!
Any maintenance performed on or near the compo-
nents of the SRS should be performed only by an
authorized Mitsubishi Motors dealer. Do not permit
anyone else to do any service, inspection, mainte-
nance or repair on any SRS components or wiring.
Similarly, no part of the SRS should ever be han-
dled, removed or disposed by anyone except an
authorized Mitsubishi Motors dealer.
Improper work methods on the SRS components or
wiring could result in an accidental airbag deploy-
ment or could make the SRS inoperable. Either of
these situations could result in serious injury or
death.
Do not modify your steering wheel or any other SRS
component or related vehicle part. For example,
replacement of the steering wheel, or modifications
to the front bumper or body structure can adversely
affect SRS performance and may lead to injury.
If your vehicle has received any damage, you should
have the SRS inspected by an authorized Mitsubishi
Motors dealer to make sure it is in proper working
order.

Do not modify your front seats, center pillar or cen-
ter console. Such modifications can adversely affect
SRS performance and may lead to injury.
Also, if you discover any tear or open seam in the
seat fabric near the side airbag, have the seat
inspected by an authorized Mitsubishi Motors
dealer.
If you find a crack in or damage to the front pillar,
rear pillar, or roof side rail where the curtain airbag
is located, have the SRS inspected by an authorized
Mitsubishi Motors dealer.
WA R N I N G
!
BK0151000US.book 61 ページ ２０１２年３月２９日　木曜日　午後６時８分

2-62 Seat and restraint systems
2

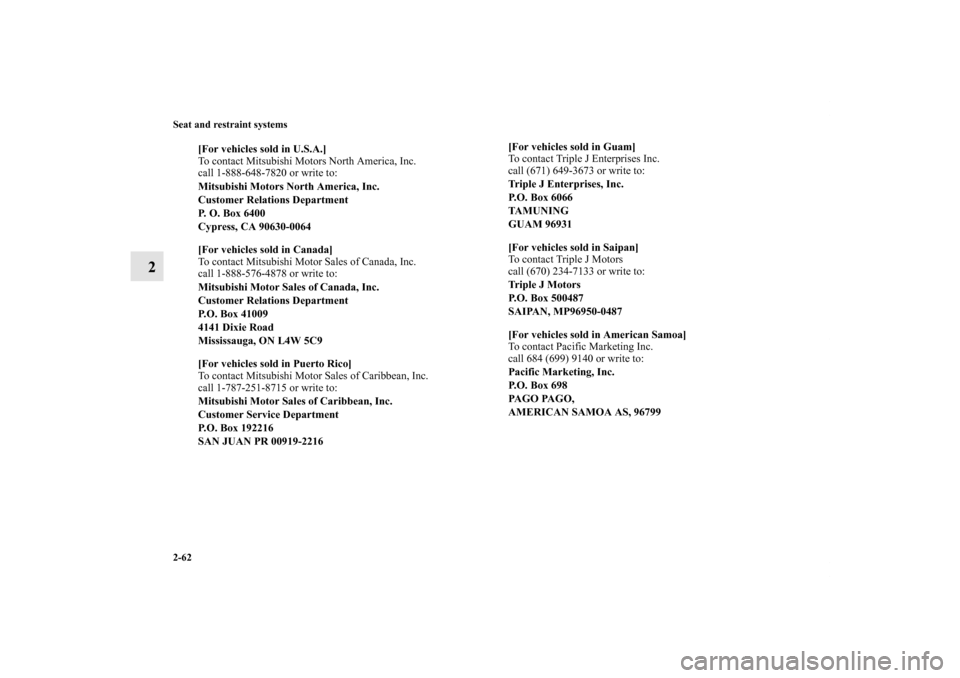

[For vehicles sold in U.S.A.]
To contact Mitsubishi Motors North America, Inc.
call 1-888-648-7820 or write to:
Mitsubishi Motors North America, Inc.
Customer Relations Department
P. O. Box 6400
Cypress, CA 90630-0064
[For vehicles sold in Canada]
To contact Mitsubishi Motor Sales of Canada, Inc.
call 1-888-576-4878 or write to:
Mitsubishi Motor Sales of Canada, Inc.
Customer Relations Department
P.O. Box 41009
4141 Dixie Road
Mississauga, ON L4W 5C9
[For vehicles sold in Puerto Rico]
To contact Mitsubishi Motor Sales of Caribbean, Inc.
call 1-787-251-8715 or write to:
Mitsubishi Motor Sales of Caribbean, Inc.
Customer Service Department
P.O. Box 192216
SAN JUAN PR 00919-2216[For vehicles sold in Guam]
To contact Triple J Enterprises Inc.
call (671) 649-3673 or write to:
Triple J Enterprises, Inc.
P.O. Box 6066
TAMUNING
GUAM 96931
[For vehicles sold in Saipan]
To contact Triple J Motors
call (670) 234-7133 or write to:
Triple J Motors
P.O. Box 500487
SAIPAN, MP96950-0487
[For vehicles sold in American Samoa]
To contact Pacific Marketing Inc.
call 684 (699) 9140 or write to:
Pacific Marketing, Inc.
P. O . B o x 6 9 8
PA G O PA G O ,
AMERICAN SAMOA AS, 96799
BK0151000US.book 62 ページ ２０１２年３月２９日　木曜日　午後６時８分

Seat and restraint systems
2-63
2

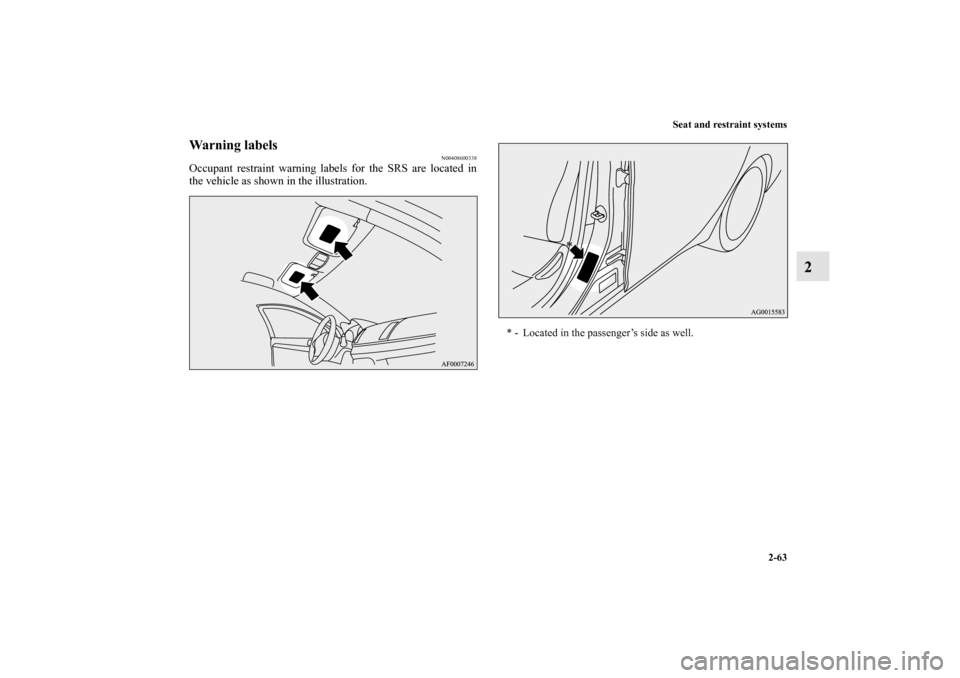

Warning labels
N00408600338
Occupant restraint warning labels for the SRS are located in
the vehicle as shown in the illustration.
* - Located in the passenger’s side as well.
BK0151000US.book 63 ページ ２０１２年３月２９日　木曜日　午後６時８分

BK0151000US.book 64 ページ ２０１２年３月２９日　木曜日　午後６時８分

3
Features and controls
Break-in recommendations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 2
Keys. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 2
Electronic immobilizer (Anti-theft starting system) . . . . . . . . . . . . . . 3- 4
Keyless entry system (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . 3- 8
Free-hand Advanced Security Transmitter (F.A.S.T.-key)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 16
Door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 52
Power door locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 56
“Child safety locks” for rear door . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 58
Rear hatch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 59
Inside rear hatch release . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 61
Theft-alarm system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 63
Power windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 69
Sunroof (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 73
Parking brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 76
Steering wheel tilt lock lever. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 78
Inside day/night rearview mirror. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 79
Outside rearview mirrors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 83
Ignition switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 85
Steering wheel lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 88
Starting and stopping the engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 89
Turbocharger operation (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . 3- 94
Manual transaxle (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 95
Continuously variable transmission (CVT) (if so equipped) . . . . . . . 3- 98
Twin Clutch SST (Sportronic Shift Transmission)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 112
All-wheel drive system (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . 3- 133
Cautions on handling of all-wheel drive vehicles . . . . . . . . . . . . . . . . 3- 134
ACD (Active center differential system) (if so equipped) . . . . . . . . . 3- 136
Limited-slip differential (if so equipped) . . . . . . . . . . . . . . . . . . . . . . 3- 139
Service brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 139
Hill start assist (for vehicles equipped with Twin Clutch SST) . . . . . 3- 141
Brake assist system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 142Anti-lock braking system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 143
Power steering system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 147
Active stability control (ASC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 149
Cruise control (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 153
Tire pressure monitoring system . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 162
Rear-view camera (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 169
Instrument cluster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 174
Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 177
Indicator light, warning light, and information screen display list . . 3- 211
Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 224
Warning lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 224
Information screen display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 227
Combination headlights and dimmer switch . . . . . . . . . . . . . . . . . . . 3- 230
Headlight leveling switch (if so equipped) . . . . . . . . . . . . . . . . . . . . 3- 238
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 239
Hazard warning flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 240
Front fog light switch (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . 3- 241
Wiper and washer switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 242
Electric rear window defogger switch . . . . . . . . . . . . . . . . . . . . . . . . 3- 251
Horn switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 252
Link System (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 253
Bluetooth® 2.0 interface (if so equipped) . . . . . . . . . . . . . . . . . . . . . 3- 253
USB input terminal (if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . 3- 280
Sun visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 286
12 V power outlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 287
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 289
Storage spaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 294
Cup holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 299
Bottle holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 301
Rear shelf panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 301
Dual height adjustable cargo floor board (if so equipped) . . . . . . . . 3- 302
Assist grip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 304
Coat hook. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3- 304
BK0151000US.book 1 ページ ２０１２年３月２９日　木曜日　午後６時８分

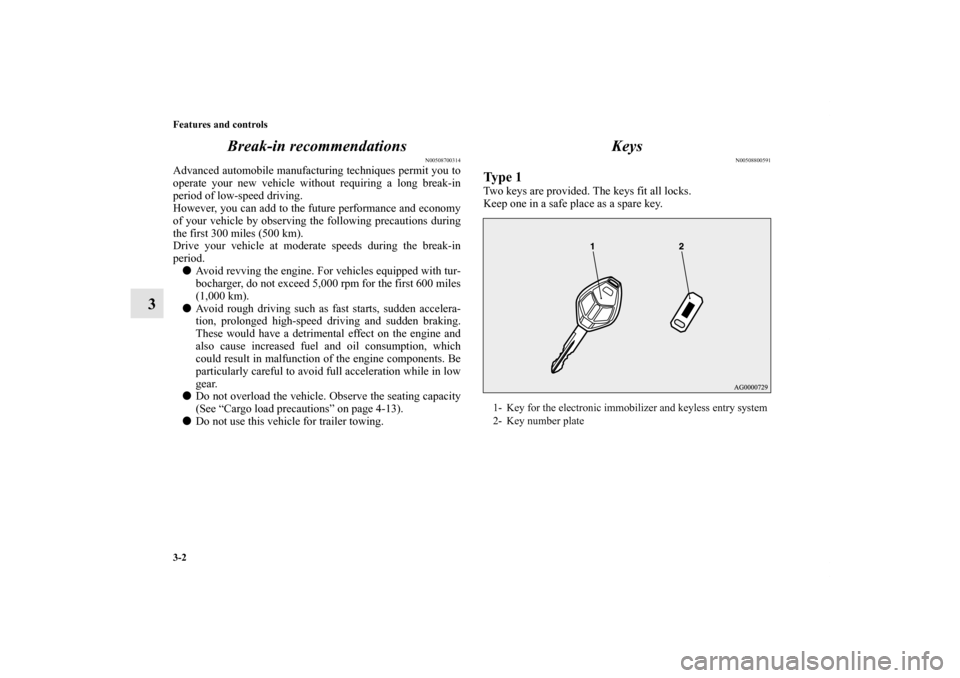

3-2 Features and controls
3Break-in recommendations
N00508700314
Advanced automobile manufacturing techniques permit you to
operate your new vehicle without requiring a long break-in
period of low-speed driving.
However, you can add to the future performance and economy
of your vehicle by observing the following precautions during
the first 300 miles (500 km).
Drive your vehicle at moderate speeds during the break-in
period.

Avoid revving the engine. For vehicles equipped with tur-
bocharger, do not exceed 5,000 rpm for the first 600 miles
(1,000 km).

Avoid rough driving such as fast starts, sudden accelera-
tion, prolonged high-speed driving and sudden braking.
These would have a detrimental effect on the engine and
also cause increased fuel and oil consumption, which
could result in malfunction of the engine components. Be
particularly careful to avoid full acceleration while in low
gear.

Do not overload the vehicle. Observe the seating capacity
(See “Cargo load precautions” on page 4-13).

Do not use this vehicle for trailer towing.
Keys
N00508800591
Ty p e 1Two keys are provided. The keys fit all locks.
Keep one in a safe place as a spare key.1- Key for the electronic immobilizer and keyless entry system
2- Key number plate
BK0151000US.book 2 ページ ２０１２年３月２９日　木曜日　午後６時８分

Features and controls
3-3
3

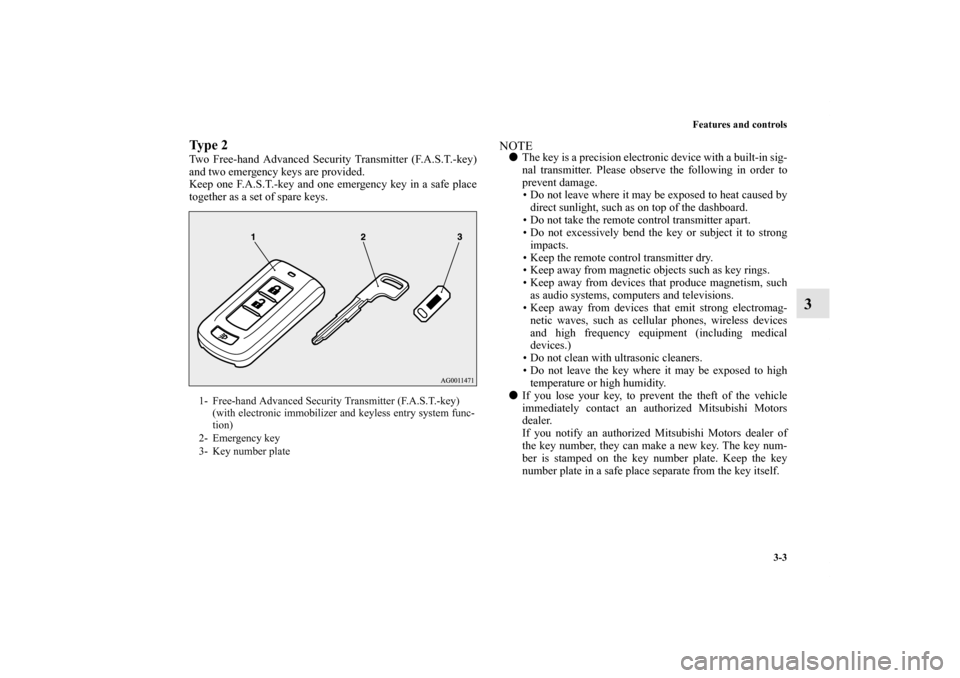

Ty p e 2Two Free-hand Advanced Security Transmitter (F.A.S.T.-key)
and two emergency keys are provided.
Keep one F.A.S.T.-key and one emergency key in a safe place
together as a set of spare keys.
NOTE
The key is a precision electronic device with a built-in sig-
nal transmitter. Please observe the following in order to
prevent damage.
• Do not leave where it may be exposed to heat caused by
direct sunlight, such as on top of the dashboard.
• Do not take the remote control transmitter apart.
• Do not excessively bend the key or subject it to strong
impacts.
• Keep the remote control transmitter dry.
• Keep away from magnetic objects such as key rings.
• Keep away from devices that produce magnetism, such
as audio systems, computers and televisions.
• Keep away from devices that emit strong electromag-
netic waves, such as cellular phones, wireless devices
and high frequency equipment (including medical
devices.)
• Do not clean with ultrasonic cleaners.
• Do not leave the key where it may be exposed to high
temperature or high humidity.

If you lose your key, to prevent the theft of the vehicle
immediately contact an authorized Mitsubishi Motors
dealer.
If you notify an authorized Mitsubishi Motors dealer of
the key number, they can make a new key. The key num-
ber is stamped on the key number plate. Keep the key
number plate in a safe place separate from the key itself.
1- Free-hand Advanced Security Transmitter (F.A.S.T.-key)
(with electronic immobilizer and keyless entry system func-
tion)
2- Emergency key
3- Key number plate
BK0151000US.book 3 ページ ２０１２年３月２９日　木曜日　午後６時８分
