2013 MITSUBISHI LANCER SPORTBACK Owners Manual

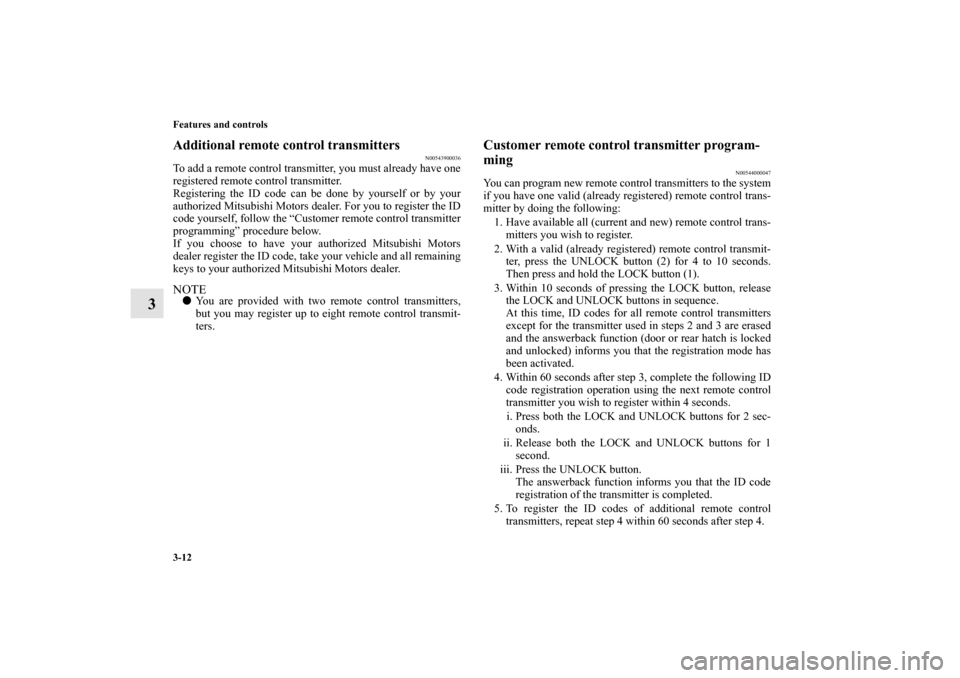

3-12 Features and controls
3
Additional remote control transmitters
N00543900036
To add a remote control transmitter, you must already have one
registered remote control transmitter.
Registering the ID code can be done by yourself or by your
authorized Mitsubishi Motors dealer. For you to register the ID
code yourself, follow the “Customer remote control transmitter
programming” procedure below.
If you choose to have your authorized Mitsubishi Motors
dealer register the ID code, take your vehicle and all remaining
keys to your authorized Mitsubishi Motors dealer.NOTE
You are provided with two remote control transmitters,
but you may register up to eight remote control transmit-
ters.
Customer remote control transmitter program-
ming
N00544000047
You can program new remote control transmitters to the system
if you have one valid (already registered) remote control trans-
mitter by doing the following:
1. Have available all (current and new) remote control trans-
mitters you wish to register.
2. With a valid (already registered) remote control transmit-
ter, press the UNLOCK button (2) for 4 to 10 seconds.
Then press and hold the LOCK button (1).
3. Within 10 seconds of pressing the LOCK button, release
the LOCK and UNLOCK buttons in sequence.
At this time, ID codes for all remote control transmitters
except for the transmitter used in steps 2 and 3 are erased
and the answerback function (door or rear hatch is locked
and unlocked) informs you that the registration mode has
been activated.
4. Within 60 seconds after step 3, complete the following ID
code registration operation using the next remote control
transmitter you wish to register within 4 seconds.
i. Press both the LOCK and UNLOCK buttons for 2 sec-
onds.
ii. Release both the LOCK and UNLOCK buttons for 1
second.
iii. Press the UNLOCK button.
The answerback function informs you that the ID code
registration of the transmitter is completed.
5. To register the ID codes of additional remote control
transmitters, repeat step 4 within 60 seconds after step 4.
BK0151000US.book 12 ページ ２０１２年３月２９日　木曜日　午後６時８分

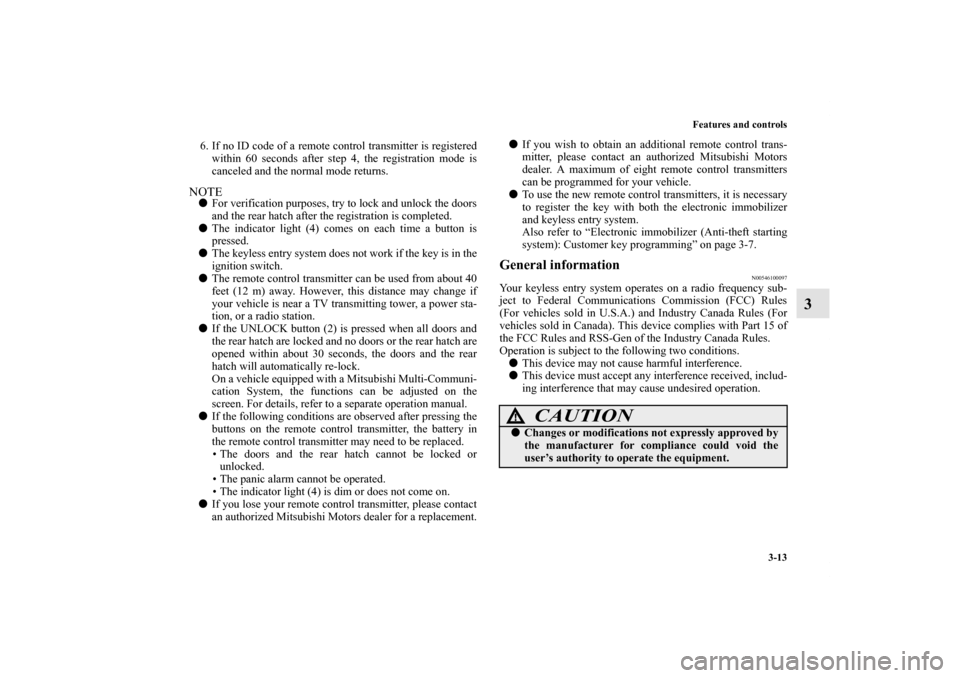

Features and controls
3-13
3
6. If no ID code of a remote control transmitter is registered
within 60 seconds after step 4, the registration mode is
canceled and the normal mode returns.NOTE
For verification purposes, try to lock and unlock the doors
and the rear hatch after the registration is completed.

The indicator light (4) comes on each time a button is
pressed.

The keyless entry system does not work if the key is in the
ignition switch.

The remote control transmitter can be used from about 40
feet (12 m) away. However, this distance may change if
your vehicle is near a TV transmitting tower, a power sta-
tion, or a radio station.

If the UNLOCK button (2) is pressed when all doors and
the rear hatch are locked and no doors or the rear hatch are
opened within about 30 seconds, the doors and the rear
hatch will automatically re-lock.
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to a separate operation manual.

If the following conditions are observed after pressing the
buttons on the remote control transmitter, the battery in
the remote control transmitter may need to be replaced.
• The doors and the rear hatch cannot be locked or
unlocked.
• The panic alarm cannot be operated.
• The indicator light (4) is dim or does not come on.

If you lose your remote control transmitter, please contact
an authorized Mitsubishi Motors dealer for a replacement.
If you wish to obtain an additional remote control trans-
mitter, please contact an authorized Mitsubishi Motors
dealer. A maximum of eight remote control transmitters
can be programmed for your vehicle.

To use the new remote control transmitters, it is necessary
to register the key with both the electronic immobilizer
and keyless entry system.
Also refer to “Electronic immobilizer (Anti-theft starting
system): Customer key programming” on page 3-7.
General information
N00546100097
Your keyless entry system operates on a radio frequency sub-
ject to Federal Communications Commission (FCC) Rules
(For vehicles sold in U.S.A.) and Industry Canada Rules (For
vehicles sold in Canada). This device complies with Part 15 of
the FCC Rules and RSS-Gen of the Industry Canada Rules.
Operation is subject to the following two conditions.

This device may not cause harmful interference.

This device must accept any interference received, includ-
ing interference that may cause undesired operation.
CAUTION
!
Changes or modifications not expressly approved by
the manufacturer for compliance could void the
user’s authority to operate the equipment.
BK0151000US.book 13 ページ ２０１２年３月２９日　木曜日　午後６時８分

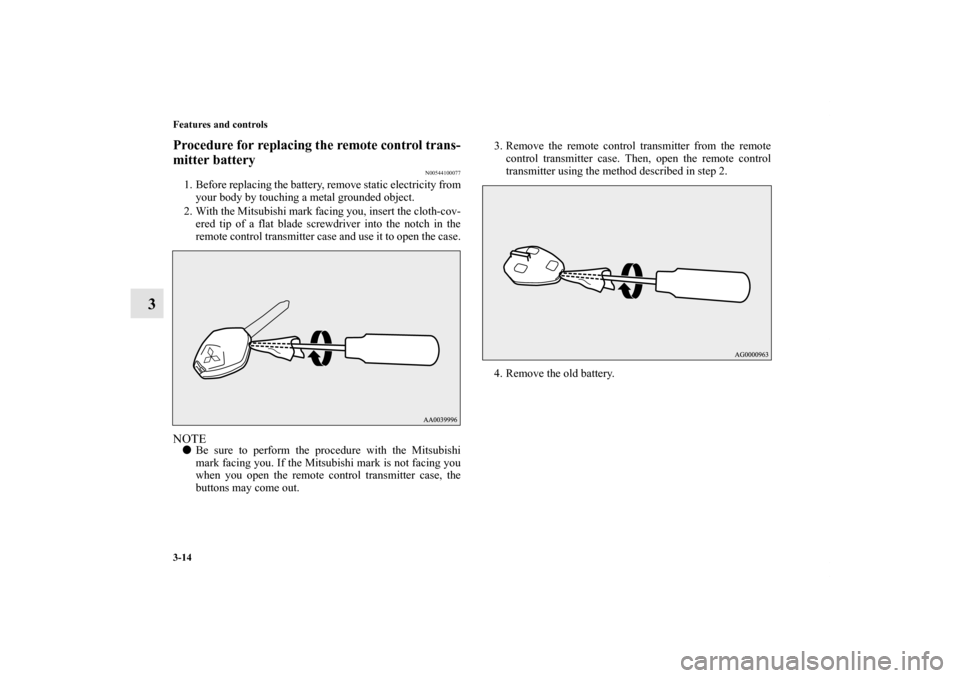

3-14 Features and controls
3
Procedure for replacing the remote control trans-
mitter battery
N00544100077
1. Before replacing the battery, remove static electricity from
your body by touching a metal grounded object.
2. With the Mitsubishi mark facing you, insert the cloth-cov-
ered tip of a flat blade screwdriver into the notch in the
remote control transmitter case and use it to open the case.NOTE
Be sure to perform the procedure with the Mitsubishi
mark facing you. If the Mitsubishi mark is not facing you
when you open the remote control transmitter case, the
buttons may come out.3. Remove the remote control transmitter from the remote
control transmitter case. Then, open the remote control
transmitter using the method described in step 2.
4. Remove the old battery.
BK0151000US.book 14 ページ ２０１２年３月２９日　木曜日　午後６時８分

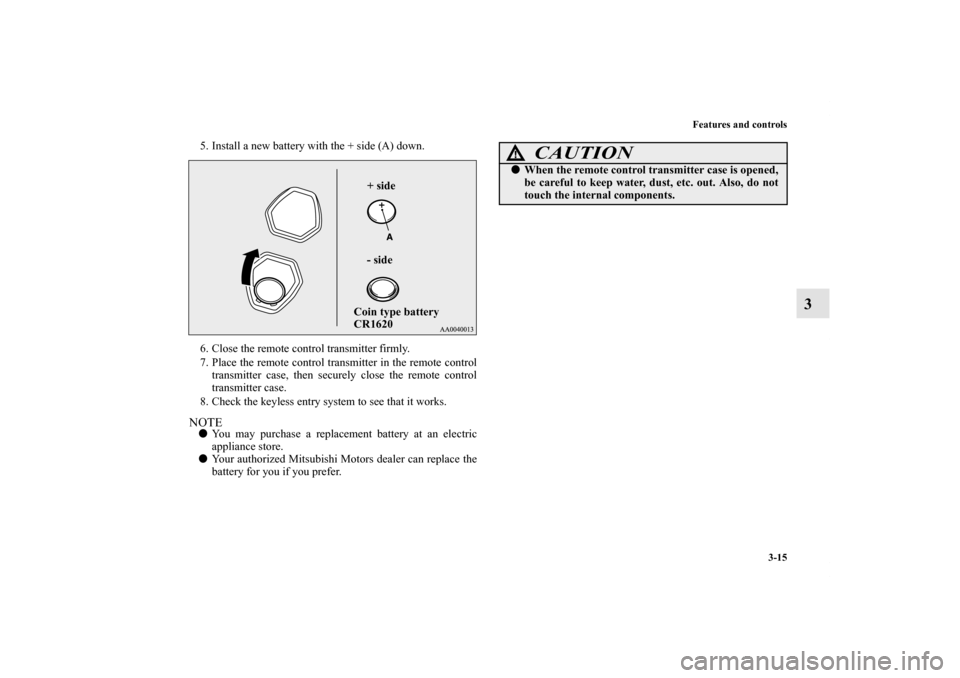

Features and controls
3-15
3
5. Install a new battery with the + side (A) down.
6. Close the remote control transmitter firmly.
7. Place the remote control transmitter in the remote control
transmitter case, then securely close the remote control
transmitter case.
8. Check the keyless entry system to see that it works.NOTE
You may purchase a replacement battery at an electric
appliance store.

Your authorized Mitsubishi Motors dealer can replace the
battery for you if you prefer.
Coin type battery
CR1620+ side
- side
CAUTION
!
When the remote control transmitter case is opened,
be careful to keep water, dust, etc. out. Also, do not
touch the internal components.
BK0151000US.book 15 ページ ２０１２年３月２９日　木曜日　午後６時８分

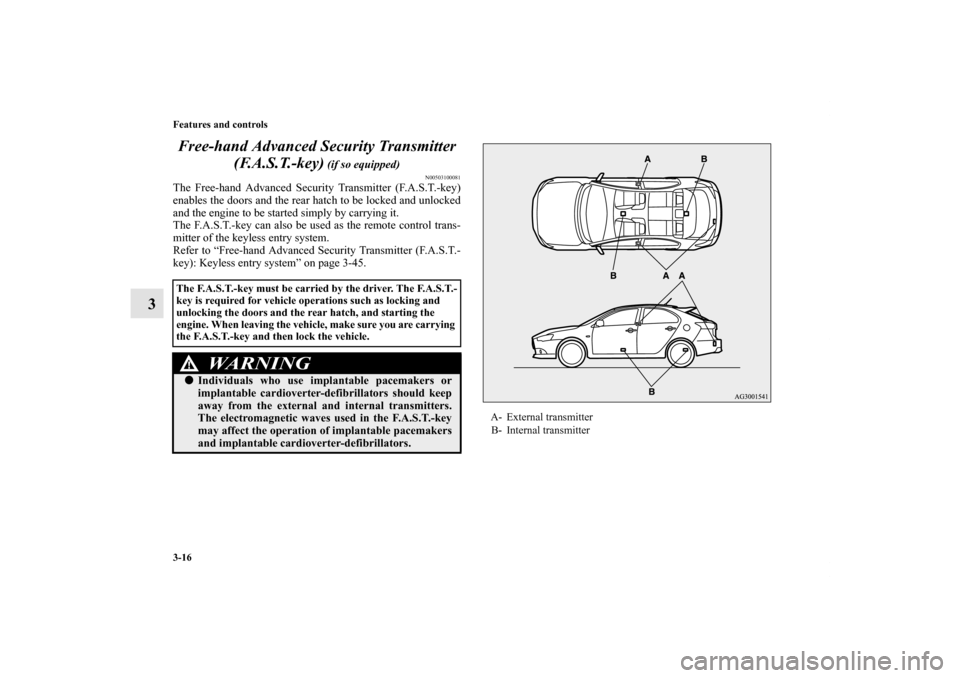

3-16 Features and controls
3Free-hand Advanced Security Transmitter
(F.A.S.T.-key)
(if so equipped)
N00503100081
The Free-hand Advanced Security Transmitter (F.A.S.T.-key)
enables the doors and the rear hatch to be locked and unlocked
and the engine to be started simply by carrying it.
The F.A.S.T.-key can also be used as the remote control trans-
mitter of the keyless entry system.
Refer to “Free-hand Advanced Security Transmitter (F.A.S.T.-
key): Keyless entry system” on page 3-45.The F.A.S.T.-key must be carried by the driver. The F.A.S.T.-
key is required for vehicle operations such as locking and
unlocking the doors and the rear hatch, and starting the
engine. When leaving the vehicle, make sure you are carrying
the F.A.S.T.-key and then lock the vehicle.
WA R N I N G
!
Individuals who use implantable pacemakers or
implantable cardioverter-defibrillators should keep
away from the external and internal transmitters.
The electromagnetic waves used in the F.A.S.T.-key
may affect the operation of implantable pacemakers
and implantable cardioverter-defibrillators.
A- External transmitter
B- Internal transmitter
BK0151000US.book 16 ページ ２０１２年３月２９日　木曜日　午後６時８分

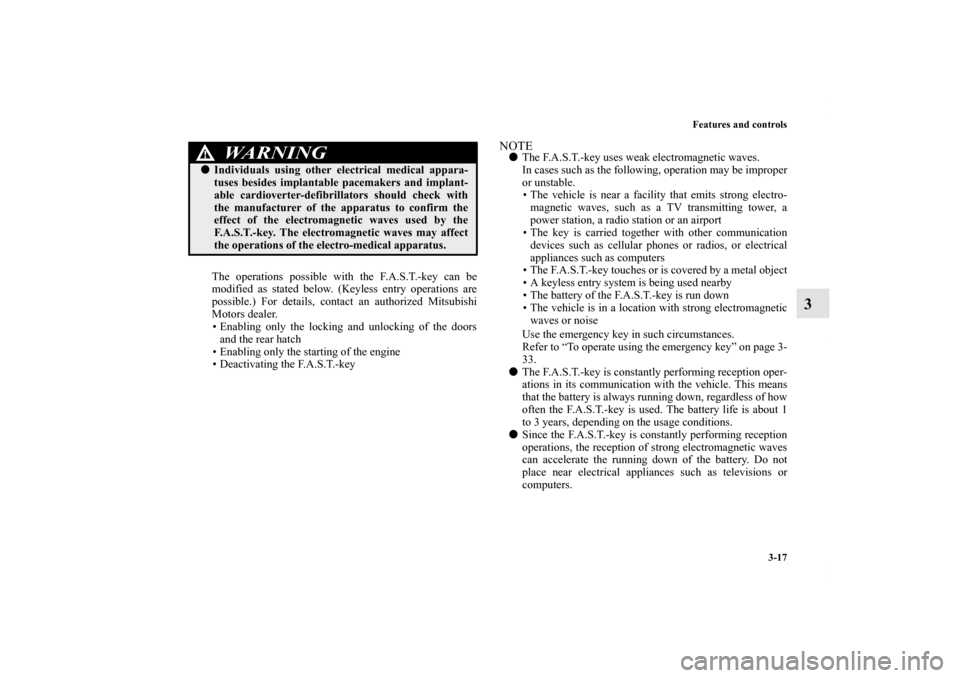

Features and controls
3-17
3
The operations possible with the F.A.S.T.-key can be
modified as stated below. (Keyless entry operations are
possible.) For details, contact an authorized Mitsubishi
Motors dealer.
• Enabling only the locking and unlocking of the doors
and the rear hatch
• Enabling only the starting of the engine
• Deactivating the F.A.S.T.-key
NOTE
The F.A.S.T.-key uses weak electromagnetic waves.
In cases such as the following, operation may be improper
or unstable.
• The vehicle is near a facility that emits strong electro-
magnetic waves, such as a TV transmitting tower, a
power station, a radio station or an airport
• The key is carried together with other communication
devices such as cellular phones or radios, or electrical
appliances such as computers
• The F.A.S.T.-key touches or is covered by a metal object
• A keyless entry system is being used nearby
• The battery of the F.A.S.T.-key is run down
• The vehicle is in a location with strong electromagnetic
waves or noise
Use the emergency key in such circumstances.
Refer to “To operate using the emergency key” on page 3-
33.

The F.A.S.T.-key is constantly performing reception oper-
ations in its communication with the vehicle. This means
that the battery is always running down, regardless of how
often the F.A.S.T.-key is used. The battery life is about 1
to 3 years, depending on the usage conditions.

Since the F.A.S.T.-key is constantly performing reception
operations, the reception of strong electromagnetic waves
can accelerate the running down of the battery. Do not
place near electrical appliances such as televisions or
computers.
WA R N I N G
!
Individuals using other electrical medical appara-
tuses besides implantable pacemakers and implant-
able cardioverter-defibrillators should check with
the manufacturer of the apparatus to confirm the
effect of the electromagnetic waves used by the
F.A.S.T.-key. The electromagnetic waves may affect
the operations of the electro-medical apparatus.
BK0151000US.book 17 ページ ２０１２年３月２９日　木曜日　午後６時８分

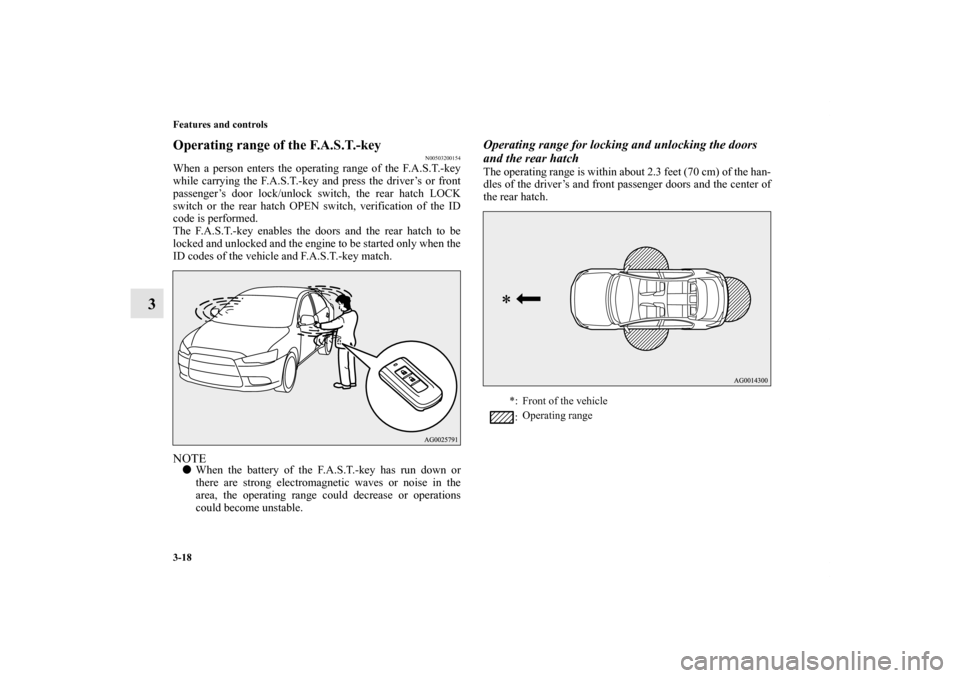

3-18 Features and controls
3
Operating range of the F.A.S.T.-key
N00503200154
When a person enters the operating range of the F.A.S.T.-key
while carrying the F.A.S.T.-key and press the driver’s or front
passenger’s door lock/unlock switch, the rear hatch LOCK
switch or the rear hatch OPEN switch, verification of the ID
code is performed.
The F.A.S.T.-key enables the doors and the rear hatch to be
locked and unlocked and the engine to be started only when the
ID codes of the vehicle and F.A.S.T.-key match.NOTE
When the battery of the F.A.S.T.-key has run down or
there are strong electromagnetic waves or noise in the
area, the operating range could decrease or operations
could become unstable.
Operating range for locking and unlocking the doors
and the rear hatchThe operating range is within about 2.3 feet (70 cm) of the han-
dles of the driver’s and front passenger doors and the center of
the rear hatch.
*: Front of the vehicle
:Operating range
BK0151000US.book 18 ページ ２０１２年３月２９日　木曜日　午後６時８分

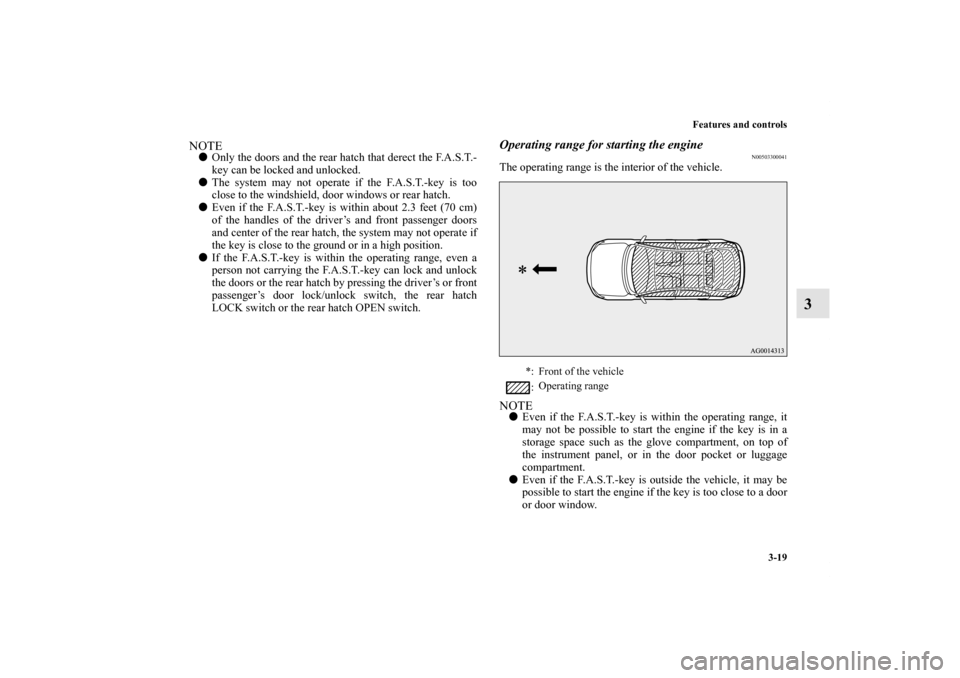

Features and controls
3-19
3
NOTE
Only the doors and the rear hatch that derect the F.A.S.T.-
key can be locked and unlocked.

The system may not operate if the F.A.S.T.-key is too
close to the windshield, door windows or rear hatch.

Even if the F.A.S.T.-key is within about 2.3 feet (70 cm)
of the handles of the driver’s and front passenger doors
and center of the rear hatch, the system may not operate if
the key is close to the ground or in a high position.

If the F.A.S.T.-key is within the operating range, even a
person not carrying the F.A.S.T.-key can lock and unlock
the doors or the rear hatch by pressing the driver’s or front
passenger’s door lock/unlock switch, the rear hatch
LOCK switch or the rear hatch OPEN switch.
Operating range for starting the engine
N00503300041
The operating range is the interior of the vehicle.NOTE
Even if the F.A.S.T.-key is within the operating range, it
may not be possible to start the engine if the key is in a
storage space such as the glove compartment, on top of
the instrument panel, or in the door pocket or luggage
compartment.

Even if the F.A.S.T.-key is outside the vehicle, it may be
possible to start the engine if the key is too close to a door
or door window.
*: Front of the vehicle
:Operating range
BK0151000US.book 19 ページ ２０１２年３月２９日　木曜日　午後６時８分
