2013 MITSUBISHI LANCER SPORTBACK Owners Manual

3-52 Features and controls
3

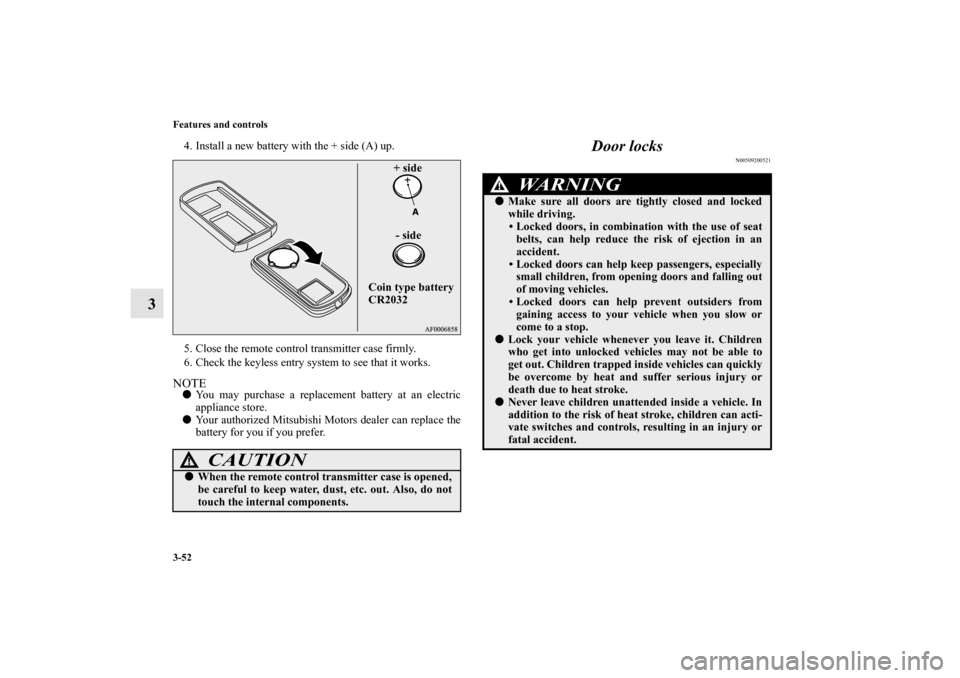

4. Install a new battery with the + side (A) up.
5. Close the remote control transmitter case firmly.
6. Check the keyless entry system to see that it works.NOTE
You may purchase a replacement battery at an electric
appliance store.

Your authorized Mitsubishi Motors dealer can replace the
battery for you if you prefer.
Door locks
N00509200521
CAUTION
!
When the remote control transmitter case is opened,
be careful to keep water, dust, etc. out. Also, do not
touch the internal components.
Coin type battery
CR2032+ side
- side
WA R N I N G
!
Make sure all doors are tightly closed and locked
while driving.
• Locked doors, in combination with the use of seat
belts, can help reduce the risk of ejection in an
accident.
• Locked doors can help keep passengers, especially
small children, from opening doors and falling out
of moving vehicles.
• Locked doors can help prevent outsiders from
gaining access to your vehicle when you slow or
come to a stop.

Lock your vehicle whenever you leave it. Children
who get into unlocked vehicles may not be able to
get out. Children trapped inside vehicles can quickly
be overcome by heat and suffer serious injury or
death due to heat stroke.
Never leave children unattended inside a vehicle. In
addition to the risk of heat stroke, children can acti-
vate switches and controls, resulting in an injury or
fatal accident.
BK0151000US.book 52 ページ ２０１２年３月２９日　木曜日　午後６時８分

Features and controls
3-53
3
NOTE
When locking or unlocking with the key, only the driver’s
door will be locked or unlocked.
To lock or unlock all doors and rear hatch, use the power
door lock switches, the keyless entry system, the F.A.S.T.-
key operation.
Refer to “Power door locks” on page 3-56, “Keyless entry
system” on page 3-8 and 3-45, and “To operate using the
F.A.S.T.-key” on page 3-20.

In vehicles equipped with the F.A.S.T.-key, the driver’s
door can be locked and unlocked using the emergency
key.
Refer to “Emergency key” on page 3-33.

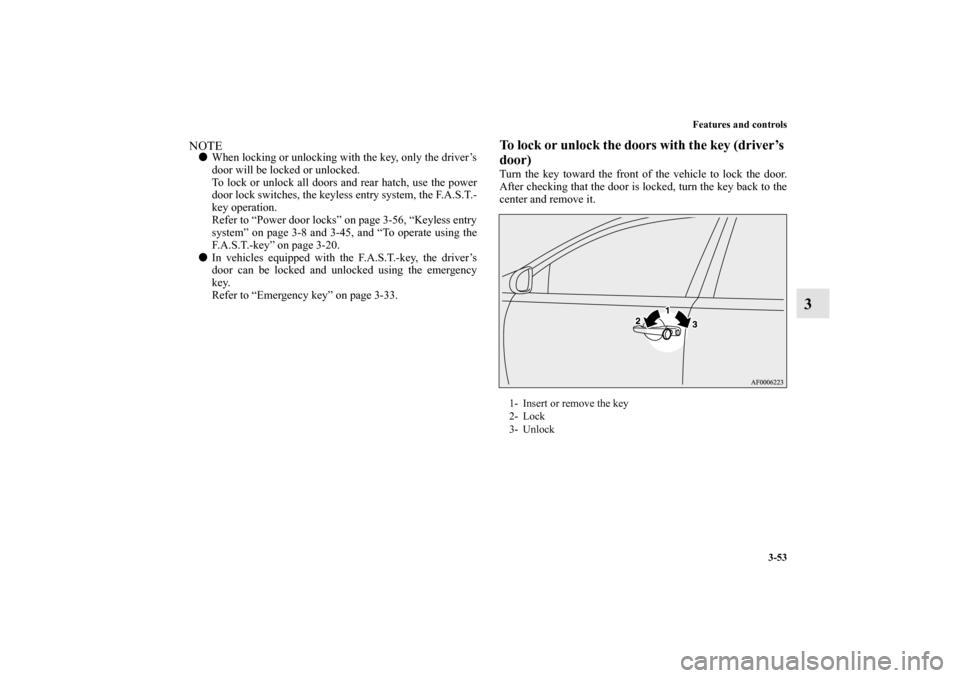

To lock or unlock the doors with the key (driver’s
door)Turn the key toward the front of the vehicle to lock the door.
After checking that the door is locked, turn the key back to the
center and remove it.1- Insert or remove the key
2- Lock
3- Unlock
BK0151000US.book 53 ページ ２０１２年３月２９日　木曜日　午後６時８分

3-54 Features and controls
3

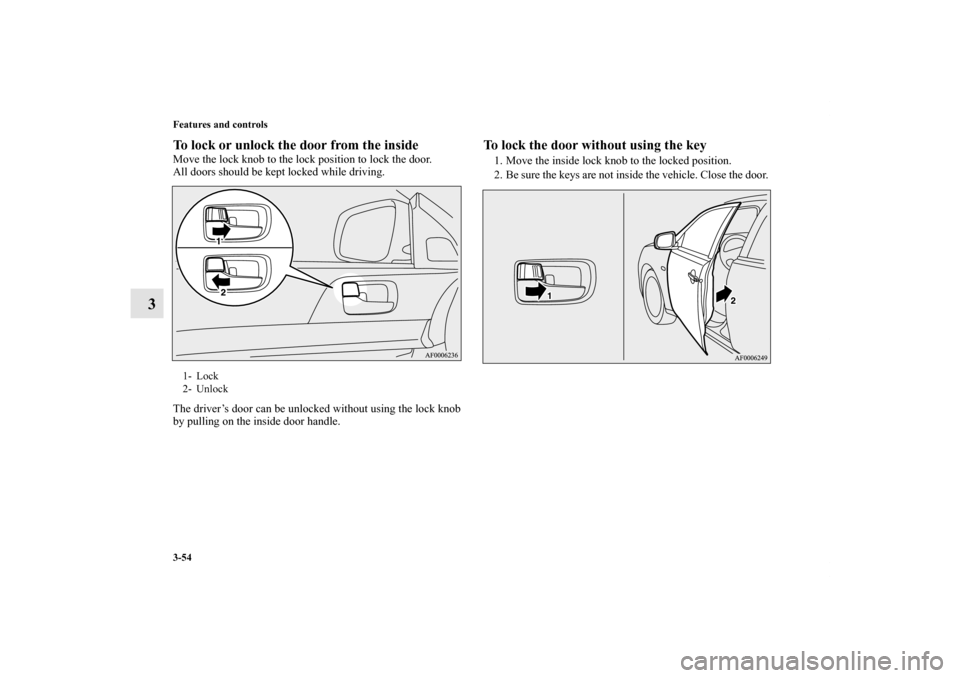

To lock or unlock the door from the insideMove the lock knob to the lock position to lock the door.
All doors should be kept locked while driving.
The driver’s door can be unlocked without using the lock knob
by pulling on the inside door handle.
To lock the door without using the key1. Move the inside lock knob to the locked position.
2. Be sure the keys are not inside the vehicle. Close the door.
1- Lock
2- Unlock
BK0151000US.book 54 ページ ２０１２年３月２９日　木曜日　午後６時８分

Features and controls
3-55
3

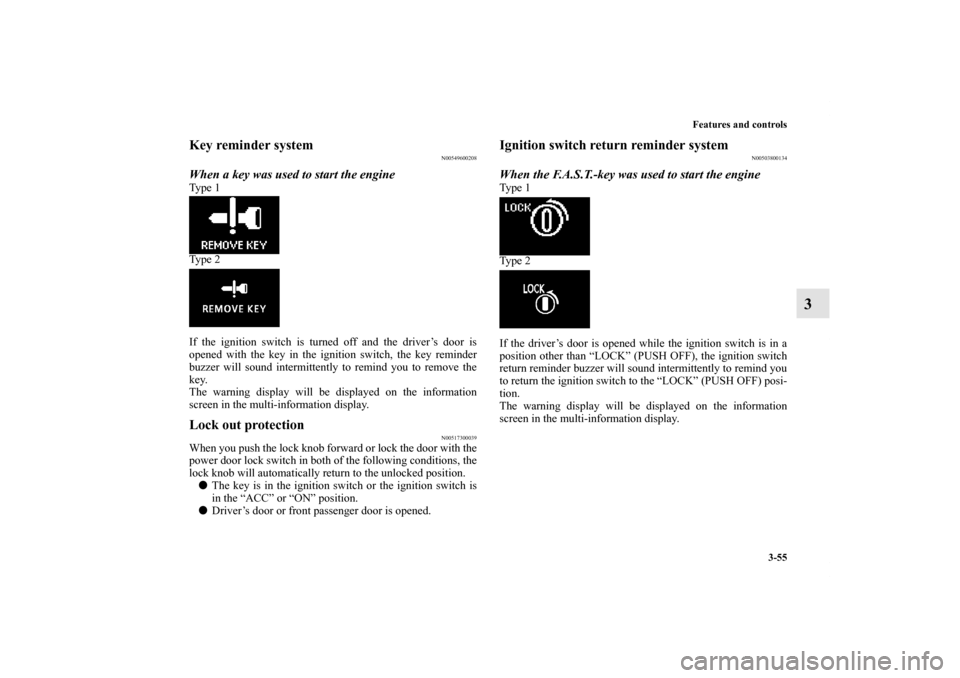

Key reminder system
N00549600208
When a key was used to start the engineTy p e 1
Ty p e 2
If the ignition switch is turned off and the driver’s door is
opened with the key in the ignition switch, the key reminder
buzzer will sound intermittently to remind you to remove the
key.
The warning display will be displayed on the information
screen in the multi-information display.Lock out protection
N00517300039
When you push the lock knob forward or lock the door with the
power door lock switch in both of the following conditions, the
lock knob will automatically return to the unlocked position.

The key is in the ignition switch or the ignition switch is
in the “ACC” or “ON” position.

Driver’s door or front passenger door is opened.
Ignition switch return reminder system
N00503800134
When the F.A.S.T.-key was used to start the engineTy p e 1
Ty p e 2
If the driver’s door is opened while the ignition switch is in a
position other than “LOCK” (PUSH OFF), the ignition switch
return reminder buzzer will sound intermittently to remind you
to return the ignition switch to the “LOCK” (PUSH OFF) posi-
tion.
The warning display will be displayed on the information
screen in the multi-information display.
BK0151000US.book 55 ページ ２０１２年３月２９日　木曜日　午後６時８分

3-56 Features and controls

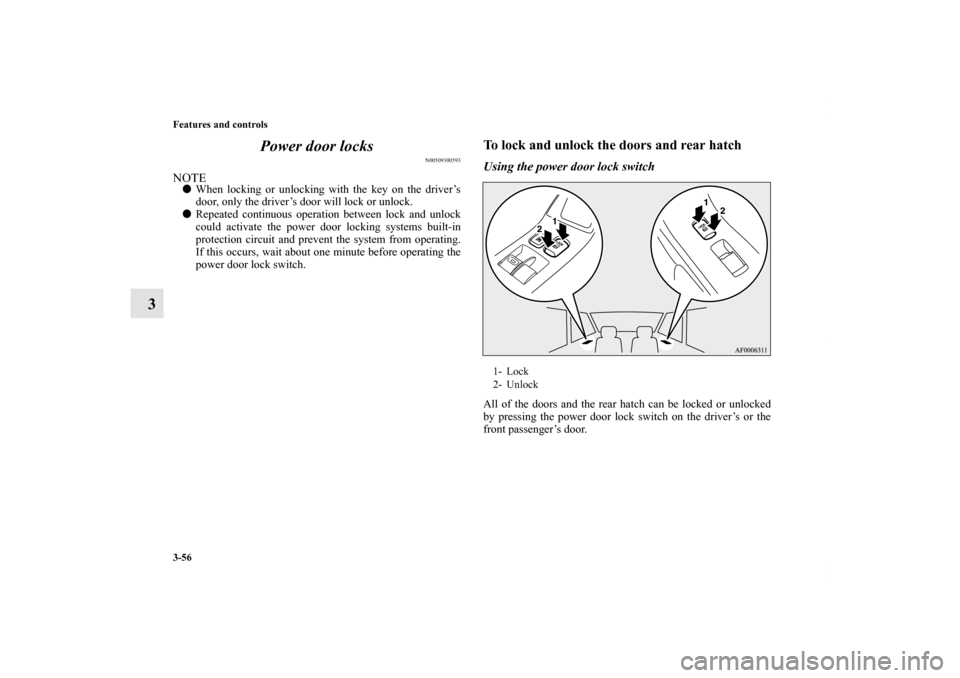

3Power door locks
N00509300593
NOTE
When locking or unlocking with the key on the driver’s
door, only the driver’s door will lock or unlock.

Repeated continuous operation between lock and unlock
could activate the power door locking systems built-in
protection circuit and prevent the system from operating.
If this occurs, wait about one minute before operating the
power door lock switch.
To lock and unlock the doors and rear hatchUsing the power door lock switchAll of the doors and the rear hatch can be locked or unlocked
by pressing the power door lock switch on the driver’s or the
front passenger’s door. 1- Lock
2- Unlock
BK0151000US.book 56 ページ ２０１２年３月２９日　木曜日　午後６時８分

Features and controls
3-57
3

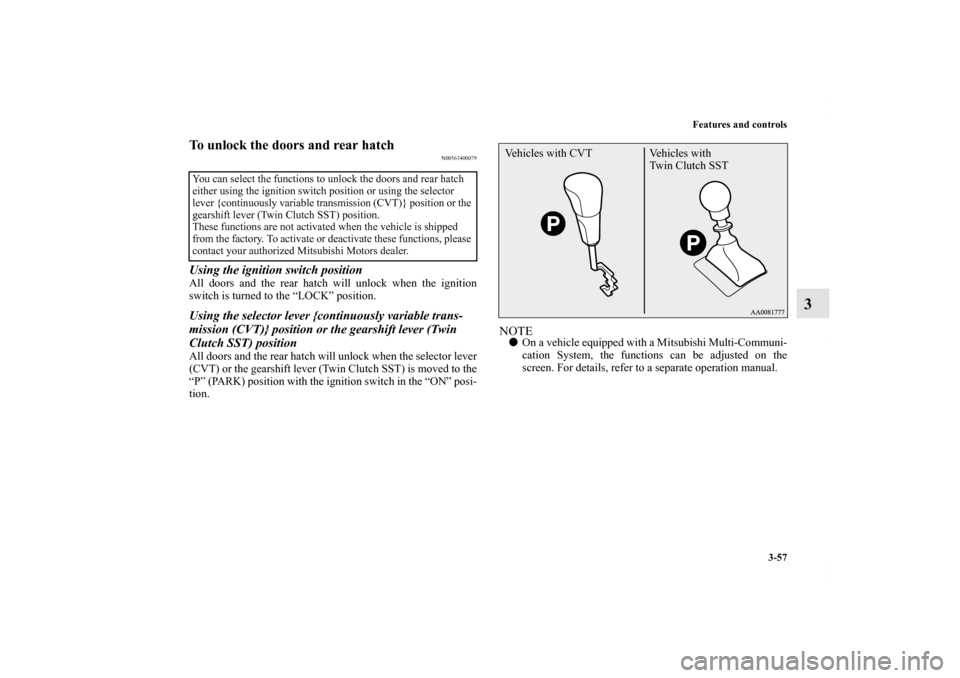

To unlock the doors and rear hatch
N00563400079
Using the ignition switch positionAll doors and the rear hatch will unlock when the ignition
switch is turned to the “LOCK” position.Using the selector lever {continuously variable trans-
mission (CVT)} position or the gearshift lever (Twin
Clutch SST) positionAll doors and the rear hatch will unlock when the selector lever
(CVT) or the gearshift lever (Twin Clutch SST) is moved to the
“P” (PARK) position with the ignition switch in the “ON” posi-
tion.
NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to a separate operation manual.
You can select the functions to unlock the doors and rear hatch
either using the ignition switch position or using the selector
lever {continuously variable transmission (CVT)} position or the
gearshift lever (Twin Clutch SST) position.
These functions are not activated when the vehicle is shipped
from the factory. To activate or deactivate these functions, please
contact your authorized Mitsubishi Motors dealer.
Vehicles with CVT Vehicles with
Tw i n C l u t c h S S T
BK0151000US.book 57 ページ ２０１２年３月２９日　木曜日　午後６時８分

3-58 Features and controls

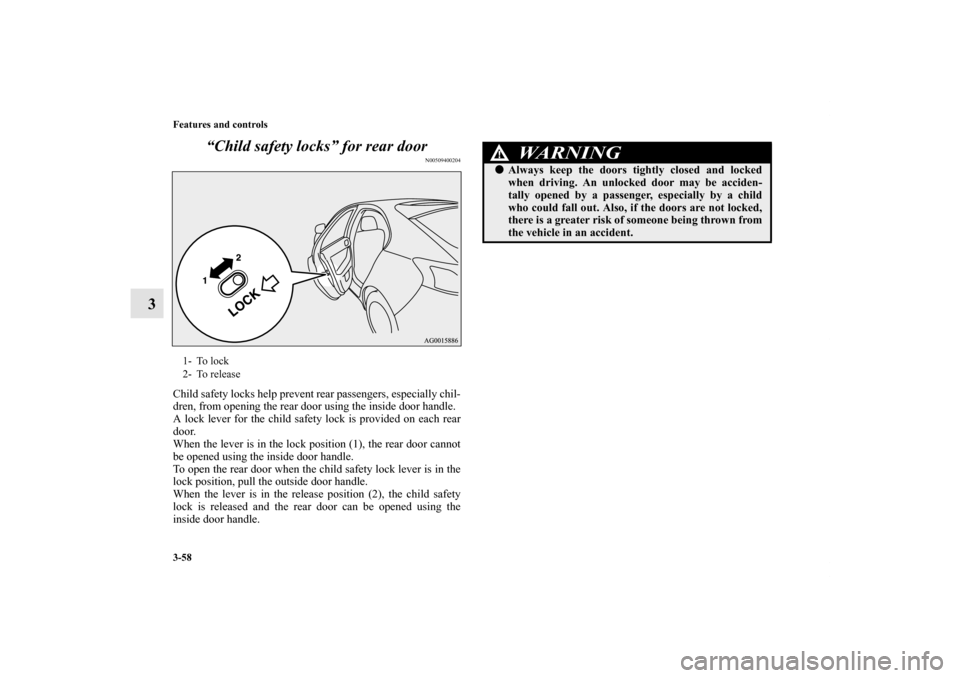

3“Child safety locks” for rear door
N00509400204
Child safety locks help prevent rear passengers, especially chil-
dren, from opening the rear door using the inside door handle.
A lock lever for the child safety lock is provided on each rear
door.
When the lever is in the lock position (1), the rear door cannot
be opened using the inside door handle.
To open the rear door when the child safety lock lever is in the
lock position, pull the outside door handle.
When the lever is in the release position (2), the child safety
lock is released and the rear door can be opened using the
inside door handle.1- To lock
2- To release
WA R N I N G
!
Always keep the doors tightly closed and locked
when driving. An unlocked door may be acciden-
tally opened by a passenger, especially by a child
who could fall out. Also, if the doors are not locked,
there is a greater risk of someone being thrown from
the vehicle in an accident.
BK0151000US.book 58 ページ ２０１２年３月２９日　木曜日　午後６時８分

Features and controls
3-59

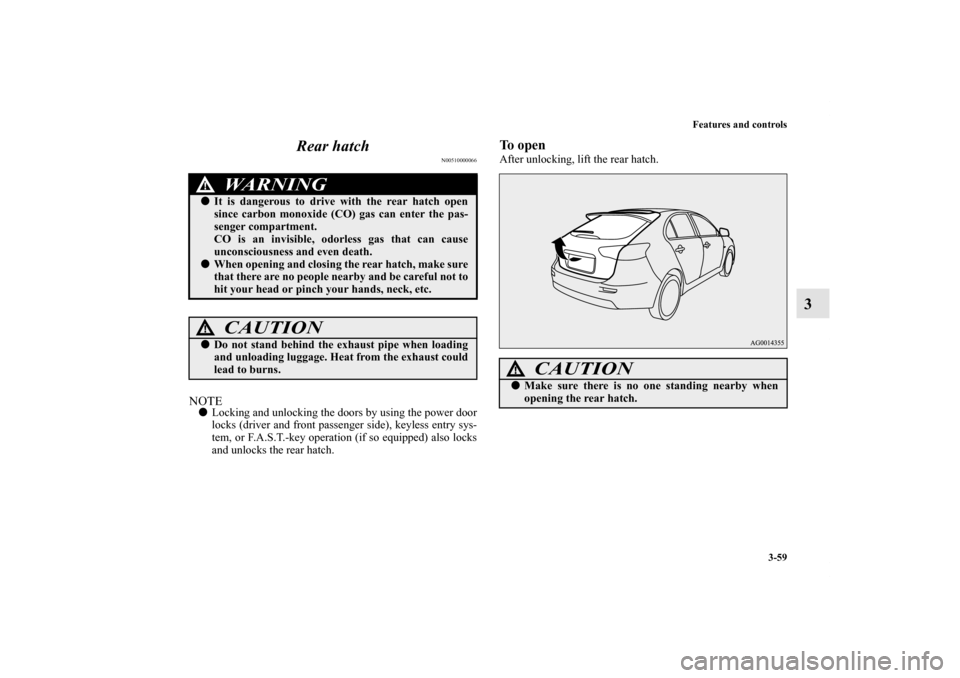

3 Rear hatch
N00510000066
NOTE
Locking and unlocking the doors by using the power door
locks (driver and front passenger side), keyless entry sys-
tem, or F.A.S.T.-key operation (if so equipped) also locks
and unlocks the rear hatch.
To openAfter unlocking, lift the rear hatch.
WA R N I N G
!
It is dangerous to drive with the rear hatch open
since carbon monoxide (CO) gas can enter the pas-
senger compartment.
CO is an invisible, odorless gas that can cause
unconsciousness and even death.
When opening and closing the rear hatch, make sure
that there are no people nearby and be careful not to
hit your head or pinch your hands, neck, etc.
CAUTION
!
Do not stand behind the exhaust pipe when loading
and unloading luggage. Heat from the exhaust could
lead to burns.
CAUTION
!
Make sure there is no one standing nearby when
opening the rear hatch.
BK0151000US.book 59 ページ ２０１２年３月２９日　木曜日　午後６時８分
