2011 TOYOTA VERSO Owners Manual

241 2-3. Operating the lights and wipers
2
When driving

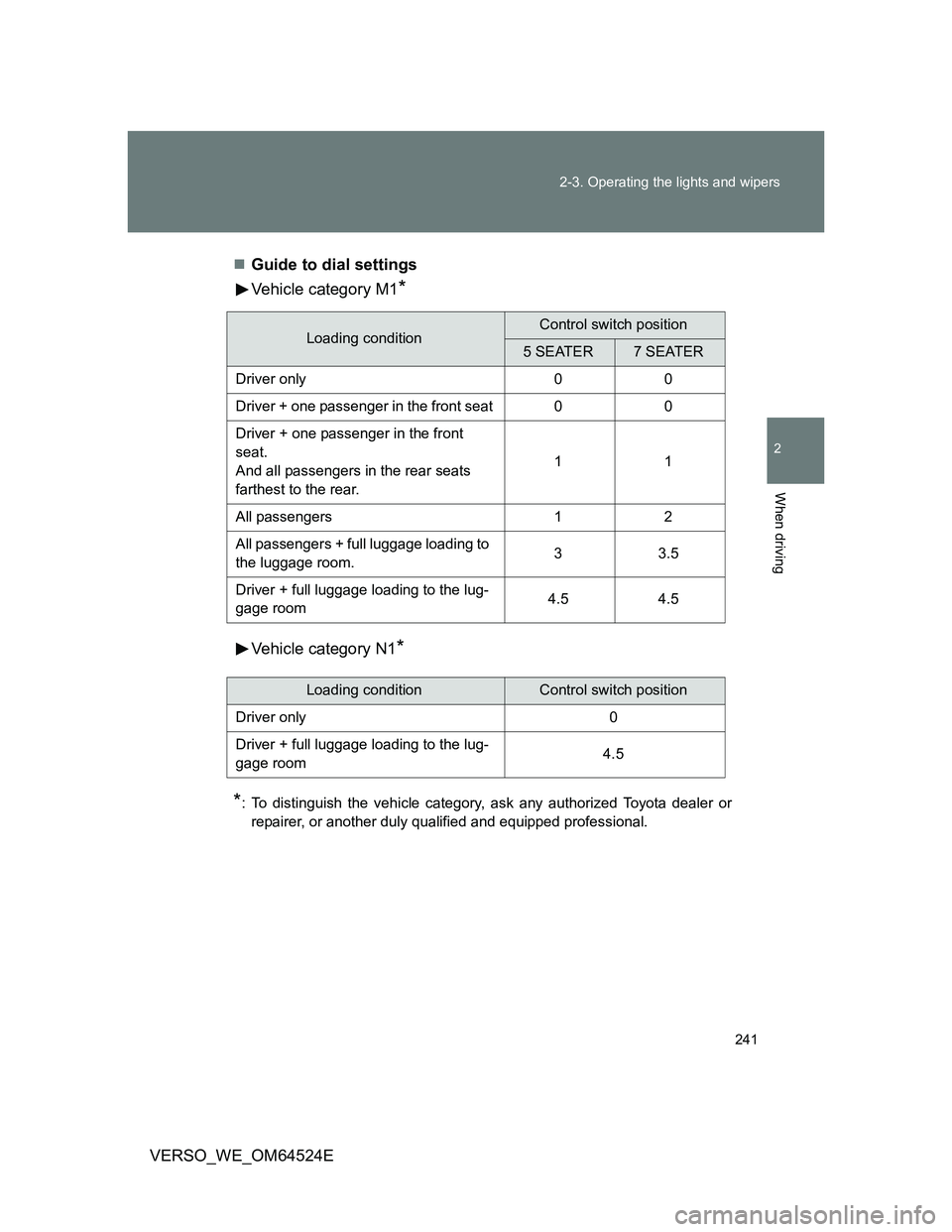

VERSO_WE_OM64524EGuide to dial settings
Vehicle category M1
*
Vehicle category N1*
*
: To distinguish the vehicle category, ask any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
Loading conditionControl switch position
5 SEATER7 SEATER
Driver only 0 0
Driver + one passenger in the front seat 0 0
Driver + one passenger in the front
seat.
And all passengers in the rear seats
farthest to the rear.11
All passengers 1 2
All passengers + full luggage loading to
the luggage room.33.5
Driver + full luggage loading to the lug-
gage room4.5 4.5
Loading conditionControl switch position
Driver only 0
Driver + full luggage loading to the lug-
gage room4.5

242 2-3. Operating the lights and wipers
VERSO_WE_OM64524E
Daytime running light system (if equipped)
To make your vehicle more visible to other drivers, the headlights and tail
lights turn on automatically whenever the engine is started. (However, the
daytime running light system will be canceled when the headlight switch is
operated manually or the automatic headlight system turns on the tail lights.)
Daytime running lights are not designed for use at night.
Headlight control sensor (if equipped)
Automatic light off system
Vehicles without smart entry & start system
When the light switch is in the position, the headlight and all the
lights turn off automatically if the engine switch is turned to the “ACC”
or “LOCK” position and the driver’s door is opened.
When the light switch is in the or position, the headlights
and front fog lights turn off automatically if the engine switch is turned
to the “ACC” or “LOCK” position.
To turn the lights on again, turn the engine switch to the “ON” position, or
turn the light switch off once and then back to the or position.
Vehicles with smart entry & start system
When the light switch is in the position, the headlight and all the
lights turn off automatically if the “ENGINE START STOP” switch is
turned to the ACCESSORY mode or turned OFF and the driver’s door
is opened.
When the light switch is in the or position, the headlights
and front fog lights turn off automatically if the “ENGINE START STOP”
switch is turned to the ACCESSORY mode or turned OFF.
To turn the lights on again, turn to the IGNITION ON mode, or turn the light
switch off once and then back to the or position.
The sensor may not function properly if
anything that blocks the sensor is affixed
to the windshield.
Doing so interferes with the sensor
detecting the level of ambient light and
may cause the automatic headlight sys-
tem to malfunction.

243 2-3. Operating the lights and wipers
2
When driving
VERSO_WE_OM64524E
Light reminder buzzer
Vehicles without smart entry & start system
A buzzer sounds when the engine switch is turned to the “LOCK” or
“ACC” position and the driver’s door is opened while the lights are turned
on.
Vehicles with smart entry & start system
A buzzer sounds when the ENGINE START STOP switch is turned OFF
or to the ACCESSORY mode and the driver’s door is opened while the
lights are turned on.
Automatic headlight leveling system (vehicles with discharge head-
lights)
The level of the headlights is automatically adjusted according to the number
of passengers and the loading condition of the vehicle to ensure that the
headlights do not interfere with other road users.
Customization that can be configured at any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional
Settings of the light sensor sensitivity can be changed.
(Customizable features P. 569)
NOTICE
To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is not run-
ning.

244
2-3. Operating the lights and wipers
VERSO_WE_OM64524E
Fog light switch
The fog lights improve visibility in difficult driving conditions, such
as in rain or fog. The fog lights can be used when the headlights or
front position lights are turned on. (For vehicles with a front and rear
fog light switch, the rear fog lights can be used when the front fog
lights are turned on.)
Front and rear fog light switch
Off
Front fog lights on
Both front and rear fog
lights on (Rotating the
switch ring again turns only
the rear fog light off.)
Releasing the switch returns
the ring to the position.
After the headlight switch is
turned off, the rear fog lights do
not come on even if you turn
on the headlight switch again.

245 2-3. Operating the lights and wipers
2
When driving
VERSO_WE_OM64524E

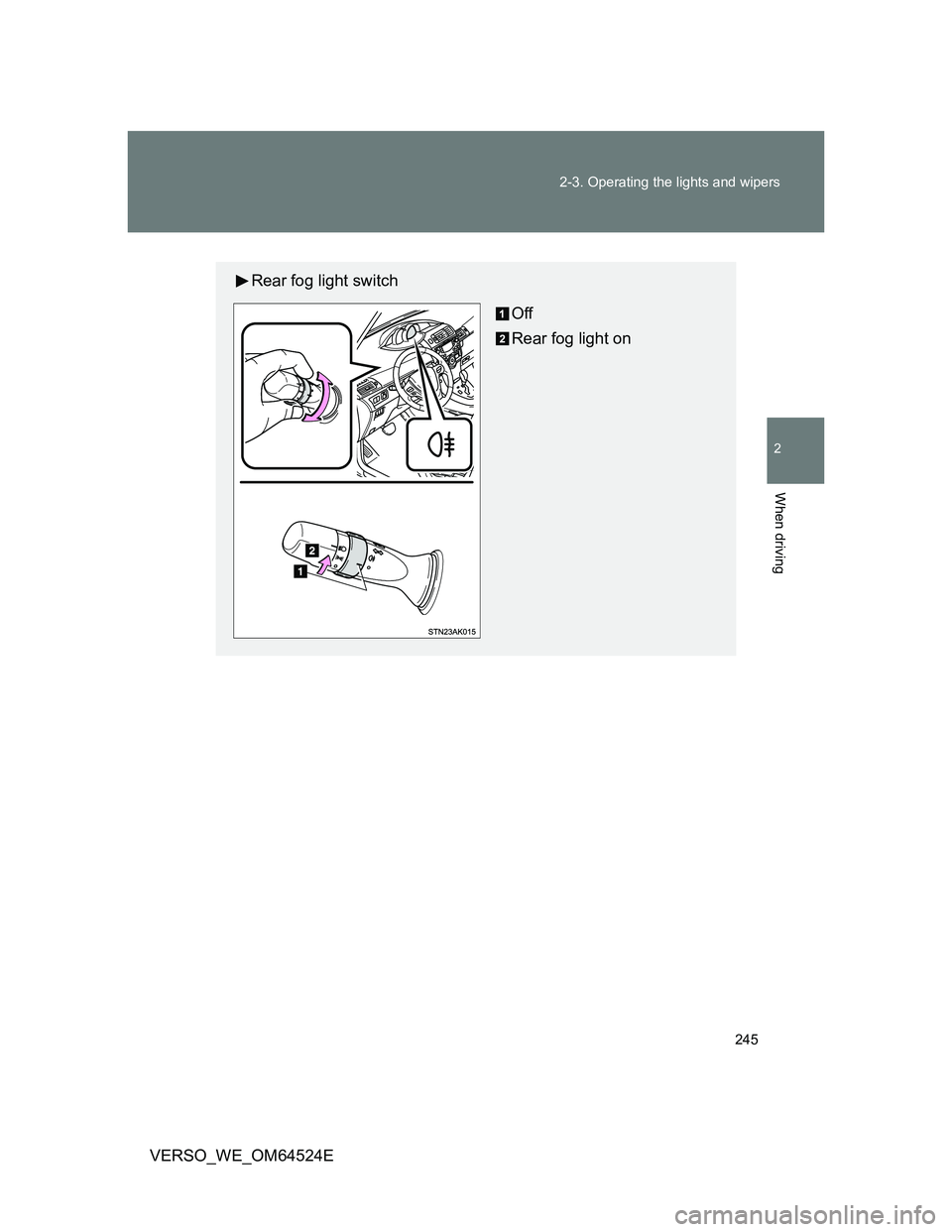

Rear fog light switch
Off
Rear fog light on

246
2-3. Operating the lights and wipers
VERSO_WE_OM64524E
Windshield wipers and washer
Intermittent windshield wipers with interval adjuster
Wiper intervals can be adjusted for intermittent operation (when
is selected).
Intermittent wiper operation
Low speed wiper operation
High speed wiper operation
Temporary operation
Increases the intermittent
wiper frequency
Decreases the intermittent
wiper frequency

247 2-3. Operating the lights and wipers
2
When driving
VERSO_WE_OM64524E
Wash/wipe operation
Wipers operate automati-
cally.
Vehicles with headlight
cleaner: P. 249
Rain-sensing windshield wipers (if equipped)
With “AUTO” selected, the wipers will operate automatically
when the sensor detects falling rain. The system automatically
adjusts wiper timing in accordance with rain volume.
Rain-sensing wiper opera-
tion
Low speed wiper operation
High speed wiper operation
Temporary operation

248 2-3. Operating the lights and wipers
VERSO_WE_OM64524E
The windshield wipers and washer can be operated when
Vehicles without smart entry & start system
The engine switch is in the “ON” position.
Vehicles with smart entry & start system
The “ENGINE START STOP” switch is in the IGNITION ON mode.
Sensor sensitivity (high)
Sensor sensitivity (low)
Wash/wipe operation
Wipers operate automati-
cally.
Vehicles with headlight
cleaner: P. 249
