2011 TOYOTA VERSO Owners Manual

5
521 5-2. Steps to take in an emergency
When trouble arises
VERSO_WE_OM64524EVehicles with a manual transmission
Set the parking brake.
Put the shift lever in “N”.
Set the “ENGINE START STOP” switch to the ACCESSORY
mode.
Press and hold the “ENGINE START STOP” switch about 15
seconds while depressing the brake pedal and clutch pedal
firmly.
Even if the engine can be started using the above steps, the system
may be malfunctioning. Have the vehicle checked by any authorized
Toyota dealer or repairer, or another duty qualified and equipped pro-
fessional.

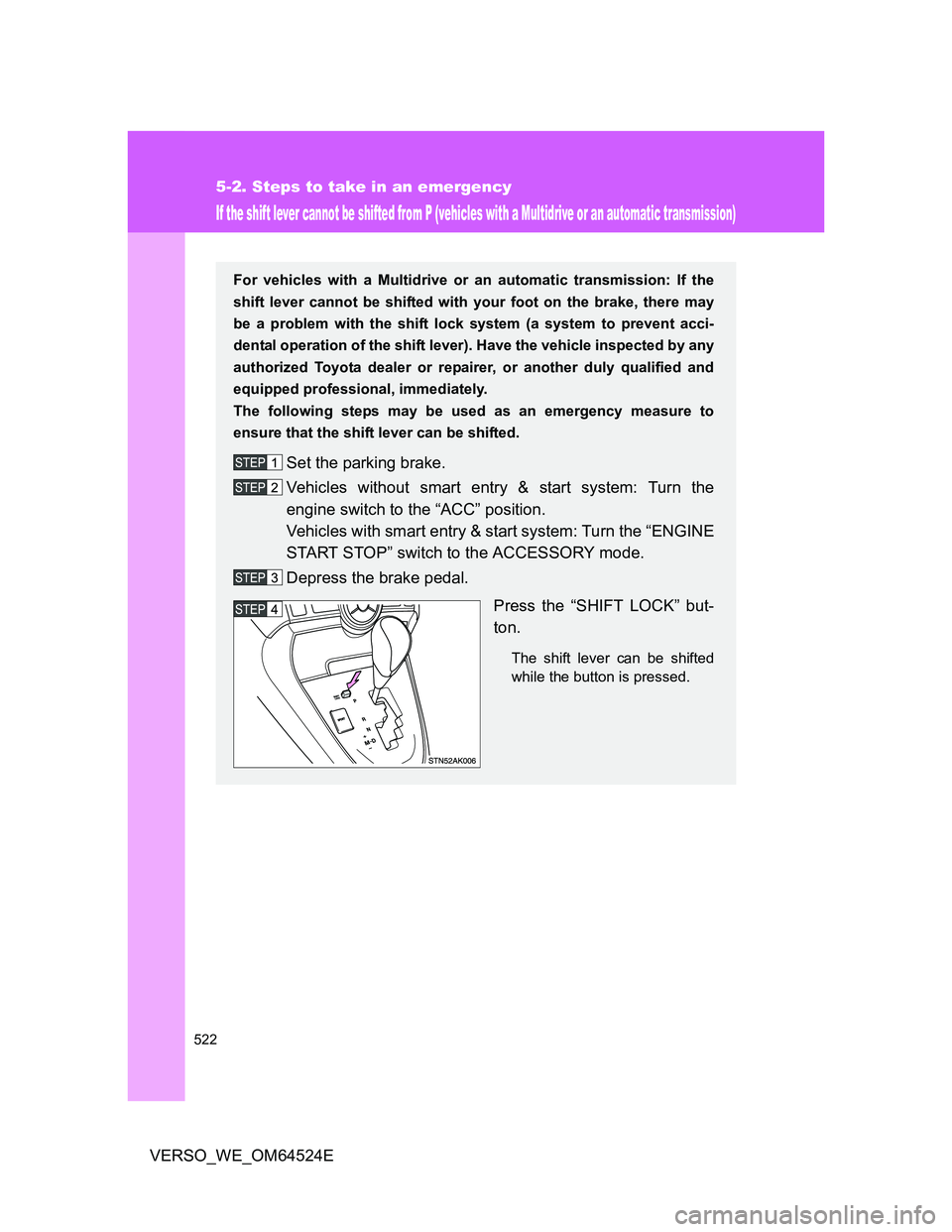

522
5-2. Steps to take in an emergency
VERSO_WE_OM64524E
If the shift lever cannot be shifted from P (vehicles with a Multidrive or an automatic transmission)
For vehicles with a Multidrive or an automatic transmission: If the
shift lever cannot be shifted with your foot on the brake, there may
be a problem with the shift lock system (a system to prevent acci-
dental operation of the shift lever). Have the vehicle inspected by any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional, immediately.
The following steps may be used as an emergency measure to
ensure that the shift lever can be shifted.
Set the parking brake.
Vehicles without smart entry & start system: Turn the
engine switch to the “ACC” position.
Vehicles with smart entry & start system: Turn the “ENGINE
START STOP” switch to the ACCESSORY mode.
Depress the brake pedal.
Press the “SHIFT LOCK” but-
ton.
The shift lever can be shifted
while the button is pressed.

5

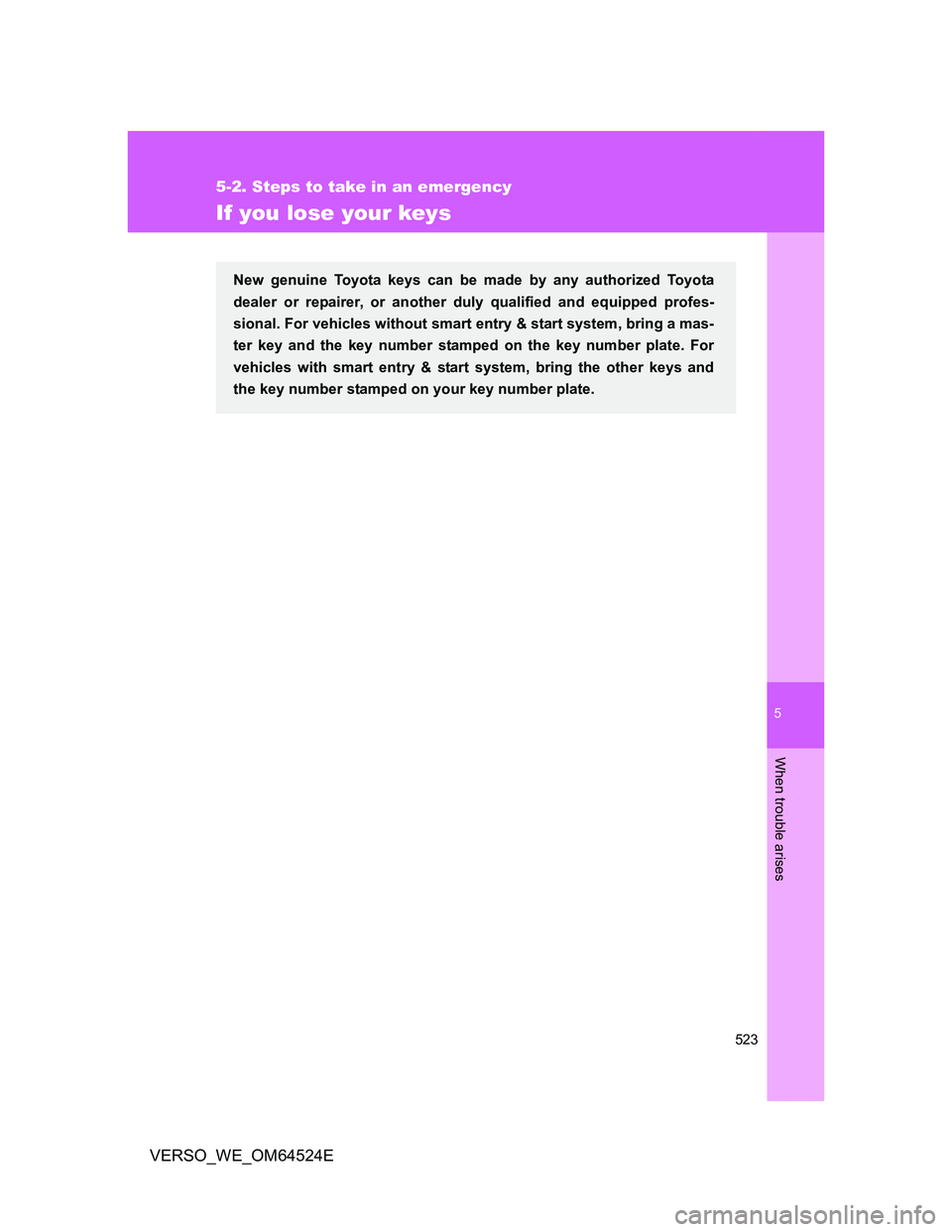

523
5-2. Steps to take in an emergency
When trouble arises
VERSO_WE_OM64524E
If you lose your keys
New genuine Toyota keys can be made by any authorized Toyota
dealer or repairer, or another duly qualified and equipped profes-
sional. For vehicles without smart entry & start system, bring a mas-
ter key and the key number stamped on the key number plate. For
vehicles with smart entry & start system, bring the other keys and
the key number stamped on your key number plate.

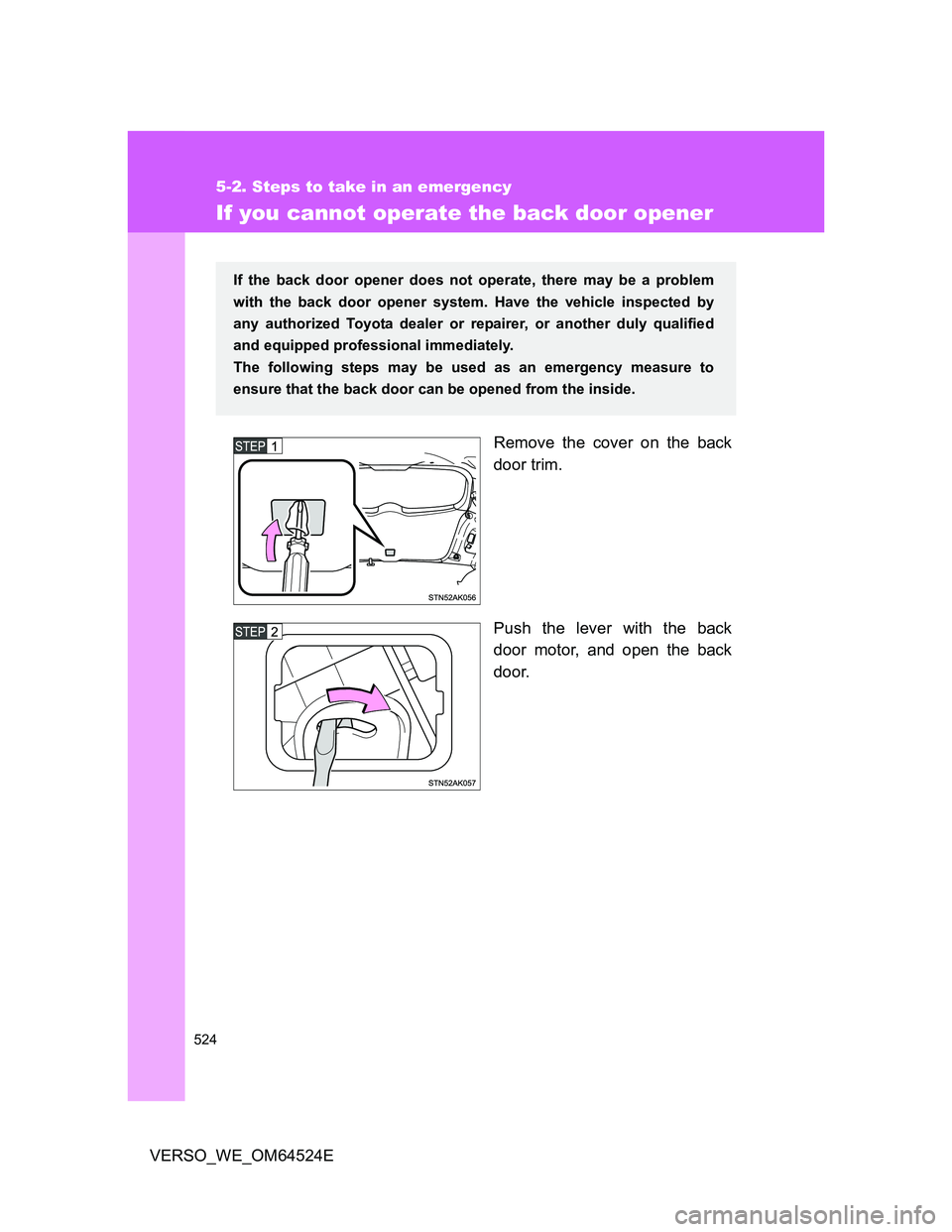

524
5-2. Steps to take in an emergency
VERSO_WE_OM64524E
If you cannot operate the back door opener
Remove the cover on the back
door trim.
Push the lever with the back
door motor, and open the back
door.
If the back door opener does not operate, there may be a problem
with the back door opener system. Have the vehicle inspected by
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional immediately.
The following steps may be used as an emergency measure to
ensure that the back door can be opened from the inside.

5
525
5-2. Steps to take in an emergency
When trouble arises
VERSO_WE_OM64524E
If the electronic key does not operate properly (vehicles with smart entr y & start system)
Locking and unlocking the doors and key linked functions
Using the mechanical key
(P. 38) in order to perform the
following operations:
Locks all doors
Unlocks all doors
An alarm will sound if the alarm is
set. (P. 122)
If communication between the electronic key and vehicle is inter-
rupted (P. 57) or the electronic key cannot be used because the
battery is depleted, the smart entry & start system and wireless
remote control cannot be used. In such cases, the doors can be
opened or the engine can be started by following the procedure
below.

526 5-2. Steps to take in an emergency
VERSO_WE_OM64524E
Changing “ENGINE START STOP” switch modes and starting the
engine
Vehicles with a Multidrive or an automatic transmission: Shift
the shift lever to “P” and apply the brakes.
Vehicles with a manual transmission: Shift the shift lever to
“N” and depress the clutch pedal.
Touch the Toyota emblem side of
the electronic key to the
“ENGINE START STOP” switch.
An alarm will sound to indicate
that the start function cannot
detect the electronic key that is
touched to the “ENGINE START
STOP” switch if any of the doors
is opened and closed while the
key is touched to the switch.
To change “ENGINE START STOP” switch modes: Within 10
seconds of the buzzer sounding, release the brake pedal
(Multidrive or automatic transmission) or clutch pedal (manual
transmission) and press the “ENGINE START STOP” switch.
Modes can be changed each time the switch is pressed.
(P. 192)
To start the engine: Press the “ENGINE START STOP” switch
within 10 seconds after the buzzer sounds, keeping the brake
pedal (Multidrive or automatic transmission) or clutch pedal
(manual transmission) depressed.
In the event that the “ENGINE START STOP” switch still cannot be
operated, contact any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.

5

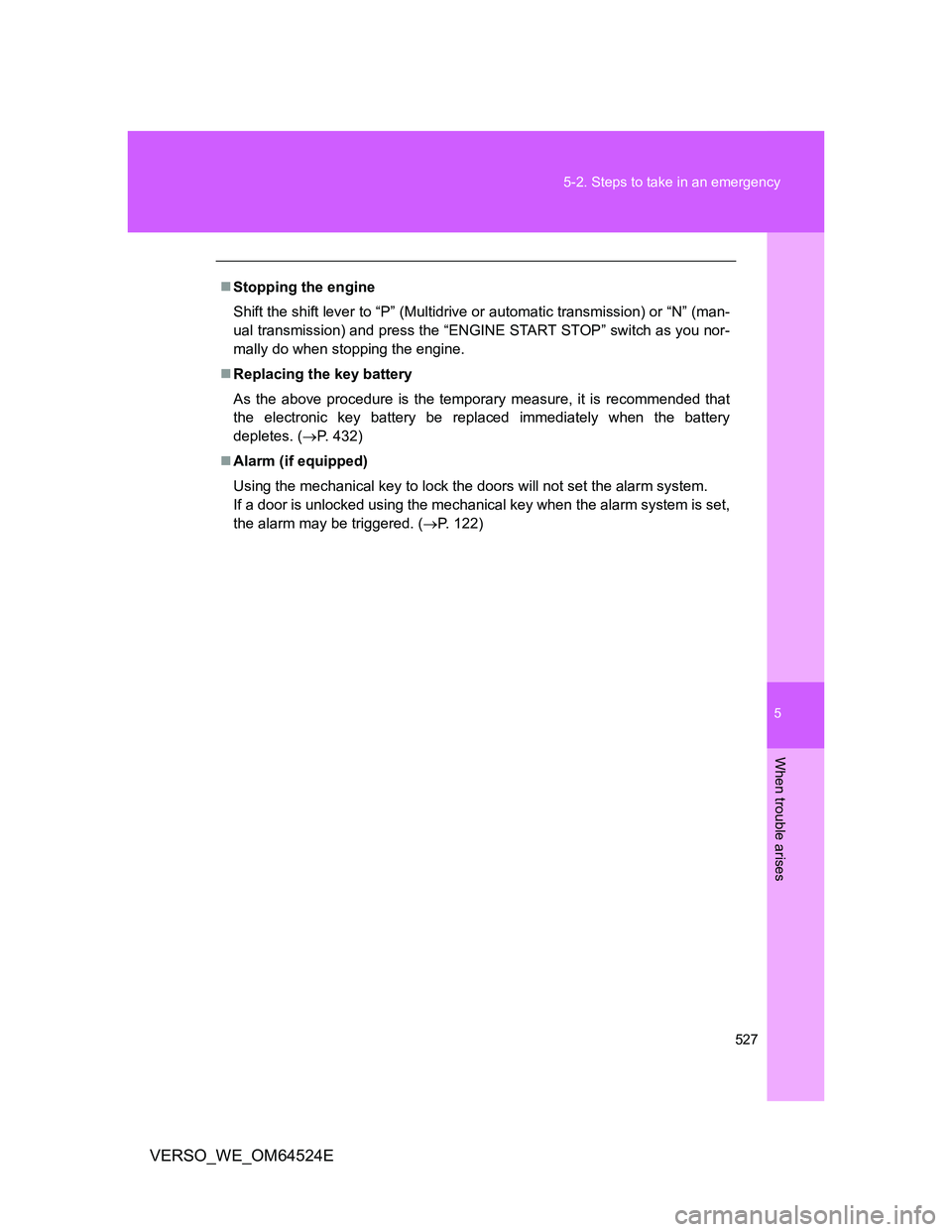

527 5-2. Steps to take in an emergency
When trouble arises
VERSO_WE_OM64524E
Stopping the engine
Shift the shift lever to “P” (Multidrive or automatic transmission) or “N” (man-
ual transmission) and press the “ENGINE START STOP” switch as you nor-
mally do when stopping the engine.
Replacing the key battery
As the above procedure is the temporary measure, it is recommended that
the electronic key battery be replaced immediately when the battery
depletes. (P. 432)
Alarm (if equipped)
Using the mechanical key to lock the doors will not set the alarm system.
If a door is unlocked using the mechanical key when the alarm system is set,
the alarm may be triggered. (P. 122)

528

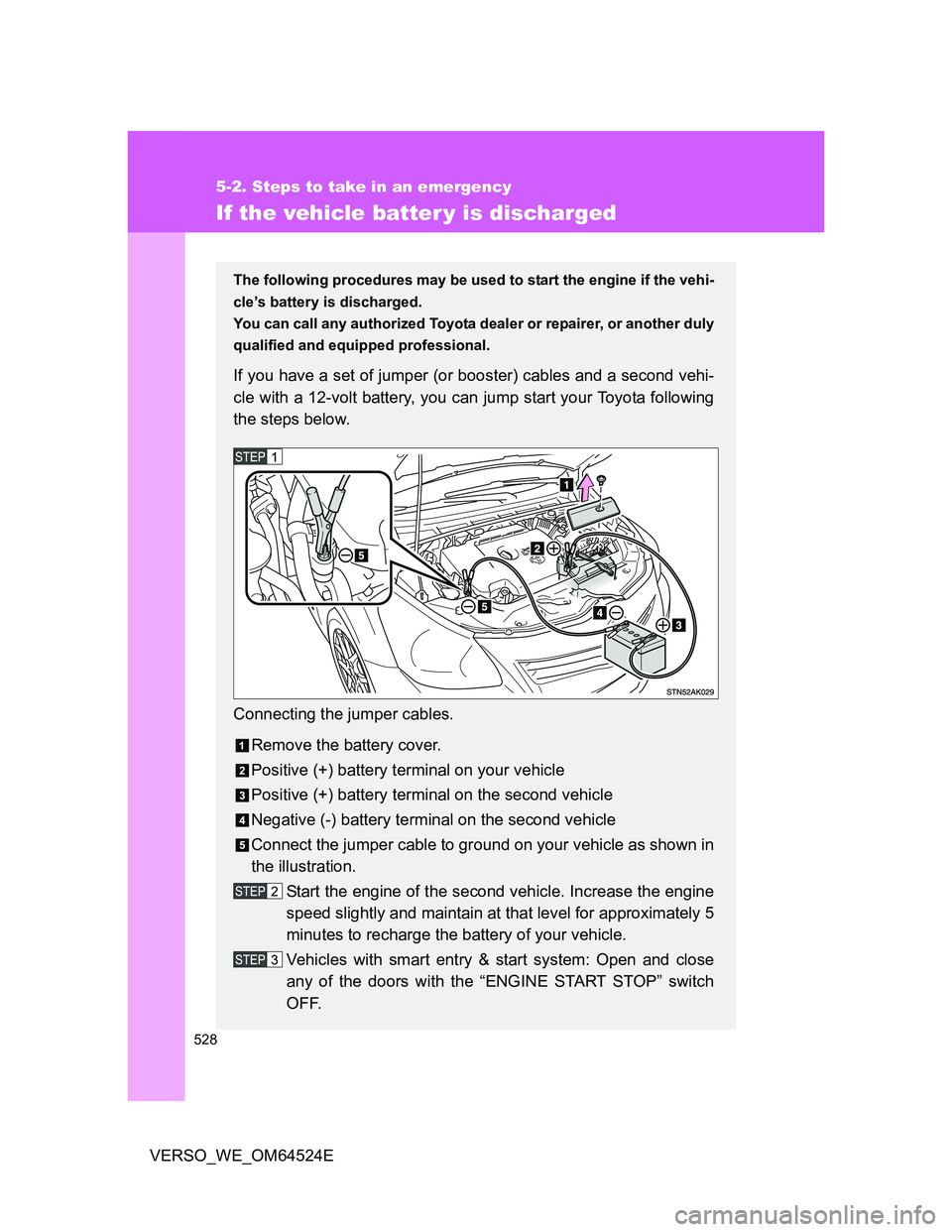

5-2. Steps to take in an emergency
VERSO_WE_OM64524E
If the vehicle batter y is discharged
The following procedures may be used to start the engine if the vehi-
cle’s battery is discharged.
You can call any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
If you have a set of jumper (or booster) cables and a second vehi-
cle with a 12-volt battery, you can jump start your Toyota following
the steps below.
Connecting the jumper cables.
Remove the battery cover.
Positive (+) battery terminal on your vehicle
Positive (+) battery terminal on the second vehicle
Negative (-) battery terminal on the second vehicle
Connect the jumper cable to ground on your vehicle as shown in
the illustration.
Start the engine of the second vehicle. Increase the engine
speed slightly and maintain at that level for approximately 5
minutes to recharge the battery of your vehicle.
Vehicles with smart entry & start system: Open and close
any of the doors with the “ENGINE START STOP” switch
OFF.
