2011 TOYOTA VERSO Owners Manual

113 1-6. Theft deterrent system
1
Before driving
VERSO_WE_OM64524E

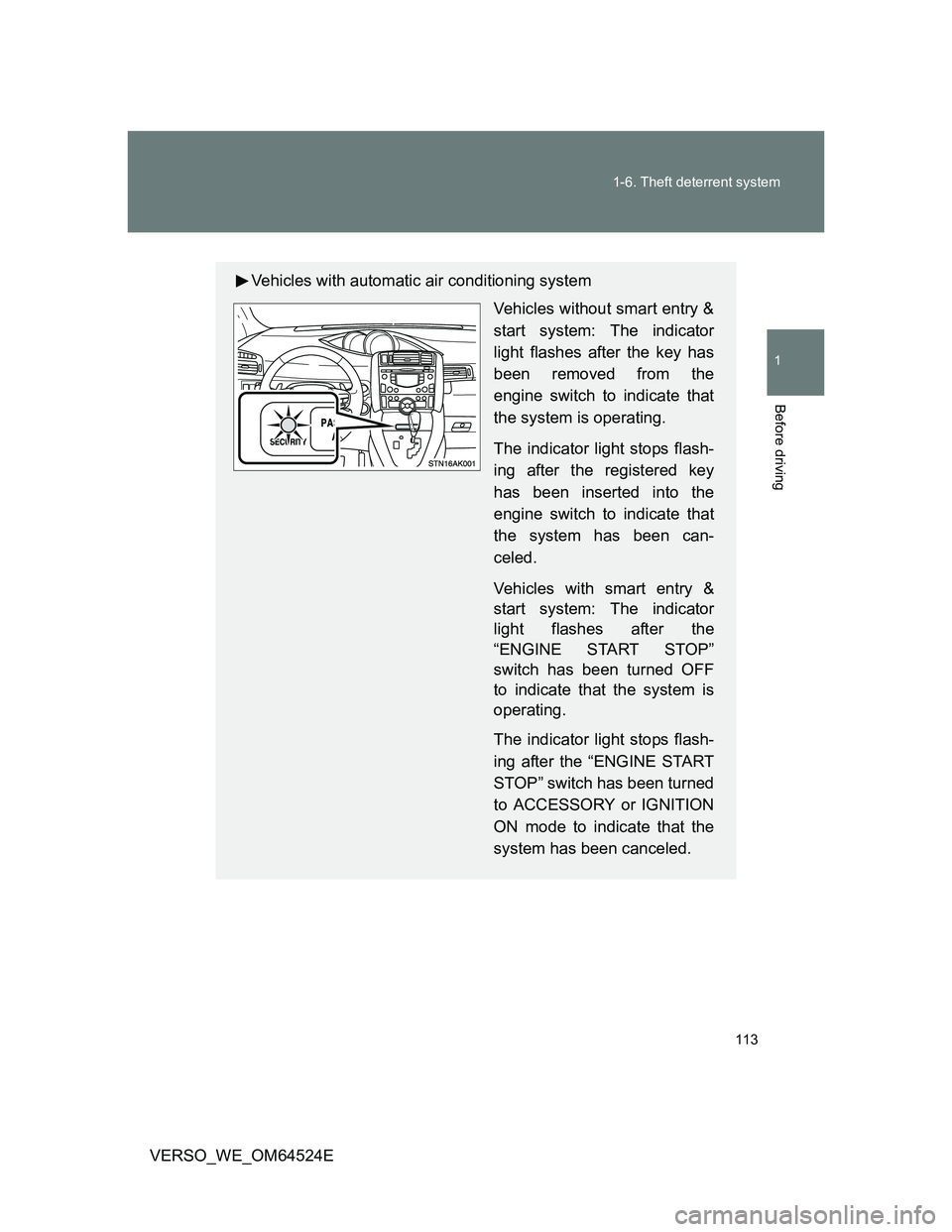

Vehicles with automatic air conditioning system
Vehicles without smart entry &
start system: The indicator
light flashes after the key has
been removed from the
engine switch to indicate that
the system is operating.
The indicator light stops flash-
ing after the registered key
has been inserted into the
engine switch to indicate that
the system has been can-
celed.
Vehicles with smart entry &
start system: The indicator
light flashes after the
“ENGINE START STOP”
switch has been turned OFF
to indicate that the system is
operating.
The indicator light stops flash-
ing after the “ENGINE START
STOP” switch has been turned
to ACCESSORY or IGNITION
ON mode to indicate that the
system has been canceled.

114 1-6. Theft deterrent system
VERSO_WE_OM64524E

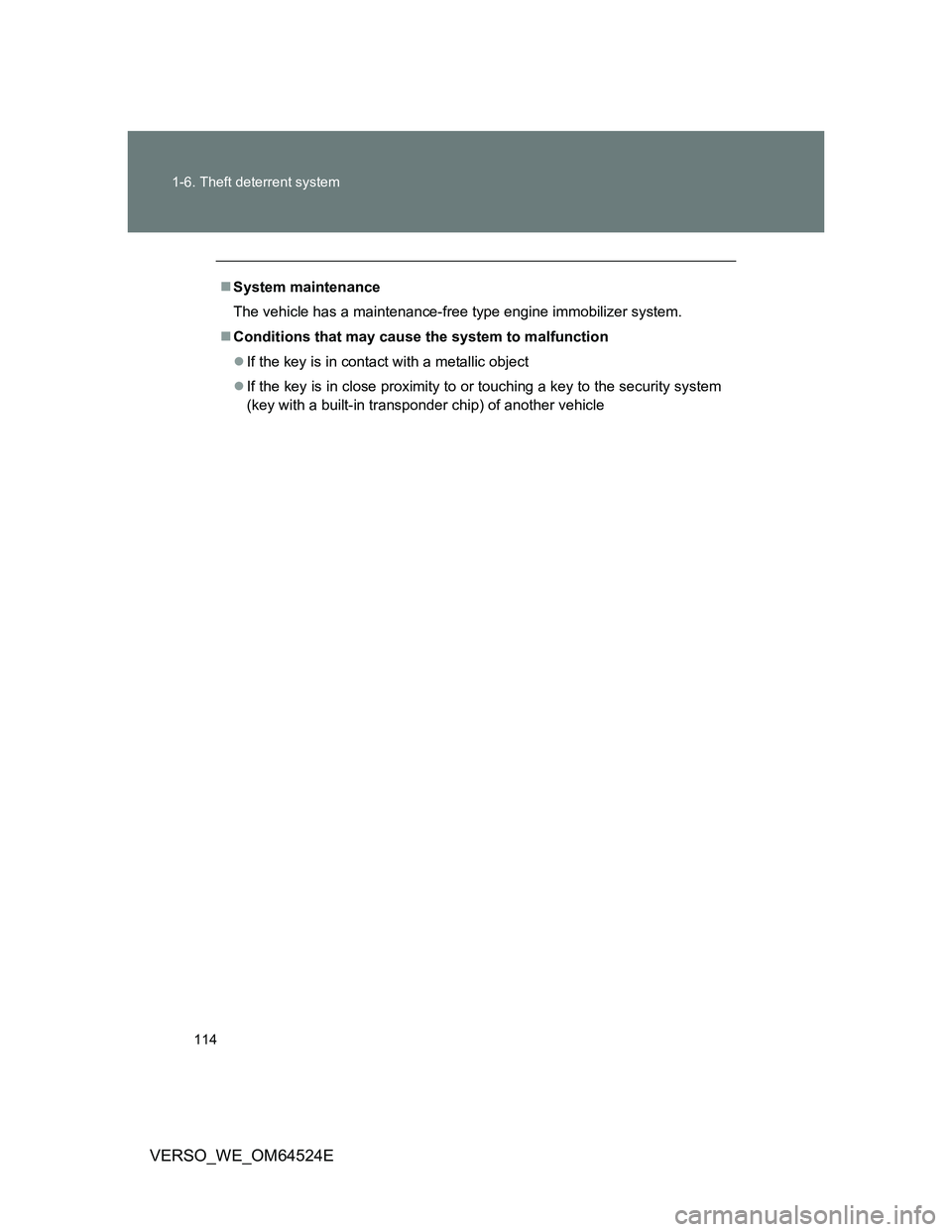

System maintenance
The vehicle has a maintenance-free type engine immobilizer system.
Conditions that may cause the system to malfunction
If the key is in contact with a metallic object
If the key is in close proximity to or touching a key to the security system
(key with a built-in transponder chip) of another vehicle

115 1-6. Theft deterrent system
1
Before driving
VERSO_WE_OM64524E

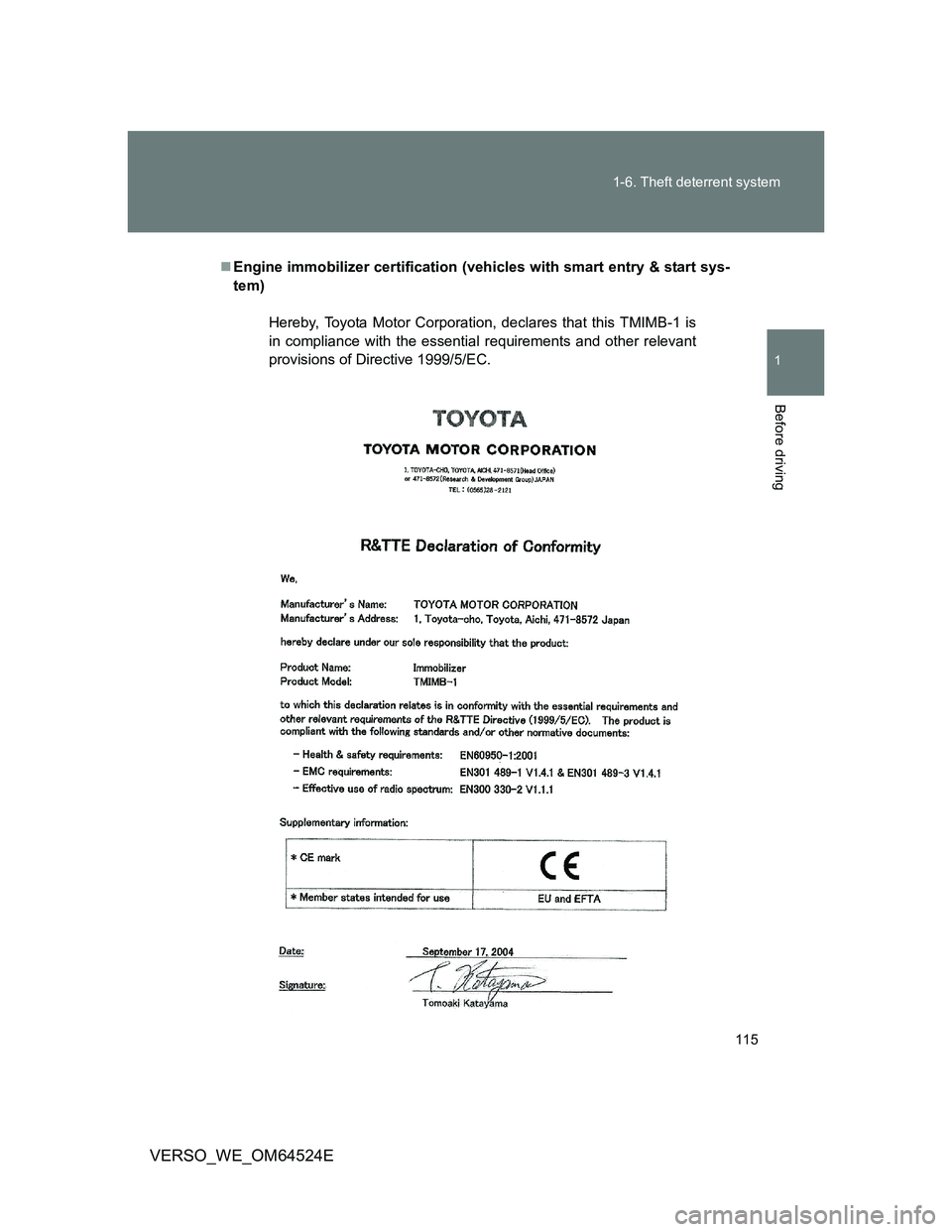

Engine immobilizer certification (vehicles with smart entry & start sys-
tem)
Hereby, Toyota Motor Corporation, declares that this TMIMB-1 is
in compliance with the essential requirements and other relevant
provisions of Directive 1999/5/EC.

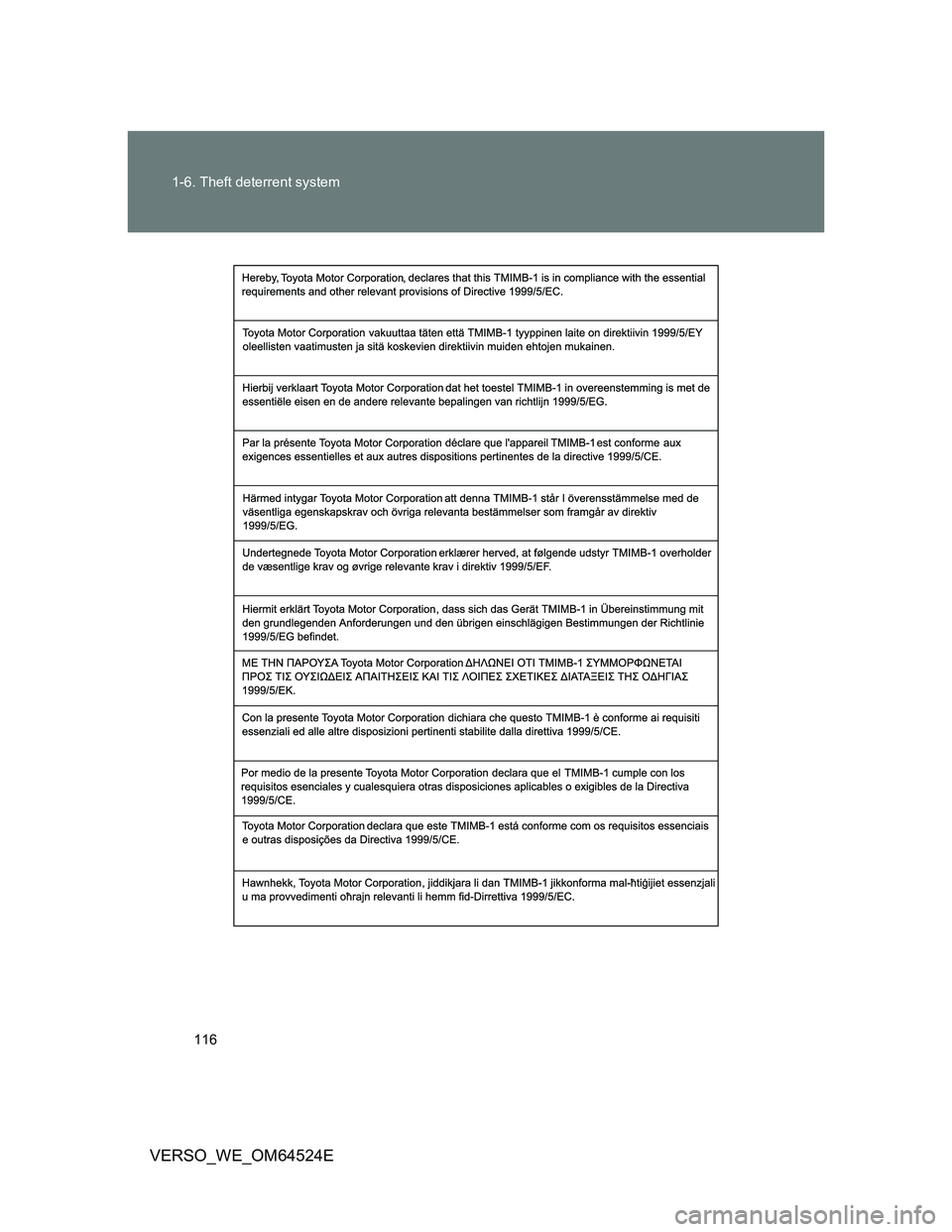

116 1-6. Theft deterrent system
VERSO_WE_OM64524E

117 1-6. Theft deterrent system
1
Before driving
VERSO_WE_OM64524E

118 1-6. Theft deterrent system
VERSO_WE_OM64524E
Engine immobilizer certification (vehicles without smart entry & start
system)
“Hereby, Tokai Rika Co., Ltd., declares that this Immobilizer, model
RI-33BTY, is in compliance with the essential requirements and
other relevant provisions of Directive 1999/5/EC.”

119 1-6. Theft deterrent system
1
Before driving
VERSO_WE_OM64524E
NOTICE
To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

120
1-6. Theft deterrent system
VERSO_WE_OM64524E
Double locking system
Setting the system
Vehicles without smart entry & start system
Turn the engine switch to the “LOCK” position, have all the passen-
gers exit the vehicle and ensure that all the doors are closed.
Using the wireless remote control:
Press the button twice within 5 seconds.
Vehicles with smart entry & start system
Turn the “ENGINE START STOP” switch OFF, have all the passen-
gers exit the vehicle and ensure that all the doors are closed.
Using the smart entry & start system:
Touch the sensor area on the outside door handle twice within 5
seconds.
Using the wireless remote control:
Press the
button twice within 5 seconds.
: If equipped
Unauthorized access to the vehicle is prevented by disabling the
door unlocking function from both the interior and exterior of the
vehicle.
Vehicles employing this sys-
tem have labels on the win-
dow glass of both front doors.
