2011 TOYOTA VERSO Owners Manual

5
537 5-2. Steps to take in an emergency
When trouble arises
VERSO_WE_OM64524E

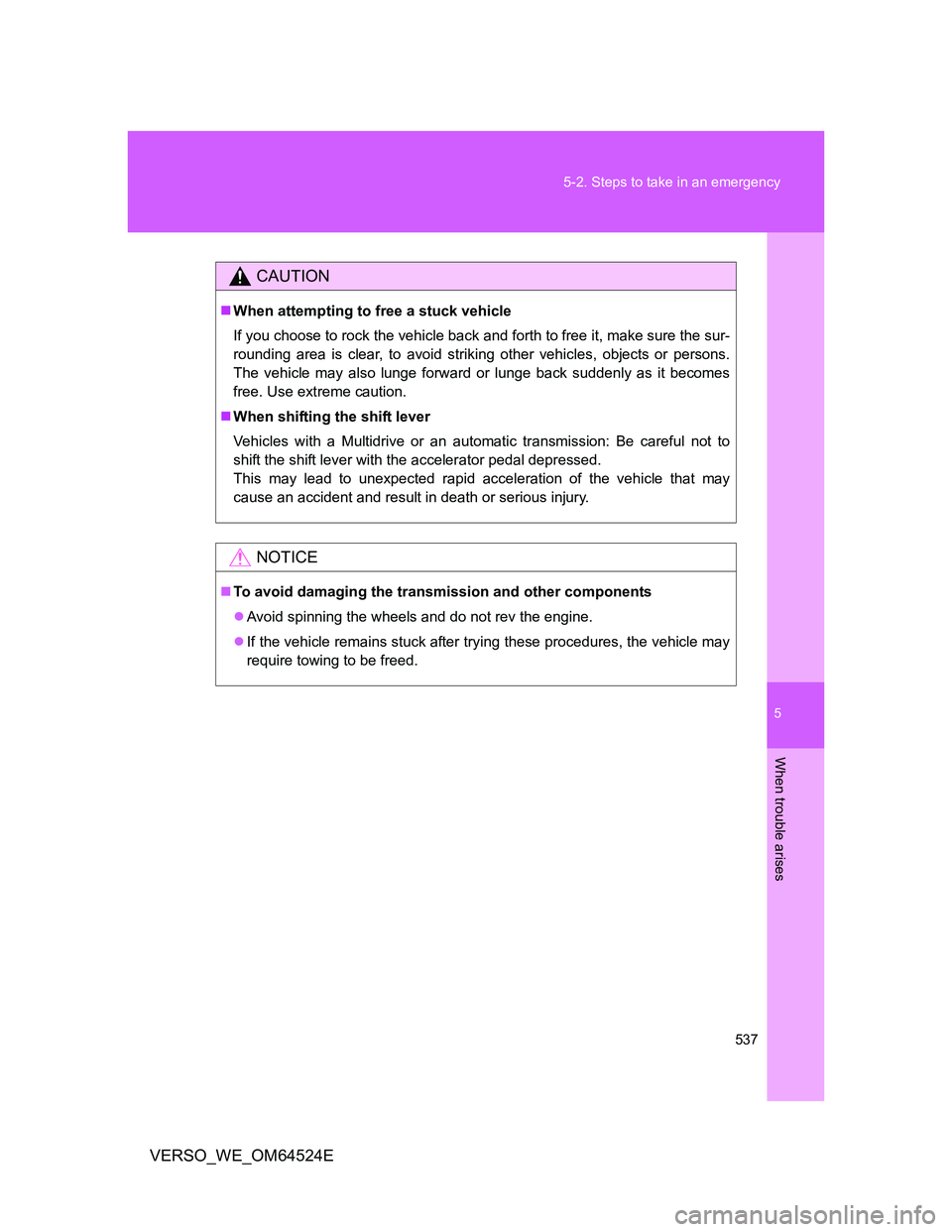

CAUTION
When attempting to free a stuck vehicle
If you choose to rock the vehicle back and forth to free it, make sure the sur-
rounding area is clear, to avoid striking other vehicles, objects or persons.
The vehicle may also lunge forward or lunge back suddenly as it becomes
free. Use extreme caution.
When shifting the shift lever
Vehicles with a Multidrive or an automatic transmission: Be careful not to
shift the shift lever with the accelerator pedal depressed.
This may lead to unexpected rapid acceleration of the vehicle that may
cause an accident and result in death or serious injury.
NOTICE
To avoid damaging the transmission and other components
Avoid spinning the wheels and do not rev the engine.
If the vehicle remains stuck after trying these procedures, the vehicle may
require towing to be freed.

538
5-2. Steps to take in an emergency
VERSO_WE_OM64524E

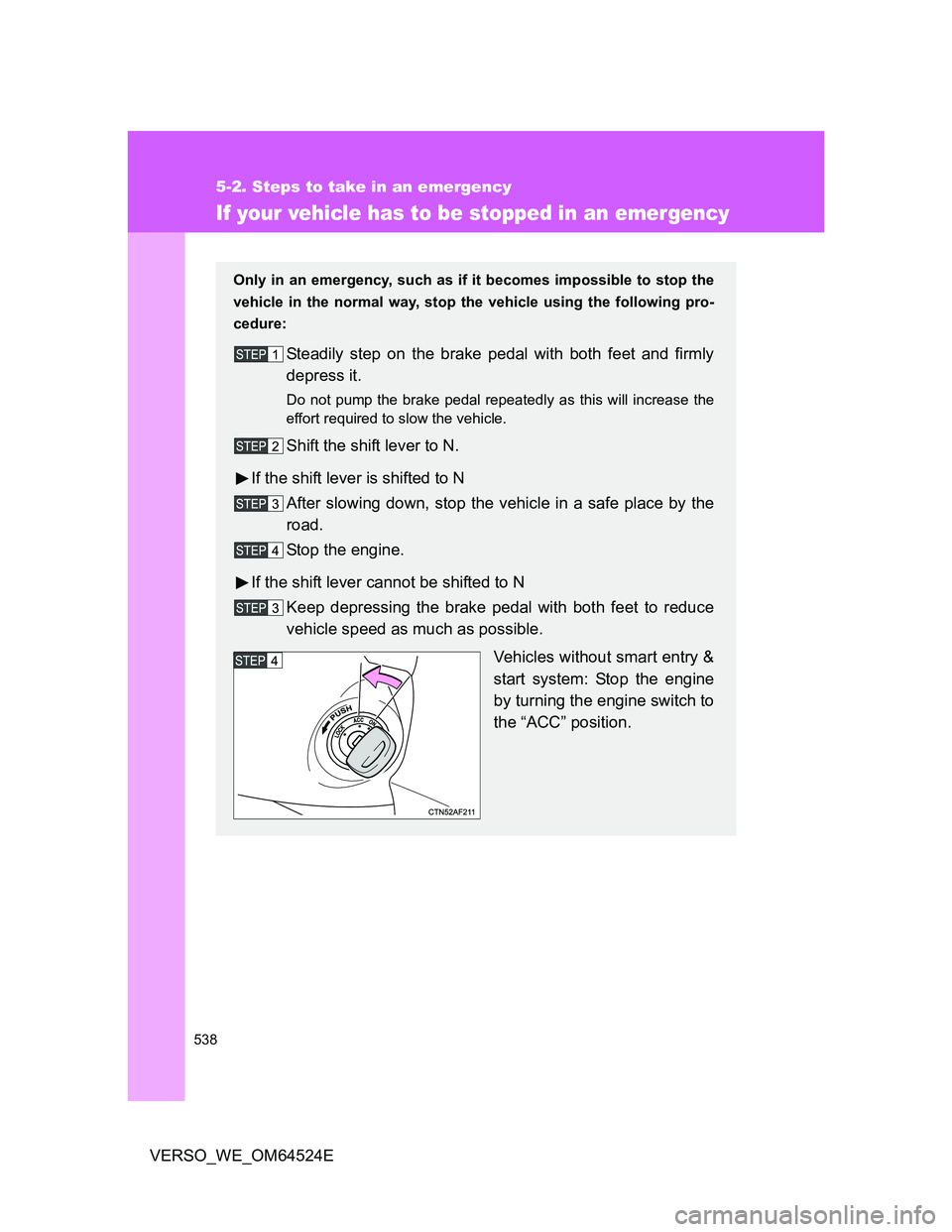

If your vehicle has to be stopped in an emergency
Only in an emergency, such as if it becomes impossible to stop the
vehicle in the normal way, stop the vehicle using the following pro-
cedure:
Steadily step on the brake pedal with both feet and firmly
depress it.
Do not pump the brake pedal repeatedly as this will increase the
effort required to slow the vehicle.
Shift the shift lever to N.
If the shift lever is shifted to N
After slowing down, stop the vehicle in a safe place by the
road.
Stop the engine.
If the shift lever cannot be shifted to N
Keep depressing the brake pedal with both feet to reduce
vehicle speed as much as possible.
Vehicles without smart entry &
start system: Stop the engine
by turning the engine switch to
the “ACC” position.

5
539 5-2. Steps to take in an emergency
When trouble arises
VERSO_WE_OM64524E

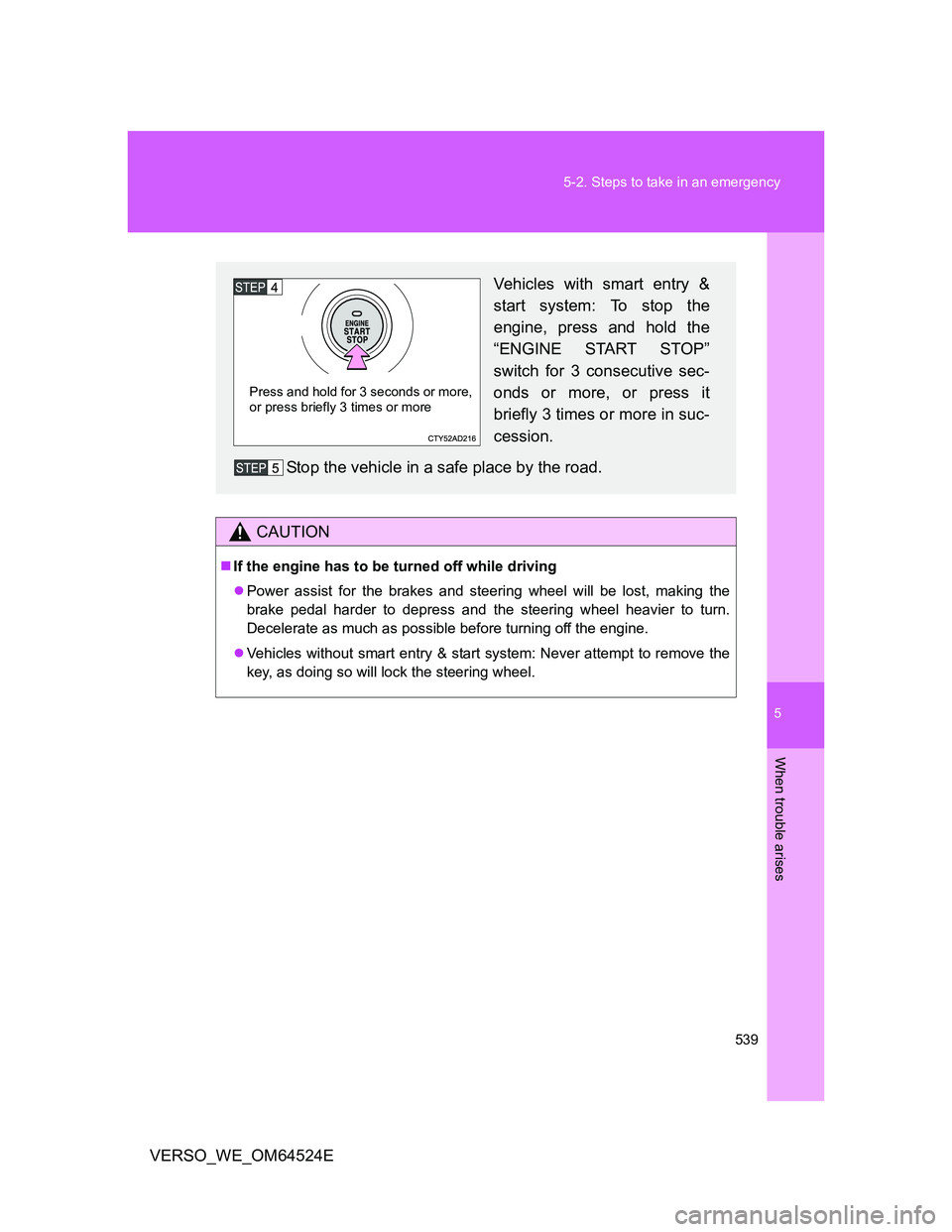

CAUTION
If the engine has to be turned off while driving
Power assist for the brakes and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the engine.
Vehicles without smart entry & start system: Never attempt to remove the
key, as doing so will lock the steering wheel.
Vehicles with smart entry &
start system: To stop the
engine, press and hold the
“ENGINE START STOP”
switch for 3 consecutive sec-
onds or more, or press it
briefly 3 times or more in suc-
cession.
Stop the vehicle in a safe place by the road.
Press and hold for 3 seconds or more,
or press briefly 3 times or more

540 5-2. Steps to take in an emergency
VERSO_WE_OM64524E

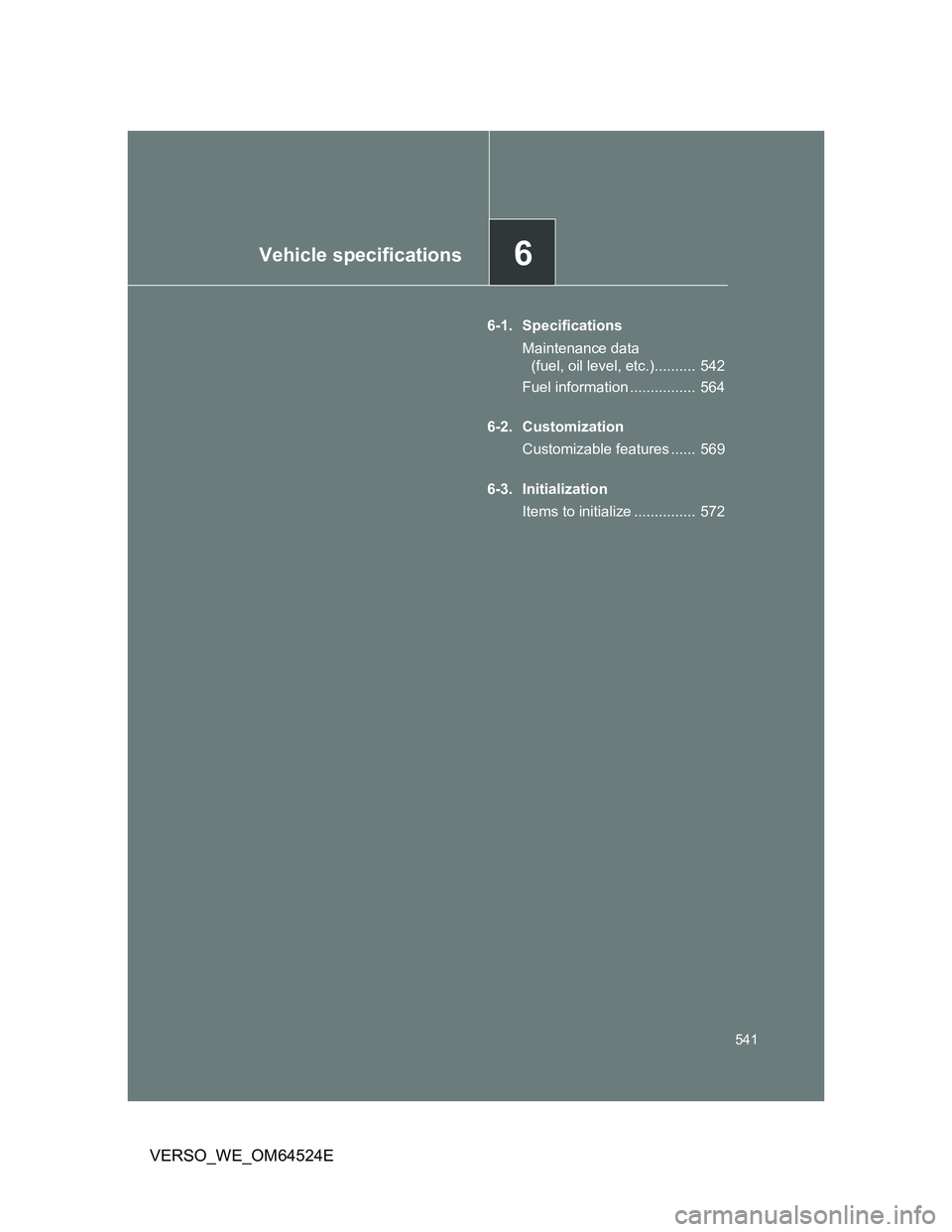

6Vehicle specifications
541
VERSO_WE_OM64524E
6-1. Specifications
Maintenance data
(fuel, oil level, etc.).......... 542
Fuel information ................ 564
6-2. Customization
Customizable features ...... 569
6-3. Initialization
Items to initialize ............... 572

542
VERSO_WE_OM64524E
6-1. Specifications

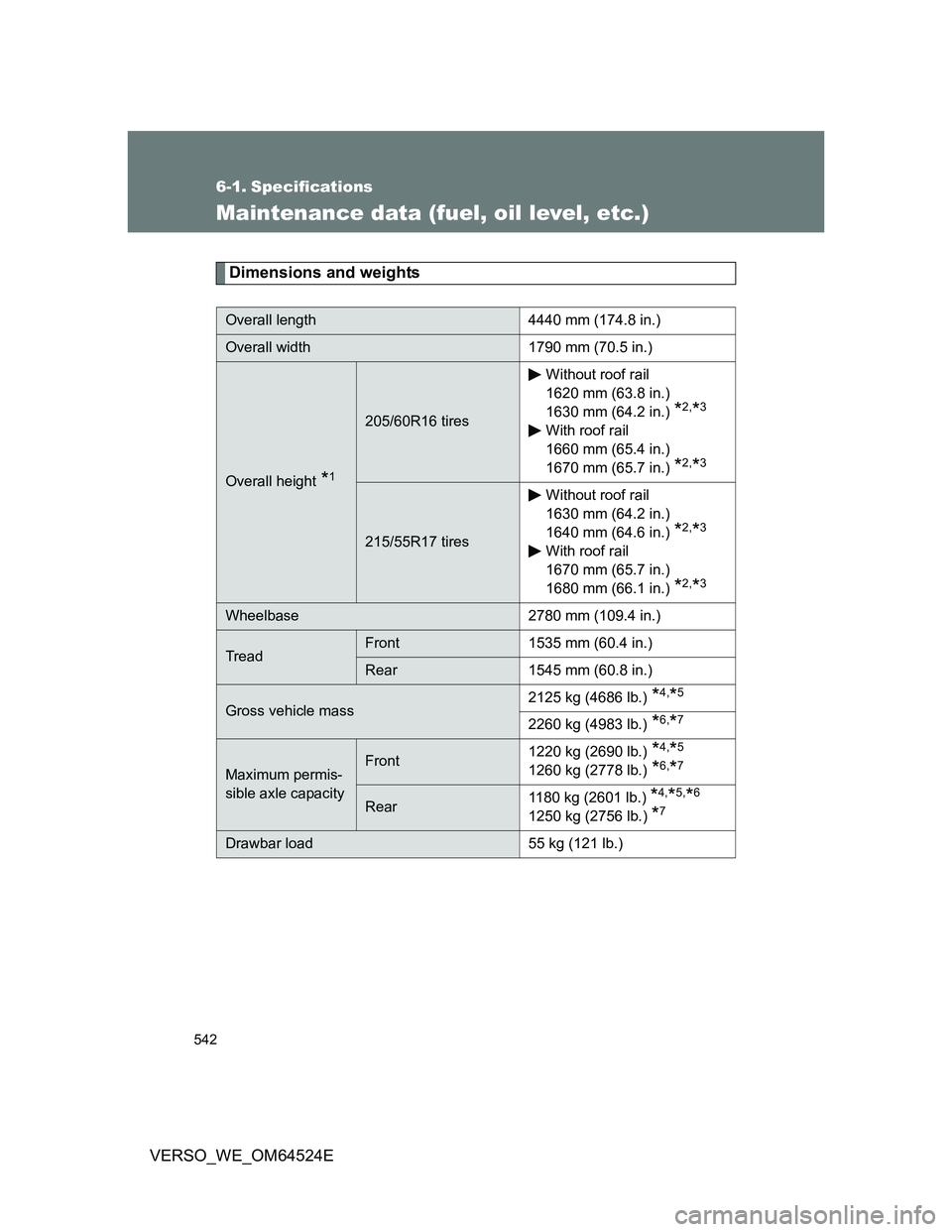

Maintenance data (fuel, oil level, etc.)
Dimensions and weights
Overall length 4440 mm (174.8 in.)
Overall width 1790 mm (70.5 in.)
Overall height *1
205/60R16 tiresWithout roof rail
1620 mm (63.8 in.)
1630 mm (64.2 in.)
*2,*3
With roof rail
1660 mm (65.4 in.)
1670 mm (65.7 in.)
*2,*3
215/55R17 tiresWithout roof rail
1630 mm (64.2 in.)
1640 mm (64.6 in.)
*2,*3
With roof rail
1670 mm (65.7 in.)
1680 mm (66.1 in.)
*2,*3
Wheelbase 2780 mm (109.4 in.)
TreadFront 1535 mm (60.4 in.)
Rear 1545 mm (60.8 in.)
Gross vehicle mass2125 kg (4686 lb.)
*4,*5
2260 kg (4983 lb.) *6,*7
Maximum permis-
sible axle capacityFront1220 kg (2690 lb.)
*4,*5
1260 kg (2778 lb.) *6,*7
Rear1180 kg (2601 lb.) *4,*5,*6
1250 kg (2756 lb.) *7
Drawbar load 55 kg (121 lb.)

543 6-1. Specifications
6
Vehicle specifications
VERSO_WE_OM64524E

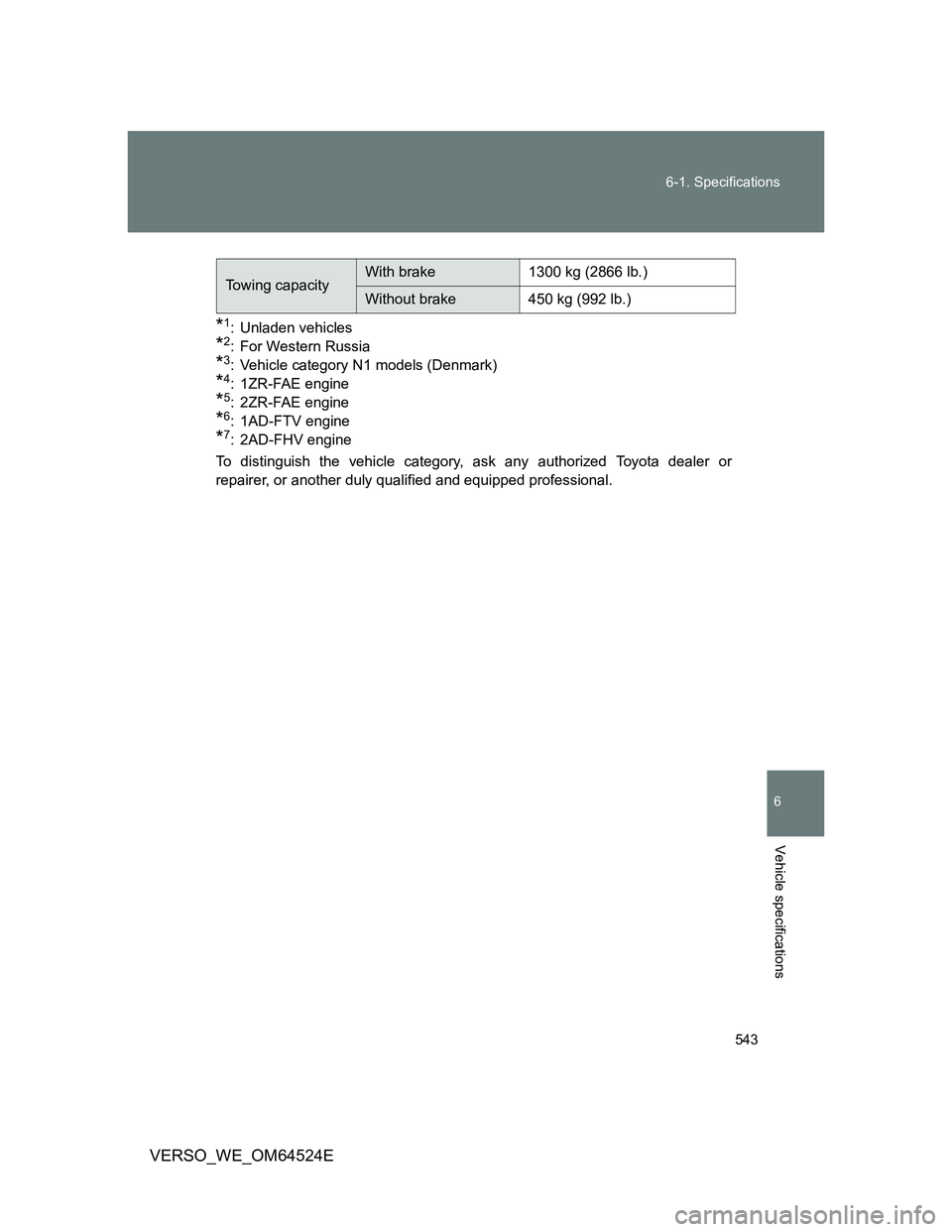

*1: Unladen vehicles
*2: For Western Russia
*3: Vehicle category N1 models (Denmark)
*4: 1ZR-FAE engine
*5: 2ZR-FAE engine
*6: 1AD-FTV engine
*7: 2AD-FHV engine
To distinguish the vehicle category, ask any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
Towing capacityWith brake 1300 kg (2866 lb.)
Without brake 450 kg (992 lb.)

544 6-1. Specifications
VERSO_WE_OM64524E

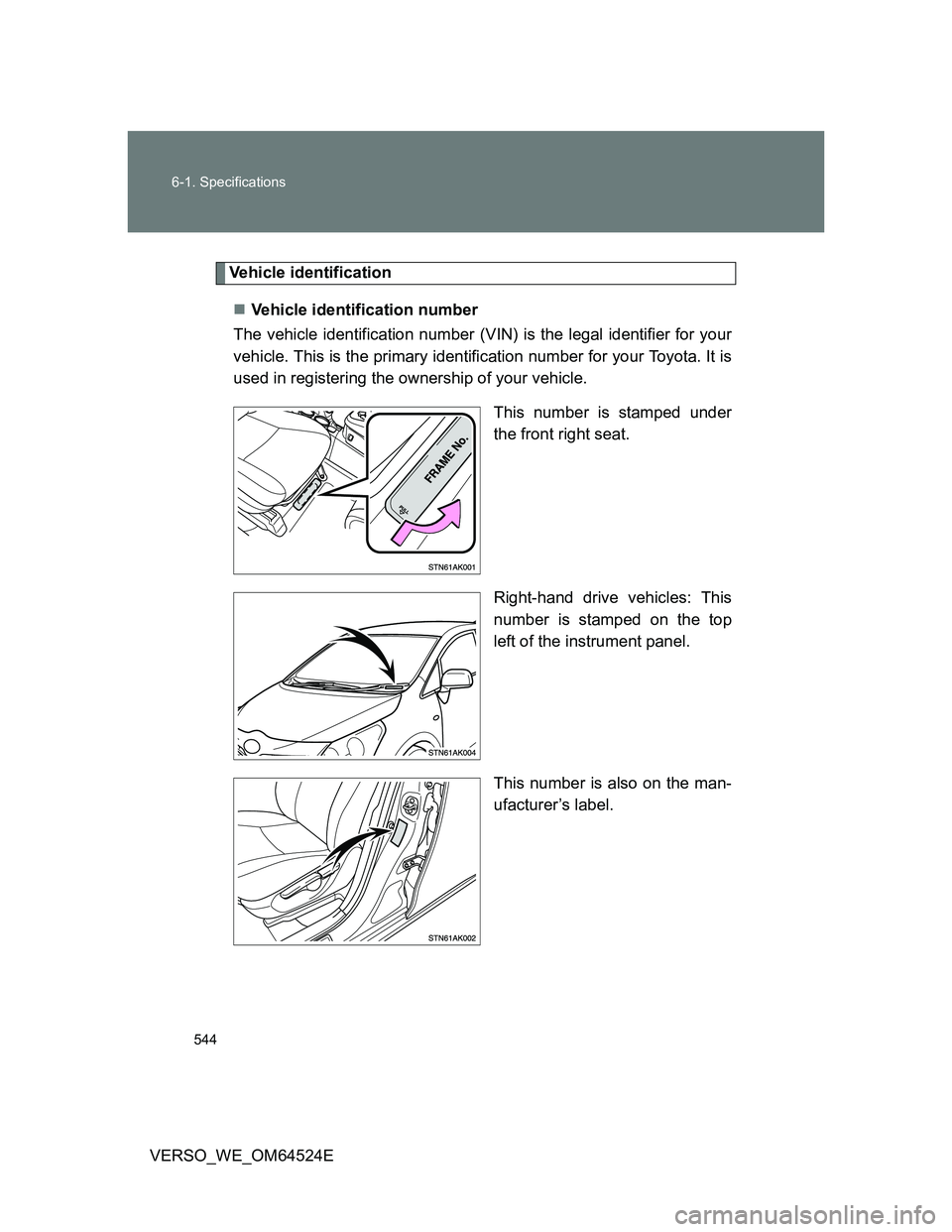

Vehicle identification
Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Toyota. It is
used in registering the ownership of your vehicle.
This number is stamped under
the front right seat.
Right-hand drive vehicles: This
number is stamped on the top
left of the instrument panel.
This number is also on the man-
ufacturer’s label.
