2011 TOYOTA VERSO Owners Manual

345
3-2. Using the audio system
3
Interior features
VERSO_WE_OM64524E

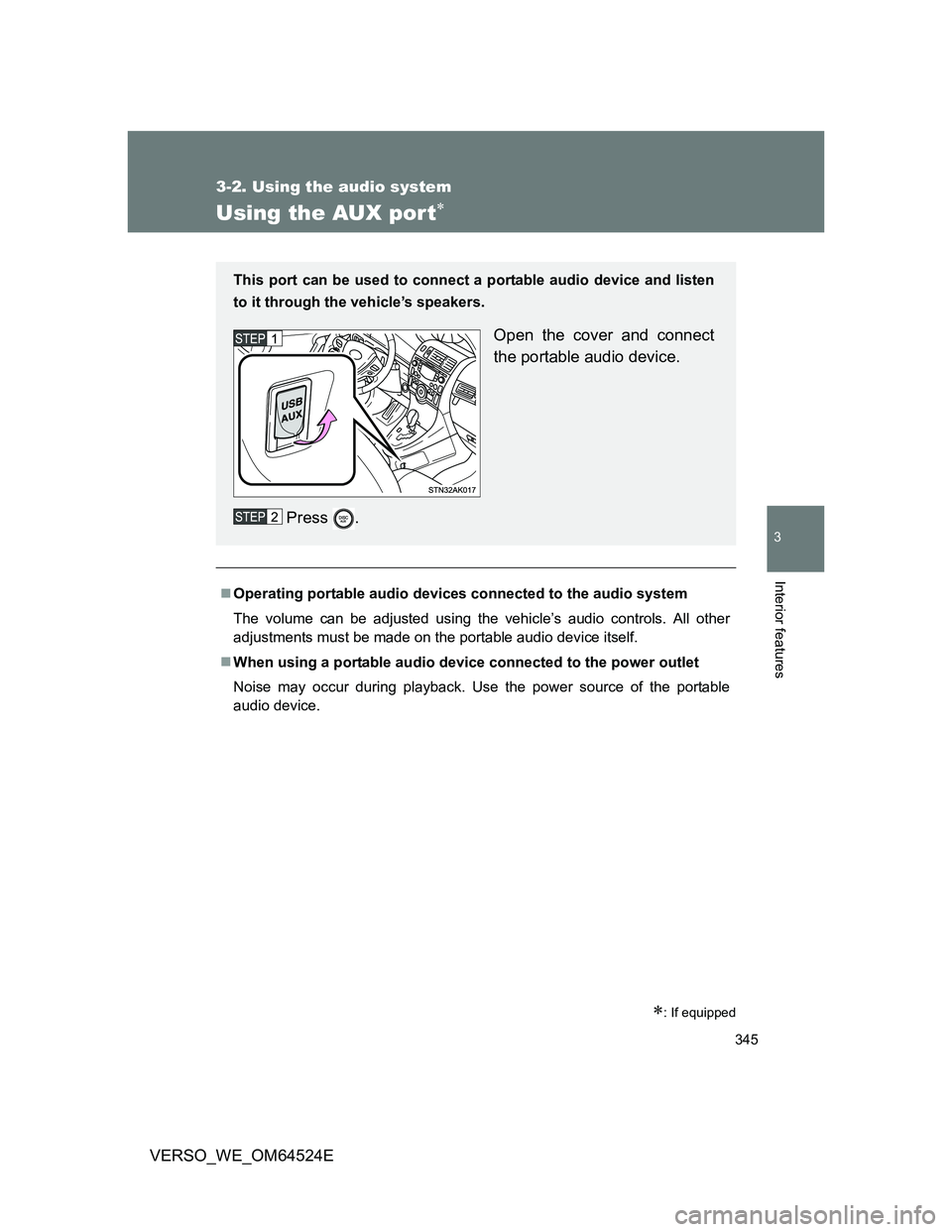

Using the AUX por t
: If equipped
Operating portable audio devices connected to the audio system
The volume can be adjusted using the vehicle’s audio controls. All other
adjustments must be made on the portable audio device itself.
When using a portable audio device connected to the power outlet
Noise may occur during playback. Use the power source of the portable
audio device.
This port can be used to connect a portable audio device and listen
to it through the vehicle’s speakers.
Open the cover and connect
the portable audio device.
Press .

346
3-2. Using the audio system
VERSO_WE_OM64524E

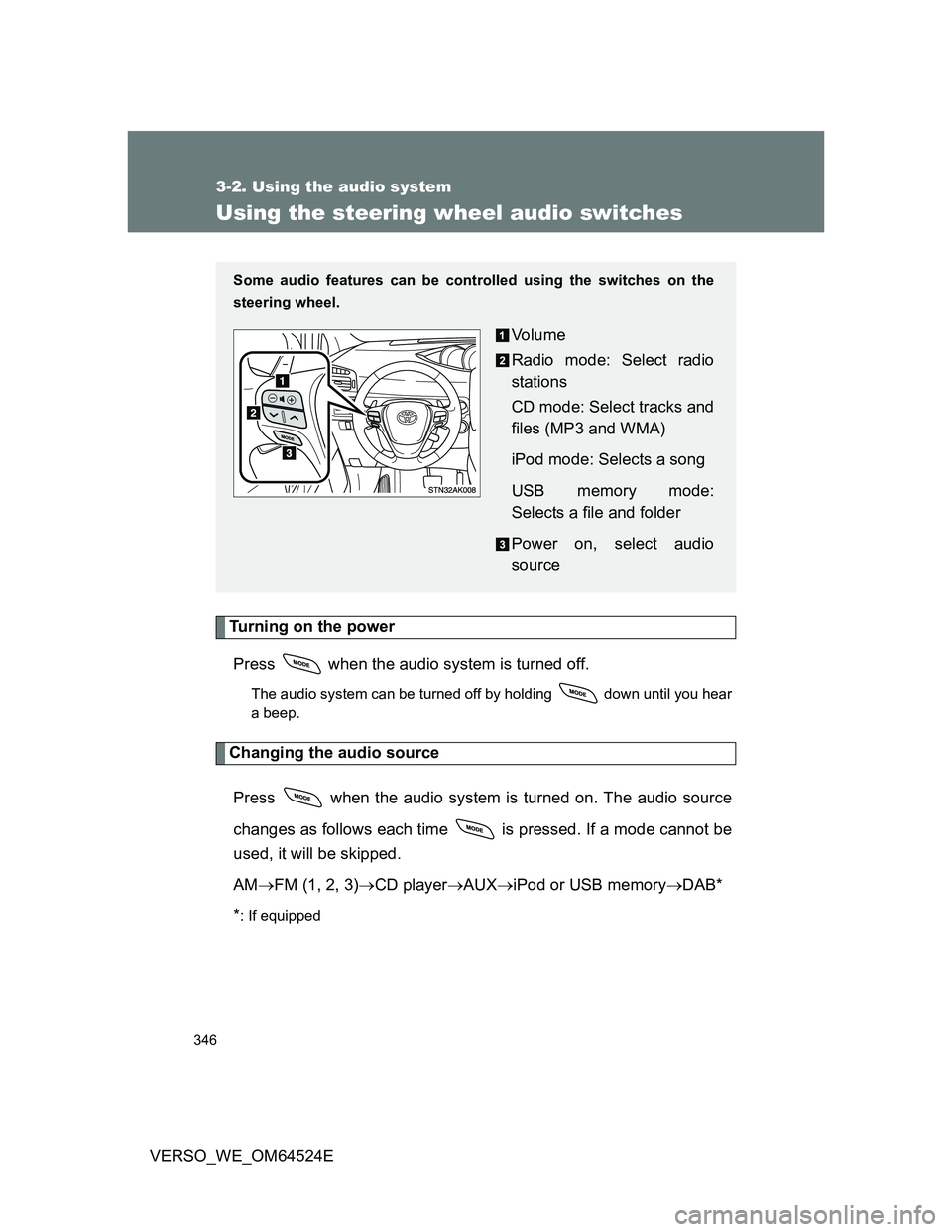

Using the steering wheel audio switches
Turning on the power
Press when the audio system is turned off.
The audio system can be turned off by holding down until you hear
a beep.
Changing the audio source
Press when the audio system is turned on. The audio source
changes as follows each time is pressed. If a mode cannot be
used, it will be skipped.
AMFM (1, 2, 3)CD playerAUXiPod or USB memoryDAB*
*
: If equipped
Some audio features can be controlled using the switches on the
steering wheel.
Vo l u m e
Radio mode: Select radio
stations
CD mode: Select tracks and
files (MP3 and WMA)
iPod mode: Selects a song
USB memory mode:
Selects a file and folder
Power on, select audio
source

347 3-2. Using the audio system
3
Interior features
VERSO_WE_OM64524E
Adjusting the volume
Press “+” on to increase the volume and “-” to decrease the
volume.
Hold down “+” or “-” on to continue increasing or decreasing the
volume.
Selecting a radio station
In AF-ON mode the radio changes frequency to the strongest signal
of the selected station.
Press to select the radio mode.
Press “” or “” on to select a preset station.
To scan for receivable stations, press and hold “” or “” on
until you hear a beep.
Selecting a track/file or song
Press to select the CD, iPod or USB memory mode.
Press “” or “” on to select the desired track/file or
song.
Selecting a folder
Press to select the CD mode.
Press and hold “” or “” on until you hear a beep.

348 3-2. Using the audio system
VERSO_WE_OM64524E
CAUTION
To reduce the risk of an accident
Exercise care when operating the audio switches on the steering wheel.

349
3
Interior features
VERSO_WE_OM64524E
3-3. Using the interior lights
Interior lights list
Your Toyota is equipped with an illuminated entry system to assist in
entering the vehicle. Owing to the function of the system, the lights
shown in the following illustration automatically turn on/off accord-
ing to the presence of the electronic key (vehicles with smart entry &
start system), whether the doors are locked/unlocked, whether the
doors are opened/closed, and the engine switch position (vehicles
without smart entry & start system) or “ENGINE START STOP”
switch mode (vehicles with smart entry & start system).
Personal/interior lights (P. 351)
Engine switch light (vehicles without smart entry & start system)
Foot lights
Front door courtesy lights (if equipped)
Console box light (if equipped)
Outer foot lights

350 3-3. Using the interior lights
VERSO_WE_OM64524E
Personal/interior lights main switch
OFF
The personal/interior lights can
be individually turned on or off.
Door position
When neither of the main
switches ( or ) is pressed:
The personal/interior lights come
on when a door is opened. They
turn off when the doors are
closed. The personal/interior
lights can be individually turned
on when the doors are closed.
ON
The personal/interior lights can-
not be individually turned off. To prevent the battery from being discharged
If the lights remain on when the door is not fully closed and the personal/inte-
rior light main switch is in the door position, the lights will go off automatically
after 20 minutes.
Customization that can be configured at any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional
Settings (e.g. The time elapsed before lights turn off) can be changed.
(Customizable features P. 569)
Personal/interior lights main switch

351 3-3. Using the interior lights
3
Interior features
VERSO_WE_OM64524E
Personal/interior lights
Front
On/off
Rear
On/off
Personal/interior lights

352
VERSO_WE_OM64524E
3-4. Using the storage features
List of storage features
CAUTION
Items that should not be left in the storage spaces
Do not leave glasses, lighters or spray cans in the storage spaces, as this
may cause the following when cabin temperature becomes high:
Glasses may be deformed by heat or cracked if they come into contact
with other stored items.
Lighters or spray cans may explode. If they come into contact with other
stored items, the lighter may catch fire or the spray can may release gas,
causing a fire hazard.
Overhead console
Auxiliary boxes
Glove box
Bottle holders
Cup holders
Console box
