2011 TOYOTA VERSO Owners Manual

153
1
1-7. Safety information
Before driving
VERSO_WE_OM64524E
Installing child restraints
Follow the child restraint system manufacturer’s instructions. Firmly
secure the child restraints using a seat belt or a ISOFIX rigid anchor
(ISOFIX child restraint system). Attach the top strap when installing
a child restraint system.
Seat belts (An ELR belt
requires a locking clip.)
Second seat: ISOFIX rigid
anchor (ISOFIX child restraint
system)
These exclusive fixing bars are
provided for the outside sec-
ond seats. (Tags displaying the
location of the anchors are
attached to the seats.)
Second seat: Anchor bracket
(for top strap)
Anchor brackets are provided
for outside second seats.

154 1-7. Safety information
VERSO_WE_OM64524E
Installing child restraints using a seat belt
Rear-facing Baby seat/child seat
Second seats
Adjust the seat as far back as
possible.
Fold the seatback while pulling
the seatback angle adjustment
lever. Return the seatback and
secure it at the 1st lock position
(most upright position). (P. 7 9 )
Third seats (vehicles with third seats)
Adjust the second seat forward
so that it does not interfere with
the child restraint system.
Fold the seatback while pulling
the seatback angle adjustment
strap. Return the seatback and
secure it at the 1st lock position
(most upright position). (P. 8 0 )
Place the child seat on the rear
seat facing the rear of the vehi-
cle.

155 1-7. Safety information
1
Before driving
VERSO_WE_OM64524ERun the seat belt through the
child seat and insert the plate
into the buckle. Make sure that
the belt is not twisted.
Install a locking clip near the tab
of the lap and shoulder belt by
inserting the lap and shoulder
webbing through the recesses of
the locking clip. Buckle the belt
again. If the belt has any slack,
release the buckle and reinstall
the locking clip.
If your child restraint system does
not provide a locking clip, you can
purchase one at any authorized
Toyota dealer or repairer, or
another duly qualified and
equipped professional.
Locking clip for child restraint sys-
tem (Part No. 73119-22010)

156 1-7. Safety information

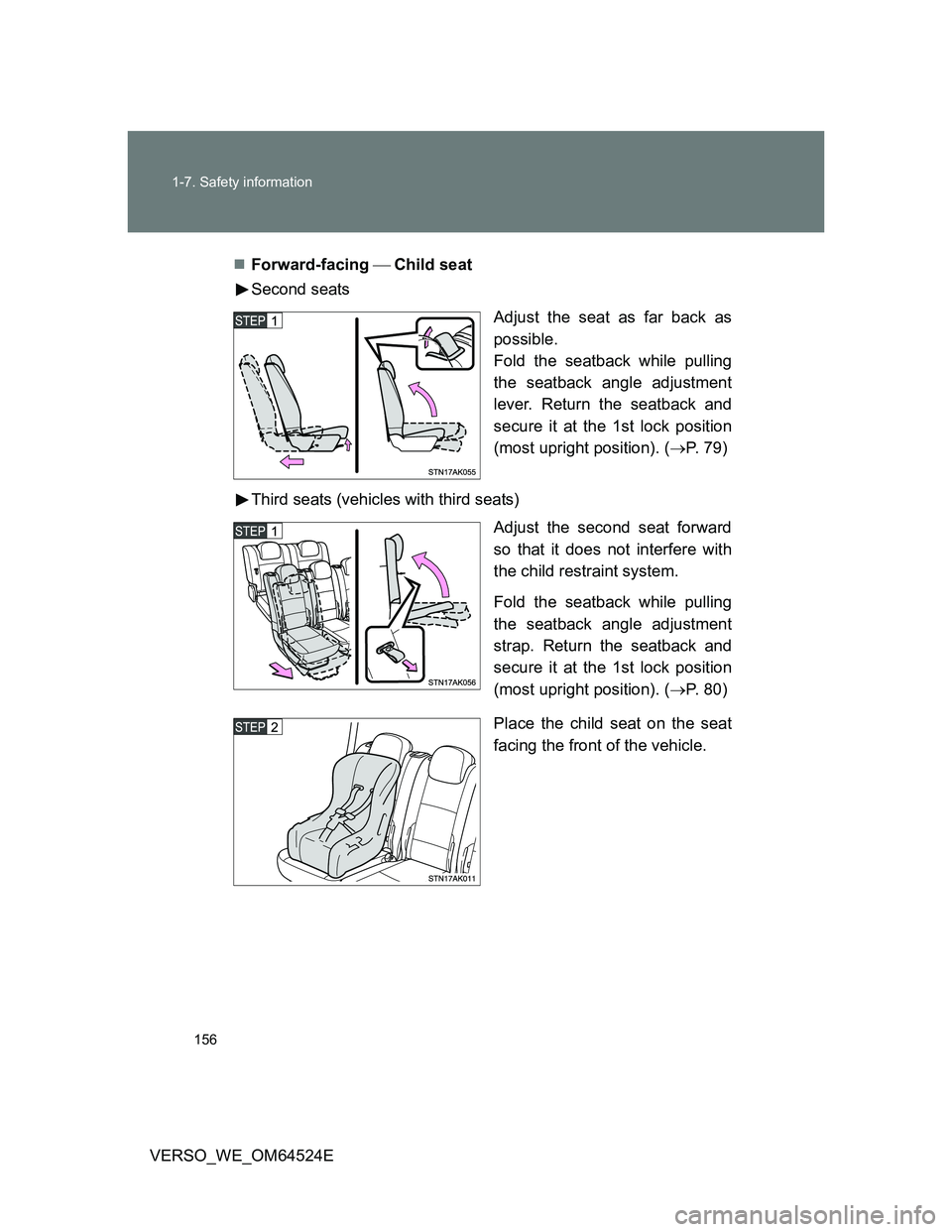

VERSO_WE_OM64524EForward-facing Child seat
Second seats
Adjust the seat as far back as
possible.
Fold the seatback while pulling
the seatback angle adjustment
lever. Return the seatback and
secure it at the 1st lock position
(most upright position). (P. 7 9 )
Third seats (vehicles with third seats)
Adjust the second seat forward
so that it does not interfere with
the child restraint system.
Fold the seatback while pulling
the seatback angle adjustment
strap. Return the seatback and
secure it at the 1st lock position
(most upright position). (P. 8 0 )
Place the child seat on the seat
facing the front of the vehicle.

157 1-7. Safety information
1
Before driving
VERSO_WE_OM64524ERun the seat belt through the
child seat and insert the plate
into the buckle. Make sure that
the belt is not twisted.
Install a locking clip near the tab
of the lap and shoulder belt by
inserting the lap and shoulder
webbing through the recesses of
the locking clip. Buckle the belt
again. If the belt has any slack,
release the buckle and reinstall
the locking clip.
If your child restraint system does
not provide a locking clip, you can
purchase one at any authorized
Toyota dealer or repairer, or
another duly qualified and
equipped professional.
Locking clip for child restraint sys-
tem (Part No. 73119-22010)

158 1-7. Safety information

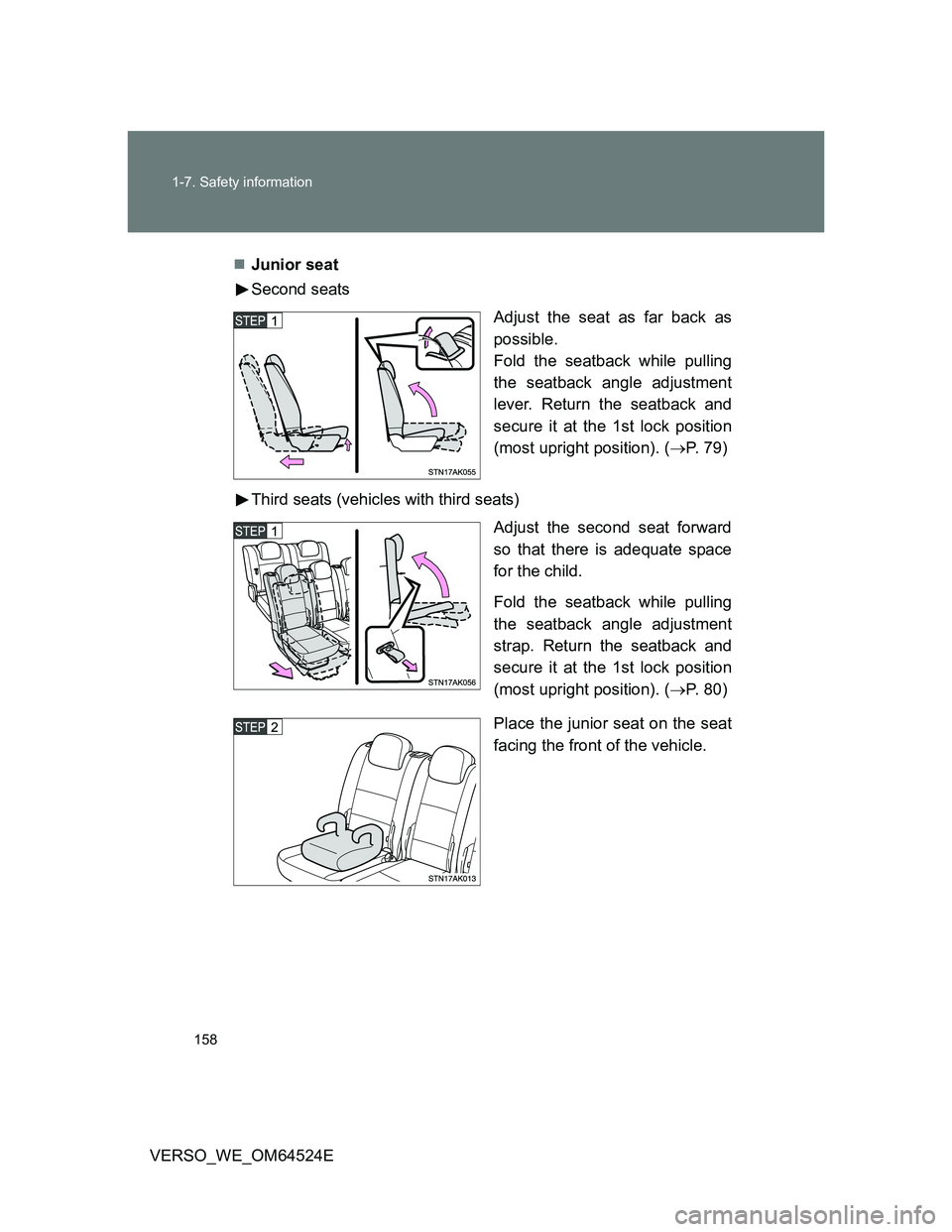

VERSO_WE_OM64524EJunior seat
Second seats
Adjust the seat as far back as
possible.
Fold the seatback while pulling
the seatback angle adjustment
lever. Return the seatback and
secure it at the 1st lock position
(most upright position). (P. 7 9 )
Third seats (vehicles with third seats)
Adjust the second seat forward
so that there is adequate space
for the child.
Fold the seatback while pulling
the seatback angle adjustment
strap. Return the seatback and
secure it at the 1st lock position
(most upright position). (P. 8 0 )
Place the junior seat on the seat
facing the front of the vehicle.

159 1-7. Safety information
1
Before driving
VERSO_WE_OM64524ESit the child in the junior seat. Fit
the seat belt to the junior seat
according to the manufacturer’s
instructions and insert the plate
into the buckle. Make sure that
the belt is not twisted.
Check that the shoulder belt is
correctly positioned over the
child’s shoulder, and that the lap
belt is as low as possible.
(P. 88)
Removing a child restraint system installed with a seat belt
Push the release button and fully
retract the seat belt.

160 1-7. Safety information
VERSO_WE_OM64524E

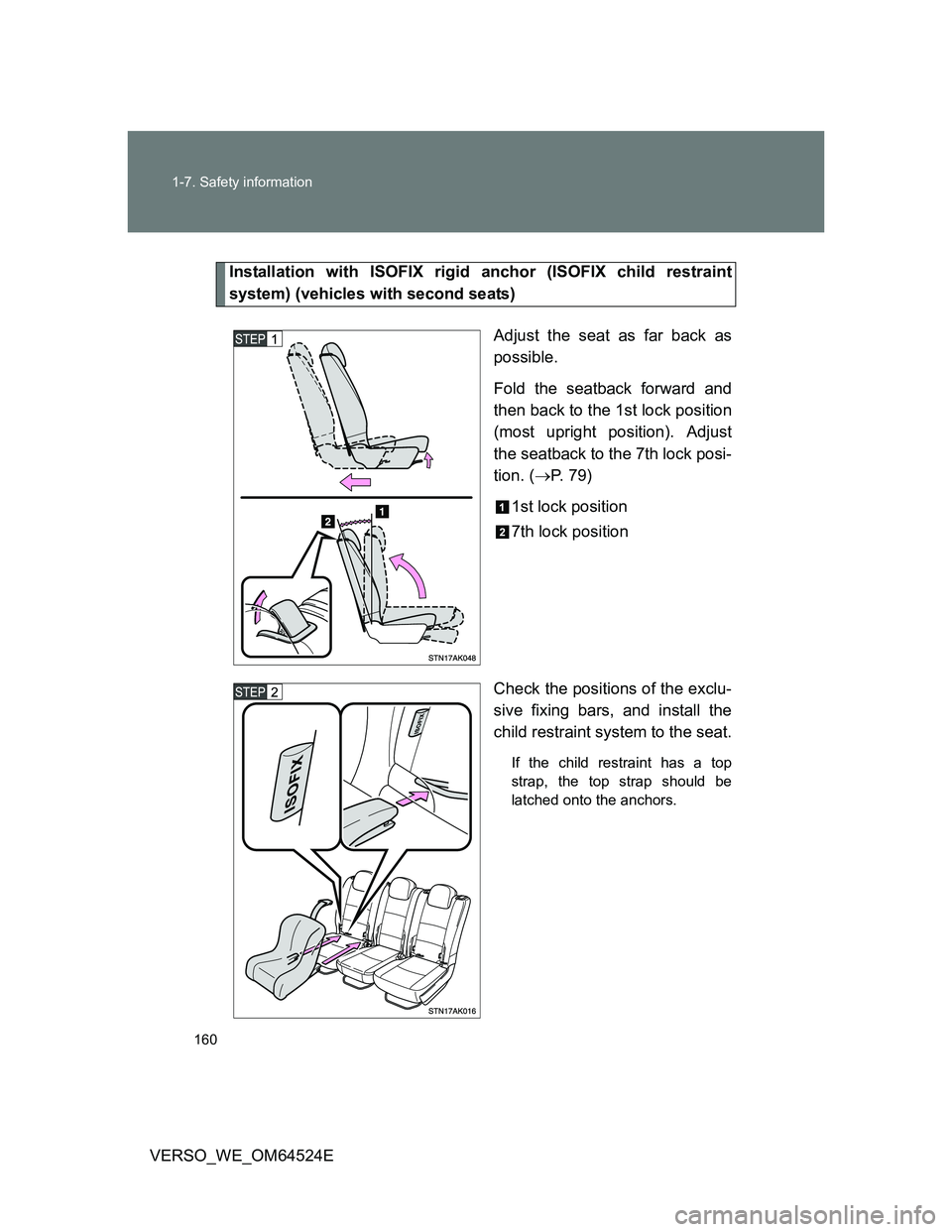

Installation with ISOFIX rigid anchor (ISOFIX child restraint
system) (vehicles with second seats)
Adjust the seat as far back as
possible.
Fold the seatback forward and
then back to the 1st lock position
(most upright position). Adjust
the seatback to the 7th lock posi-
tion. (P. 79)
1st lock position
7th lock position
Check the positions of the exclu-
sive fixing bars, and install the
child restraint system to the seat.
If the child restraint has a top
strap, the top strap should be
latched onto the anchors.
