2011 TOYOTA VERSO Owners Manual

105
1
Before driving
VERSO_WE_OM64524E
1-5. Refueling
Opening the fuel tank cap
Perform the following steps to open the fuel tank cap.
Before refueling the vehicle
Vehicles without smart entry & start system
Turn the engine switch to the “LOCK” position and ensure that
all the doors and windows are closed.
Vehicles with smart entry & start system
Turn the “ENGINE START STOP” switch OFF and ensure that
all the doors and windows are closed.
Opening the fuel tank cap
Pull up the fuel filler door
opener.

106 1-5. Refueling
VERSO_WE_OM64524E
Turn the fuel tank cap slowly
to open it.
Hang the fuel tank cap on the
back of the fuel filler door.

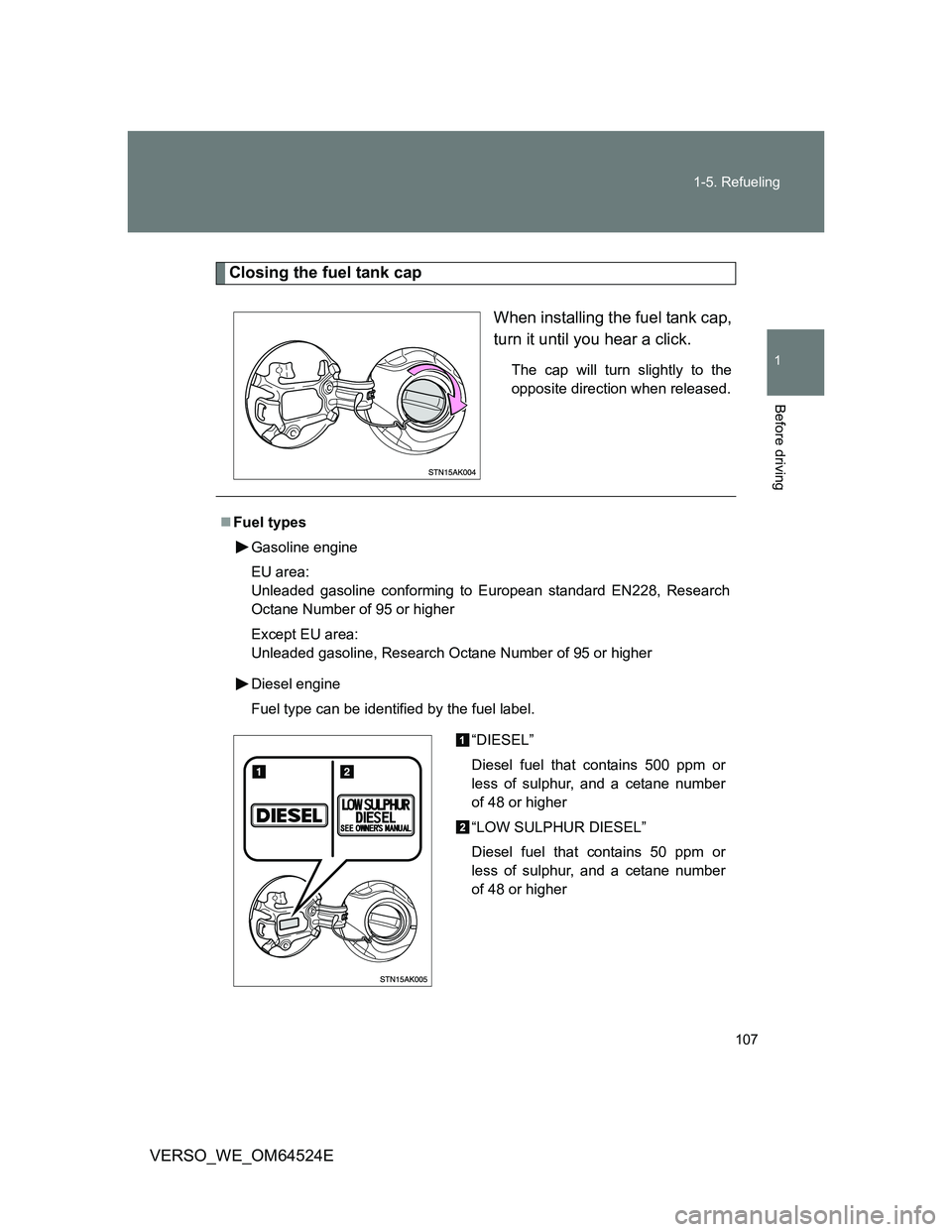

107 1-5. Refueling
1
Before driving
VERSO_WE_OM64524E
Closing the fuel tank cap
When installing the fuel tank cap,
turn it until you hear a click.
The cap will turn slightly to the
opposite direction when released.
Fuel types
Gasoline engine
EU area:
Unleaded gasoline conforming to European standard EN228, Research
Octane Number of 95 or higher
Except EU area:
Unleaded gasoline, Research Octane Number of 95 or higher
Diesel engine
Fuel type can be identified by the fuel label.
“DIESEL”
Diesel fuel that contains 500 ppm or
less of sulphur, and a cetane number
of 48 or higher
“LOW SULPHUR DIESEL”
Diesel fuel that contains 50 ppm or
less of sulphur, and a cetane number
of 48 or higher

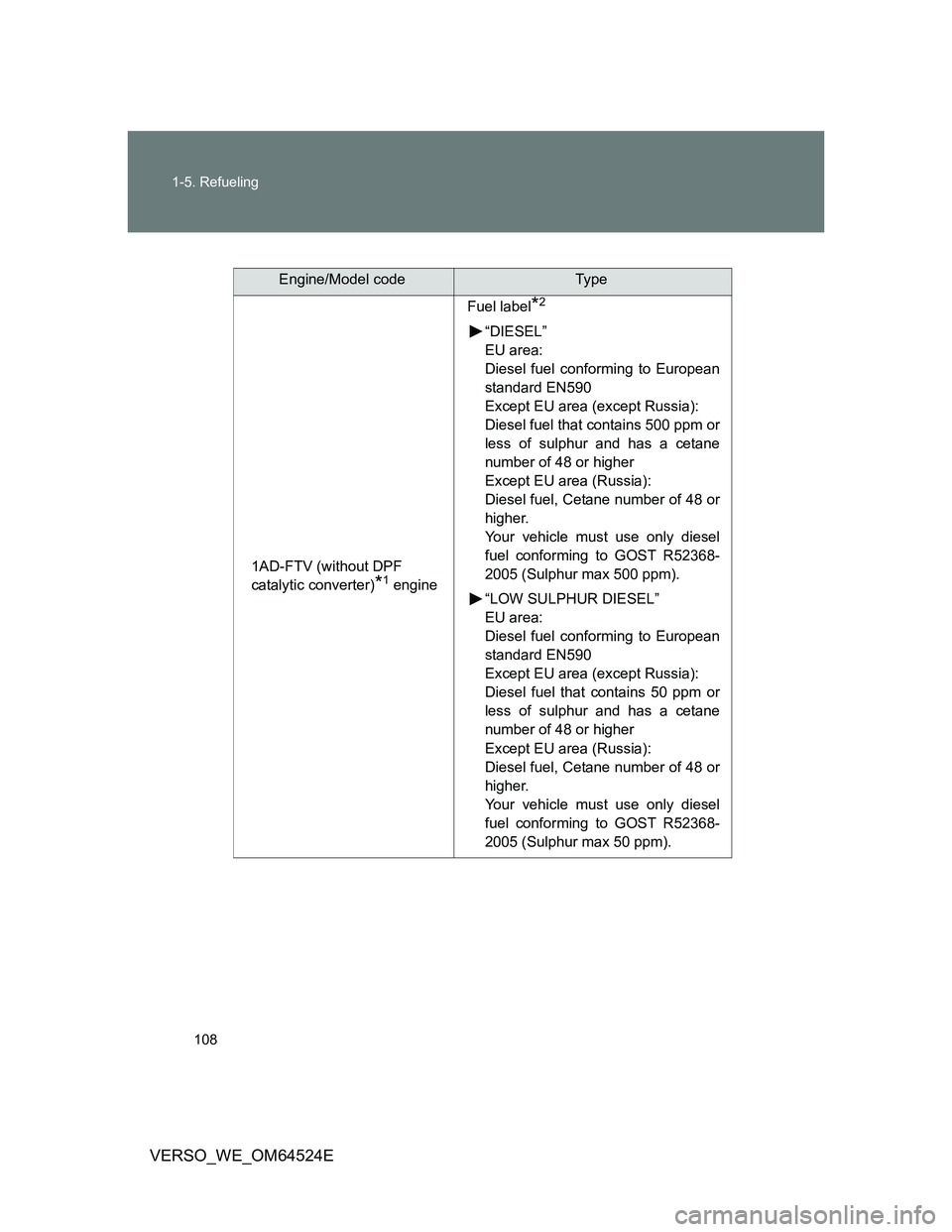

108 1-5. Refueling
VERSO_WE_OM64524E
Engine/Model codeTy p e
1AD-FTV (without DPF
catalytic converter)
*1 engineFuel label
*2
“DIESEL”
EU area:
Diesel fuel conforming to European
standard EN590
Except EU area (except Russia):
Diesel fuel that contains 500 ppm or
less of sulphur and has a cetane
number of 48 or higher
Except EU area (Russia):
Diesel fuel, Cetane number of 48 or
higher.
Your vehicle must use only diesel
fuel conforming to GOST R52368-
2005 (Sulphur max 500 ppm).
“LOW SULPHUR DIESEL”
EU area:
Diesel fuel conforming to European
standard EN590
Except EU area (except Russia):
Diesel fuel that contains 50 ppm or
less of sulphur and has a cetane
number of 48 or higher
Except EU area (Russia):
Diesel fuel, Cetane number of 48 or
higher.
Your vehicle must use only diesel
fuel conforming to GOST R52368-
2005 (Sulphur max 50 ppm).

109 1-5. Refueling
1
Before driving
VERSO_WE_OM64524E
*1: To distinguish the 1AD-FTV engine, ask any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
*2: Fuel type can be identified by the fuel label. (P. 107)
Use of ethanol blended gasoline in a gasoline engine
Toyota allows the use of ethanol blended gasoline where the ethanol content
is up to 10%. Make sure that the ethanol blended gasoline to be used has a
Research Octane Number that follows the above.
Fuel tank capacity
Gasoline engine
Approximately 60 L (15.9 gal., 13.2 Imp. gal.)
Diesel engine
Approximately 55 L (14.5 gal., 12.1 Imp. gal.)
Engine/Model codeTy p e
1AD-FTV (with DPF catalytic
converter)
*1 and 2AD-FHV
enginesEU area:
Diesel fuel conforming to European
standard EN590
Except EU area (except Russia):
Diesel fuel that contains 50 ppm or less
of sulphur and has a cetane number of
48 or higher
Except EU area (Russia):
Diesel fuel, Cetane number of 48 or
higher.
Your vehicle must use only diesel fuel
conforming to GOST R52368-2005
(Sulphur max 50 ppm).

110 1-5. Refueling
VERSO_WE_OM64524E
CAUTION
Refueling the vehicle
Observe the following precautions while refueling the vehicle.
Failure to do so may result in death or serious injury.
Touch the vehicle or some other metal surface to discharge any static
electricity.
Sparks resulting from discharging static electricity may cause the fuel
vapors to ignite.
Always hold the grips on the fuel tank cap and turn it slowly to remove it.
A whooshing sound may be heard when the fuel tank cap is loosened.
Wait until the sound cannot be heard before fully removing the cap.
In hot weather, pressurized fuel may spray out of the filler neck and cause
injury.
Do not allow anyone that has not discharged static electricity from their
bodies to come close to an open fuel tank.
Do not inhale vaporized fuel.
Fuel contains substances that are harmful if inhaled.
Do not smoke while refueling the vehicle.
Doing so may cause the fuel to ignite and cause a fire.
Do not return to the vehicle or touch any person or object that is statically
charged.
This may cause static electricity to build up, resulting in a possible ignition
hazard.
When replacing the fuel tank cap
Do not use anything but a genuine Toyota fuel tank cap designed for your
vehicle. Failure to do so may cause a fire or other incident which may result
in death or serious injury.

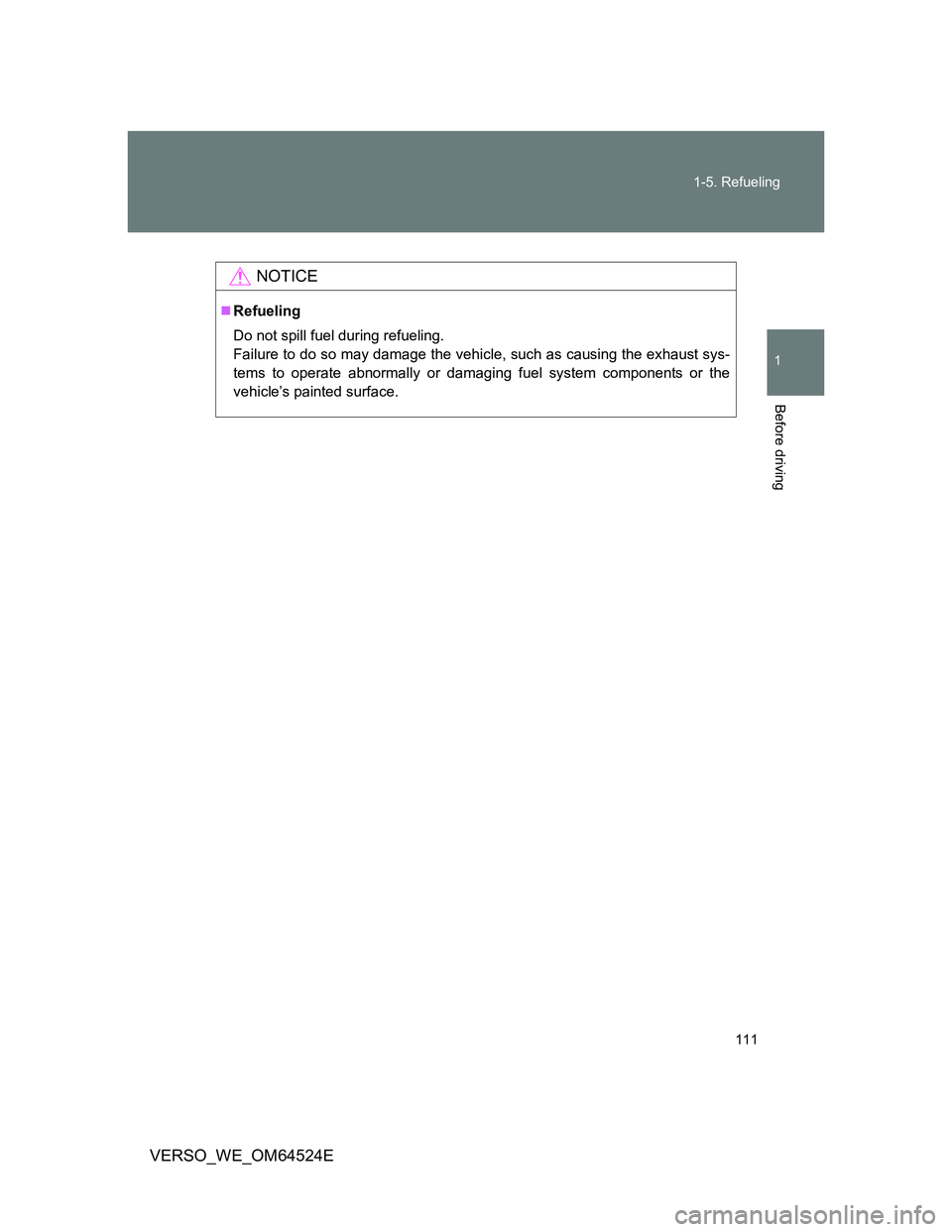

111 1-5. Refueling
1
Before driving
VERSO_WE_OM64524E
NOTICE
Refueling
Do not spill fuel during refueling.
Failure to do so may damage the vehicle, such as causing the exhaust sys-
tems to operate abnormally or damaging fuel system components or the
vehicle’s painted surface.

112
VERSO_WE_OM64524E
1-6. Theft deterrent system
Engine immobilizer system
The vehicle’s keys have built-in transponder chips that prevent the
engine from starting if the key has not been previously registered in
the vehicle’s on-board computer.
Never leave the keys inside the vehicle when you leave the vehicle.
Vehicles with manual air conditioning system
Vehicles without smart entry &
start system: The indicator
light flashes after the key has
been removed from the
engine switch to indicate that
the system is operating.
The indicator light stops flash-
ing after the registered key
has been inserted into the
engine switch to indicate that
the system has been can-
celed.
Vehicles with smart entry &
start system: The indicator
light flashes after the
“ENGINE START STOP”
switch has been turned OFF
to indicate that the system is
operating.
The indicator light stops flash-
ing after the “ENGINE START
STOP” switch has been turned
to ACCESSORY or IGNITION
ON mode to indicate that the
system has been canceled.
