545 6-1. Specifications
6
Vehicle specifications
VERSO_WE_OM64524EEngine number
The engine number is stamped on the engine block as shown.
1ZR-FAE and 2ZR-FAE engines
1AD-FTV and 2AD-FHV engines

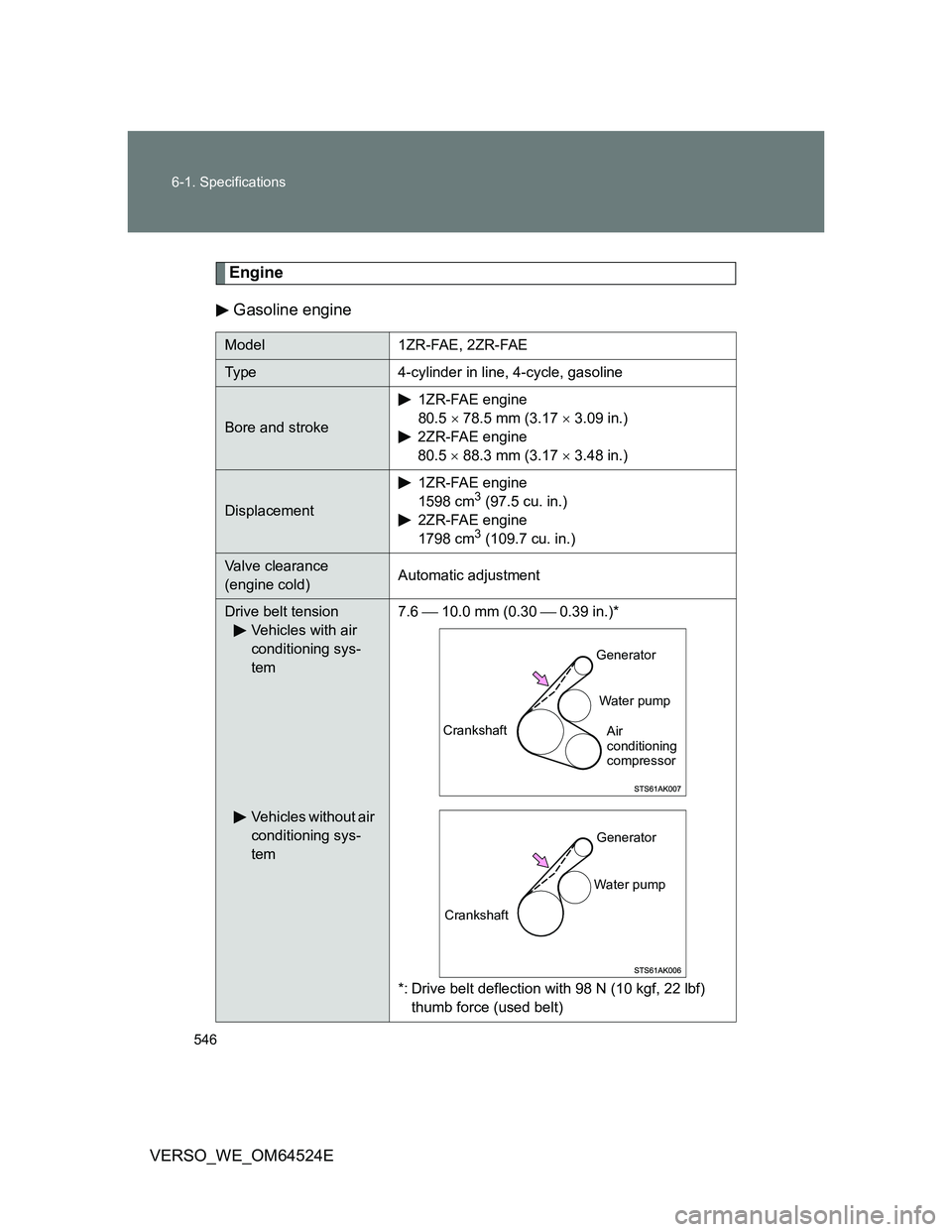

546 6-1. Specifications
VERSO_WE_OM64524E
Engine
Gasoline engine
Model 1ZR-FAE, 2ZR-FAE
Type 4-cylinder in line, 4-cycle, gasoline
Bore and stroke1ZR-FAE engine
80.5  78.5 mm (3.17  3.09 in.)
2ZR-FAE engine
80.5  88.3 mm (3.17  3.48 in.)
Displacement1ZR-FAE engine
1598 cm3 (97.5 cu. in.)
2ZR-FAE engine
1798 cm
3 (109.7 cu. in.)
Valve clearance
(engine cold)Automatic adjustment
Drive belt tension
Vehicles with air
conditioning sys-
tem
Vehicles without air
conditioning sys-
tem7.6  10.0 mm (0.30  0.39 in.)*
*: Drive belt deflection with 98 N (10 kgf, 22 lbf)
thumb force (used belt)
CrankshaftGenerator
Water pump
Air
conditioning
compressor
CrankshaftGenerator
Water pump

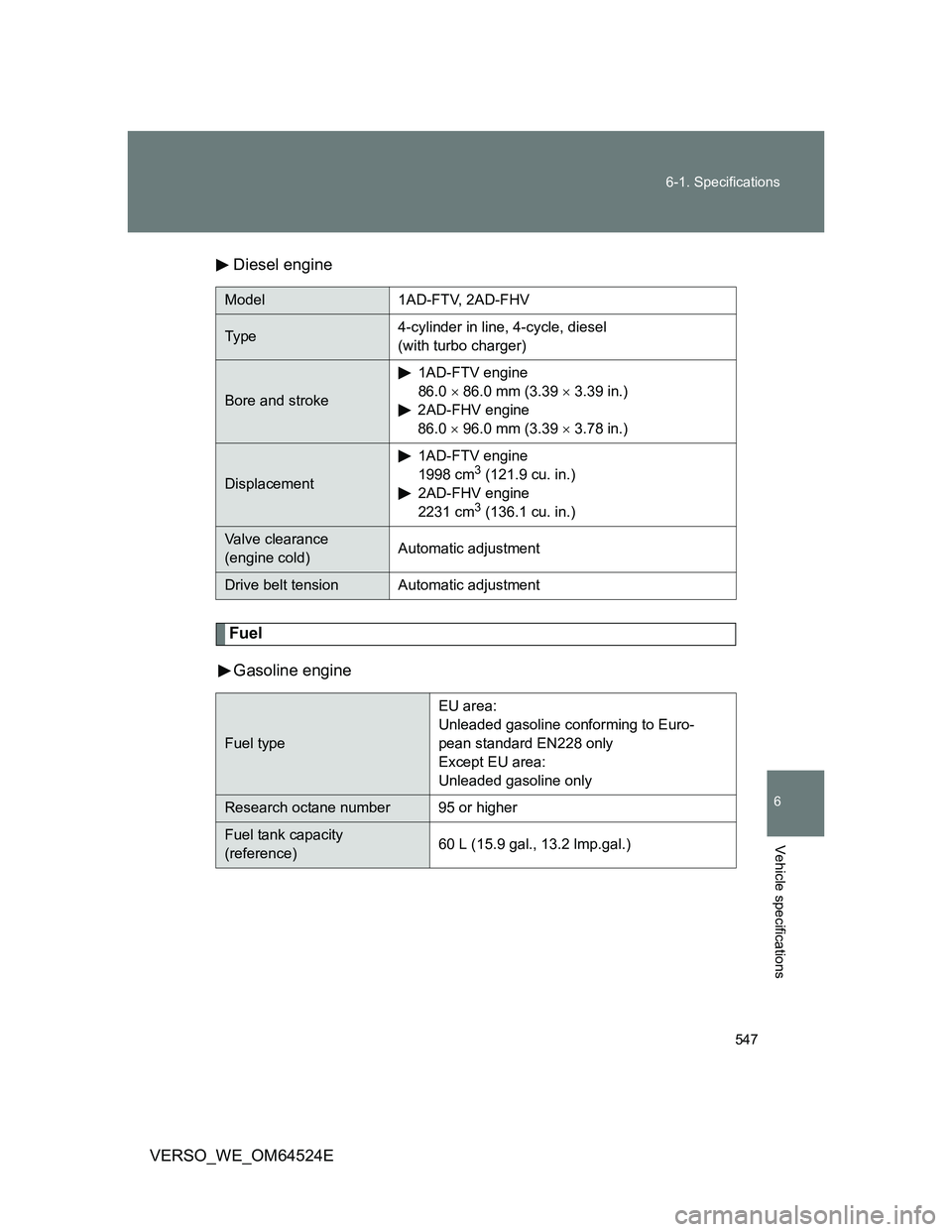

547 6-1. Specifications
6
Vehicle specifications
VERSO_WE_OM64524EDiesel engine
Fuel
Gasoline engine
Model 1AD-FTV, 2AD-FHV
Ty p e4-cylinder in line, 4-cycle, diesel
(with turbo charger)
Bore and stroke1AD-FTV engine
86.0  86.0 mm (3.39  3.39 in.)
2AD-FHV engine
86.0  96.0 mm (3.39  3.78 in.)
Displacement1AD-FTV engine
1998 cm3 (121.9 cu. in.)
2AD-FHV engine
2231 cm
3 (136.1 cu. in.)
Valve clearance
(engine cold)Automatic adjustment
Drive belt tension Automatic adjustment
Fuel typeEU area:
Unleaded gasoline conforming to Euro-
pean standard EN228 only
Except EU area:
Unleaded gasoline only
Research octane number 95 or higher
Fuel tank capacity
(reference)60 L (15.9 gal., 13.2 lmp.gal.)

548 6-1. Specifications
VERSO_WE_OM64524EDiesel engine
*1: Fuel type can be identified by the fuel label. (P. 1 0 7 )
*2: To distinguish the 1AD-FTV engine, ask any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
Fuel
type
1AD-FTV (without
DPF catalytic con-
verter)
*2 engineFuel label
*1
“DIESEL”
EU area:
Diesel fuel conforming to European stan-
dard EN590
Except EU area (except Russia):
Diesel fuel that contains 500 ppm or less
of sulphur
Except EU area (Russia):
Diesel fuel conforming to GOST R52368-
2005 (Sulphur max 500 ppm).
“LOW SULPHUR DIESEL”
EU area:
Diesel fuel conforming to European stan-
dard EN590
Except EU area (except Russia):
Diesel fuel that contains 50 ppm or less
of sulphur
Except EU area (Russia):
Diesel fuel conforming to GOST R52368-
2005 (Sulphur max 50 ppm).
1AD-FTV (with
DPF catalytic con-
verter)
*2 and
2AD-FHV enginesEU area:
Diesel fuel conforming to European stan-
dard EN590
Except EU area (except Russia):
Diesel fuel that contains 50 ppm or less of
sulphur
Except EU area (Russia):
Diesel fuel conforming to GOST R52368-
2005 (Sulphur max 50 ppm).
Cetane number 48 or higher
Fuel tank capacity
(reference)55 L (14.5 gal., 12.1 lmp.gal.)

549 6-1. Specifications
6
Vehicle specifications
VERSO_WE_OM64524E
Lubrication system
*: The engine oil capacity is a reference quantity to be used when exchanging.
Warm up and turn off the engine, wait more than 5 minutes, and check the oil
level on the dipstick.
Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota rec-
ommends the use of approved “Toyota Genuine Motor Oil”. Another
motor oil of matching quality can also be used.
1ZR-FAE and 2ZR-FAE engines
Oil grade:
0W-20, 5W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving” or
ILSAC multigrade engine oil
15W-40 and 20W-50:
API grade SL or SM multigrade engine oil
Oil capacity
(drain and refill
- reference
*)
Gasoline engine
Diesel engine1ZR-FAE and 2ZR-FAE engines
With filter: 4.2 L (4.4 qt., 3.7 Imp.qt.)
Without filter: 3.9 L (4.1 qt., 3.4 Imp.qt.)
1AD-FTV engine
With filter: 6.3 L (6.7 qt., 5.5 Imp.qt.)
Without filter: 5.9 L (6.2 qt., 5.2 Imp.qt.)
2AD-FHV engine
With filter: 5.9 L (6.2 qt., 5.2 Imp.qt.)
Without filter: 5.5 L (5.8 qt., 4.8 Imp.qt.)

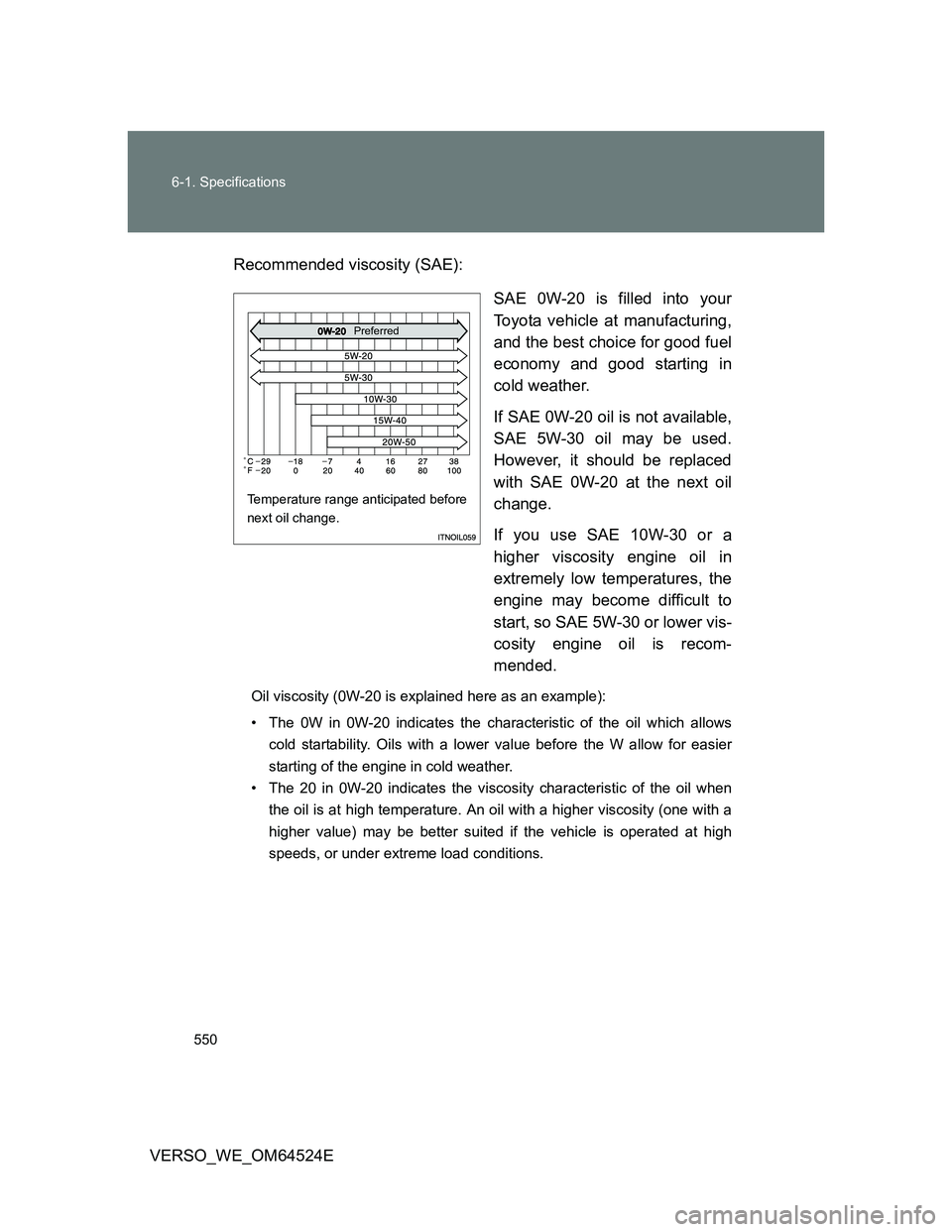

550 6-1. Specifications
VERSO_WE_OM64524ERecommended viscosity (SAE):
SAE 0W-20 is filled into your
Toyota vehicle at manufacturing,
and the best choice for good fuel
economy and good starting in
cold weather.
If SAE 0W-20 oil is not available,
SAE 5W-30 oil may be used.
However, it should be replaced
with SAE 0W-20 at the next oil
change.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures, the
engine may become difficult to
start, so SAE 5W-30 or lower vis-
cosity engine oil is recom-
mended.
Oil viscosity (0W-20 is explained here as an example):
• The 0W in 0W-20 indicates the characteristic of the oil which allows
cold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
• The 20 in 0W-20 indicates the viscosity characteristic of the oil when
the oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extreme load conditions.
Temperature range anticipated before
next oil change.
Preferred

551 6-1. Specifications
6
Vehicle specifications
VERSO_WE_OM64524EHow to read oil container labels:
Either or both API registered marks are added to some oil containers
to help you select the oil you should use.
API Service Symbol
Top portion: The oil quality desig-
nation by API (American Petro-
leum Institute) (SM)
Center portion: The SAE viscosity
grade (SAE 0W-20)
Lower portion: “Energy-Conserv-
ing” means that the oil has fuel-
saving capabilities.
ILSAC Certification Mark
The ILSAC (International Lubri-
cant Standardization and
Approval Committee) Certification
Mark is displayed on the front of
the container.

552 6-1. Specifications
VERSO_WE_OM64524E1AD-FTV (without DPF catalytic converter)
* engine
Diesel fuel that contains 500 ppm or less of sulphur
Oil grade: ACEA B1, API CF-4 or CF
(You may also use API CE or CD.)
Recommended viscosity (SAE):
SAE 5W-30 is filled into your
Toyota vehicle at manufacturing,
and the best choice for good fuel
economy and good starting in
cold weather.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures, the
engine may become difficult to
start, so SAE 5W-30 engine oil is
recommended.
Oil viscosity (5W-30 is explained here as an example):
• The 5W in 5W-30 indicates the characteristic of the oil which allows
cold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
• The 30 in 5W-30 indicates the viscosity characteristic of the oil when
the oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extreme load conditions.
Temperature range anticipated before
next oil change.
Preferred
