2011 TOYOTA VERSO Owners Manual

377
3-5. Other interior features
3
Interior features
VERSO_WE_OM64524E
Floor mat
CAUTION
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle, leading to a serious accident.
When installing the driver’s floor mat
Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
Only use floor mats designed for the driver’s seat.
Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
Do not use two or more floor mats on top of each other.
Do not place the floor mat bottom-side up or upside-down.
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehicle. Fix them securely in place
onto the carpet.
Fix the floor mat in place using
the retaining hooks (clips) pro-
vided.
The shape of the retaining
hooks (clips) and the fixing
procedure of the floor mat for
your vehicle may differ from
those shown in the illustration.
For details, refer to the floor
mat retention clip installation
instructions supplied with the
clips.

378 3-5. Other interior features
VERSO_WE_OM64524E
CAUTION
Before driving
Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
With the engine stopped and the shift
lever in P (Multidrive or automatic
transmission) or N (manual transmis-
sion), fully depress each pedal to the
floor to make sure it does not interfere
with the floor mat.

379
3-5. Other interior features
3
Interior features
VERSO_WE_OM64524E

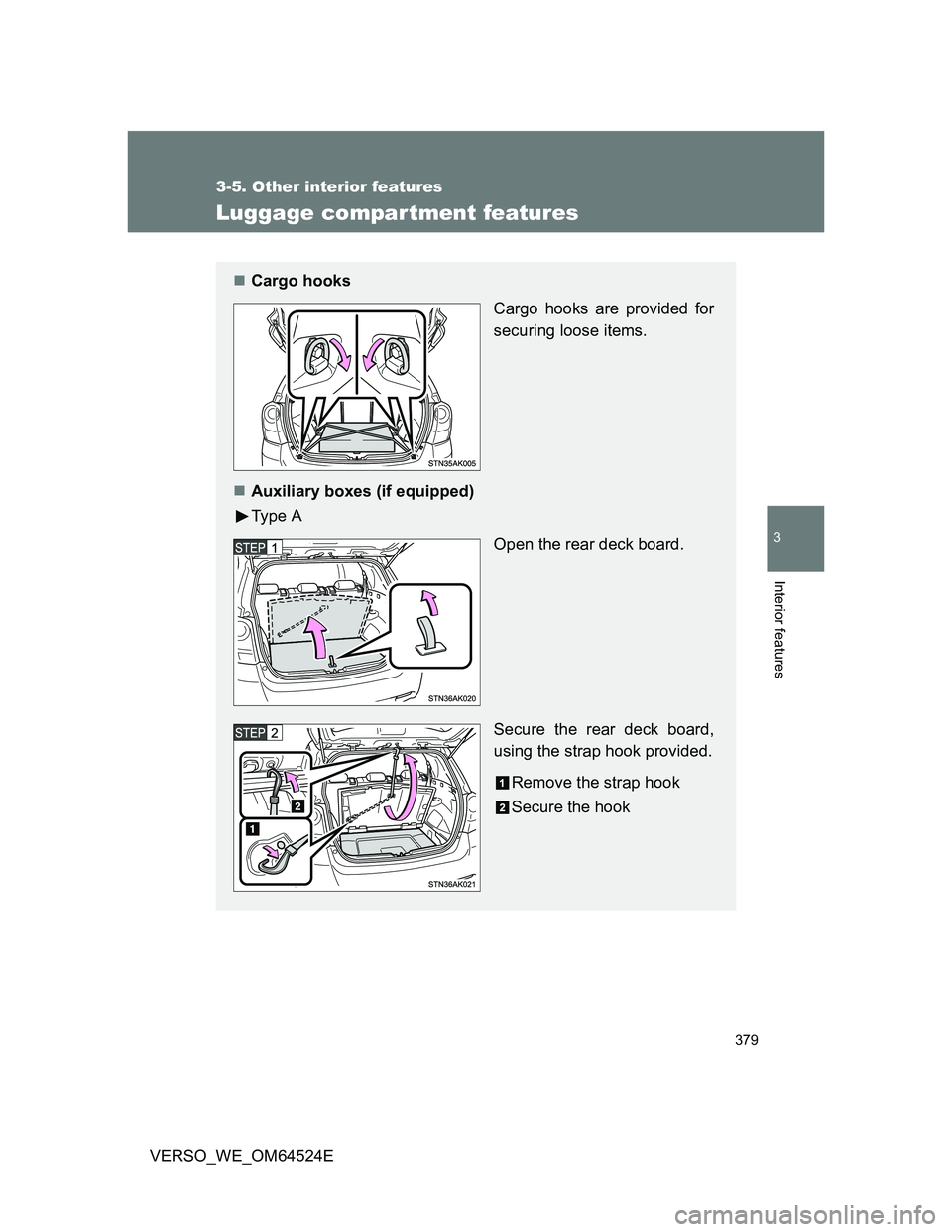

Luggage compar tment features
Cargo hooks
Cargo hooks are provided for
securing loose items.
Auxiliary boxes (if equipped)
Ty p e A
Open the rear deck board.
Secure the rear deck board,
using the strap hook provided.
Remove the strap hook
Secure the hook

380 3-5. Other interior features
VERSO_WE_OM64524E
Ty p e B
Open the front deck board.
Ty p e C
Pull the side deck boards
while pushing the knob.
Luggage cover (if equipped)
Attach the hooks to the head
restraints.
If necessary, move the second
seats to enable the hook
engagement.

381 3-5. Other interior features
3
Interior features
VERSO_WE_OM64524E
Removing luggage cover
The luggage cover can be removed by following the procedure
below.
Push in the left side of the lug-
gage cover while keeping hold of
the right side. Then raise the
right side and pull the luggage
cover out.
Pull out the luggage cover and
hook it on the anchors.

382 3-5. Other interior features
VERSO_WE_OM64524E
Changing the position of the luggage cover
Pattern A
Insert the left end of the lug-
gage cover into the hole.
Compress the right end of the
luggage cover and insert it into
the hole.
Pattern B

383 3-5. Other interior features
3
Interior features
VERSO_WE_OM64524EPattern C
Stowing the luggage cover
Type A
Lift the rear deck board.
Secure the rear deck board
using the hook.
Remove the side deck boards.

384 3-5. Other interior features

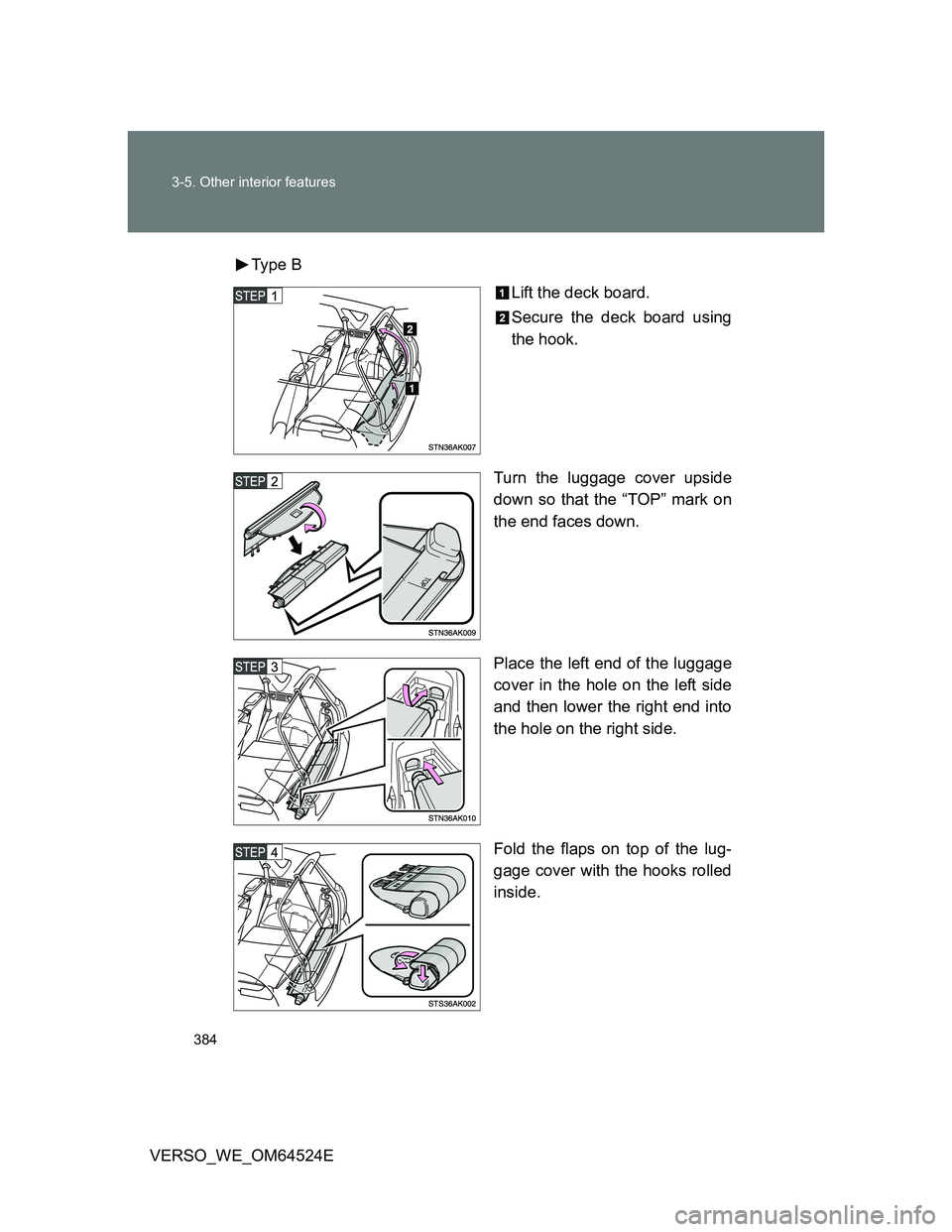

VERSO_WE_OM64524EType B
Lift the deck board.
Secure the deck board using
the hook.
Turn the luggage cover upside
down so that the “TOP” mark on
the end faces down.
Place the left end of the luggage
cover in the hole on the left side
and then lower the right end into
the hole on the right side.
Fold the flaps on top of the lug-
gage cover with the hooks rolled
inside.
