2011 TOYOTA VERSO Owners Manual

209
2-1. Driving procedures
2
When driving
VERSO_WE_OM64524E
Manual transmission
: If equipped
Shifting the shift lever
Fully depress the clutch pedal
before operating the shift
lever, and then release it
slowly.
Shifting the shift lever to “R”
Shift the shift lever to the “R”
position while lifting up the ring
section.

210 2-1. Driving procedures
VERSO_WE_OM64524E

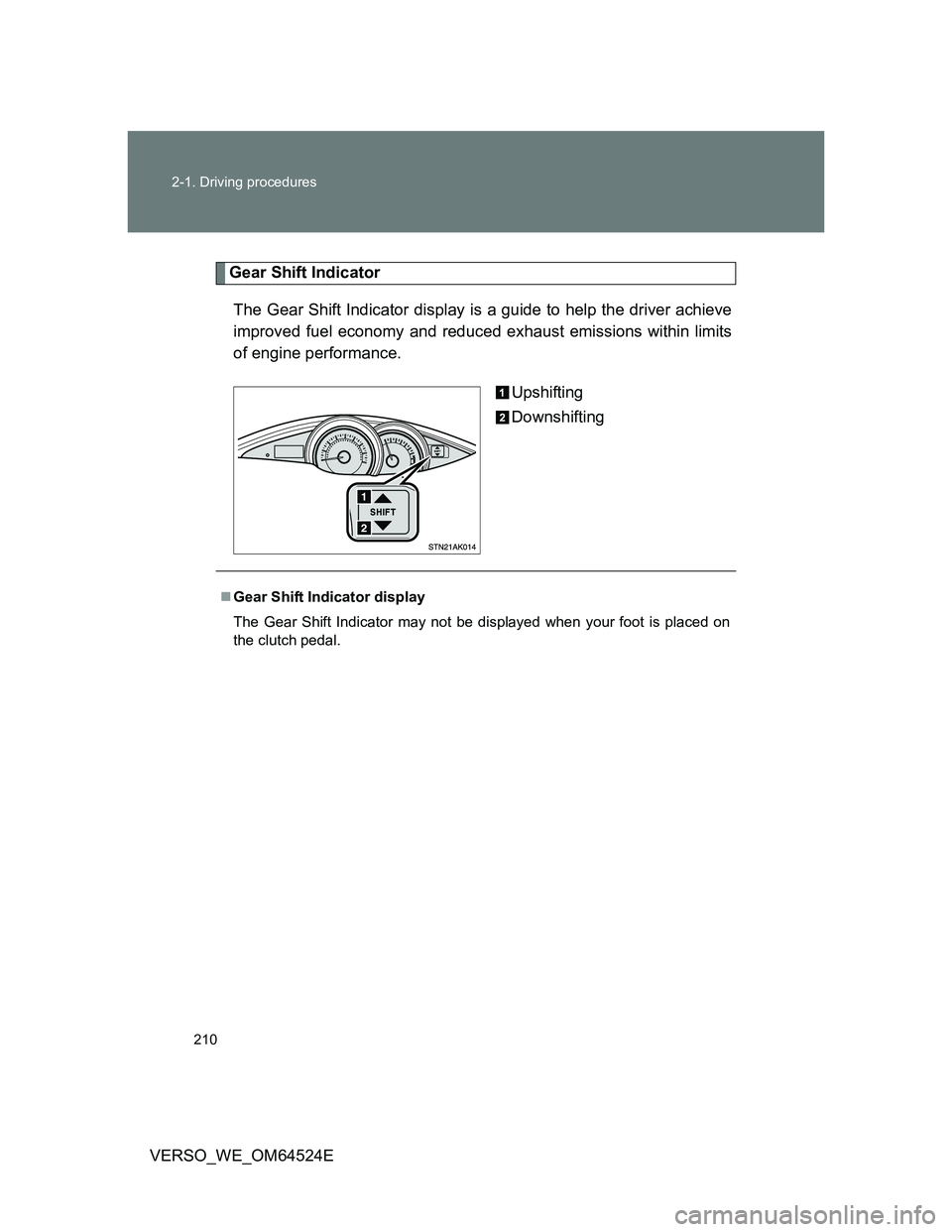

Gear Shift Indicator
The Gear Shift Indicator display is a guide to help the driver achieve
improved fuel economy and reduced exhaust emissions within limits
of engine performance.
Upshifting
Downshifting
Gear Shift Indicator display
The Gear Shift Indicator may not be displayed when your foot is placed on
the clutch pedal.

211 2-1. Driving procedures
2
When driving
VERSO_WE_OM64524E
Maximum allowable speeds
Observe the following maximum allowable speeds in each gear when maxi-
mum acceleration is necessary.
Gasoline engine
km/h (mph)
Diesel engine
km/h (mph)
CAUTION
Gear Shift Indicator display
Refer to the display while considering actual traffic and road while driving
conditions. Failure to exercise judgment may lead to an accident.
Shift positionMaximum speed
1ZR-FAE engine2ZR-FAE engine
149 (30)49 (30)
291 (56)91 (56)
3125 (77)125 (77)
4170 (105)170 (105)
5185 (114)190 (118)
6185 (114)190 (118)
Shift positionMaximum speed
1AD-FTV engine2AD-FHV engine
137 (22)40 (24)
275 (46)75 (46)
3117 (72)117 (72)
4166 (103)162 (100)
5185 (114)207 (128)
6185 (114)210 (130)

212 2-1. Driving procedures
VERSO_WE_OM64524E

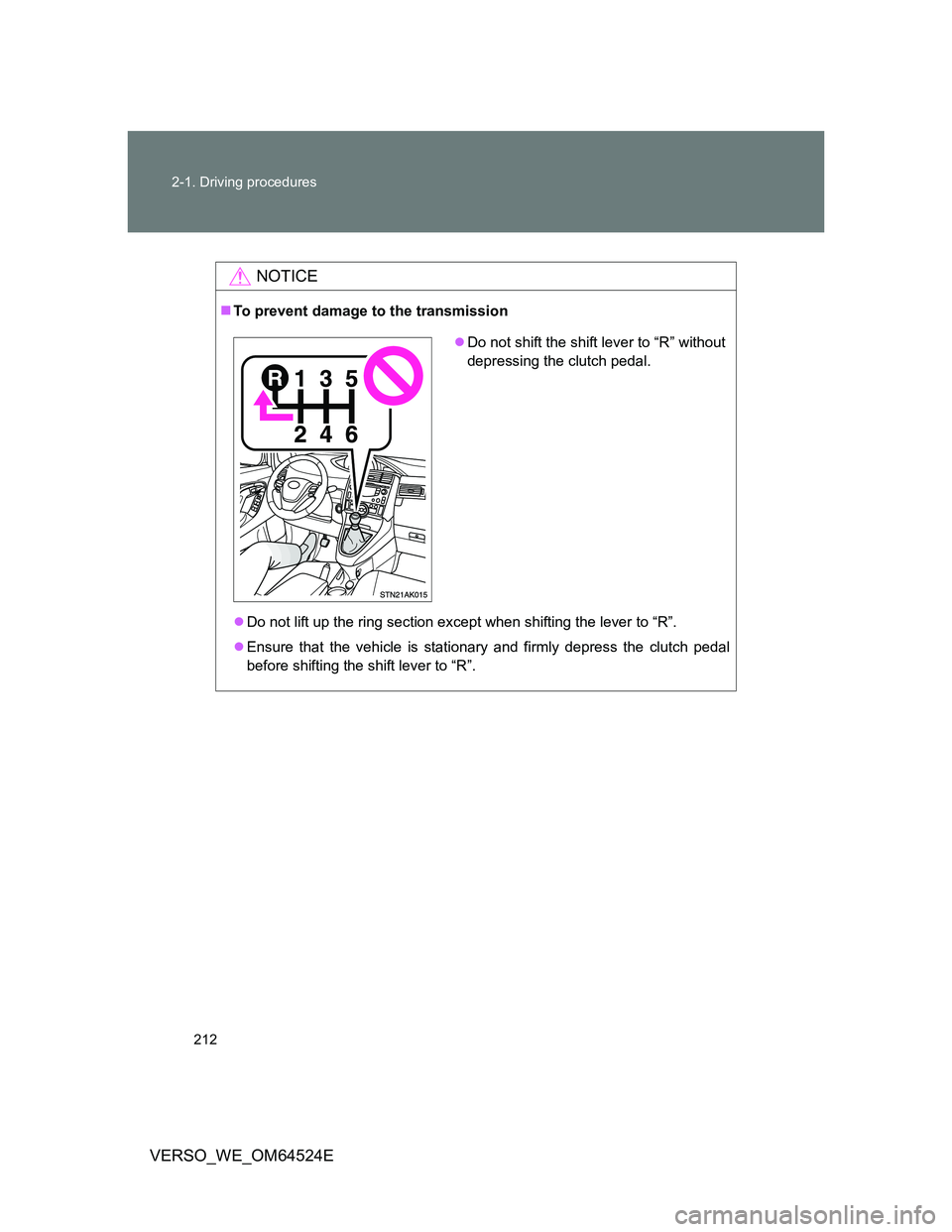

NOTICE
To prevent damage to the transmission
Do not lift up the ring section except when shifting the lever to “R”.
Ensure that the vehicle is stationary and firmly depress the clutch pedal
before shifting the shift lever to “R”.
Do not shift the shift lever to “R” without
depressing the clutch pedal.

213
2-1. Driving procedures
2
When driving
VERSO_WE_OM64524E

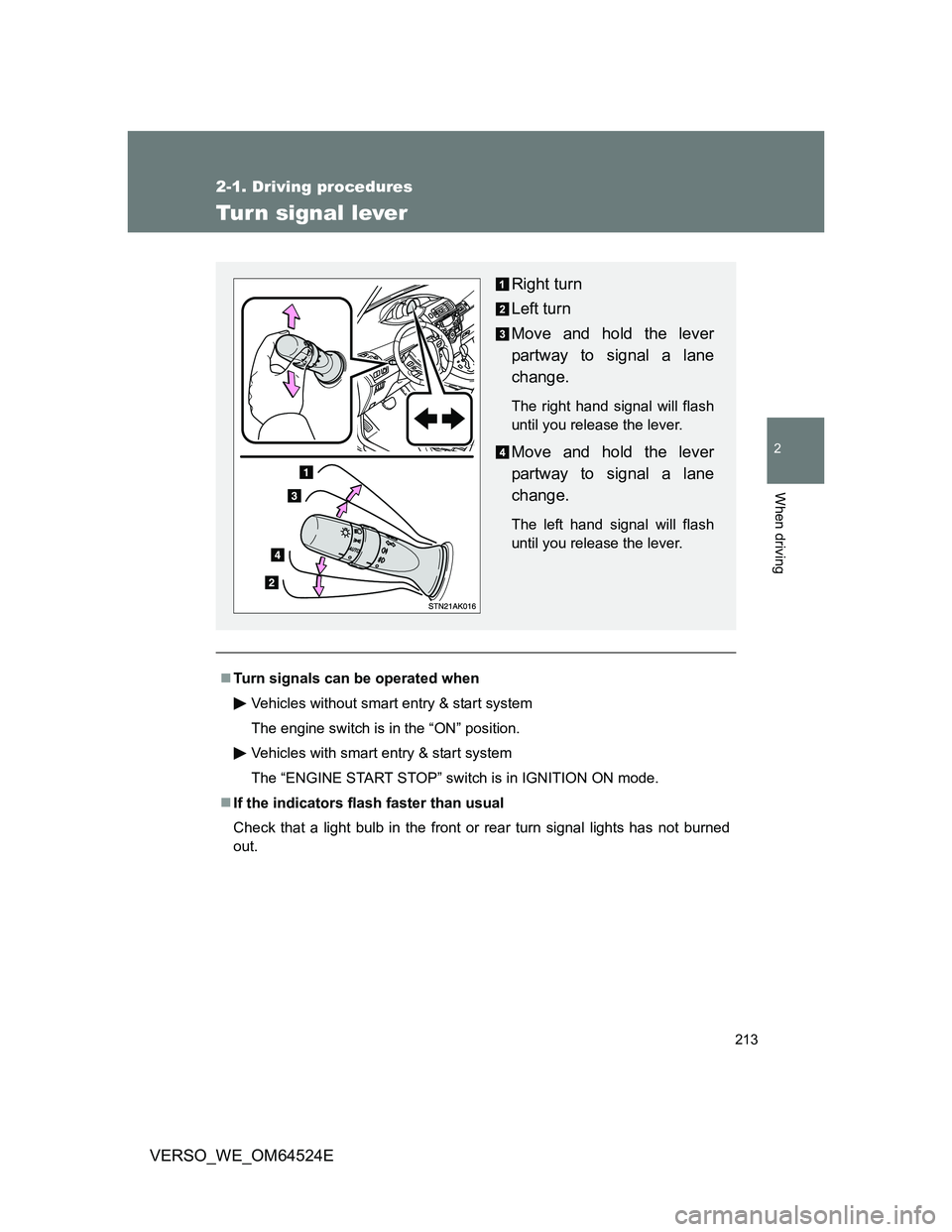

Turn signal lever
Turn signals can be operated when
Vehicles without smart entry & start system
The engine switch is in the “ON” position.
Vehicles with smart entry & start system
The “ENGINE START STOP” switch is in IGNITION ON mode.
If the indicators flash faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
Right turn
Left turn
Move and hold the lever
partway to signal a lane
change.
The right hand signal will flash
until you release the lever.
Move and hold the lever
partway to signal a lane
change.
The left hand signal will flash
until you release the lever.

214
2-1. Driving procedures
VERSO_WE_OM64524E
Parking brake
Set the parking brake
Fully set the parking brake
while depressing the brake
pedal.
At this time, the indicator will
come on.
Release the parking brake
Slightly raise the lever
Press the button
Lower it completely

215 2-1. Driving procedures
2
When driving
VERSO_WE_OM64524E
Usage in winter time
See “Winter driving tips” for parking brake usage in winter time. (P. 278)
NOTICE
Before driving
Fully release the parking brake.
Driving the vehicle with the parking brake set will lead to brake components
overheating, which may affect braking performance and increase brake
wear.

216
2-1. Driving procedures
VERSO_WE_OM64524E
Horn
After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
The horn may not sound if the steering wheel is not securely locked.
(P. 96)
To sound the horn, press on or
close to the mark.
