2011 TOYOTA VERSO Owners Manual

5
489 5-2. Steps to take in an emergency
When trouble arises
VERSO_WE_OM64524E
*1: Vehicles with a Multidrive or an automatic transmission*2: Vehicles with a manual transmission
*2
(Flashing)Indicates that a
door has been
opened or
closed and the
“ENGINE
START STOP”
switch has been
switched twice
to the ACCES-
SORY mode
from OFF.Press the
“ENGINE
START STOP”
switch while
applying the
clutch pedal.
Once
(Flashing)
(Green
indicator
flashing)Indicates that
the steering
lock has not
released within
3 seconds of
pressing the
“ENGINE
START STOP”
switch.Press the
“ENGINE
START STOP”
switch again
while turning
the steering
wheel with the
brake pedal
depressed.
Interior
buzzerExterior
buzzerWarning messageDetailsCorrection
procedure

490
5-2. Steps to take in an emergency
VERSO_WE_OM64524E

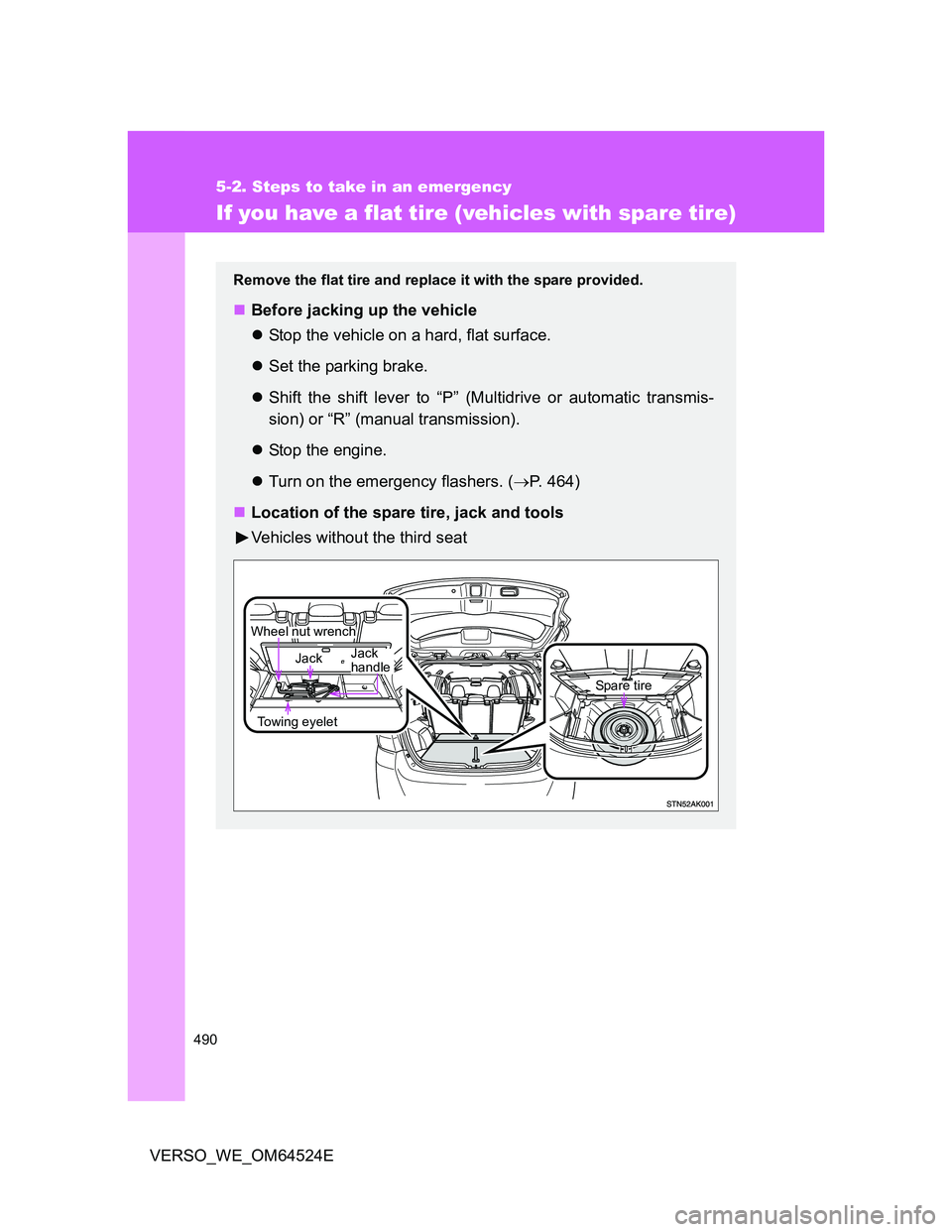

If you have a flat tire (vehicles with spare tire)
Remove the flat tire and replace it with the spare provided.
Before jacking up the vehicle
Stop the vehicle on a hard, flat surface.
Set the parking brake.
Shift the shift lever to “P” (Multidrive or automatic transmis-
sion) or “R” (manual transmission).
Stop the engine.
Turn on the emergency flashers. (P. 464)
Location of the spare tire, jack and tools
Vehicles without the third seat
Spare tire
Jack
handleJack
Wheel nut wrench
Towing eyelet

5
491 5-2. Steps to take in an emergency
When trouble arises
VERSO_WE_OM64524E
Vehicles with third seats
Spare tire
Jack handleJack
Wheel nut wrench
Towing eyelet

492 5-2. Steps to take in an emergency
VERSO_WE_OM64524E

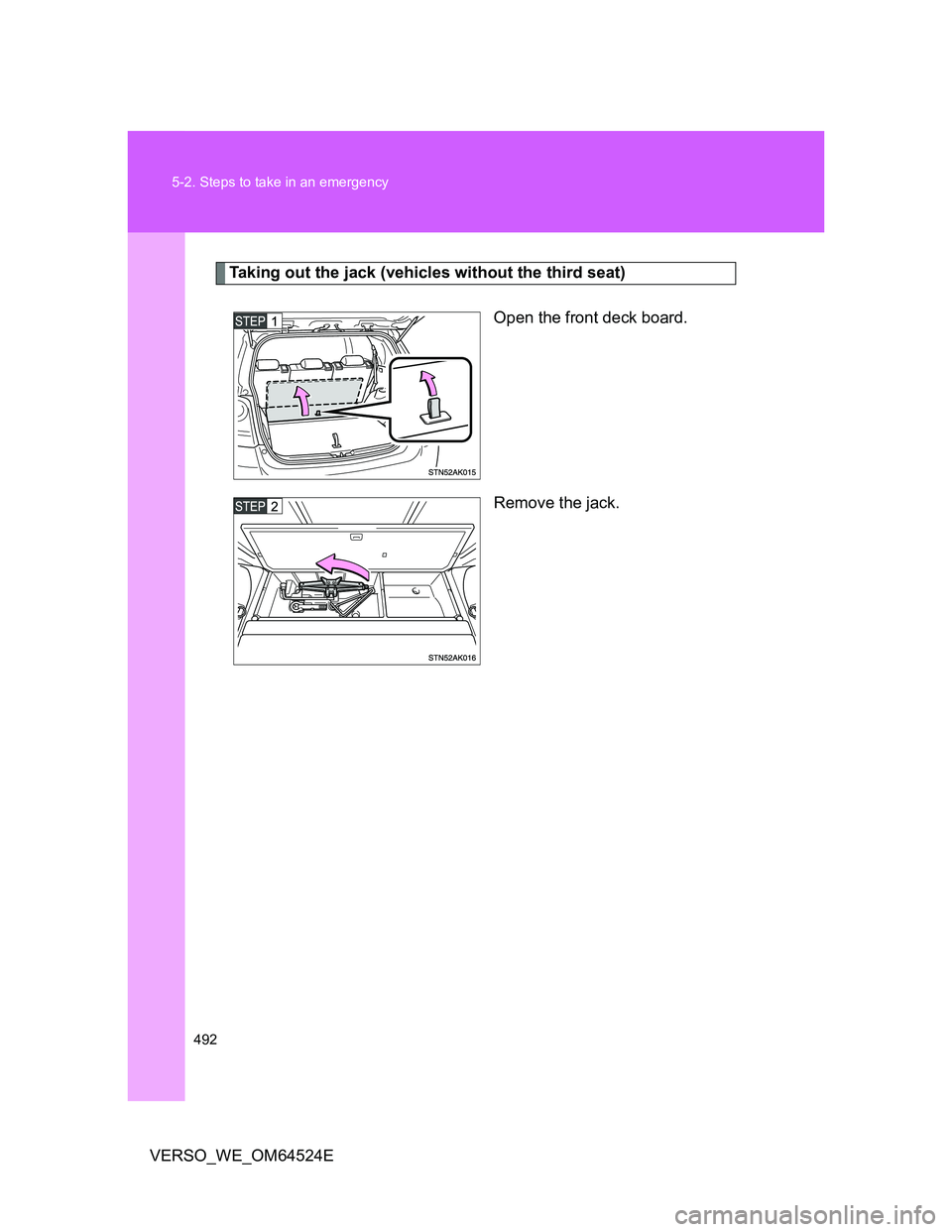

Taking out the jack (vehicles without the third seat)
Open the front deck board.
Remove the jack.

5
493 5-2. Steps to take in an emergency
When trouble arises
VERSO_WE_OM64524E

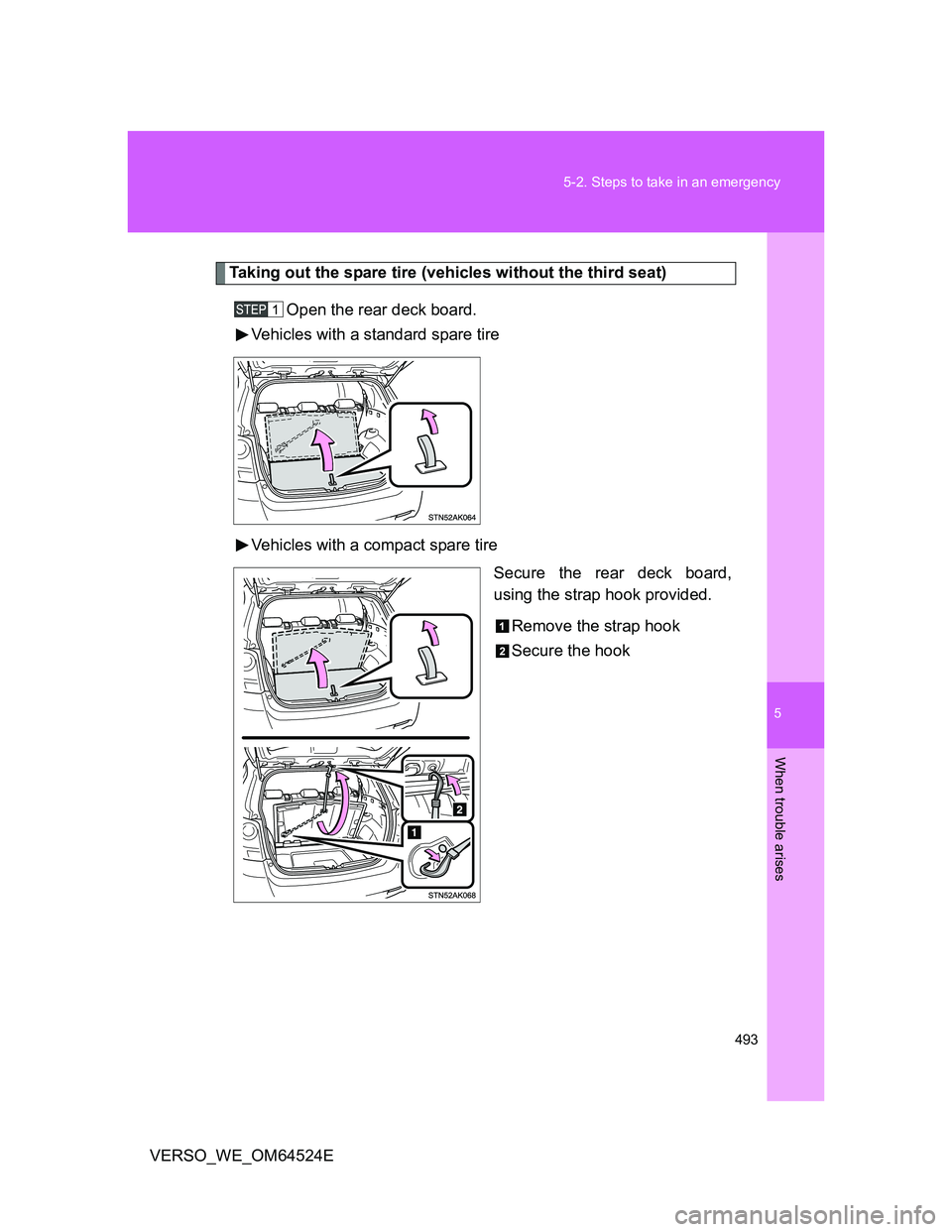

Taking out the spare tire (vehicles without the third seat)
Open the rear deck board.
Vehicles with a standard spare tire
Vehicles with a compact spare tire
Secure the rear deck board,
using the strap hook provided.
Remove the strap hook
Secure the hook

494 5-2. Steps to take in an emergency
VERSO_WE_OM64524ERemove the cover.
Loosen the center fastener that
secures the spare tire.
Take out the spare tire.
Vehicles with a standard spare tire

5
495 5-2. Steps to take in an emergency
When trouble arises
VERSO_WE_OM64524EVehicles with a compact spare tire
Taking out the jack and spare tire (vehicles with the third seat)
Open the deck board.
Secure the deck board, using the
strap hook provided.
Remove the strap hook
Secure the hook

496 5-2. Steps to take in an emergency
VERSO_WE_OM64524ETake out the jack.
Tighten
Loosen
Loosen the center fastener that
secures the spare tire.
Take out the spare tire.
The spare tire cannot be taken
out while the third seat is folded
down. Make sure that the third
seat is in the upright position
before taking out the spare tire.
