457 4-3. Do-it-yourself maintenance
4
Maintenance and care

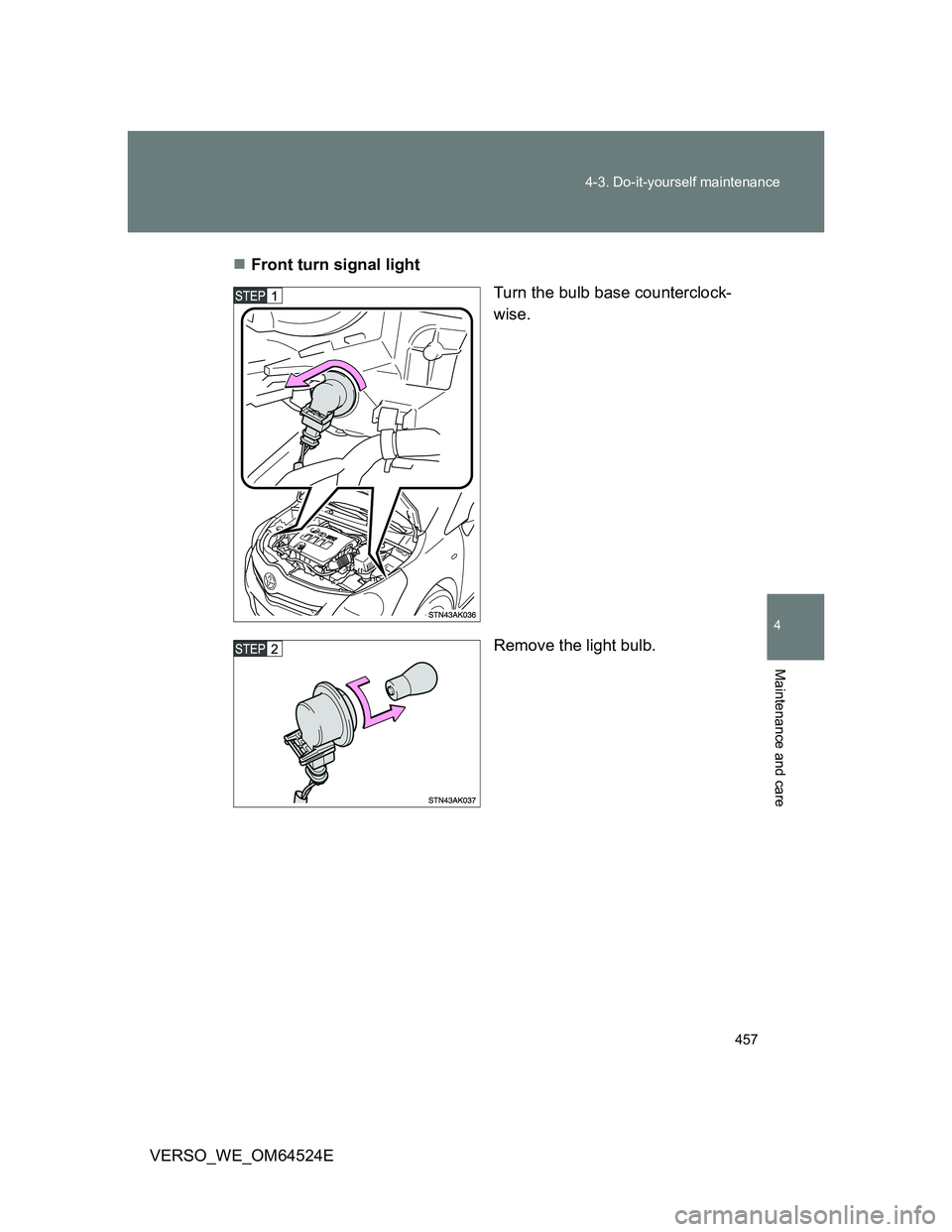

VERSO_WE_OM64524EFront turn signal light
Turn the bulb base counterclock-
wise.
Remove the light bulb.

458 4-3. Do-it-yourself maintenance
VERSO_WE_OM64524EBack-up light/rear fog light, tail light and rear turn signal light
Open the back door and remove
the cover.
Disengage the 2 claws and
remove the rear combination
light socket.
Remove the light bulb.
Tail light
Rear turn signal light
Back-up light or rear fog light

459 4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_WE_OM64524ELicense plate light
Remove the cover.
To prevent damaging the vehicle,
wrap the flatted screwdriver with
a tape.
Remove the light bulb.
Lights other than the above
If any of the lights listed below has burnt out, have it replaced by
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional.
Headlight low beams (discharge bulb)
Side turn signal lights
High mounted stoplight
Stop lights

460 4-3. Do-it-yourself maintenance
VERSO_WE_OM64524E
When replacing the front headlight, front position light and front turn
signal light bulbs
Replacing the air cleaner duct and/or washer fluid filler opening.
Left side
Right side
Replacing the engine compartment cover. (P. 407)
Condensation build-up on the inside of the lens
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional, for more information in the following situations.
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction.
Large drops of water are built up on the inside of the lens.
Water has built up inside the headlight.
Discharge headlights (if equipped)
If voltage to the discharge bulbs is insufficient, the bulbs may not come on,
or may go out temporarily. The discharge bulbs will come on when normal
power is restored.
After replacing the bulbs, make sure to
secure the upper part of the air cleaner
duct with the clip.
After replacing the bulbs, make sure to
secure the washer fluid filler opening with
the clip.

461 4-3. Do-it-yourself maintenance
4
Maintenance and care
VERSO_WE_OM64524E
LED light bulbs
The stop lights and high mounted stoplight consist of a number of LEDs. If
any of the LEDs burn out, take your vehicle to any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional to have the
light replaced.
If two or more LEDs in a stop light burn out, your vehicle may not conform to
local laws (ECE).
CAUTION
Replacing light bulbs
Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
Do not touch the glass portion of the light bulb with bare hands. Hold the
bulb by the plastic or metal portion.
If the bulb is scratched or dropped it may blow out or crack.
Fully install light bulbs and any parts used to secure them. Failing to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
Discharge headlights (if equipped)
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional, before replacing the discharge headlights
(including light bulbs).
Do not touch the high-intensity discharge headlight’s high voltage socket
when the headlights are turned on.
An extremely high voltage of 20000V will be discharged and could result in
serious injury or death by electric shock.
Do not attempt to repair or disassemble light bulbs, connectors, electric
circuits or component parts.
Doing so may result in death or serious injury due to electric shock.
To prevent damage or fire
Make sure bulbs are fully seated and locked.
