2011 TOYOTA VERSO Owners Manual

225 2-2. Instrument cluster
2
When driving
VERSO_WE_OM64524E
CAUTION
If a safety system warning light does not come on
Should a safety system light such as ABS and the SRS airbag warning light
not come on when you start the engine, this could mean that these systems
are not available to help protect you in an accident, which could result in
death or serious injury. Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional imme-
diately if this occurs.
Warning lights
Warning lights inform the driver of malfunctions in any of the
vehicle’s systems. (P. 475)
*1: These lights turn on when the engine switch is turned to the “ON” posi-
tion (vehicles without smart entry & start system) or the “ENGINE
START STOP” switch is turned to IGNITION ON mode (vehicles with
smart entry & start system) to indicate that a system check is being
performed. They will turn off after the engine is started, or after a few
seconds. There may be a malfunction in a system if a light does not
come on, or if the lights do not turn off. Have the vehicle inspected by
any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional for details.
*2: Vehicles with a Multidrive or an automatic transmission
*3: Vehicles with a manual transmission
*4: This indicator turns on in blue when the engine coolant temperature is
low.
(Red)
(if equipped)
*1*1*1*1*1*1*1*1
*1

226
2-2. Instrument cluster
VERSO_WE_OM64524E
Multi-infor mation display
The multi-information display presents the driver with a variety of
driving-related data.
Trip information (P. 227)
Displays driving range, fuel
consumption and other cruis-
ing-related information.
Date (P. 227)
Indicates the date and sets it.
Outside temperature display
(P. 227)
Indicates the outside tempera-
ture.
Warning messages
(P. 479)
Automatically displayed when
a malfunction occurs in one of
the vehicle’s systems.

227 2-2. Instrument cluster
2
When driving
VERSO_WE_OM64524E

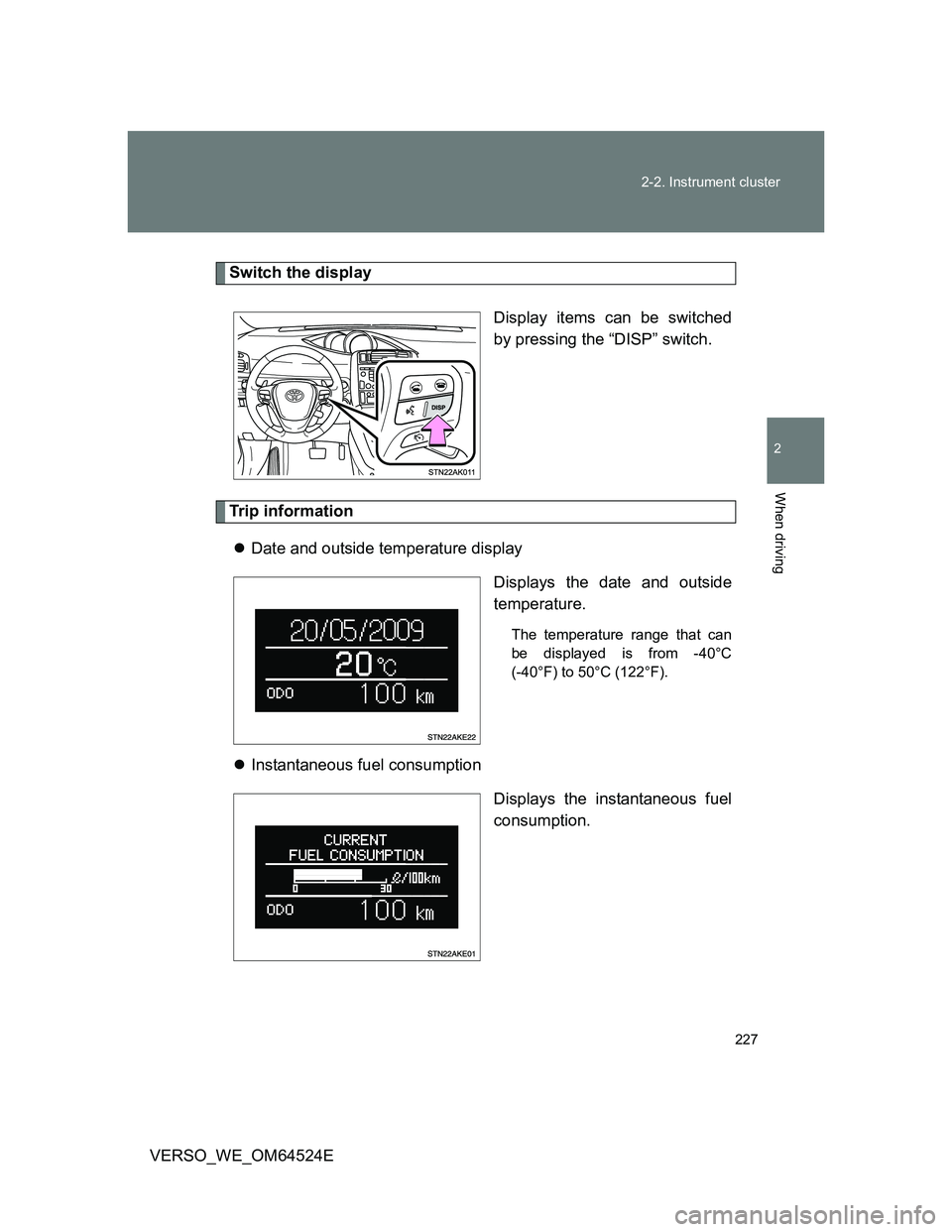

Switch the display
Display items can be switched
by pressing the “DISP” switch.
Trip information
Date and outside temperature display
Displays the date and outside
temperature.
The temperature range that can
be displayed is from -40°C
(-40°F) to 50°C (122°F).
Instantaneous fuel consumption
Displays the instantaneous fuel
consumption.

228 2-2. Instrument cluster
VERSO_WE_OM64524EAverage fuel consumption
Displays the average fuel con-
sumption since the function was
last reset.
• The function can be reset by
pressing the “DISP” switch for
longer than 1 second when
the average fuel consumption
is displayed.
• Use the displayed average
fuel consumption as a refer-
ence.
Eco Driving Indicator Zone Display (if equipped)
Eco Driving Indicator indicates
the range where acceleration is
Eco-friendly, “Zone of Eco driv-
ing” and Eco driving ratio based
on acceleration.

229 2-2. Instrument cluster
2
When driving

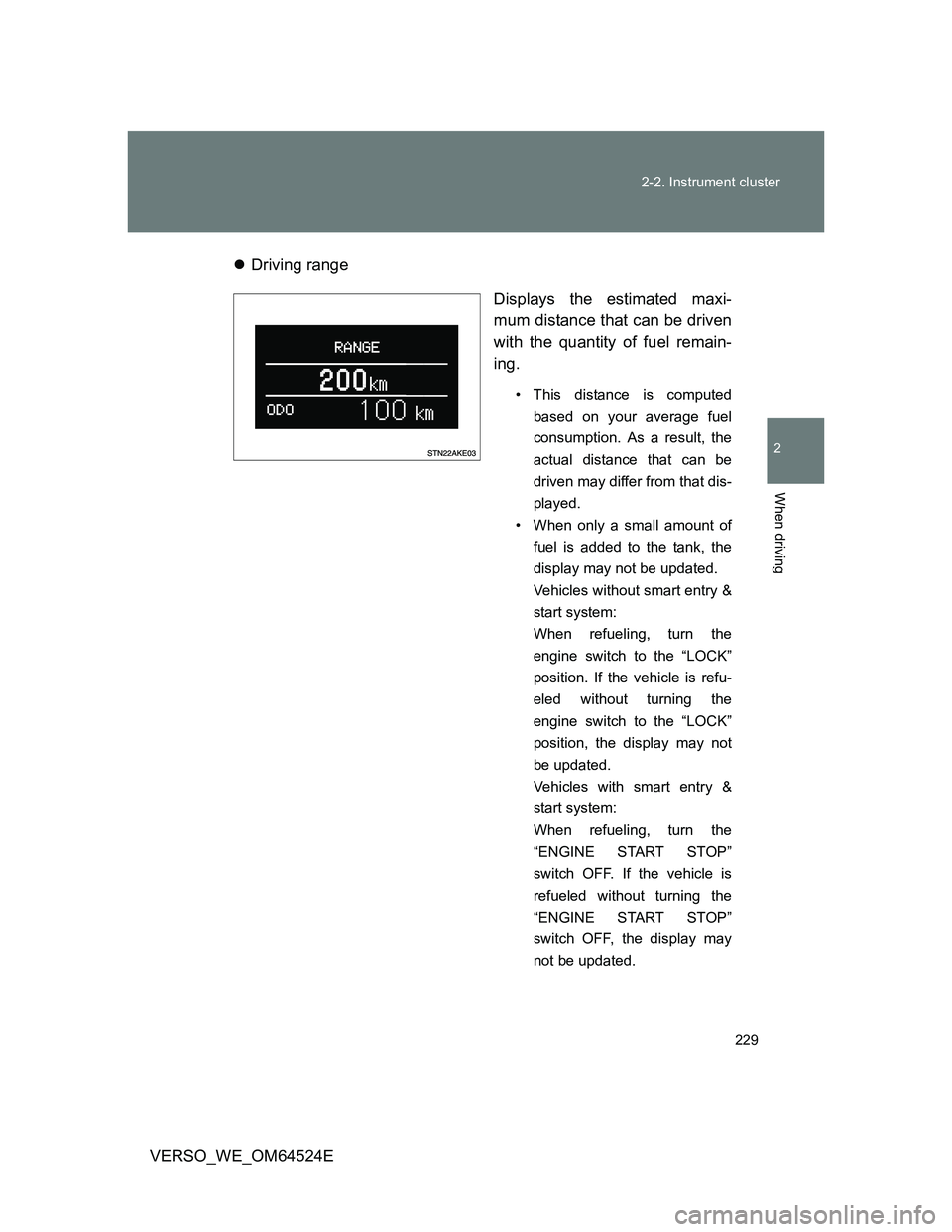

VERSO_WE_OM64524EDriving range
Displays the estimated maxi-
mum distance that can be driven
with the quantity of fuel remain-
ing.
• This distance is computed
based on your average fuel
consumption. As a result, the
actual distance that can be
driven may differ from that dis-
played.
• When only a small amount of
fuel is added to the tank, the
display may not be updated.
Vehicles without smart entry &
start system:
When refueling, turn the
engine switch to the “LOCK”
position. If the vehicle is refu-
eled without turning the
engine switch to the “LOCK”
position, the display may not
be updated.
Vehicles with smart entry &
start system:
When refueling, turn the
“ENGINE START STOP”
switch OFF. If the vehicle is
refueled without turning the
“ENGINE START STOP”
switch OFF, the display may
not be updated.

230 2-2. Instrument cluster
VERSO_WE_OM64524EAverage vehicle speed
Displays the average vehicle
speed since the engine was
started or since the function was
last reset.
The function can be reset by
pressing the “DISP” switch for
longer than 1 second when the
average vehicle speed is dis-
played.
Elapsed time
Displays the elapsed time since
the engine was started or since
the function was last reset.
The function can be reset by
pressing the “DISP” switch for
longer than 1 second when the
elapsed time is displayed.

231 2-2. Instrument cluster
2
When driving

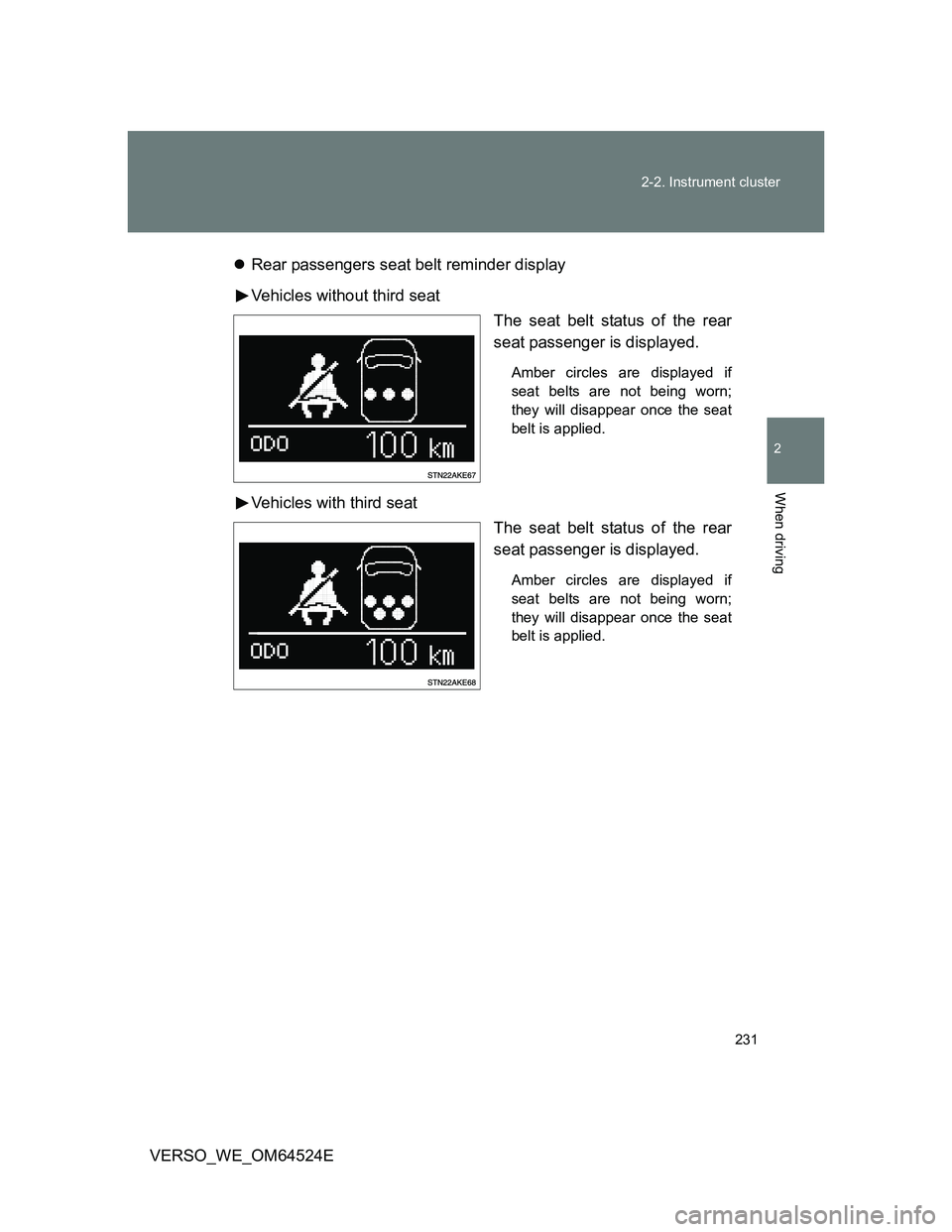

VERSO_WE_OM64524ERear passengers seat belt reminder display
Vehicles without third seat
The seat belt status of the rear
seat passenger is displayed.
Amber circles are displayed if
seat belts are not being worn;
they will disappear once the seat
belt is applied.
Vehicles with third seat
The seat belt status of the rear
seat passenger is displayed.
Amber circles are displayed if
seat belts are not being worn;
they will disappear once the seat
belt is applied.

232 2-2. Instrument cluster
VERSO_WE_OM64524E

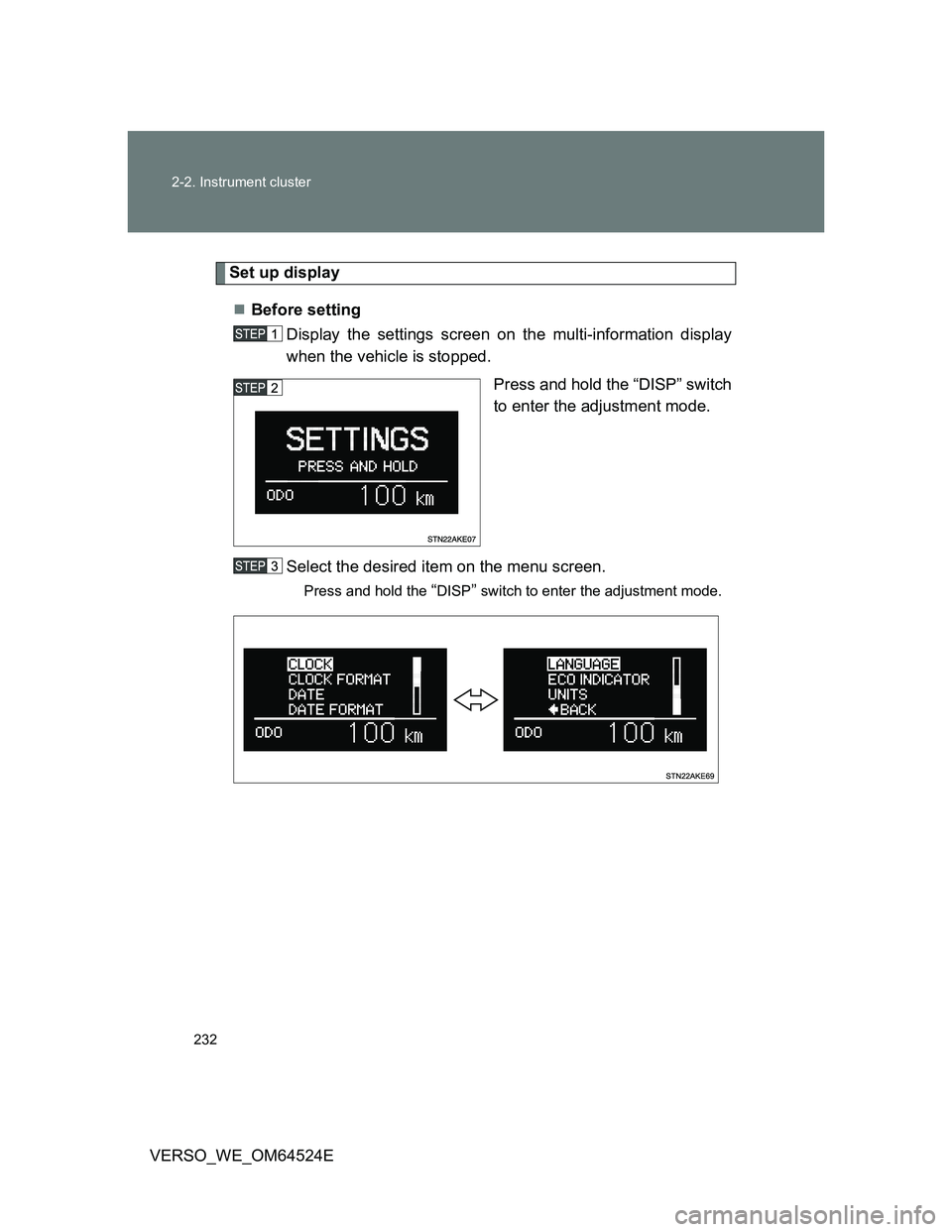

Set up display
Before setting
Display the settings screen on the multi-information display
when the vehicle is stopped.
Press and hold the “DISP” switch
to enter the adjustment mode.
Select the desired item on the menu screen.
Press and hold the “DISP” switch to enter the adjustment mode.
