2011 Peugeot 3008 Hybrid 4 Owner's Manual

71

9. Mono-zone/Dual-zone


)
Press this button to equal-
ise the comfort value on the
passenger side with that
on the driver's side (mono-
zone). The indicator lamp in
the button comes on.


8. Air recirculation


)
Press this button to recir-
culate the interior air. The
indicator lamp comes on.
Air recirculation enables the passenger
compartment to be isolated from exte-
rior odours and smoke.


)
As soon as possible, press this
button again to allow the intake of
exterior air and avoid misting. The
indicator lamp in the button goes
off.



Switching the system off



)
Turn the air fl ow control to the left
until all of the indicator lamps go
off.
This action switches off all of the func-
tions of the system.
Temperature related comfort is no long-
er guaranteed but a slight fl ow of air,
due to the movement of the vehicle, can
still be felt.


)
Turn the air fl ow dial to the right or
press the "AUTO"
button to reacti-
vate the system with the values set
before it was switched off.
Avoid driving for prolonged
periods with the system off.

72
FRONT SEATS
Seat consisting of a seat cushion, a seat
back and a head restraint which can all
be adjusted to adapt your position for
ease of driving and comfort.

Forwards-backwards adjustment


)
Raise the control and slide the seat
forwards or backwards.

Driver's or passenger's seat height
adjustment


)
Pull the control upwards to raise
or push it downwards to lower, as
many times as necessary, to obtain
the position required.

Seat back angle adjustment


)
Push the control rearwards.



Manual adjustments

73
DRIVER'S ELECTRIC SEAT
Seat consisting of a seat cushion, a seat
back and a head restraint which can all
be adjusted to adapt your position for
ease of driving and comfort.

Forwards-backwards adjustment


)
Push the control forwards or rear-
wards to slide the seat.

Seat cushion height and angle
adjustment


)
Tilt the rear part of the control up-
wards or downwards to obtain the
required height.

)
Tilt the front part of the control up-
wards or downwards to obtain the
required angle.
Seat back angle adjustment


)
Tilt the control forwards or rearwards
to adjust the angle of the seat back.

The electrical functions of the
driver's seat are active approxi-
mately one minute after opening
the front door. They are deactivated ap-
proximately one minute after the ignition
is switched off and in economy mode.
To reactivate them, switch on the
ignition.

74










Heated seats control
With the engine running, the front seats
can be heated separately.


)
Use the adjustment dial, placed on
the side of each front seat, to switch
on and select the level of heating re-
quired:

0:


Off.

1

:
Low.

2

:
Medium.

3

:
High.

Head restraint height and angle
adjustment


)
To raise the head restraint, pull it
forwards and upwards at the same
time.

)
To remove the head restraint, press
the lug A
and pull the head restraint
upwards.

)
To put the head restraint back in
place, engage the head restraint
stems in the openings keeping them
in line with the seat back.

)
To lower the head restraint, press
the lug A
and the head restraint at
the same time.

)
To adjust the angle of the head re-
straint, tilt its lower part forwards or
rearwards. The head restraint is fi tted with
a frame with notches which
prevents it from lowering; this
is a safety device in case of impact.

The adjustment is correct when the upper edge of the head restraint is
level with the top of the head.

Never drive with the head restraints
removed; they must be in place and
adjusted correctly.



Manual lumbar adjustment


)
Turn the knob to obtain the desired
level of lumbar support.


Additional adjustments

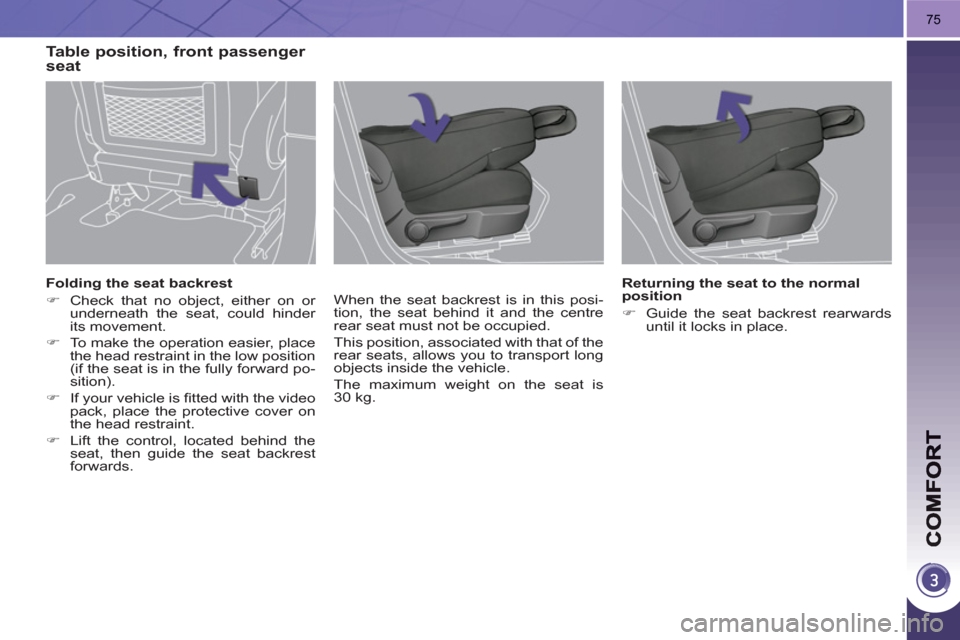

75

Folding the seat backrest


)
Check that no object, either on or
underneath the seat, could hinder
its movement.

)
To make the operation easier, place
the head restraint in the low position
(if the seat is in the fully forward po-
sition).

)
If your vehicle is fi tted with the video
pack, place the protective cover on
the head restraint.

)
Lift the control, located behind the
seat, then guide the seat backrest
forwards. When the seat backrest is in this posi-
tion, the seat behind it and the centre
rear seat must not be occupied.
This position, associated with that of the
rear seats, allows you to transport long
objects inside the vehicle.
The maximum weight on the seat is
30 kg.
Table position, front passenger
seat

Returning the seat to the normal
position


)
Guide the seat backrest rearwards
until it locks in place.

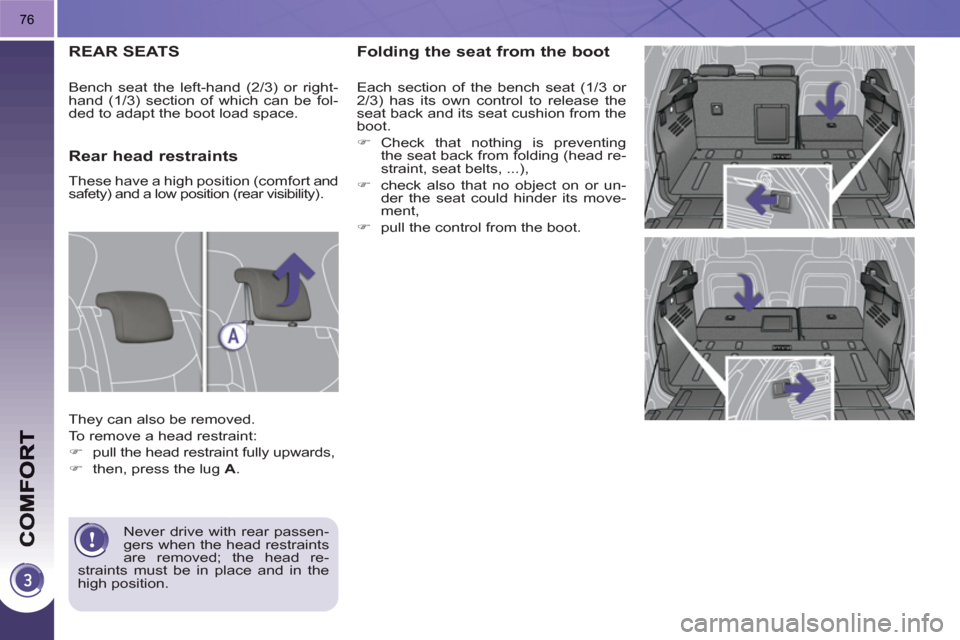

76
Folding the seat from the boot
Each section of the bench seat (1/3 or
2/3) has its own control to release the
seat back and its seat cushion from the
boot.


)
Check that nothing is preventing
the seat back from folding (head re-
straint, seat belts, ...),

)
check also that no object on or un-
der the seat could hinder its move-
ment,

)
pull the control from the boot.

REAR SEATS

Never drive with rear passen-
gers when the head restraints
are removed; the head re-
straints must be in place and in the
high position.

Rear head restraints

These have a high position (comfort and
safety) and a low position (rear visibility).
They can also be removed.
To remove a head restraint:


)
pull the head restraint fully upwards,

)
then, press the lug A
. Bench seat the left-hand (2/3) or right-
hand (1/3) section of which can be fol-
ded to adapt the boot load space.

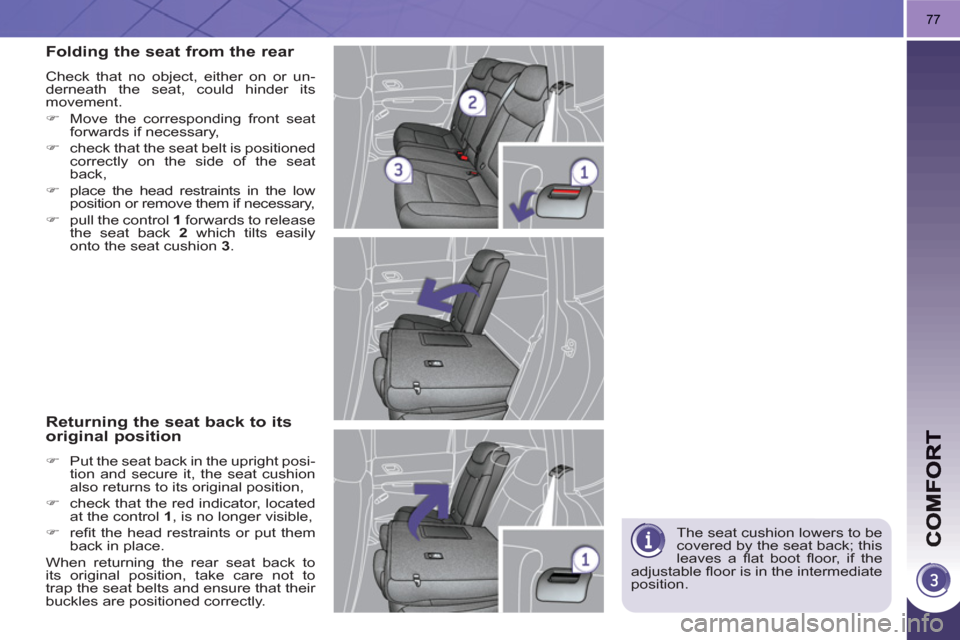

77
The seat cushion lowers to be
covered by the seat back; this
leaves a fl at boot fl oor, if the
adjustable fl oor is in the intermediate
position.
Folding the seat from the rear

Check that no object, either on or un-
derneath the seat, could hinder its
movement.


)
Move the corresponding front seat
forwards if necessary,

)
check that the seat belt is positioned
correctly on the side of the seat
back,

)
place the head restraints in the low
position or remove them if necessary,

)
pull the control 1
forwards to release
the seat back 2
which tilts easily
onto the seat cushion 3
.
Returning the seat back to itsoriginal position



)
Put the seat back in the upright posi-
tion and secure it, the seat cushion
also returns to its original position,

)
check that the red indicator, located
at the control 1
, is no longer visible,

)
refi t the head restraints or put them
back in place.
When returning the rear seat back to
its original position, take care not to
trap the seat belts and ensure that their
buckles are positioned correctly.

78

The high voltage battery has an air
cooling system, comprising an air in-
take located under the left hand rear
seat and a fan behind the left hand boot
trim panel.
This system does not work continuous-
ly, but adapts the force of the ventilation
to the requirements of the battery.
If the air intake is blocked, the battery
may overheat, damaging the battery
and causing a loss of performance of
the hybrid system.
STEERING WHEEL ADJUSTMENT



)
When stationary
, pull the con-
trol lever to release the adjustment
mechanism.

)
Adjust the height and reach to suit
your driving position.

)
Push the control lever to lock the
adjustment mechanism.
As a safety precaution, these
operations should only be car-
ried out while the vehicle is
stationary.
VOLTAGE BATTERY

For the best use of the high
voltage battery, please follow
these recommendations:


- do not obstruct the air intake with
loose articles, otherwise, the bat-
tery may overheat, causing a
loss of performance of the hybrid
system

- do not spill fl uids, as this may
cause damage to the battery.
