2011 Peugeot 3008 Hybrid 4 Owner's Manual

63

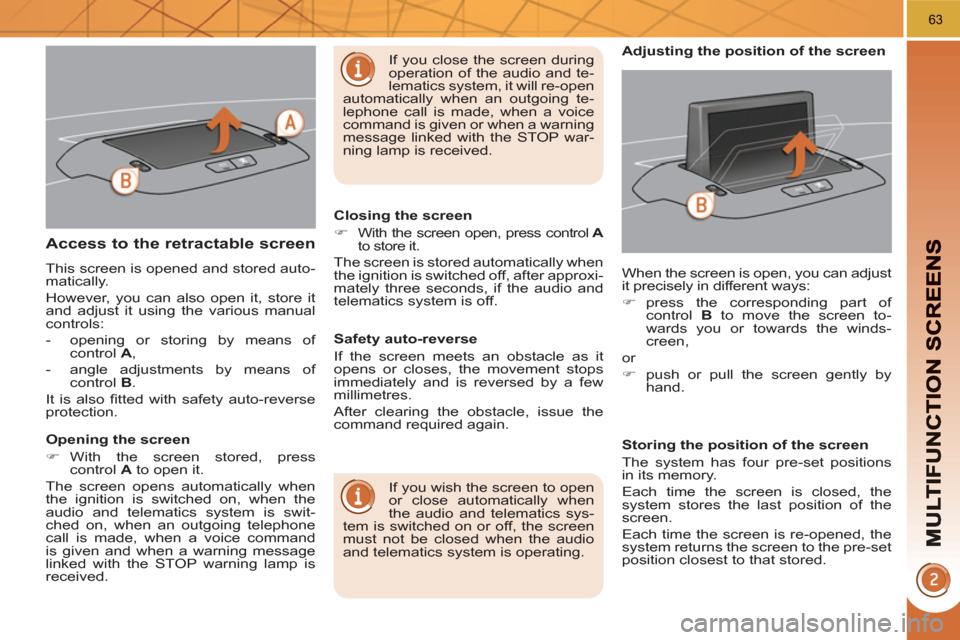

Access to the retractable screen
This screen is opened and stored auto-
matically.
However, you can also open it, store it
and adjust it using the various manual
controls:


- opening or storing by means of
control A
,

- angle adjustments by means of
control B
.
It is also fi tted with safety auto-reverse
protection.

Opening the screen


)
With the screen stored, press
control A
to open it.
The screen opens automatically when
the ignition is switched on, when the
audio and telematics system is swit-
ched on, when an outgoing telephone
call is made, when a voice command
is given and when a warning message
linked with the STOP warning lamp is
received.
Closing the screen


)
With the screen open, press control A

to store it.
The screen is stored automatically when
the ignition is switched off, after approxi-
mately three seconds, if the audio and
telematics system is off.
If you wish the screen to open
or close automatically when
the audio and telematics sys-
tem is switched on or off, the screen
must not be closed when the audio
and telematics system is operating. When the screen is open, you can adjust
it precisely in different ways:


)
press the corresponding part of
control B
to move the screen to-
wards you or towards the winds-
creen,
or


)
push or pull the screen gently by
hand.

Adjusting the position of the screen

Safety auto-reverse
If the screen meets an obstacle as it
opens or closes, the movement stops
immediately and is reversed by a few
millimetres.
After clearing the obstacle, issue the
command required again.

Storing the position of the screen
The system has four pre-set positions
in its memory.
Each time the screen is closed, the
system stores the last position of the
screen.
Each time the screen is re-opened, the
system returns the screen to the pre-set
position closest to that stored.
If you close the screen during
operation of the audio and te-
lematics system, it will re-open
automatically when an outgoing te-
lephone call is made, when a voice
command is given or when a warning
message linked with the STOP war-
ning lamp is received.

64

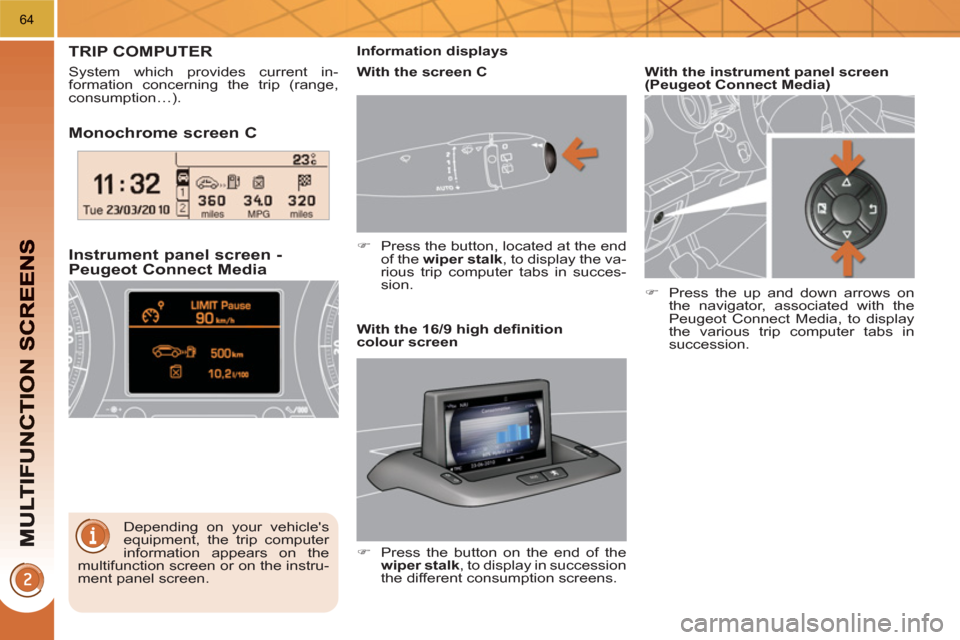

Monochrome screen C

Instrument
panel screen -Peugeot Connect Media
TRIP COMPUTER

System which provides current in-
formation concerning the trip (range,
consumption…).
Depending on your vehicle's
equipment, the trip computer
information appears on the
multifunction screen or on the instru-
ment panel screen.
Information displays


)
Press the button, located at the end
of the wiper stalk
, to display the va-
rious trip computer tabs in succes-
sion.
With the instrument panel screen

(Peugeot Connect Media)



)
Press the up and down arrows on
the navigator, associated with the
Peugeot Connect Media, to display
the various trip computer tabs in
succession.
With the screen C


With the 16/9 high defi nition
colour screen



)
Press the button on the end of the
wiper stalk
, to display in succession
the different consumption screens.

65

Trip zero reset

With the screen C



)
When the trip required is displayed,
press the control for more than
two seconds.
With the instrument panel screen
(Peugeot Connect Media)



)
When the required trip is displayed,
press the "OK"
button on the navi-
gator, associated with the Peugeot
Connect Media, for more than two
seconds.
Trips "1"
and "2"
are independent but
their use is identical.
For example, trip "1"
can be used for
daily fi gures, and trip "2"
for monthly
fi gures.


- The current information
tab with:


●
the range,

●
the current fuel
consumption,

●
the distance remaining
to be travelled.



- The trip "1"
tab with:


●
the distance travelled,

●
the average fuel
consumption,

●
the average speed,
for the fi rst trip.



- The trip "2"
tab with:


●
the distance travelled,

●
the average fuel
consumption,

●
the average speed,
for the second trip.



)
Pressing the button again takes you
to a black screen.
A further press returns you to the
normal display.

66
A few definitions…
When the range falls below 20 miles
(30 km), zeros are displayed. After fi lling
with at least 5 litres of fuel, the range is
recalculated and is displayed when it
exceeds 60 miles (100 km).
If dashes are displayed conti-
nuously while driving in place of
the digits, contact a PEUGEOT
dealer. This function is only displayed
from 20 mph (30 km/h).
This value may vary following
a change in the style of driving
or the relief, resulting in a si-
gnifi cant change in the current
fuel consumption.
Range
(miles or km)
This indicates the distance
which can still be travelled
with the fuel remaining in the tank in re-
lation to the average fuel consumption
over the last few miles (kilometres) tra-
velled.
Current fuel consumption
(mpg or l/100 km or km/l)
This is the average fuel
consumption during the last few
seconds.

Average fuel
consumption
(mpg or l/100 km or km/l)
This is the average fuel
consumption since the last
trip computer zero reset.
Distance travelled
(miles or km)
This indicates the distance
travelled since the last trip
computer zero reset.


Average speed
(mph or km/h)
This is the average speed cal-
culated since the last trip com-
puter zero reset (ignition on).

Distance remaining to
destination
(miles or km)
This is the distance remaining
to be travelled to the fi nal destination. It
is either calculated instantly by the navi-
gation system, if guidance is activated,
or entered by the user.
If the distance is not entered, dashes
are displayed in place of the digits.


The hybrid system and its
electric motor do not provide
additional range; follow the in-
dications of the trip computer.

67
VENTILATION
System which creates and maintains
good conditions of comfort and visibi-
lity in the vehicle's passenger compart-
ment.

Controls

The incoming air follows various routes
depending on the controls selected by
the driver.
The temperature control enables you to
obtain the level of comfort required by
mixing the air of the various circuits.
The air distribution control enables you
to diffuse the air making use of several
air vents.
The air fl ow control enables you to in-
crease or reduce the speed of the venti-
lation blower. These controls are grouped together on
control panel A
on the centre console.
Depending on the model, the functions
offered are:


- the level of thermal comfort required,

- air fl ow,

- air distribution,

- demisting/defrosting,

- manual or digital air conditioning
controls.



Air intake

The air circulating in the passenger com-partment is fi ltered and originates either
from the outside via the grille located at
the base of the windscreen or from the
inside in air recirculation mode.
Air distribution



1.
Windscreen demisting/defrosting vents.

2.
Front side window demisting/de-
frosting vents.

3.
Side adjustable air vents.

4.
Central adjustable air vents.

5.
Air outlets to the front footwells.

6.
Adjustable air vents for the rear pas-
sengers.

7.
Air outlets to the rear footwells.



If, for your comfort, you want
to prioritise heating, start and
leave the Diesel engine run-
ning by pressing ECO OFF.

68

The air conditioning system does not contain chlorine and does not
present any danger to the ozone layer.

Recommendations for ventilation and air conditioning

In order for these systems to be fully effective, follow the operation and mainte-
nance guidelines below:


)
If the interior temperature remains very high after the vehicle has been parked
in the sun for a considerable time, fi rst ventilate the passenger compartment
for a few minutes.
Place the air fl ow control at a suffi cient level to provide an adequate renewal
of air in the passenger compartment.

)
To obtain an even air distribution, take care not to obstruct the exterior air
intake grilles located at the base of the windscreen, the nozzles, the vents
and the air outlets, as well as the air extractor located in the boot.

)
Use in preference the intake of exterior air as prolonged use of the air recir-
culation may cause misting of the windows and side windows.

)
Do not cover the sunshine sensor, located on the dashboard; this is used for
regulation of the automatic air conditioning system.

)
Operate the air conditioning system for 5 to 10 minutes, once or twice a
month to keep it in perfect working order.

)
Ensure that the passenger compartment fi lter is in good condition and have
the fi lter elements replaced regularly (refer to the "Checks" section).
We recommend the use of a combined passenger compartment fi lter. Thanks
to its second special active fi lter, it contributes to the purifi cation of the air
breathed by the occupants and the cleanliness of the passenger compart-
ment (reduction of allergic symptoms, bad odours and greasy deposits).

)
The air conditioning uses power from the engine while operating. This
results in an increase in the vehicle's fuel consumption.
When towing at or near maximum capacity or on steep slopes in high
ambient temperatures, switching off the air conditioning saves engine power
and so improves towing capacity.
Condensation created by the air conditioning results in a discharge of water
under the vehicle when stationary, which is perfectly normal.

)
To ensure correct operation of the air conditioning system, you are also
advised to have it checked regularly.

)
If the system does not produce cold air, do not use it and contact a PEUGEOT
dealer. The control button is located
on the air conditioning system
control panel.
REAR SCREEN DEMIST/DEFROST



)
Switch off the demist/de-frost of the rear screen and door mirrors as soon as it
is no longer necessary as
lower current consump-
tion results in reduced fuel
consumption.



Switching on

The rear screen demist/defrost can only
operate when the engine is running.


)
Press this button to demist/defrost
the rear screen and the door mir-
rors. The indicator lamp associated
with the button comes on.



Switching off

The demist/defrost switches off auto-
matically to prevent an excessive con-
sumption of current.


)
It is possible to stop the demist/de-
frost operation before it is switched off
automatically by pressing the button
again. The indicator lamp associated
with the button switches off.

69

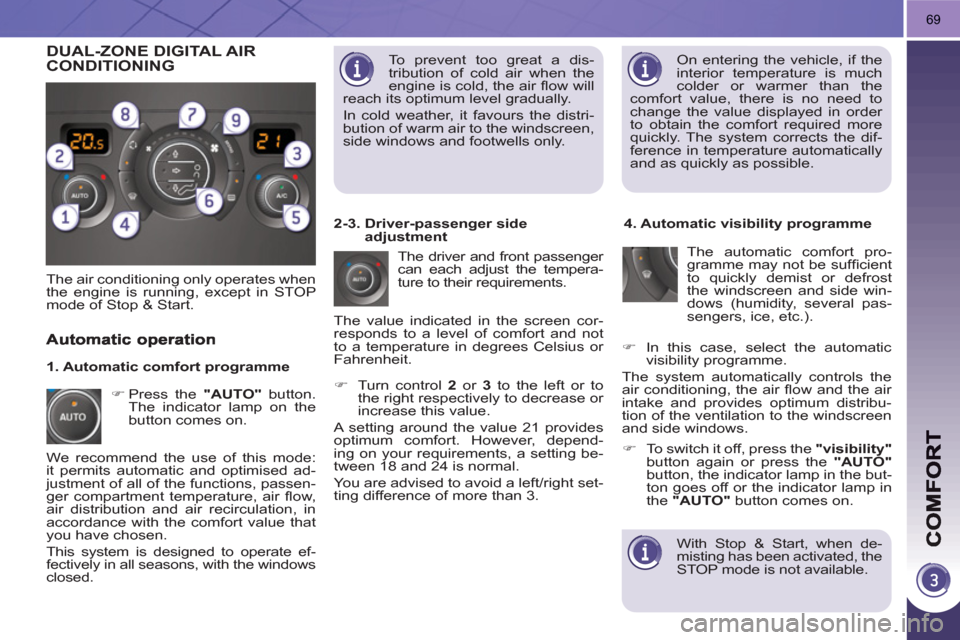

On entering the vehicle, if the
interior temperature is much
colder or warmer than the
comfort value, there is no need to
change the value displayed in order
to obtain the comfort required more
quickly. The system corrects the dif-
ference in temperature automatically
and as quickly as possible.





The air conditioning only operates when
the engine is running, except in STOP
mode of Stop & Start. The driver and front passenger
can each adjust the tempera-
ture to their requirements.


)
Turn control 2
or 3
to the left or to
the right respectively to decrease or
increase this value.
A setting around the value 21 provides
optimum comfort. However, depend-
ing on your requirements, a setting be-
tween 18 and 24 is normal.
You are advised to avoid a left/right set-
ting difference of more than 3.
4. Automatic visibility programme
The automatic comfort pro-
gramme may not be suffi cient
to quickly demist or defrost
the windscreen and side win-
dows (humidity, several pas-
sengers, ice, etc.).


)
Press the "AUTO"
button.
The indicator lamp on the
button comes on.
2-3. Driver-passenger side
adjustment




DUAL-ZONE DIGITAL AIR
CONDITIONING
We recommend the use of this mode:
it permits automatic and optimised ad-
justment of all of the functions, passen-
ger compartment temperature, air fl ow,
air distribution and air recirculation, in
accordance with the comfort value that
you have chosen.
This system is designed to operate ef-
fectively in all seasons, with the windows
closed.
The value indicated in the screen cor-
responds to a level of comfort and not
to a temperature in degrees Celsius or
Fahrenheit.


)
To switch it off, press the "visibility"

button again or press the "AUTO"

button, the indicator lamp in the but-
ton goes off or the indicator lamp in
the "AUTO"
button comes on.


1. Automatic comfort programme To prevent too great a dis-
tribution of cold air when the
engine is cold, the air fl ow will
reach its optimum level gradually.
In cold weather, it favours the distri-
bution of warm air to the windscreen,
side windows and footwells only.






With Stop & Start, when de-
misting has been activated, the
STOP mode is not available.

)
In this case, select the automatic
visibility programme.
The system automatically controls the
air conditioning, the air fl ow and the air
intake and provides optimum distribu-
tion of the ventilation to the windscreen
and side windows.

70

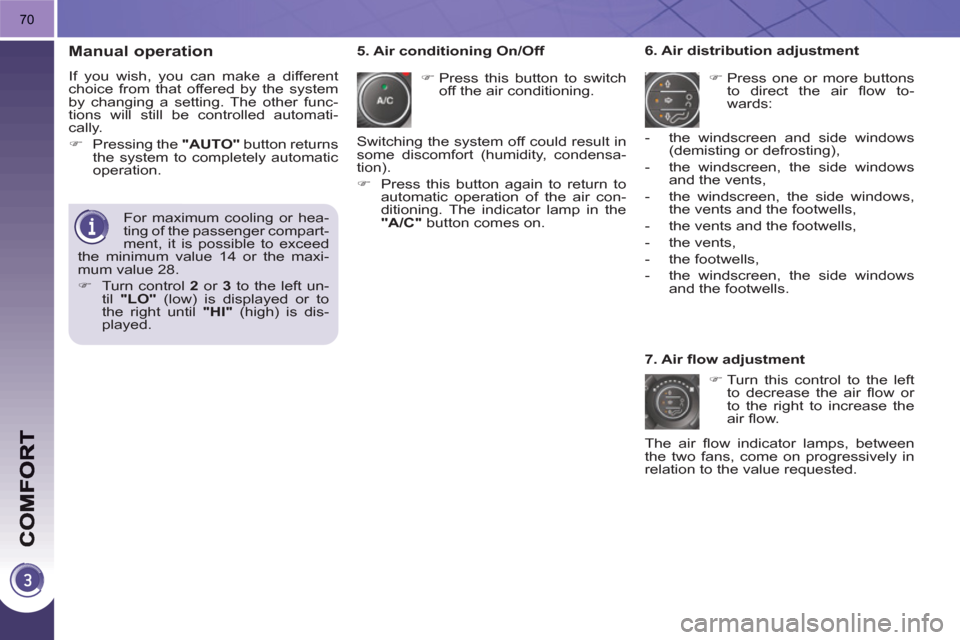

Manual operation

If you wish, you can make a different
choice from that offered by the system
by changing a setting. The other func-
tions will still be controlled automati-
cally.


)
Pressing the "AUTO"
button returns
the system to completely automatic
operation.

)
Press this button to switch
off the air conditioning.
6. Air distribution adjustment


)
Press one or more buttons
to direct the air fl ow to-
wards:

7. Air fl ow adjustment


)
Turn this control to the left
to decrease the air fl ow or
to the right to increase the
air fl ow.
5. Air conditioning On/Off


- the windscreen and side windows
(demisting or defrosting),

- the windscreen, the side windows
and the vents,

- the windscreen, the side windows,
the vents and the footwells,

- the vents and the footwells,

- the vents,

- the footwells,

- the windscreen, the side windows
and the footwells.


The air fl ow indicator lamps, between
the two fans, come on progressively in
relation to the value requested. For maximum cooling or hea-
ting of the passenger compart-
ment, it is possible to exceed
the minimum value 14 or the maxi-
mum value 28.


)
Turn control 2
or 3
to the left un-
til "LO"
(low) is displayed or to
the right until "HI"
(high) is dis-
played. Switching the system off could result in
some discomfort (humidity, condensa-
tion).


)
Press this button again to return to
automatic operation of the air con-
ditioning. The indicator lamp in the
"A/C"
button comes on.
