2011 Peugeot 3008 Hybrid 4 Owner's Manual

PRACTICAL INFORMATION
191

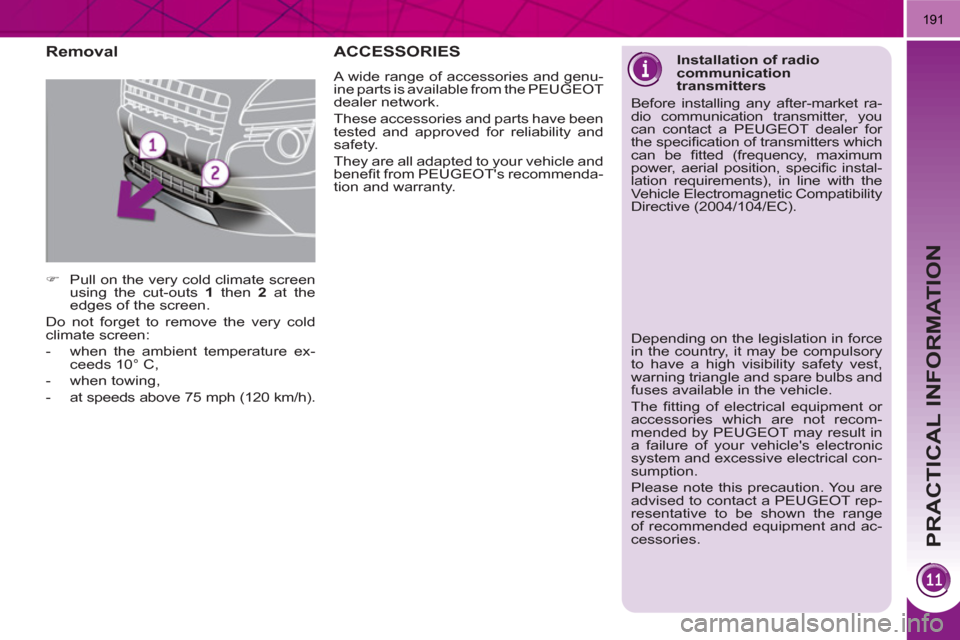

Removal



)
Pull on the very cold climate screen
using the cut-outs 1
then 2
at the
edges of the screen.
Do not forget to remove the very cold
climate screen:


- when the ambient temperature ex-
ceeds 10° C,

- when towing,

- at speeds above 75 mph (120 km/h).

ACCESSORIES

A wide range of accessories and genu-
ine parts is available from the PEUGEOT
dealer network.
These accessories and parts have been
tested and approved for reliability and
safety.
They are all adapted to your vehicle and
benefi t from PEUGEOT's recommenda-
tion and warranty.
Installation of radio
communication
transmitters
Before installing any after-market ra-
dio communication transmitter, you
can contact a PEUGEOT dealer for
the specifi cation of transmitters which
can be fi tted (frequency, maximum
power, aerial position, specifi c instal-
lation requirements), in line with the
Vehicle Electromagnetic Compatibility
Directive (2004/104/EC).



Depending on the legislation in force
in the country, it may be compulsory
to have a high visibility safety vest,
warning triangle and spare bulbs and
fuses available in the vehicle.
The fi tting of electrical equipment or
accessories which are not recom-
mended by PEUGEOT may result in
a failure of your vehicle's electronic
system and excessive electrical con-
sumption.
Please note this precaution. You are
advised to contact a PEUGEOT rep-
resentative to be shown the range
of recommended equipment and ac-
cessories.

PRACTICAL INFORMATION
192

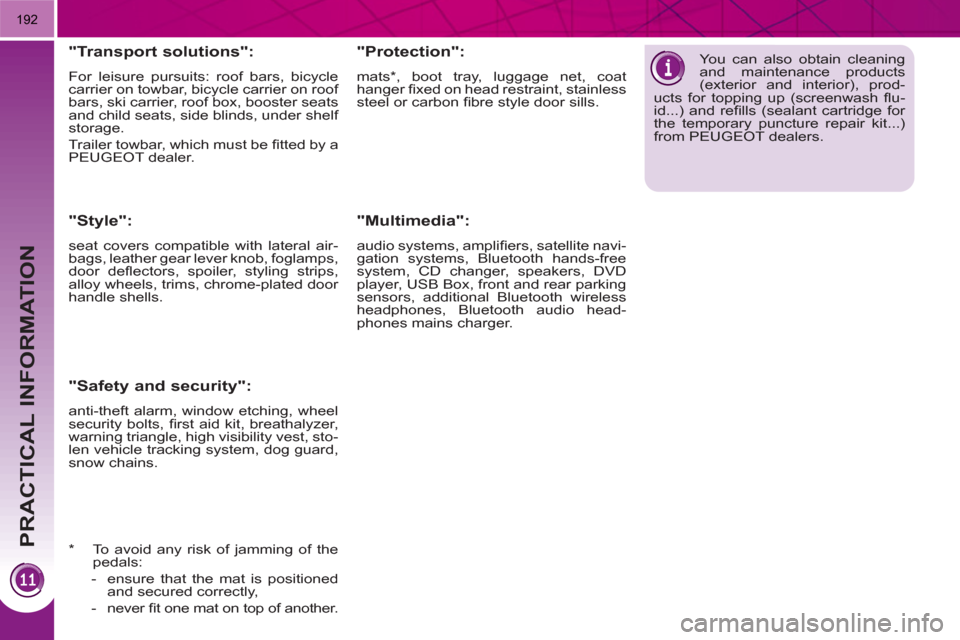

"Transport solutions":

For leisure pursuits: roof bars, bicycle
carrier on towbar, bicycle carrier on roof
bars, ski carrier, roof box, booster seats
and child seats, side blinds, under shelf
storage.
Trailer towbar, which must be fi tted by a
PEUGEOT dealer.


"Safety and security":

anti-theft alarm, window etching, wheel
security bolts, fi rst aid kit, breathalyzer,
warning triangle, high visibility vest, sto-
len vehicle tracking system, dog guard,
snow chains.
You can also obtain cleaning
and maintenance products
(exterior and interior), prod-
ucts for topping up (screenwash fl u-
id...) and refi lls (sealant cartridge for
the temporary puncture repair kit...)
from PEUGEOT dealers.



*
To avoid any risk of jamming of the
pedals:


- ensure that the mat is positioned
and secured correctly,

- never fi t one mat on top of another.



"Style":

seat covers compatible with lateral air-
bags, leather gear lever knob, foglamps,
door defl ectors, spoiler, styling strips,
alloy wheels, trims, chrome-plated door
handle shells.


"Protection":

mats * , boot tray, luggage net, coat
hanger fi xed on head restraint, stainless
steel or carbon fi bre style door sills.


"Multimedia":

audio systems, amplifi ers, satellite navi-
gation systems, Bluetooth hands-free
system, CD changer, speakers, DVD
player, USB Box, front and rear parking
sensors, additional Bluetooth wireless
headphones, Bluetooth audio head-
phones mains charger.

TECHNICAL DATA
193


ELECTRIC MOTOR AND BATTERY



Electric motor


-


Technology
Synchronous with permanent magnets.
Max. power: EU standard (kW)
27
Max. power speed (rpm)
-
Max. torque: EU standard (Nm)
-
Max. torque speed (rpm)
0 to 2 500
Effi ciency (%)
80 to 90

High voltage battery


Ni-MH


(Nickel Metal Hydride)
Voltage (V~)

200
Energy capacity (kWh)
-
Range (miles (km))
1.2 (2)
Range varies according to the ambient climatic conditions, the driving style and conditions, the use of vehicle systems and
ageing of the battery.

TECHNICAL DATA
194


ENGINE
AND
GEARBOX



Diesel engine


2 litre Turbo HDi
163 hp



Gearbox

Electronic gear control
(6-speed)
Cubic capacity (cc)
1 997
Bore x stroke (mm)
85 x 88
Max power: EU standard (kW)
110/120
Max power engine speed (rpm)
3 750
Max torque: EU standard (Nm)
320/340
Max torque engine speed (rpm)
2 000
Fuel

Diesel
Catalytic converter
yes
Particle emission fi lter
yes

OIL CAPACITIES (in litres)



Engine (with fi lter replacement)
-
Gearbox - Final drive
-

TECHNICAL DATA
195

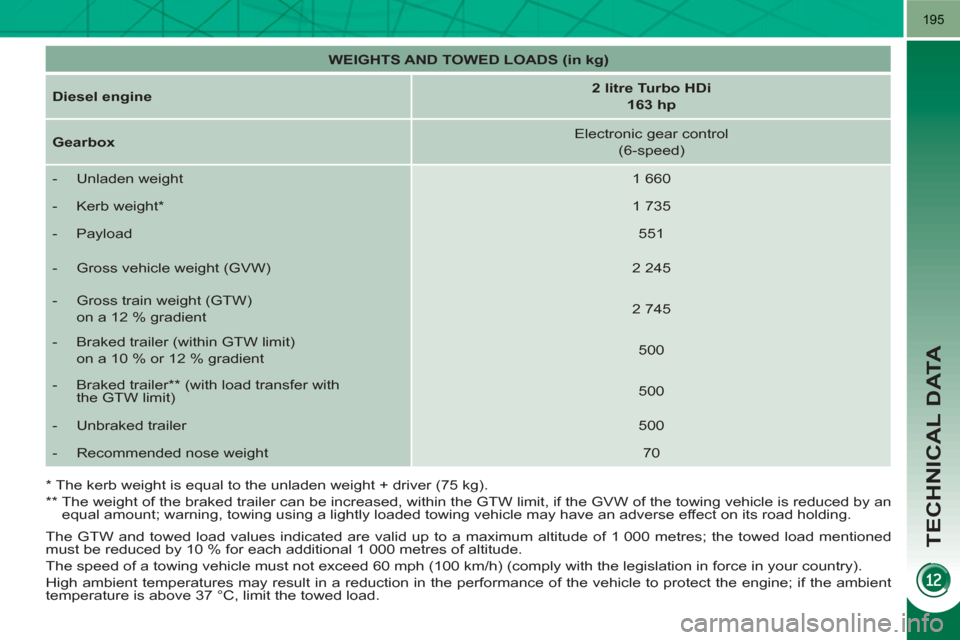

WEIGHTS AND TOWED LOADS (in kg)



Diesel
engine


2 litre Turbo HDi
163 hp



Gearbox

Electronic gear control
(6-speed)


- Unladen weight
1 660


- Kerb weight *

1 735


- Payload

551


- Gross vehicle weight (GVW)
2 245


- Gross train weight (GTW)
on a 12 % gradient
2 745


- Braked trailer (within GTW limit)
on a 10 % or 12 % gradient
500


- Braked trailer ** (with load transfer with
the GTW limit)
500


- Unbraked trailer
500


- Recommended nose weight
70

*
The kerb weight is equal to the unladen weight + driver (75 kg).

**
The weight of the braked trailer can be increased, within the GTW limit, if the GVW of the towing vehicle is reduced by an
equal amount; warning, towing using a lightly loaded towing vehicle may have an adverse effect on its road holding.
The GTW and towed load values indicated are valid up to a maximum altitude of 1 000 metres; the towed load mentioned
must be reduced by 10 % for each additional 1 000 metres of altitude.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).

High ambient temperatures may result in a reduction in the performance of the vehicle to protect the engine; if the ambient
temperature is above 37 °C, limit the towed load.

TECHNICAL DATA
196

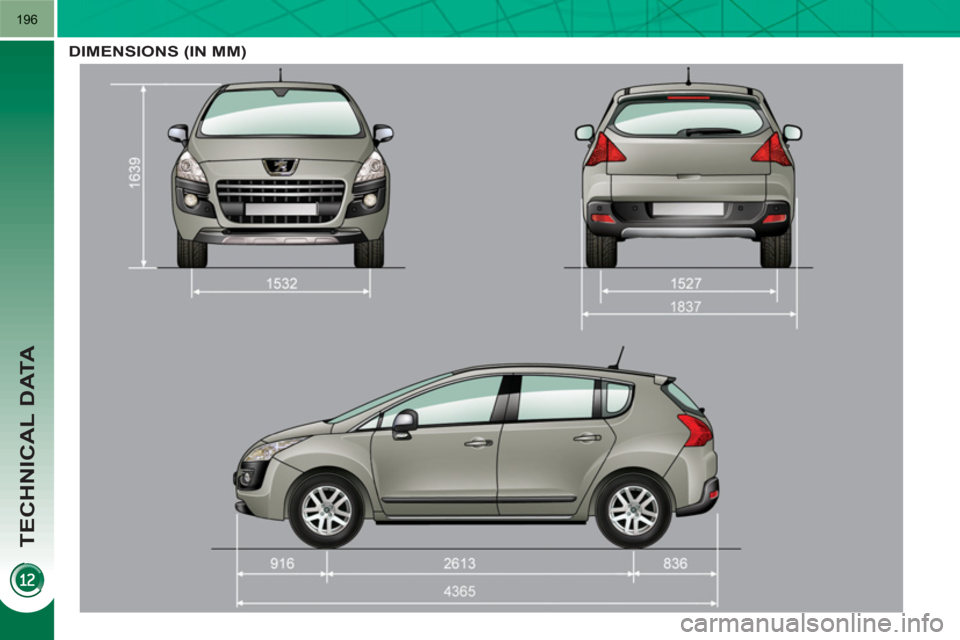

DIMENSIONS (IN MM)

TECHNICAL DATA
197

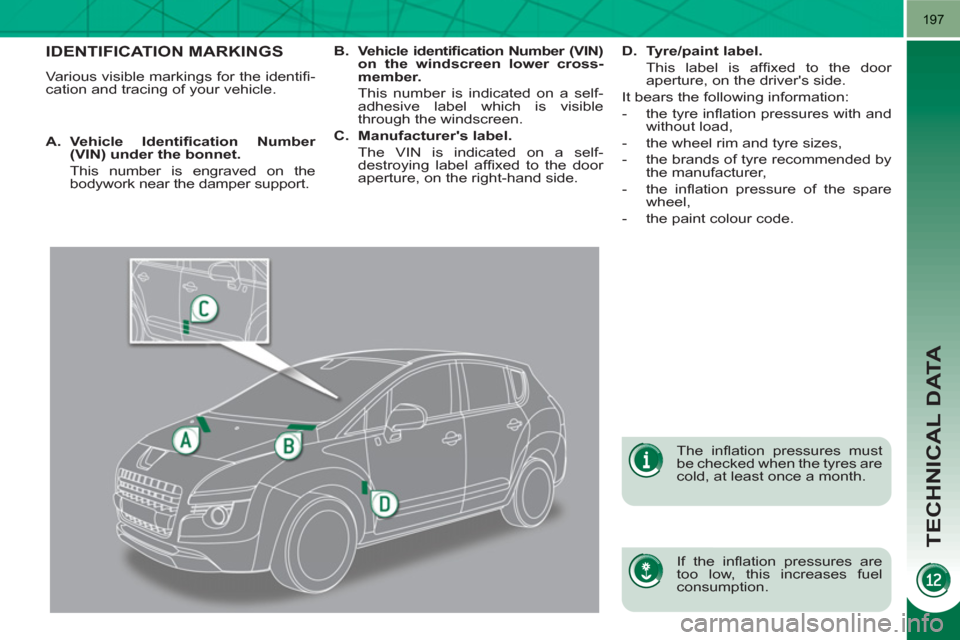

IDENTIFICATION MARKINGS
Various visible markings for the identifi -
cation and tracing of your vehicle.

If the infl ation pressures are
too low, this increases fuel
consumption.

The infl ation pressures must
be checked when the tyres are
cold, at least once a month.


A.
Vehicle Identifi cation Number
(VIN) under the bonnet.


This number is engraved on the
bodywork near the damper support.
B.
Vehicle identifi cation Number (VIN)
on the windscreen lower cross-
member.


This number is indicated on a self-
adhesive label which is visible
through the windscreen.

C.
Manufacturer's label.


The VIN is indicated on a self-
destroying label affi xed to the door
aperture, on the right-hand side.
D.
Tyre/paint label.


This label is affi xed to the door
aperture, on the driver's side.
It bears the following information:


- the tyre infl ation pressures with and
without load,

- the wheel rim and tyre sizes,

- the brands of tyre recommended by
the manufacturer,

- the infl ation pressure of the spare
wheel,

- the paint colour code.
