2011 Peugeot 3008 Hybrid 4 Owner's Manual

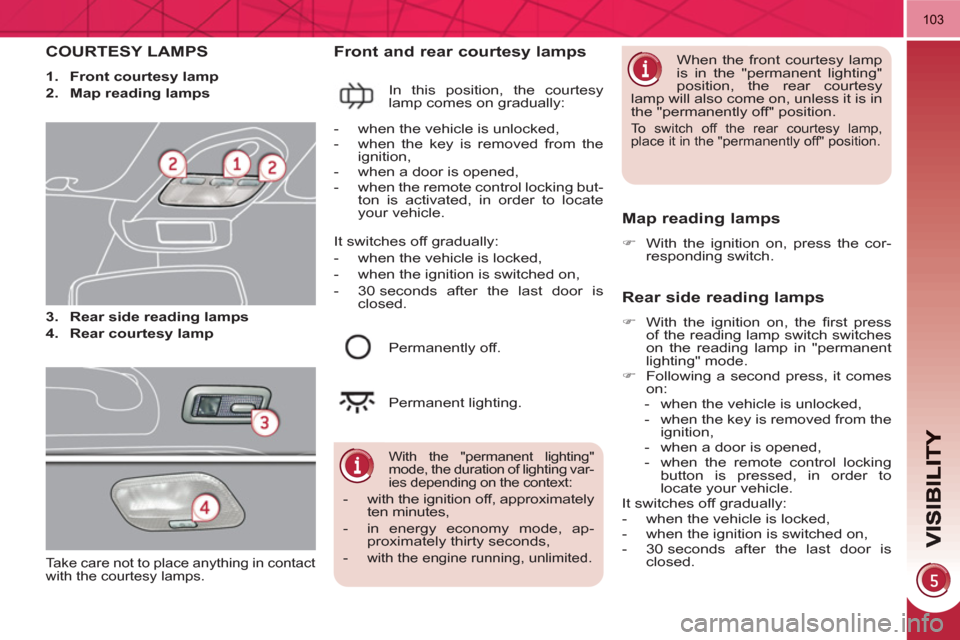

103
COURTESY LAMPS


1.
Front courtesy lamp


2.
Map reading lamps


3.
Rear side reading lamps


4.
Rear courtesy lamp



Front and rear courtesy lamps

In this position, the courtesy
lamp comes on gradually:
Map reading lamps


)
With the ignition on, press the cor-
responding switch.


With the "permanent lighting"
mode, the duration of lighting var-
ies depending on the context:


- with the ignition off, approximately
ten minutes,

- in energy economy mode, ap-
proximately thirty seconds,

-
with the engine running, unlimited.



- when the vehicle is unlocked,

- when the key is removed from the
ignition,

- when a door is opened,

- when the remote control locking but-
ton is activated, in order to locate
your vehicle.
Permanently off.
Permanent lighting. When the front courtesy lamp
is in the "permanent lighting"
position, the rear courtesy
lamp will also come on, unless it is in
the "permanently off" position. To switch off the rear courtesy lamp,
place it in the "permanently off" position.
Rear side reading lamps



)
With the ignition on, the fi rst press
of the reading lamp switch switches
on the reading lamp in "permanent
lighting" mode.

)
Following a second press, it comes
on:


- when the vehicle is unlocked,

- when the key is removed from the
ignition,

- when a door is opened,

- when the remote control locking
button is pressed, in order to
locate your vehicle.

It switches off gradually:


- when the vehicle is locked,

- when the ignition is switched on,

- 30 seconds after the last door is
closed.
It switches off gradually:


- when the vehicle is locked,

- when the ignition is switched on,

- 30 seconds after the last door is
closed.

Take care not to place anything in contact
with the courtesy lamps.

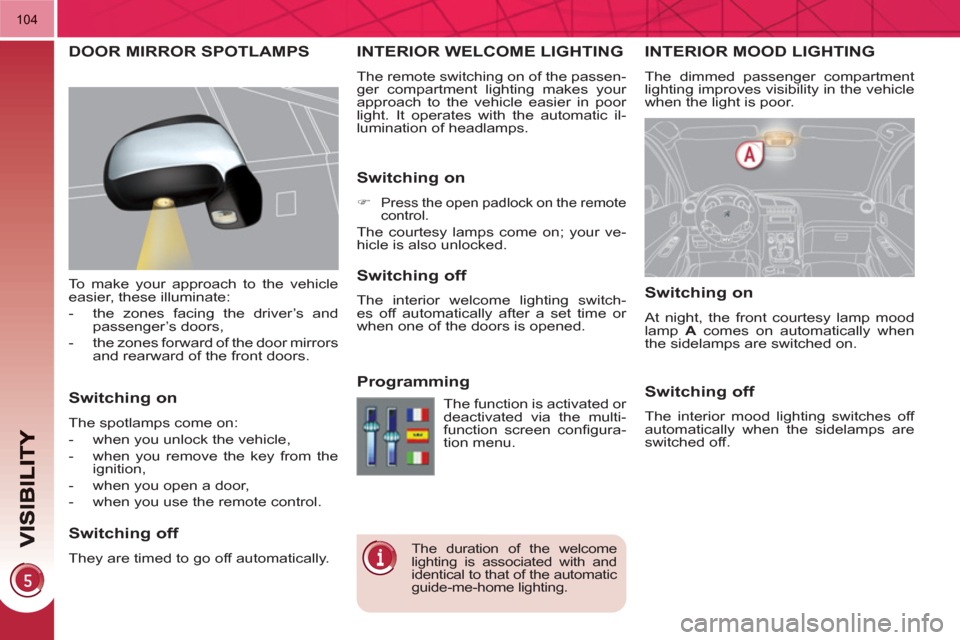

104
INTERIOR MOOD LIGHTING
The dimmed passenger compartment
lighting improves visibility in the vehicle
when the light is poor.
INTERIOR WELCOME LIGHTING
The remote switching on of the passen-
ger compartment lighting makes your
approach to the vehicle easier in poor
light. It operates with the automatic il-
lumination of headlamps.
Switching on


)
Press the open padlock on the remote
control.

The courtesy lamps come on; your ve-
hicle is also unlocked.
Switching off

The interior welcome lighting switch-
es off automatically after a set time or
when one of the doors is opened.
Programming


Switching on

At night, the front courtesy lamp mood
lamp A
comes on automatically when
the sidelamps are switched on.


Switching off

The interior mood lighting switches off
automatically when the sidelamps are
switched off.

The duration of the welcome
lighting is associated with and
identical to that of the automatic
guide-me-home lighting.

The function is activated or
deactivated via the multi-
function screen confi gura-
tion menu.
DOOR MIRROR SPOTLAMPS
To make your approach to the vehicle
easier, these illuminate:


- the zones facing the driver’s and
passenger’s doors,

- the zones forward of the door mirrors
and rearward of the front doors.


Switching on

The spotlamps come on:


- when you unlock the vehicle,

- when you remove the key from the
ignition,

- when you open a door,

- when you use the remote control.



Switching off

They are timed to go off automatically.

105
The lighting time varies ac-
cording to the circumstances: This comes on automatically when the
boot is opened and switches off auto-
matically when the boot is closed.
BOOT LAMP FOOTWELL LIGHTING

The soft lighting provided by the foot-
well lamps improves visibility in the ve-
hicle when the light is poor.
Activation
Its operation is identical to that of the
courtesy lamps. The lighting comes on
when one of the doors is opened.


- when the ignition is off, approxi-
mately ten minutes,

- in energy economy mode, ap-
proximately thirty seconds,

- when the engine is running, no
limit.

FITTINGS

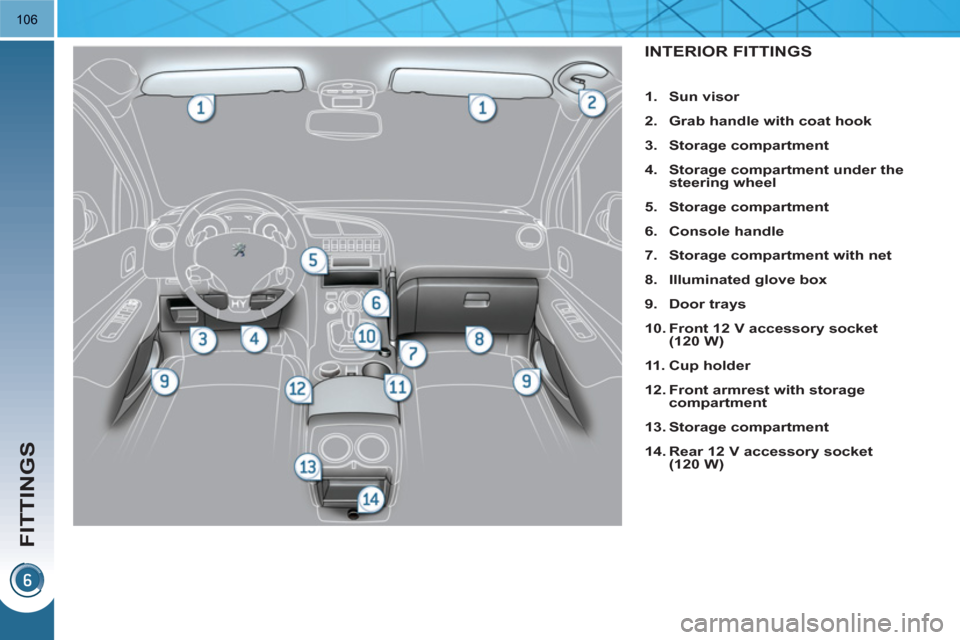

106
INTERIOR FITTINGS


1.
Sun visor


2.
Grab handle with coat hook


3.
Storage compartment


4.
Storage compartment under the
steering wheel


5.
Storage compartment


6.
Console handle


7.
Storage compartment with net


8.
Illuminated glove box


9.
Door trays


10.
Front 12 V accessory socket
(120 W)


11 .
Cup holder


12.
Front armrest with storage
compartment


13.
Storage compartment


14.
Rear 12 V accessory socket
(120 W)

FITTINGS

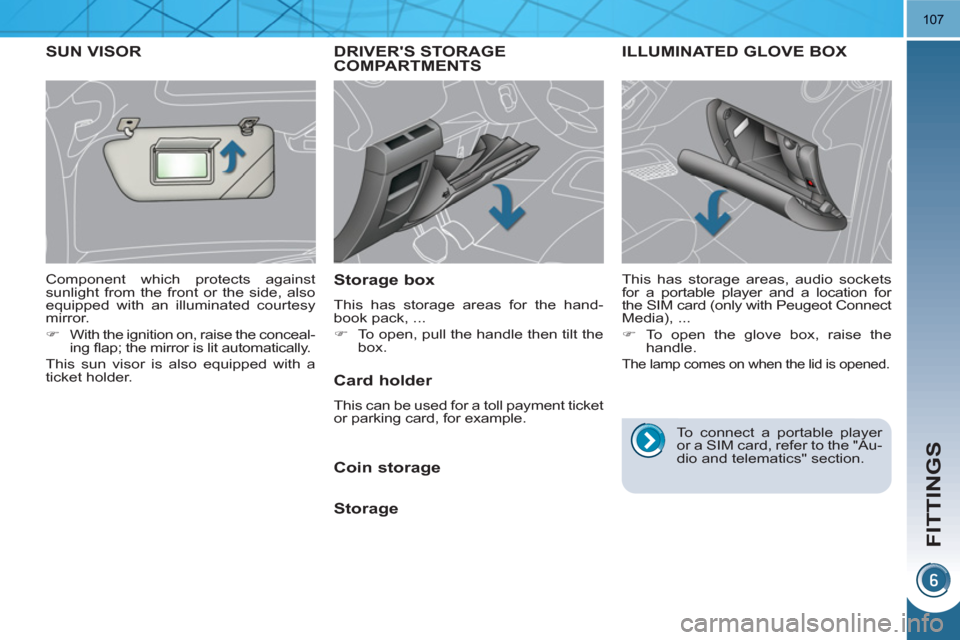

107
DRIVER'S STORAGECOMPARTMENTS

Storage box

This has storage areas for the hand-
book pack, ...


)
To open, pull the handle then tilt the
box.

ILLUMINATED GLOVE BOX

This has storage areas, audio sockets
for a portable player and a location for
the SIM card (only with Peugeot Connect
Media), ...


)
To open the glove box, raise the
handle.

The lamp comes on when the lid is opened.
SUN VISOR

Component which protects against
sunlight from the front or the side, also
equipped with an illuminated courtesy
mirror.


)
With the ignition on, raise the conceal-
ing fl ap; the mirror is lit automatically.
This sun visor is also equipped with a
ticket holder.

Card holder

This can be used for a toll payment ticket
or parking card, for example.


Coin storage

Storage

To connect a portable player
or a SIM card, refer to the "Au-
dio and telematics" section.

FITTINGS

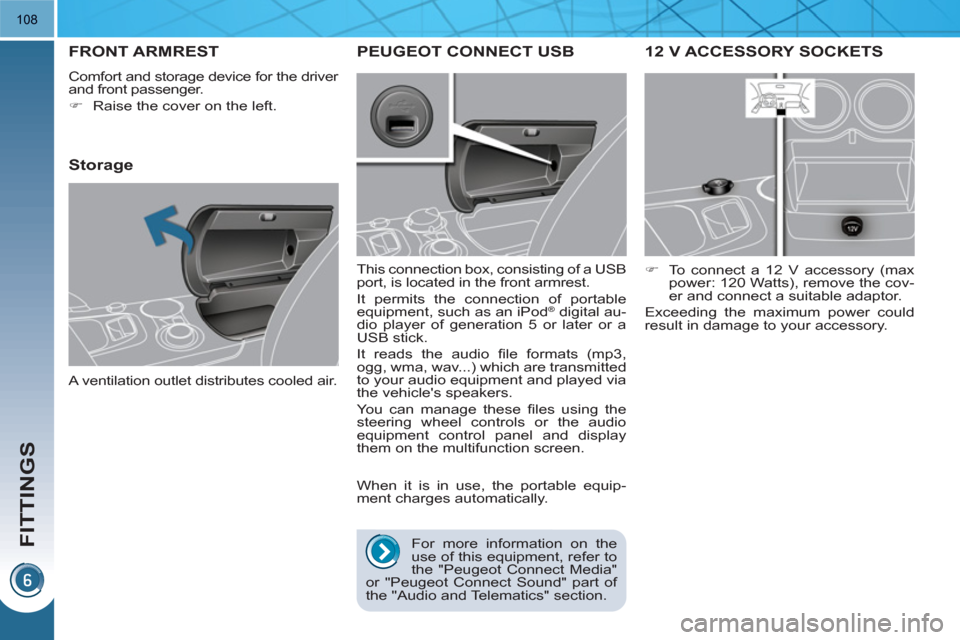

108
12 V ACCESSORY SOCKETS


)
To connect a 12 V accessory (max
power: 120 Watts), remove the cov-
er and connect a suitable adaptor.
Exceeding the maximum power could
result in damage to your accessory.
FRONT ARMREST
Comfort and storage device for the driver
and front passenger.


)
Raise the cover on the left.


Storage

A ventilation outlet distributes cooled air.
PEUGEOT CONNECT USB


This connection box, consisting of a USB
port, is located in the front armrest.
It permits the connection of portable
equipment, such as an iPod
® digital au-
dio player of generation 5 or later or a
USB stick.
It reads the audio fi le formats (mp3,
ogg, wma, wav...) which are transmitted
to your audio equipment and played via
the vehicle's speakers.
You can manage these fi les using the
steering wheel controls or the audio
equipment control panel and display
them on the multifunction screen.

When it is in use, the portable equip-
ment charges automatically.

For more information on the
use of this equipment, refer to
the "Peugeot Connect Media"
or "Peugeot Connect Sound" part of
the "Audio and Telematics" section.

FITTINGS

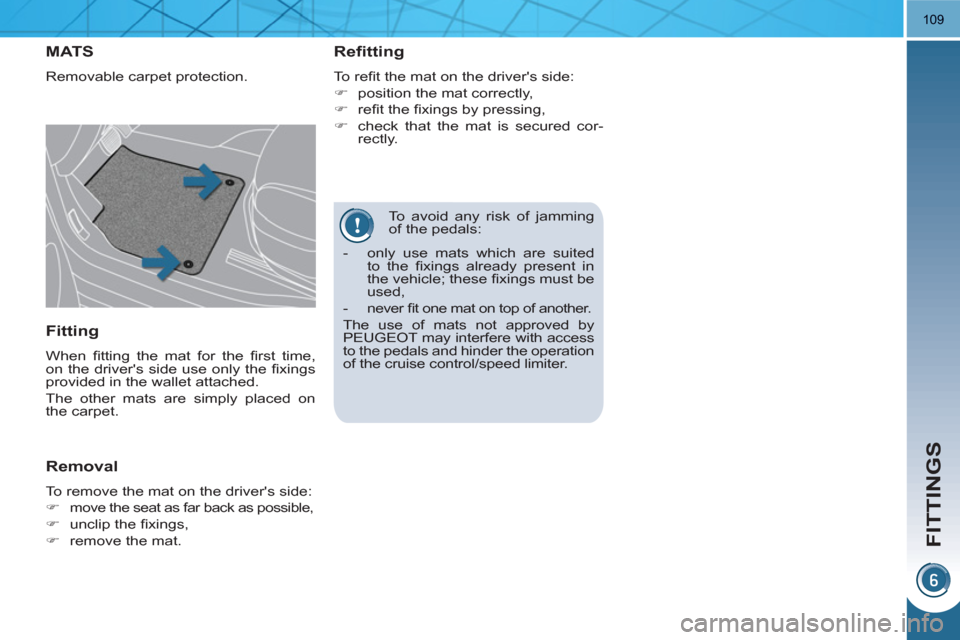

109

To avoid any risk of jamming
of the pedals:
MAT S
Removable carpet protection.


Refitting

To refi t the mat on the driver's side:


)
position the mat correctly,

)
refi t the fi xings by pressing,

)
check that the mat is secured cor-
rectly.


Fitting

When fi tting the mat for the fi rst time,
on the driver's side use only the fi xings
provided in the wallet attached.
The other mats are simply placed on
the carpet.


Removal

To remove the mat on the driver's side:


)

move the seat as far back as possible,


)
unclip the fi xings,

)
remove the mat.


- only use mats which are suited
to the fi xings already present in
the vehicle; these fi xings must be
used,

- never fi t one mat on top of another.
The use of mats not approved by
PEUGEOT may interfere with access
to the pedals and hinder the operation
of the cruise control/speed limiter.

FITTINGS

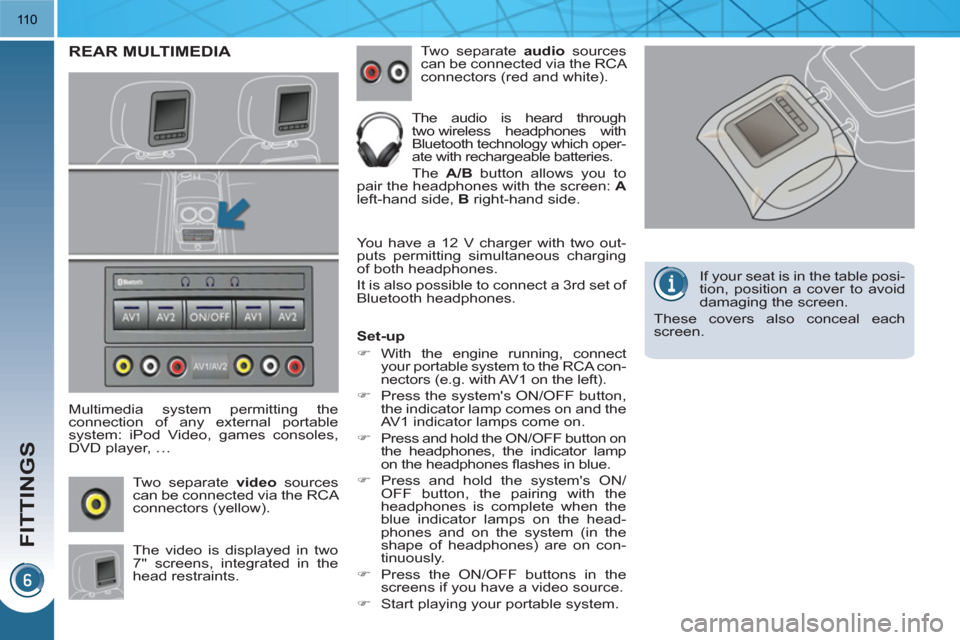

110
REAR MULTIMEDIA

Multimedia system permitting the
connection of any external portable
system: iPod Video, games consoles,
DVD player, …
Two separate video
sources
can be connected via the RCA
connectors (yellow).
The video is displayed in two
7'' screens, integrated in the
head restraints. Two separate audio
sources
can be connected via the RCA
connectors (red and white).
The audio is heard through
two wireless headphones with
Bluetooth technology which oper-
ate with rechargeable batteries.
The A/B
button allows you to
pair the headphones with the screen: A

left-hand side, B
right-hand side.

You have a 12 V charger with two out-
puts permitting simultaneous charging
of both headphones.
It is also possible to connect a 3rd set of
Bluetooth headphones.

Set-up


)
With the engine running, connect
your portable system to the RCA con-
nectors (e.g. with AV1 on the left).

)
Press the system's ON/OFF button,
the indicator lamp comes on and the
AV1 indicator lamps come on.

)
Press and hold the ON/OFF button on
the headphones, the indicator lamp
on the headphones fl ashes in blue.

)
Press and hold the system's ON/
OFF button, the pairing with the
headphones is complete when the
blue indicator lamps on the head-
phones and on the system (in the
shape of headphones) are on con-
tinuously.

)
Press the ON/OFF buttons in the
screens if you have a video source.

)
Start playing your portable system.

If your seat is in the table posi-
tion, position a cover to avoid
damaging the screen.
These covers also conceal each
screen.
