2011 Peugeot 3008 Hybrid 4 Owner's Manual

263
09 SCREEN MENU MAP


BLUETOOTH TELEPHONE
Connect/Disconnect a device
Consult the paired device BLUETOOTH CONFIGURATION
Telephone function
Audio Streamin
g function
Delete a
paired device
P
erform a Bluetooth search
Calls lis
t
CALL

Directory
Terminate the current call

MANAGE THE TELEPHONE CALL
Activate
private mode
1
2
3
3
3
4
4
4
2
3
4
2
3
3

264

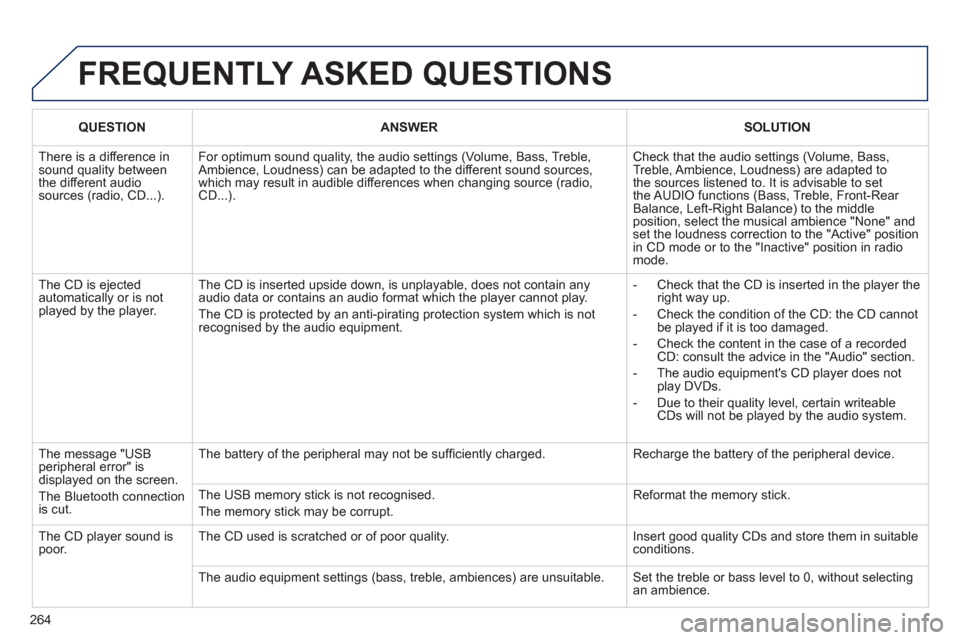

FREQUENTLY ASKED QUESTIONS
QUESTIONANSWERSOLUTION

There is a difference in sound quality betweenthe different audiosources (radio, CD...).
For optimum sound quality, the audio settings (Volume, Bass, Treble, Ambience, Loudness) can be adapted to the different sound sources,which may result in audible differences when changing source (radio,CD...).

Check that the audio settings (Volume, Bass, Treble, Ambience, Loudness) are adapted tothe sources listened to. It is advisable to setthe AUDIO functions (Bass, Treble, Front-Rear Balance, Left-Right Balance) to the middle position, select the musical ambience "None" and set the loudness correction to the "Active" position in CD mode or to the "Inactive" position in radio mode.

The CD is ejected automatically or is not played by the player.
The CD is inserted upside down, is unplayable, does not contain any audio data or contains an audio format which the player cannot play.
The CD is protected by an anti-pirating protection system which is not recognised by the audio equipment.


- Check that the CD is inserted in the player the right way up.


- Check the condition of the CD: the CD cannot be played if it is too damaged.


- Check the content in the case of a recordedCD: consult the advice in the "Audio" section.


- The audio equipment's CD player does notplay DVDs.


- Due to their quality level, certain writeableCDs will not be played by the audio system.

The message "USB peripheral error" isdisplayed on the screen.

The Bluetooth connectionis cut.
The battery of the peripheral may not be suffi ciently charged.
Recharge the battery of the peripheral device.
The USB memory stick is not recognised.
The memory stick may be corrupt.

Reformat the memory stick.

The CD player sound ispoor.The CD used is scratched or of poor quality.
Insert good quality CDs and store them in suitable conditions.
The audio equipment settings (bass, treble, ambiences) are unsuitable. Set the treble or bass level to 0, without selectingan ambience.

265
QUESTIONANSWERSOLUTION
The stored stations donot function (no sound, 87.5 Mhz is displayed...).

An incorrect waveband is selected.
Press the BAND AST button to return to the waveband (AM, FM1, FM2, FMAST) on which thestations are stored.

The traffi c announcement(TA) is displayed. I donot receive any traffi c information.
The radio station is not part of the regional traffi c information network.
Tune to a radio station which broadcasts traffi c information.

The quality of receptionof the radio station listened to graduallydeteriorates or the stored stations do not function(no sound, 87.5 Mhz is displayed...).
The vehicle is too far from the transmitter used by the station listenedto or there is no transmitter in the geographical area through which the vehicle is travelling.
Activate the RDS function to enable the system to check whether there is a more powerful transmitter in the geographical area.
The environment (hills, buildings, tunnels, basement car parks...) block reception, including in RDS mode. This phenomenon is normal and does not indicate a failure of the audio equipment.
The aerial is absent or has been damaged (for example when goingthrough a car wash or into an underground car park).
Have the aerial checked by a PEUGEOT dealer.
Sound cut-outs of 1 to2 seconds in radio mode.During this brief sound cut-out, the RDS searches for any frequency permitting better reception of the station.
Deactivate the RDS function if the phenomenon is too frequent and always on the same route.

With the engine off, the audio equipment switches off after a few minutes of use.
When the engine is switched off, the audio equipment operating timedepends on the battery charge.
The switch-off is normal: the audio equipment switches to economy mode and switches off to prevent discharging of the vehicle's battery.
Start the vehicle's engine to increase the batterycharge.
The message "the audio system is overheated" appears on the display.
In order to protect the installation if the surrounding temperature is toohigh, the audio equipment switches to an automatic thermal protectionmode leading to a reduction of the volume or stopping of the playing of the CD.
Switch the audio system off for a few minutes toallow the system to cool.

ALPHABETICAL INDEX
266
Accessories ........................191, 192
Accessories socket,
12 volt ...................... 106, 108, 114
Adjustable boot fl oor ................... 114
Adjusting headlamps ....................99
Adjusting head restraints ..............74
Adjusting seat belt height ...........129
Adjusting the steering wheel.........78
Air conditioning (digital) ..........68, 69
Air fi lter .......................................161
Air vents........................................67
Alarm ............................................86
Anti-pinch.............................. 88, 112
Anti-theft steering lock ..................83
Armrest .......................................106
Assistance call ....................200, 201
Audible warning ..........................126
Audio/video sockets....................230
Audio streaming
(Bluetooth) ...............................258
Audio systems ....................203, 247
Automatic illumination
of headlamps .......................96, 99
Automatic operation of hazard
warning lamps .........................126
Automatic rain sensitive
windscreen wipers ...........100, 102
Auxiliary sockets .................230, 256Bluetooth (telephone) .........231, 257
Bonnet ........................................157
Bonnet stay.................................157
Boot lamp ...................................105
Boot lid..........................................92
Brake discs .................................162
Brake lamps................................174
Brake pads .................................162
Brakes ........................................162
Capacity, fuel tank ........................94
CD MP3 ..............................227, 253
Central locking ........................82, 91
Changing a bulb ................. 172-175
Changing a fuse ................. 176-182
Changing a wheel ............... 169-171
Changing a wiper blade ......102, 187
Changing the date ..............235, 259
Changing the remote
control battery ............................84
Changing the time ..............235, 259
Checking levels ..................160, 161
Checking the engine oil level ........56
Checking tyre pressures
(using the kit) ...........................168
Checks................................ 157-162
Child lock ....................................125
Children .......117-125, 131, 133, 135
Child seats ................................. 117
Child seats, conventional.... 118, 120
Child seats, Isofi x ...............123, 124
Closing the boot................82, 92, 93
Closing the doors....................82, 90
Cold climate screen ....................190
Connectors,
audio ....... 107, 108, 230, 254, 256Control for panoramic
sunroof blind ............................ 112
Control stalk, wipers ........... 100-102
Coolant level .........................53, 160
Coolant temperature .....................53
Coolant temperature indicator ......53
Courtesy lamps...........................103
Courtesy mirror ...........................107
Cruise control .............................148
Cup holder ..................................106
Curtain airbags ...................134, 135
A
C
Battery ......................... 39, 161, 183
Battery, remote control ...........84, 85
Battery recharge .........................184
Blind for panoramic sunroof........ 112
Blinds .......................................... 116
Bluetooth (hands-free) ........231, 257
B
Dashboard fusebox ....................177
Date (display) .....................235, 259
Daytime running lamps .........98, 172
Deactivating ESP ........................128
Deactivating
the passenger airbag ...............133
Deadlocking ..................................82
Defrosting .....................................68
Dials and gauges ..........................43
Diesel............................................95
Diesel additive level ....................161
Diesel engine ................ 36, 95, 158,
159, 194, 195
Dimensions .................................196
Dipped beam ........................96, 172
Dipstick .................................56, 160
Direction indicators .... 126, 173, 174
Door mirrors ..................................79
Doors ............................................90
Doors emergency control .............92
Door POCKETS..........................106
Dynamic emergency braking ......139
D

ALPHABETICAL INDEX
267
G.P.S. .........................................214
Gear lever, electronic
gear control gearbox ................150
Glove box ...................................107
Grab handle on console .............106
Grab handles ..............................106
Guidance ....................................214
Guide-me-home......................98, 99 Economy mode...........................186
Electric parking brake ........ 136-140
Electric seats ................................73
Electric window controls ...............88
Electronic
engine immobiliser ...............83, 85
Electronic gear
control gearbox ........................150
Emergency call ...................200, 201
Emergency warning lamps .........126
Energy economy mode...............186
Engine compartment ............41, 159
Engine compartment fusebox .....180
Engine oil level indicator .......56, 160
Engines...............................193, 194
Environment ............ 8, 85, 161, 185
ESP/ASR ....................................128
Jack ............................................169
Jukebox (copy) ...........................228
Jukebox (playing) .......................229
G E
J
Filling with fuel ........................94, 95
Fitting roof bars...........................190
Fittings, boot ............................... 113
Flashing indicators......................126
Folding the rear seats ...................76
Front airbags ......................132, 135
Front armrest ..............................108
Front foglamps......................97, 173
Front head restraints ....................74
Front parking sensors .................155
Front seats.............................. 72-75
Front wash-wipe .........................101
Fuel.........................................94, 95
Fuel fi ller cap ................................94
Fuel fi ller fl ap ..........................94, 95
Fuel gauge..............................43, 94
F
Halogen headlamps....................172
Hands-free telephone .........231, 257
Hazard warning lamps ................126
Head-up display......... 144, 146, 148
Headlamp adjustment...................99
Headlamp wash ..........................101
Headlamp wash reservoir ...........160
Heated seats ................................74
Height and reach adjustment,
steering wheel ...........................78
High
voltage ........ 39, 40, 131, 157, 184
Hill start assist ............................141
Hooks ......................................... 114
Horn ............................................126
Hybrid ...................... 4-8, 26-36, 200
Hybrid selector..........................8, 31
Hybrid system .................. 4-8, 26-36
H
Indicator/warning lamps.......... 45-52
Indicators, direction ... 126, 173, 174
Infl ating accessories
(using the kit) ...........................168
Inputs for audio
system .................... 230, 254, 256
Instrument panel lighting ..............57
Instrument panels ...................43, 44
Instrument panel screen ...............43
Interior fi ttings .............................106
Interior mood lighting ..................104
ISOFIX child seats ..............123, 124
ISOFIX mountings ......................122
I
Fuel tank .................................94, 95
Fuses ..........................................176
Keeping children safe .........117-125,
131, 133, 135
Key with remote control .... 81-83, 85
K
Labels, identifi cation ...................197
Lamps, warning
and indicator ........................ 45-52
Lateral airbags ....................134, 135
L

ALPHABETICAL INDEX
268
Main beam ....................................96
Manufacturer's
identifi cation plates ..................197
Map reading lamps .....................103
Markings, identifi cation ...............197
Mat..............................................109
Menu, main .................................250
Mini fuel level ..........................51, 94
Misfuel prevention ........................95
Monochrome screen ...........250, 261
Motorway function
(direction indicators) ................126
Mountings for ISOFIX seats .......122
MP3 CD ..............................227, 253
Multifunction screen (with
audio equipment) ...........58, 61, 63
Music media players ...........226, 254Paint colour code ........................197
Panoramic sunroof ..................... 112
Parking brake .....................136, 162
Particle emission fi lter.........161, 162
Passenger compartment fi lter.....161
PEUGEOT call button .........200, 201
Peugeot Connect Assistance ...200, 201
Peugeot Connect Media ........44, 61,
64, 203-245
Peugeot Connect SOS .......200, 201
Peugeot Connect
Sound ........................ 58, 247-265
PEUGEOT services ............200, 201
PIN code .....................................233
M
P
Oil fi lter .......................................161
Oil level .................................56, 160
Opening the bonnet ....................157
Opening the boot ..............81, 92, 93
Opening the doors ..................81, 90
Opening the panoramic
sunroof blind ............................ 112
Opening the retractable screen ....63
Opening the tailgate .........81, 92, 93
Operation
indicator lamps .................... 45-52
O
Player, CD MP3 ..................227, 253
Priming the fuel system ..............158
Protecting
children .....117-125, 131, 133, 135
Puncture .....................................163 Level, brake fl uid ........................160
Level, headlamp wash ........101, 160
Level, power steering fl uid ..........160
Levels and checks .............. 160-162
Lighting, guide-me home ........98, 99
Lighting, interior ..................103, 104
Lighting bulbs
(replacement) .................. 172-175
Lighting DIMMER .........................57
Lighting stalk.................................96
Loading .......................................190
Load reduction mode ..................186
Locating your vehicle ....................82
Locking from the inside.................91
Long objects, transporting .... 75, 111Navigation...................................214
Number plate lamps ...................175
N
Radio ..................................225, 251
Rear armrest............................... 111
Rear foglamps ............. 97, 174, 175
Rear head restraints .....................76
Rear multimedia ......................... 110
Rear parcel shelf ........................ 115
Rear parking sensors .................154
Rear reading lamps ....................103
Rear screen (demisting) ...............68
Rear seats ....................................76
Rear view mirror ...........................80
Rear wash-wipe ..........................101
Rear wiper ..................................101
Recharging the battery ...............184
Reduction of electrical load ........186
Refi tting a wheel .........................171
Reinitialising
the electric windows ..................89
Reinitialising
the remote control ......................84
Remote control ....................... 81-85
Removable screen
(snow shield) ...........................190
Removing a wheel ......................170
Removing the mat ......................109
Repair kit, puncture ....................163
Replacing bulbs .................. 172-175
Replacing fuses .................. 176-182
Replacing the air fi lter .................161
Replacing the oil fi lter .................161
Replacing the particle
emission fi lter ...........................162
R

ALPHABETICAL INDEX
269
Replacing the passenger
compartment fi lter ....................161
Replacing wiper blades ......102, 187
Resetting the service indicator .....55
Resetting the trip recorder ............57
Retractable colour screen.......61, 63
Rev counter ..................................43
Reversing lamp...........................174
Roof bars ....................................190
Routine checks ...................161, 162
Running out of fuel (Diesel) ........158Status indicator lamps ............ 45-52
Steering
mounted controls .............208, 249
Stopping the vehicle ...............5, 150
Stop Start..... 69, 157, 158, 160, 161
Storage ............... 106, 108, 111, 113
Storage box ................................107
Storage wells ...................... 113, 116
Sun visor.....................................107
Synchronising
the remote control ......................84
System, ASR ..............................128
Systems, ASR and ESP .............128
Table of weights ..........................195
Tables of engines................193, 194
Tables of fuses............................176
Tank, fuel ......................................95
Technical data..................... 193-196
Telephone .......... 200, 201, 231, 257
Telephone, hands-free ........231, 257
Temperature control
for heated seats .........................74
Temporary tyre repair kit .............163
Third brake lamp.........................175
Time ....................................235, 259
TMC (Traffi c info) ........................223
Tools ...........................................169
Total distance recorder .................57
Towbar ........................................189
Towed loads................................195
Towing another vehicle .........42, 188
Traction control (ASR) ................128
Traffi c information (TA) .......224, 252
Traffi c information (TMC) ....223, 224
Trip computer ......................... 64-66
TU
Safety for
children .....117-125, 131, 133, 135
Satellite navigation system .........214
Screen, colour 16/9 ............209, 236
Screen, monochrome C..............261
Screen, multifunction
(with audio equipment) ...58, 61, 63
Screen-wash reservoir................160
Screen menu map ..............236, 261
Screenwash fl uid level ........101, 160
Seat adjustment......................72, 73
Seat belts............................ 129-131
Serial number, vehicle ................197
Service indicator ...........................54
Setting the clock .................235, 259
Short-cut menus .........................210
Sidelamps .................... 96, 172, 174
Side repeater ..............................173
Side spotlamps ...........................104
SIM card .............................107, 233
Ski fl ap ........................................ 111
Snow chains ...............................192
Spare wheel................................169
Speed limiter...............................146
Speedometer ................................43
Stability control (ESP).................128
Starting the vehicle .................5, 150
S
Trip distance recorder ...................57
Tyre pressures ............................197
V
Under fl oor storage ..................... 116
Unlocking ......................................81
Unlocking from the inside .............91
USB (Peugeot Connect) .....108, 254
USB port .................... 108, 227, 254
Vehicle identifi cation ...................197
Ventilation ...............................67, 68
Voice commands ........................206
W
Weights .......................................195
Welcome lighting ..................98, 104
Window controls ...........................88
Wipers ................................100, 102

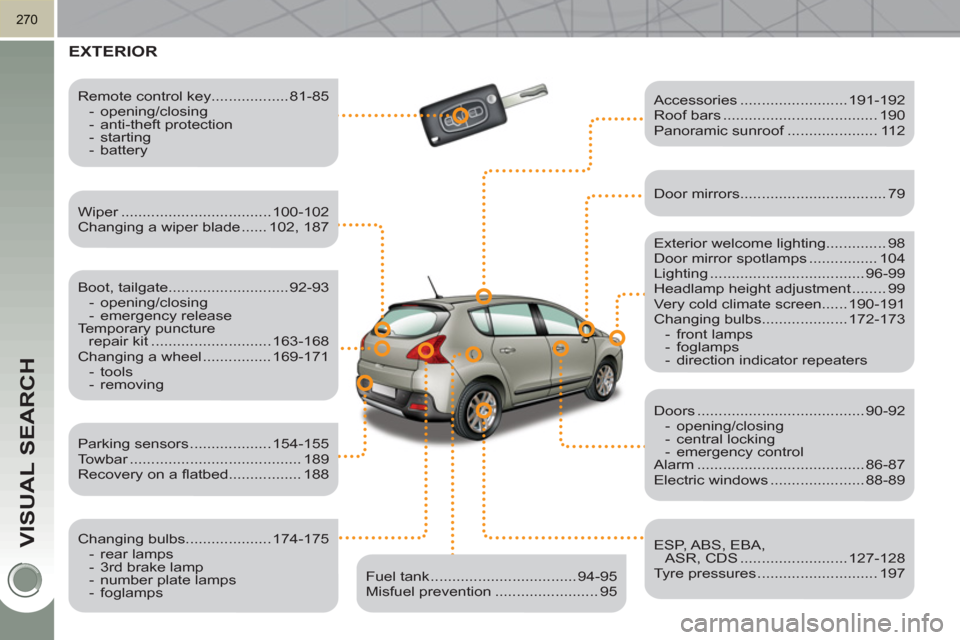

VISUAL SEARCH
270
EXTERIOR


Exterior welcome lighting.............. 98
Door mirror spotlamps ................ 104
Lighting .................................... 96-99
Headlamp height adjustment ........ 99
Very cold climate screen...... 190-191
Changing bulbs.................... 172-173


- front lamps

- foglamps

- direction indicator repeaters

Wiper ................................... 100-102
Changing a wiper blade ...... 102, 187

Boot, tailgate............................ 92-93


- opening/closing

- emergency release
Temporary puncture
repair kit ............................ 163-168
Changing a wheel ................ 169-171


- tools

- removing

Remote control key.................. 81-85


- opening/closing

- anti-theft protection

- starting

- battery


Parking sensors ................... 154-155
Towbar ........................................ 189
Recovery on a fl atbed................. 188

Changing bulbs.................... 174-175


- rear lamps

- 3rd brake lamp

- number plate lamps

- foglamps

Accessories ......................... 191-192
Roof bars .................................... 190
Panoramic sunroof ..................... 112

Fuel tank .................................. 94-95
Misfuel prevention ........................ 95
Door mirrors .................................. 79


Doors ....................................... 90-92


- opening/closing

- central locking

- emergency control
Alarm ....................................... 86-87
Electric windows ...................... 88-89

ESP, ABS, EBA,
ASR, CDS ......................... 127-128
Tyre pressures ............................ 197
