2011 Peugeot 3008 Hybrid 4 Owner's Manual

PRACTICAL INFORMATION
175



















Changing the third brake lamp bulb
Changing sidelamp bulbs (boot)
















Changing foglamp bulbs


)
Open the boot.

)
Remove the plastic fl ap using a
screwdriver.

)
Remove the lamp fi xing nut.

)
Turn the bulb a quarter of a turn and
change it.
To r efi t, carry out these operations in
reverse order.


)
Reach under the bumper.

)
Turn the bulb a quarter of a turn and
pull it out.


Contact a PEUGEOT dealer.
Changing the number plate lamp
bulbs (W5-5W)


)
Insert a thin screwdriver into one of
the outer holes of the lens.

)
Push it outwards to unclip.

)
Remove the lens.

)
Pull the bulb out and change it.

PRACTICAL INFORMATION
176
CHANGING A FUSE
Procedure for replacing a faulty fuse
with a new fuse to rectify a failure of the
corresponding function.

Access to the tools

The fuse extraction tweezer is fi tted
to the back of the dashboard fusebox
cover.
To gain access to it:


)
remove the cover completely,

)
remove the tweezer.



Changing a fuse

Before changing a fuse, the cause of
the failure must be identifi ed and recti-
fi ed.


)
Identify the faulty fuse by checking
the condition of its fi lament.

Good

Failed



)
Use the special tweezer to extract
the fuse from its housing.

)
Always replace the faulty fuse with a
fuse of the same rating.

)
Check that the number etched on
the box, the rating etched on the
fuse and the tables below all agree.
Installing electrical
accessories
Your vehicle's electrical system
is designed to operate with standard
or optional equipment.
Before installing other electrical equip-
ment or accessories on your vehicle,
contact a PEUGEOT dealer.
PEUGEOT will not accept re-
sponsibility for the cost incurred
in repairing your vehicle or for
rectifying malfunctions resulting from
the installation of accessories not
supplied and not recommended by
PEUGEOT and not installed in accor-
dance with its instructions, in particular
when the combined consumption of all
of the additional equipment connected
exceeds 10 milliamperes.

PRACTICAL INFORMATION
177

Dashboard fuses

The fusebox is placed in the lower dash-
board (left-hand side).
Fuse tables

Fuse
N°

Rating
(A)


Functions




F1



15

Rear wiper.


F2



-

Not used.


F3



5

Airbag control unit.


F4



10

Electrochromatic rear view mirror, air conditioning,
switching and protection unit, rear multimedia,
traction battery control unit.


F5



30

Front one-touch electric windows.


F6



30

Rear one-touch electric windows.


F7



5

Front and rear courtesy lamps, map reading lamps,
rear reading lamps, sun visor lighting, glove box
lighting, centre armrest lighting, boot 12 V relay
control.

PRACTICAL INFORMATION
178

Access to the fuses


)
refer to the paragraph "Access to
the tools".

Fuse
N°

Rating
(A)

Functions




F8



20

Audio equipment, audio/telephone, CD changer,
multifunction screen, tyre under-infl ation detection,
alarm siren, alarm control unit, telematic unit,
service module (with Peugeot Connect Media).


F9



30

Front 12 V socket, cigarette lighter, rear 12 V
socket.


F10



15

Steering mounted controls.


F11



15

Low current ignition switch.


F12



15

Trailer presence, rain/sunshine sensor, supply for
fuses F32, F34, F35.


F13



5

Engine fusebox, airbag control unit.


F14



15

Instrument panel, instrument panel screen, supply
for fuse F33.


F15



30

Locking and deadlocking.


F17



40

Heated rear screen, supply for fuse F30.


SH



-

PARC shunt.

PRACTICAL INFORMATION
179


Fuse
N°



Rating
(A)



Functions




F29


-

Not used.


F30


5

Heated door mirrors.


F31


30

Boot 12 V socket.


F32


5

Electronic gear control gearbox gear lever.


F33


10
Head-up display, Bluetooth system,
air conditioning, retractable screen.


F34


5

Seat belt warning lamps display.


F35


10

Parking sensors.


F36


30

Front heated seats.


F37


5

Hi-Fi amplifi er.


F38
30
Traction battery control unit


F39


20

Panoramic sunroof blind.


F40


10

Trailer interface, driver's door control panel.

PRACTICAL INFORMATION
180

Engine compartment fuses

The fusebox is placed in the engine
compartment near the battery (left-hand
side).

Access to the fuses


)
Unclip the cover.

)
Change the fuse (see correspond-
ing paragraph).

)
When you have fi nished, close the
cover carefully to ensure correct
sealing of the fusebox.

Fuse table

Fuse
N°

Rating
(A)


Functions




F1



20

Engine control unit supply, injection pump and
EGR electrovalves, injectors.


F2



15

Horn.


F3



10

Front/rear wash-wipe.


F4



10

Daytime running lamps.


F5



15

Air fl ow sensor, wiper, sensor heater, hybrid control
unit, hybrid selector dial, electronic thermostat,
variable valve timing electrovalves, turbo pressure
regulation electrovalves (Diesel), engine coolant
level sensor (Diesel).


F6



10

Diagnostic socket, directional headlamps, particle
emission fi lter pump (Diesel), mirror adjustment
control, network interface unit, head-up display.


F7



10

Power steering control unit, directional headlamps
height adjustment motor.


F8



20

Starter motor control.


F9



10

Clutch and brake pedal switches.


F10



30

Heaters (Diesel).


F11



40

Air conditioning blower.

PRACTICAL INFORMATION
181

Fuse
N°

Rating
(A)

Functions




F12



30

Windscreen wipers slow/fast speed.


F13



40

Built-in systems interface supply
(ignition positive).


F14



30

Heater radiator water pump.


F15



10

Right-hand main beam headlamp.


F16



10

Left-hand main beam headlamp.


F17



15

Left-hand dipped headlamp.


F18



15

Right-hand dipped headlamp.


F19



15

Turbo pressure regulation electrovalve (Diesel).


F20



10

Engine coolant level detector (Diesel).


F21



5

Cooling fan control.

PRACTICAL INFORMATION
182

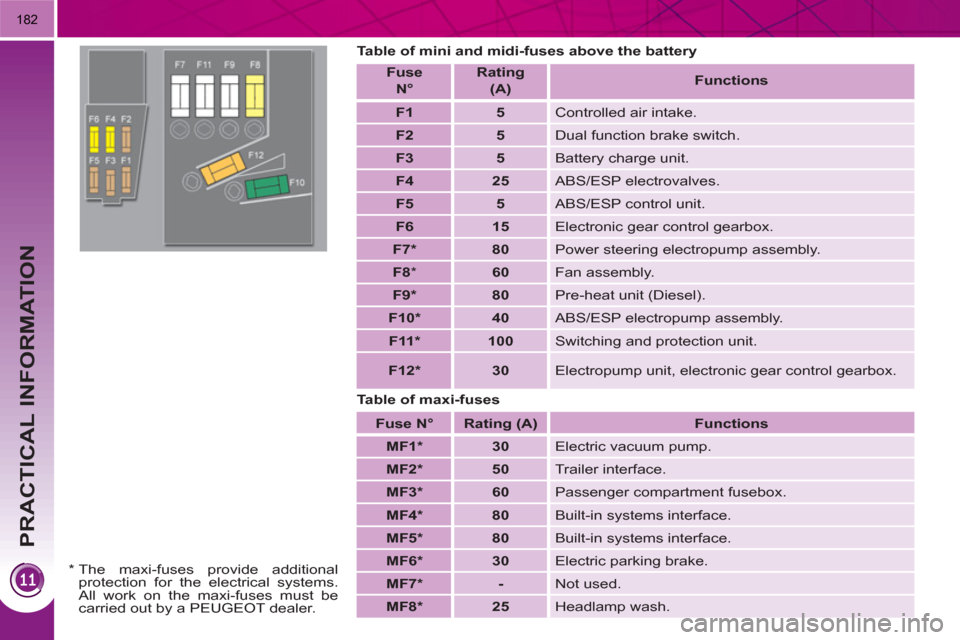

Table of mini and midi-fuses above the battery

Table of maxi-fuses
Fuse
N°

Rating
(A)

Functions




F1



5

Controlled air intake.


F2



5

Dual function brake switch.


F3



5

Battery charge unit.


F4



25

ABS/ESP electrovalves.


F5



5

ABS/ESP control unit.


F6



15

Electronic gear control gearbox.


F7 *



80

Power steering electropump assembly.


F8

*


60

Fan assembly.


F9 *



80

Pre-heat unit (Diesel).


F10 *



40

ABS/ESP electropump assembly.


F11 *



100

Switching and protection unit.


F12 *



30

Electropump unit, electronic gear control gearbox.

Fuse

N°

Rating (A)



Functions




MF1 *



30

Electric vacuum pump.


MF2 *



50

Trailer interface.


MF3 *



60

Passenger compartment fusebox.


MF4 *



80

Built-in systems interface.


MF5 *



80

Built-in systems interface.


MF6 *



30

Electric parking brake.


MF7 *



-

Not used.


MF8 *



25

Headlamp wash.
*
The maxi-fuses provide additional
protection for the electrical systems.
All work on the maxi-fuses must be
carried out by a PEUGEOT dealer.
