2011 Peugeot 3008 Hybrid 4 Owner's Manual

VISUAL SEARCH
271

Seat belts............................. 129-131

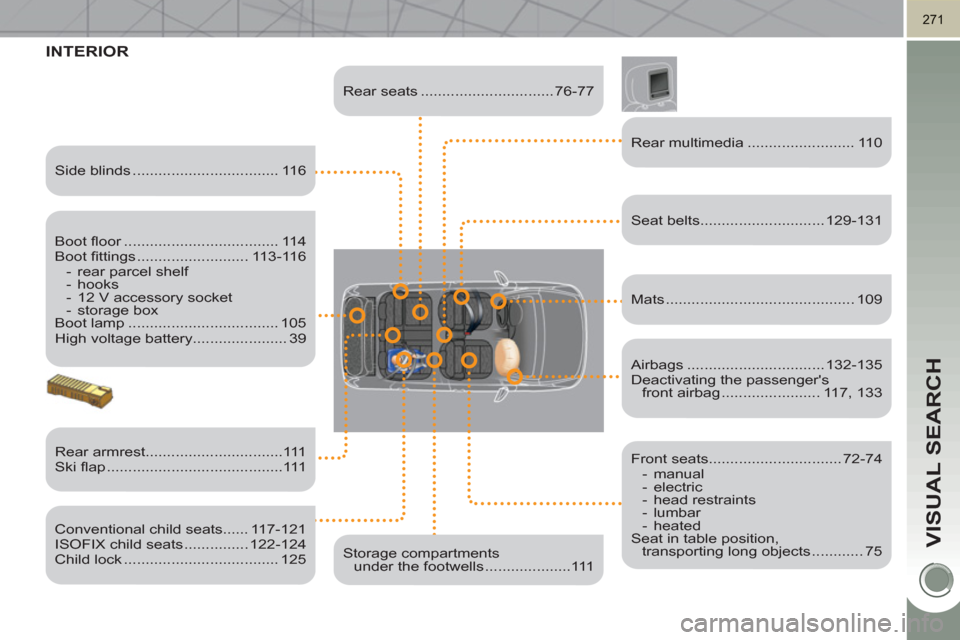

INTERIOR


Boot fl oor .................................... 114
Boot fi ttings .......................... 113-116


- rear parcel shelf

- hooks

- 12 V accessory socket

- storage box
Boot lamp ................................... 105
High voltage battery...................... 39

Conventional child seats...... 117-121
ISOFIX child seats ............... 122-124
Child lock .................................... 125
Front seats............................... 72-74


- manual

- electric

- head restraints

- lumbar

- heated
Seat in table position,
transporting long objects ............ 75

Airbags ................................ 132-135
Deactivating the passenger's
front airbag ....................... 117, 133
Side blinds .................................. 116

Storage compartments
under the footwells ....................111
Rear seats ............................... 76-77

Mats ............................................ 109

Rear armrest................................111
Ski fl ap .........................................111
Rear multimedia ......................... 110

VISUAL SEARCH

Courtesy lamps................... 103, 104
Seat belt/passenger's front airbag
warning lamps display ...... 130, 133
Rear view mirror ........................... 80

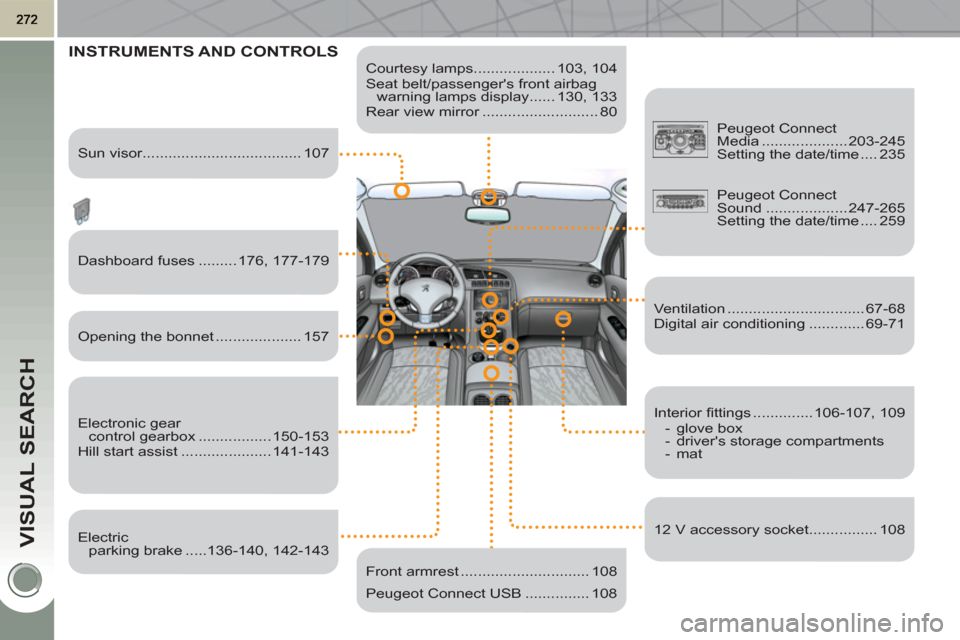

INSTRUMENTS AND CONTROLS


Dashboard fuses ......... 176, 177-179

Electronic gear
control gearbox ................. 150-153
Hill start assist ..................... 141-143
Peugeot Connect
Sound ................... 247-265
Setting the date/time .... 259

Front armrest .............................. 108

Peugeot Connect USB ............... 108
Sun visor..................................... 107

Opening the bonnet .................... 157

Electric
parking brake .....136-140, 142-143
Interior fi ttings .............. 106-107, 109


- glove box

- driver's storage compartments

- mat


12 V accessory socket................ 108

Peugeot Connect
Media .................... 203-245
Setting the date/time .... 235

Ventilation ................................ 67-68
Digital air conditioning ............. 69-71

VISUAL SEARCH
273

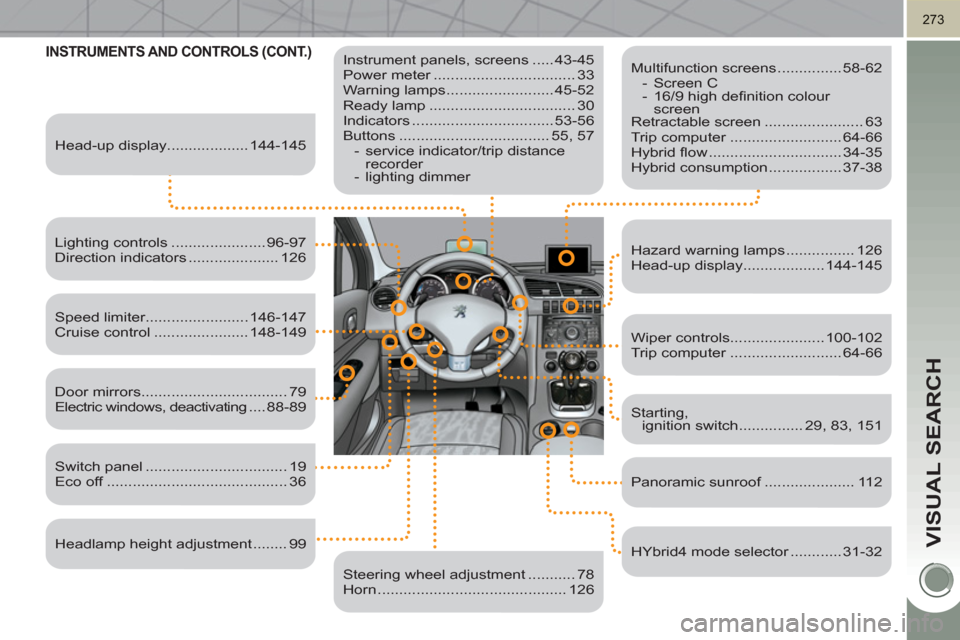

INSTRUMENTS AND CONTROLS (CONT.)
Instrument panels, screens ..... 43-45
Power meter ................................. 33
Warning lamps ......................... 45-52
Ready lamp .................................. 30
Indicators ................................. 53-56
Buttons ................................... 55, 57


- service indicator/trip distance
recorder

- lighting dimmer

Head-up display................... 144-145

Lighting controls ...................... 96-97
Direction indicators ..................... 126

Speed limiter........................ 146-147
Cruise control ...................... 148-149

Switch panel ................................. 19
Eco off .......................................... 36
Door mirrors .................................. 79
Electric windows, deactivating .... 88-89

Headlamp height adjustment ........ 99

Steering wheel adjustment ........... 78
Horn ............................................ 126
Multifunction screens ............... 58-62


- Screen C

- 16/9 high defi nition colour
screen
Retractable screen ....................... 63
Trip computer .......................... 64-66
Hybrid fl ow ............................... 34-35
Hybrid consumption ................. 37-38

Hazard warning lamps ................ 126
Head-up display................... 144-145

Wiper controls...................... 100-102
Trip computer .......................... 64-66

Starting,
ignition switch ............... 29, 83, 151

Panoramic sunroof ..................... 112

HYbrid4 mode selector ............ 31-32

VISUAL SEARCH
274

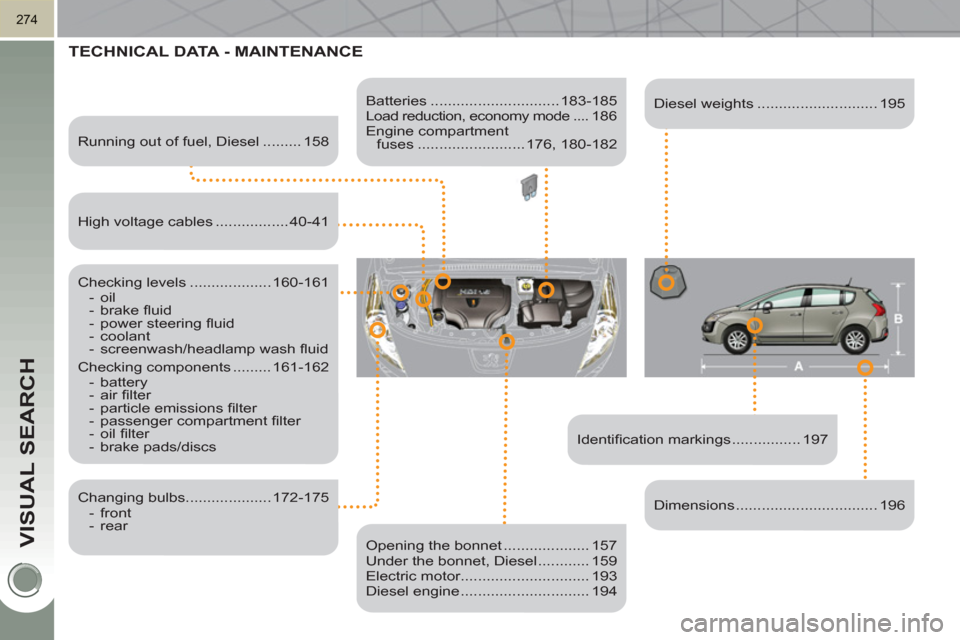

TECHNICAL DATA - MAINTENANCE


Identifi cation markings ................ 197
Running out of fuel, Diesel ......... 158

Checking levels ................... 160-161


- oil

- brake fl uid

- power steering fl uid

- coolant

- screenwash/headlamp wash fl uid
Checking components ......... 161-162


- battery

- air fi lter

- particle emissions fi lter

- passenger compartment fi lter

- oil fi lter

- brake pads/discs


Changing bulbs.................... 172-175


- front

- rear

Batteries .............................. 183-185
Load reduction, economy mode ....186
Engine compartment
fuses ......................... 176, 180-182

Opening the bonnet .................... 157
Under the bonnet, Diesel ............ 159
Electric motor.............................. 193
Diesel engine .............................. 194
Dimensions ................................. 196

Diesel weights ............................ 195

High voltage cables ................. 40-41

275

276

10-10

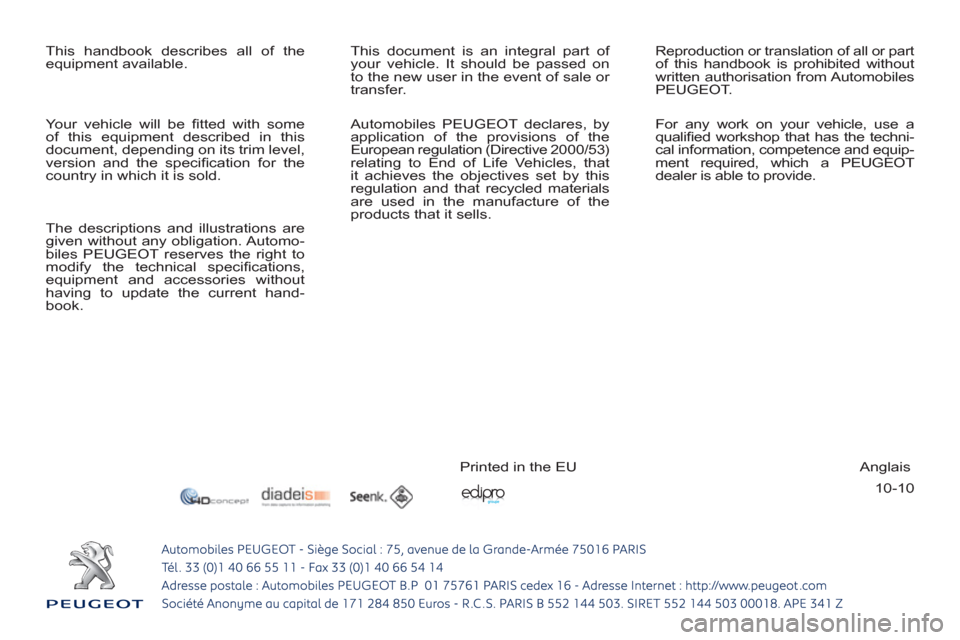

This handbook describes all of the
equipment available. This document is an integral part of
your vehicle. It should be passed on
to the new user in the event of sale or
transfer. Reproduction or translation of all or part of this handbook is prohibited without
written authorisation from Automobiles
PEUGEOT.
Printed in the EU Anglais Your vehicle will be fi tted with some
of this equipment described in this
document, depending on its trim level,
version and the specifi cation for the
country in which it is sold.
The descriptions and illustrations are
given without any obligation. Automo-
biles PEUGEOT reserves the right to
modify the technical specifi cations,
equipment and accessories without
having to update the current hand-
book. Automobiles PEUGEOT declares, by
application of the provisions of the
European regulation (Directive 2000/53) relating to End of Life Vehicles, that
it achieves the objectives set by this
regulation and that recycled materials
are used in the manufacture of the
products that it sells.
For any work on your vehicle, use a
qualifi ed workshop that has the techni-
cal information, competence and equip-
ment required, which a PEUGEOT
dealer is able to provide.
