2011 Peugeot 3008 Hybrid 4 Owner's Manual

FITTINGS

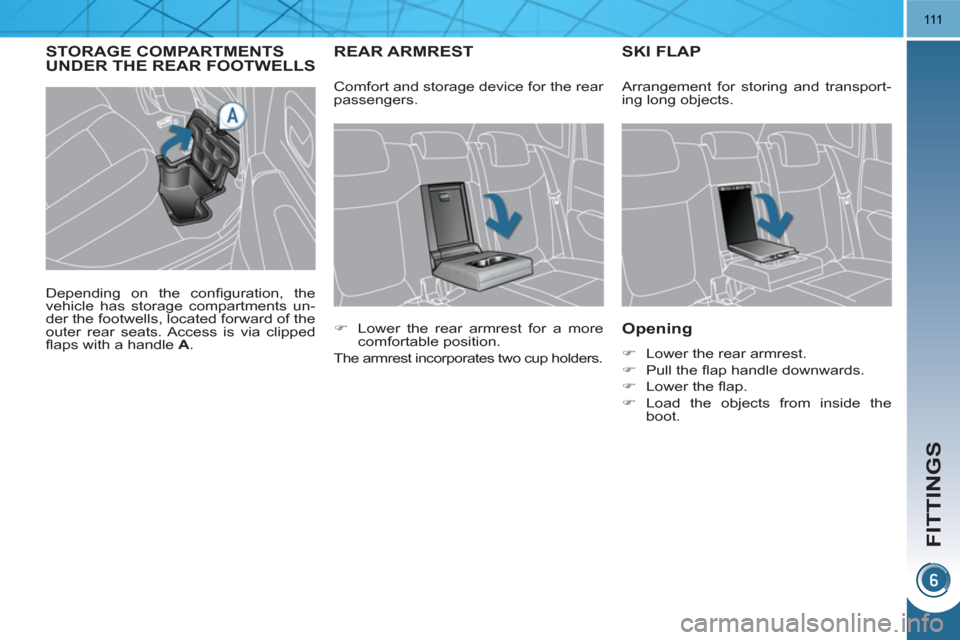

111
REAR ARMREST SKI FLAP

Opening



)
Lower the rear armrest.

)
Pull the fl ap handle downwards.

)
Lower the fl ap.

)
Load the objects from inside the
boot.


)
Lower the rear armrest for a more
comfortable position.
The armrest incorporates two cup holders.

Comfort and storage device for the rear
passengers. Arrangement for storing and transport-
ing long objects.
STORAGE COMPARTMENTSUNDER THE REAR FOOTWELLS

Depending on the confi guration, the
vehicle has storage compartments un-
der the footwells, located forward of the
outer rear seats. Access is via clipped
fl aps with a handle A
.

FITTINGS

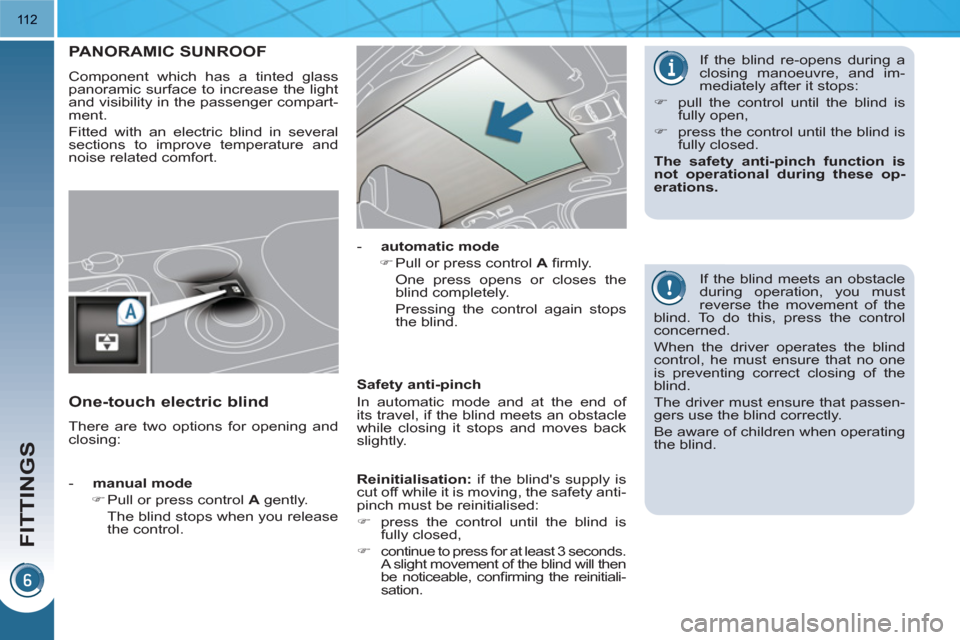

112
PANORAMIC SUNROOF
Component which has a tinted glass
panoramic surface to increase the light
and visibility in the passenger compart-
ment.
Fitted with an electric blind in several
sections to improve temperature and
noise related comfort.
If the blind meets an obstacle
during operation, you must
reverse the movement of the
blind. To do this, press the control
concerned.
When the driver operates the blind
control, he must ensure that no one
is preventing correct closing of the
blind.
The driver must ensure that passen-
gers use the blind correctly.
Be aware of children when operating
the blind.



- manual mode



)
Pull or press control A
gently.
The blind stops when you release
the control.
- automatic mode



)
Pull or press control A
fi rmly.
One press opens or closes the
blind completely.
Pressing the control again stops
the blind.


Safety anti-pinch
In automatic mode and at the end of
its travel, if the blind meets an obstacle
while closing it stops and moves back
slightly.

One-touch electric blind

There are two options for opening and
closing:
If the blind re-opens during a
closing manoeuvre, and im-
mediately after it stops:


)
pull the control until the blind is
fully open,

)
press the control until the blind is
fully closed.

The safety anti-pinch function is
not operational during these op-
erations.


Reinitialisation:
if the blind's supply is
cut off while it is moving, the safety anti-
pinch must be reinitialised:


)
press the control until the blind is
fully closed,

)
continue to press for at least 3 seconds.
A slight movement of the blind will then
be noticeable, confi rming the reinitiali-
sation.

FITTINGS

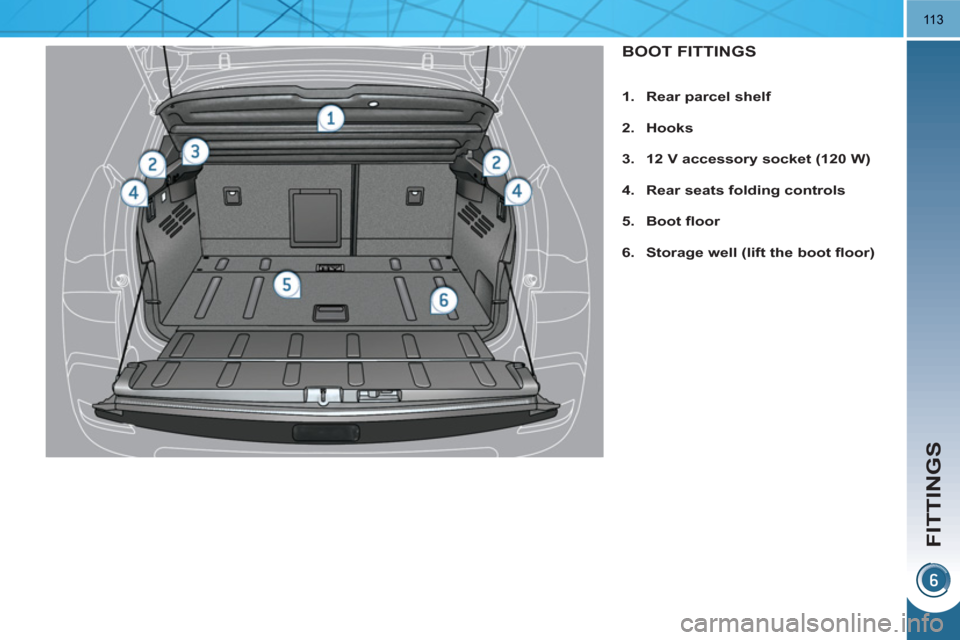

113
BOOT FITTINGS



1.
Rear parcel shelf


2.
Hooks


3.
12 V accessory socket (120 W)


4.
Rear seats folding controls


5.
Boot
fl oor


6.
Storage well (lift the boot fl oor)

FITTINGS

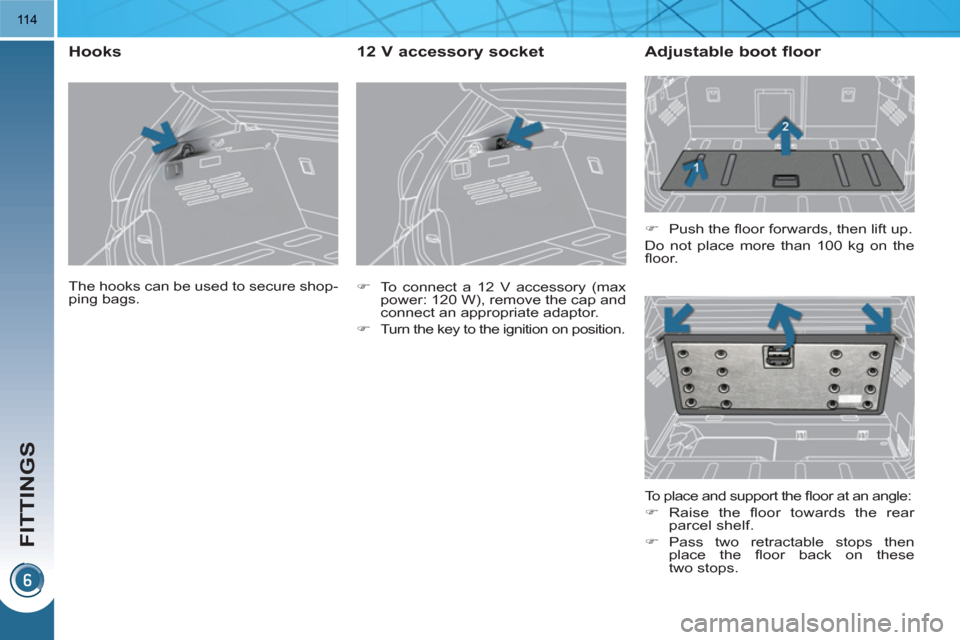

11 4
The hooks can be used to secure shop-
ping bags.







Hooks



)
To connect a 12 V accessory (max
power: 120 W), remove the cap and
connect an appropriate adaptor.

)

Turn the key to the ignition on position.








12 V accessory socket





Adjustable boot floor




)
Push the fl oor forwards, then lift up.
Do not place more than 100 kg on the
fl oor.

To place and support the fl oor at an angle:


)
Raise the fl oor towards the rear
parcel shelf.

)
Pass two retractable stops then
place the fl oor back on these
two stops.

FITTINGS

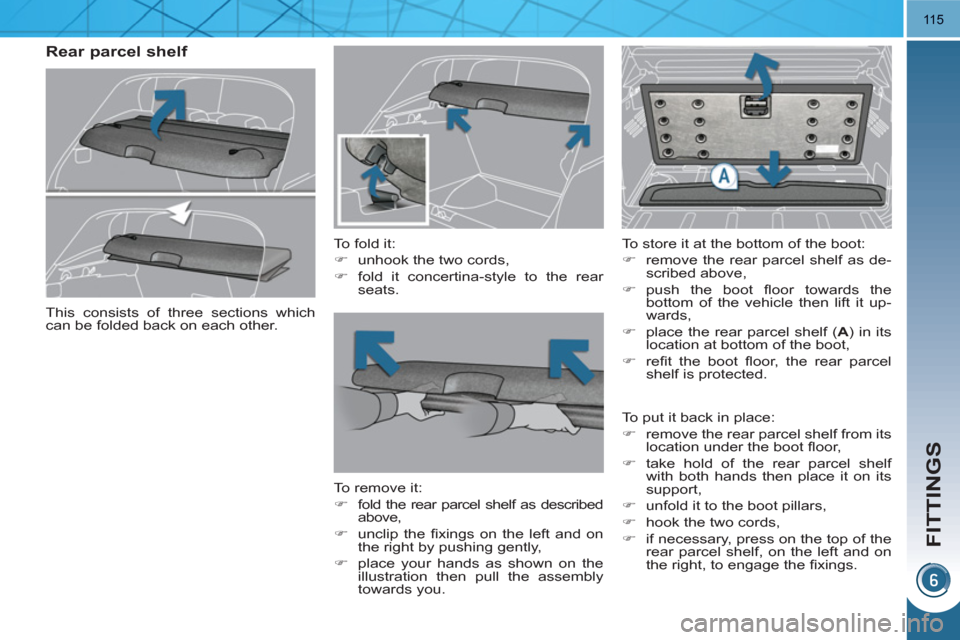

115






Rear parcel shelf


To fold it:


)
unhook the two cords,

)
fold it concertina-style to the rear
seats.


To remove it:


)
fold the rear parcel shelf as described
above,

)
unclip the fi xings on the left and on
the right by pushing gently,

)
place your hands as shown on the
illustration then pull the assembly
towards you.

To store it at the bottom of the boot:


)
remove the rear parcel shelf as de-
scribed above,

)
push the boot fl oor towards the
bottom of the vehicle then lift it up-
wards,

)
place the rear parcel shelf ( A
) in its
location at bottom of the boot,

)
refi t the boot fl oor, the rear parcel
shelf is protected.
This consists of three sections which
can be folded back on each other.

To put it back in place:


)
remove the rear parcel shelf from its
location under the boot fl oor,

)
take hold of the rear parcel shelf
with both hands then place it on its
support,

)
unfold it to the boot pillars,

)
hook the two cords,

)
if necessary, press on the top of the
rear parcel shelf, on the left and on
the right, to engage the fi xings.

FITTINGS

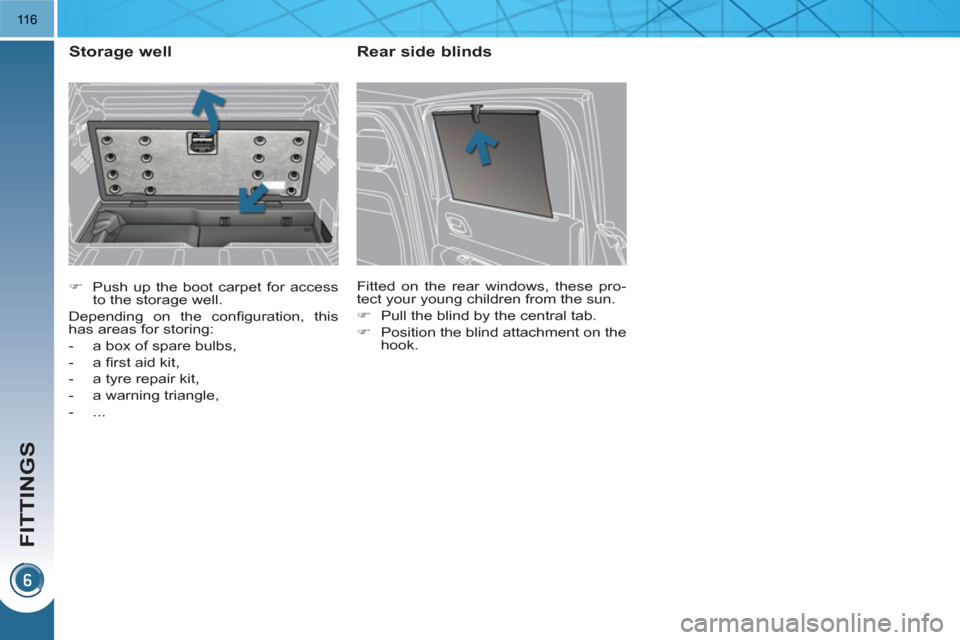

116


)
Push up the boot carpet for access
to the storage well.
Depending on the confi guration, this
has areas for storing:


- a box of spare bulbs,

- a fi rst aid kit,

- a tyre repair kit,

- a warning triangle,

- ...








Storage well








Rear side blinds

Fitted on the rear windows, these pro-
tect your young children from the sun.


)
Pull the blind by the central tab.

)
Position the blind attachment on the
hook.

CHILD SAFETY

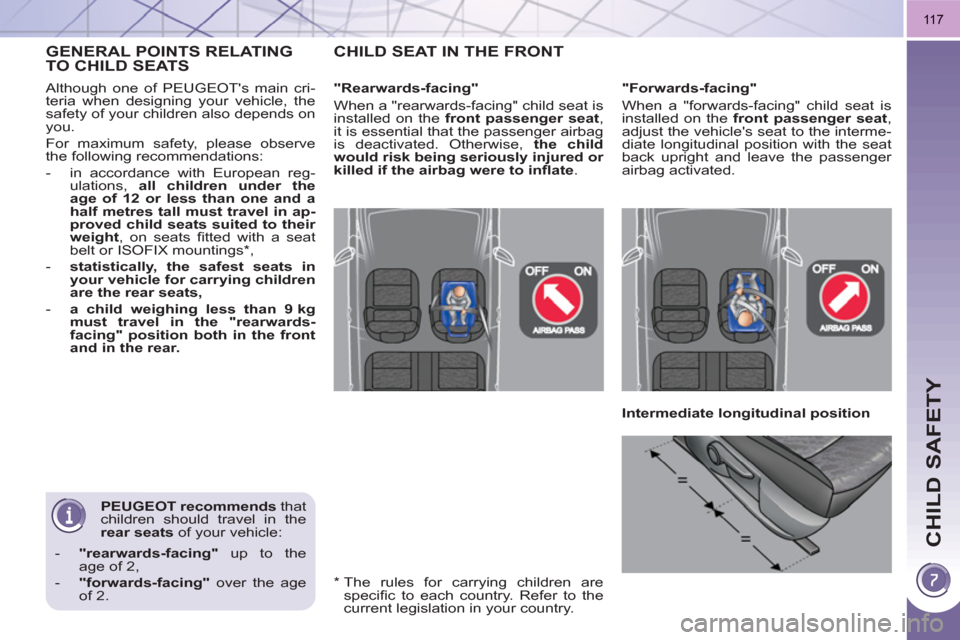

11 7

PEUGEOT recommends
that
children should travel in the
rear seats
of your vehicle:


- "rearwards-facing"
up to the
age of 2,

- "forwards-facing"
over the age
of 2.
GENERAL POINTS RELATING TO CHILD SEATS


"Forwards-facing"
When a "forwards-facing" child seat is
installed on the front passenger seat
,
adjust the vehicle's seat to the interme-
diate longitudinal position with the seat
back upright and leave the passenger
airbag activated.

Intermediate longitudinal position


*
The rules for carrying children are
specifi c to each country. Refer to the
current legislation in your country.
"Rearwards-facing"
When a "rearwards-facing" child seat is
installed on the front passenger seat
,
it is essential that the passenger airbag
is deactivated. Otherwise, the child
would risk being seriously injured or
killed if the airbag were to infl ate
. Although one of PEUGEOT's main cri-
teria when designing your vehicle, the
safety of your children also depends on
you.
For maximum safety, please observe
the following recommendations:


- in accordance with European reg-
ulations, all children under the
age of 12 or less than one and a
half metres tall must travel in ap-
proved child seats suited to their
weight
, on seats fi tted with a seat
belt or ISOFIX mountings * ,

- statistically, the safest seats in
your vehicle for carrying children
are the rear seats,


- a child weighing less than 9 kg
must travel in the "rearwards-
facing" position both in the front
and in the rear.



CHILD SEAT IN THE FRONT

CHILD SAFETY

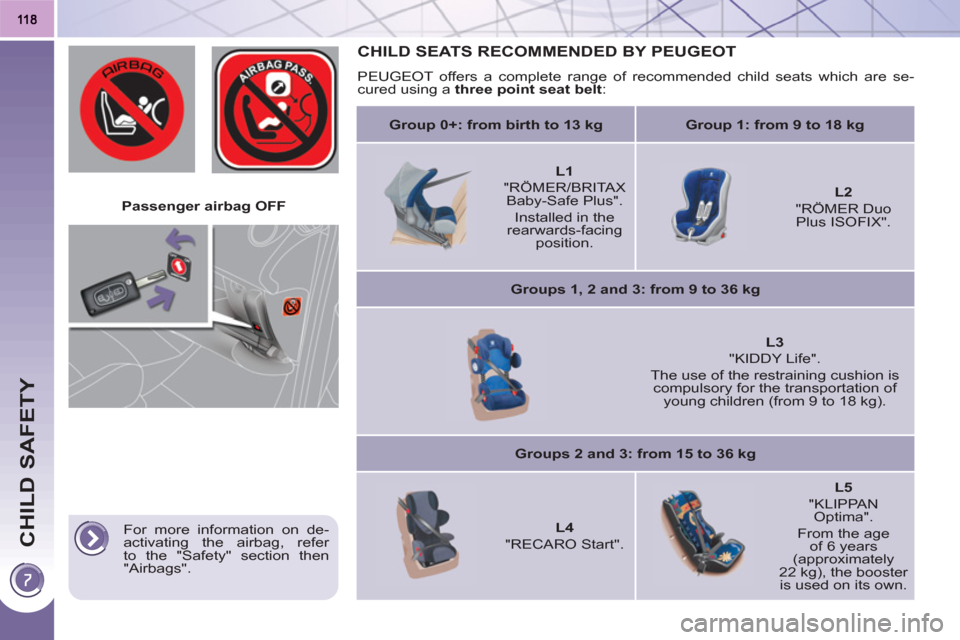

Passenger airbag OFF

CHILD SEATS RECOMMENDED BY PEUGEOT

PEUGEOT offers a complete range of recommended child seats which are se-
cured using a three point seat belt
:


Group 0+: from birth to 13 kg



Group 1: from 9 to 18 kg






L1


"RÖMER/BRITAX
Baby-Safe Plus".
Installed in the
rearwards-facing
position.



L2


"RÖMER Duo
Plus ISOFIX".


Groups 1, 2 and 3: from 9 to 36 kg






L3


"KIDDY Life".
The use of the restraining cushion is
compulsory for the transportation of
young children (from 9 to 18 kg).


Groups 2 and 3: from 15 to 36 kg






L4


"RECARO Start''.



L5


"KLIPPAN
Optima".
From the age
of 6 years
(approximately
22 kg), the booster
is used on its own.
For more information on de-
activating the airbag, refer
to the "Safety" section then
"Airbags".
