2011 Peugeot 3008 Hybrid 4 Owner's Manual

7

Displays according to version in the in-
strument panel screen or the Peugeot
Connect Media screen.

This mode allows a more dynamic driv-
ing style providing increased perform-
ance.
Acceleration and pickup are maximised
using the full capacity of the electric mo-
tor to supplement the Diesel engine.
The Stop & Start system operates in
this mode.



This mode provides improved traction.
The Diesel engine drives the front
wheels continuously and the electric
motor drives the rear wheels.
Their coupling is managed automatically
to optimise traction on slippery surfaces
and uneven ground (mode reserved for
severe conditions: deep snow, mud,
sand, …).
Sport mode
4WD mode (4 wheel drive)

8
FOR ECONOMICAL DRIVING, CARING FOR THE ENVIRONMENT

Main recommendations for driving economically


Gear lever
Use the automatic
mode A
as much
as possible as this optimises gear
changes to suit the requirements.
The fuel consumption
of a vehicle varies greatly
:


- according to the driver's style of driving
(moderate, aggressive, fast, ...),

- according to the type of journeys
made (urban, main road, motorway, fl ow-
ing, heavy traffi c, …) and the speed.


Hybrid mode selector
To optimise fuel consumption, use the
Auto
mode
of the selector whenever
possible (the mode is activated auto-
matically when starting) including for
urban journeys.
This mode optimises the use of the en-
ergy sources (internal combustion en-
gine and/or electric) contrary to other
modes, which are for use in particular
cases.
Stay in the "eco" zone
indicated in the
power meter: accelerate gently, drive at
steady speeds using the speed limiter
or cruise control as soon as possible.

Causes of high consumption and
checks
As with any vehicle, limit overloading,
wind resistance (windows open above
30 mph (50 km/h), roof rack, loaded or
not, …), the use of power consumers
(air conditioning, heated seats, heated
rear screen, …).
Observe the recommendations on
checks (regular check of tyre pres-
sures, correct tyre pressures, …) and
routine servicing.

Consumption history
See the impact of your style of driving
and the type of journey by reviewing
the history of your energy consumption.
Refer to the "Multifunction screens"
section.

Use the "charge"
zone: anticipate the
need to slow down by taking your foot
off the accelerator rather than braking.
The movement of the power meter nee-
dle (into the "charge" zone), indicates
the level of energy recovery.
Drive smoothly

9

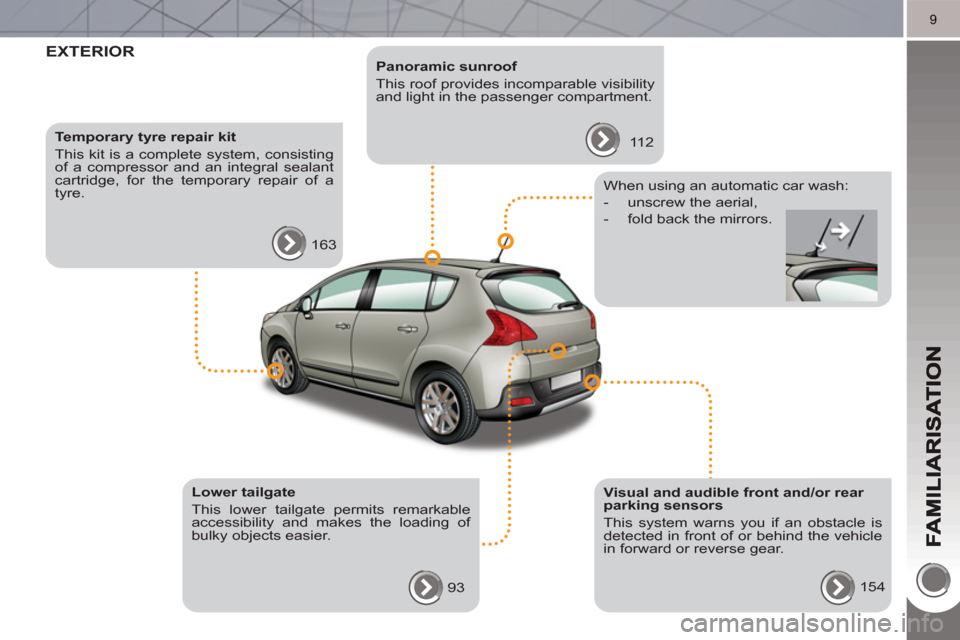

EXTERIOR

Panoramic sunroof
This roof provides incomparable visibility
and light in the passenger compartment.
112
Temporary tyre repair kit
This kit is a complete system, consisting
of a compressor and an integral sealant
cartridge, for the temporary repair of a
tyre.
163

Lower tailgate
This lower tailgate permits remarkable
accessibility and makes the loading of
bulky objects easier.
93
Visual and audible front and/or rear
parking sensors
This system warns you if an obstacle is
detected in front of or behind the vehicle
in forward or reverse gear.
154

When using an automatic car wash:


- unscrew the aerial,

- fold back the mirrors.

10
OPENING

Remote control ke
y



A.
Unfolding/Folding the key.
Normal locking
(press once; fi xed lighting of
the direction indicators).
Deadlocking the vehicle
(press twice in succession;
fi xed lighting of the direction
indicators).
Complete or selective unlock-
ing of the vehicle
(rapid fl ashing of the direction
indicators). or
81 When the light is poor, detected by
a sensor, the remote switching on of
the dipped headlamps and sidelamps
makes your approach to the vehicle
easier.
This function can be programmed via
the confi guration menu.
98
94


Fuel tank

Before refuelling, you
must
switch of the
ignition and ensure
that the Ready
lamp
is off.


1.
Open the fuel fi ller fl ap.

2.
Open and hook the fuel fi ller cap.
The type of fuel to be used is indicated
on the inner face of the fuel fi ller fl ap.
Capacity of the tank: approximately
56.5 litres.

11
OPENING
Boot

Opening


)
After unlocking the vehicle using the
remote control or the key, press the
handle A
and lift the tailgate.


Closing


)
After closing the lower tailgate, pull
the handle B
downwards to guide
the tailgate.

Lower tailgate

92
Opening


)
Push the handle C
to the right and
tilt the tailgate D
.


Closing


)
Raise the tailgate D
, push it fully to
close it, check that it is locked cor-
rectly.

93

12

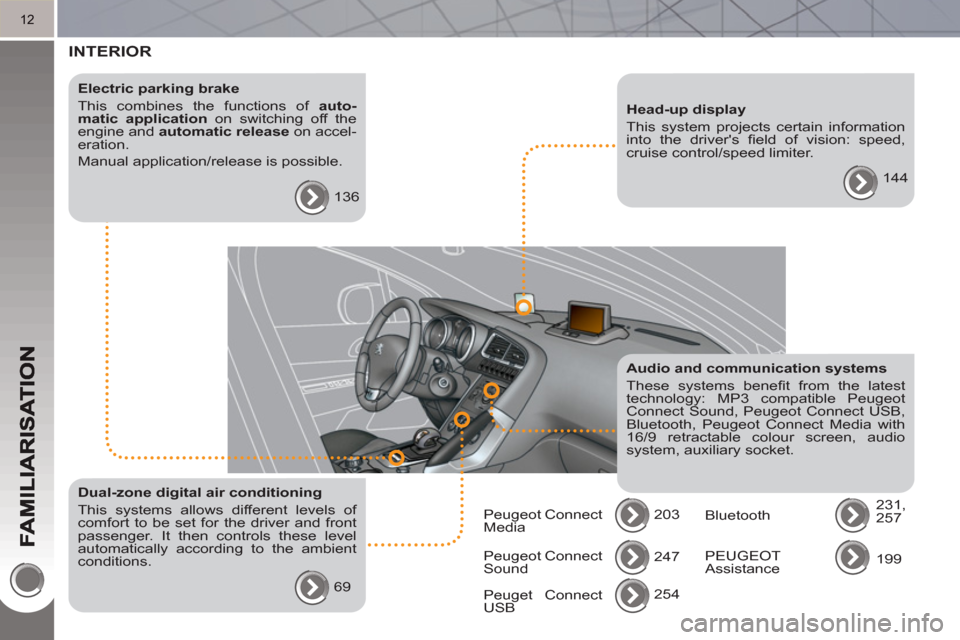

INTERIOR


Electric parking brake
This combines the functions of auto-
matic application
on switching off the
engine and automatic release
on accel-
eration.
Manual application/release is possible.
136

Audio and communication systems
These systems benefi t from the latest
technology: MP3 compatible Peugeot
Connect Sound, Peugeot Connect USB,
Bluetooth, Peugeot Connect Media with
16/9 retractable colour screen, audio
system, auxiliary socket.
203
Head-up display
This system projects certain information
into the driver's fi eld of vision: speed,
cruise control/speed limiter.
144

Dual-zone digital air conditioning
This systems allows different levels of
comfort to be set for the driver and front
passenger. It then controls these level
automatically according to the ambient
conditions.
69 Peugeot Connect
Sound 247
254
Peuget Connect
USB
Peugeot Connect
Media Bluetooth 231,
257
PEUGEOT
Assistance 199

13
INSTRUMENTS AND CONTROLS


1.
Cruise control/speed limiter
switches.

2.
Steering wheel adjustment control.

3.
Lighting and direction indicator
control stalk.

4.
Instrument panel.

5.
Driver's airbag.
Horn.

6.
Gear lever.

7.
Electric parking brake.

8.
Front armrest - Peugeot Connect
USB.

9.
Bonnet release.

10.
Driver's storage compartment
(Handbook).

11 .
ECO OFF button
Alarm button.
Parking sensors button.
Dynamic stability control button
(ESP/ASR).

12.
Manual headlamp adjustment.
Instrument panel navigator
associated with the Peugeot
Connect Media.

13.
Door mirror controls.
Electric window controls.
Child lock.

14.
Front side window demisting vent.

15.
Windscreen demisting vent.

14
INSTRUMENTS AND CONTROLS



1.
Steering lock and ignition.

2.
Audio and telematics system
steering mounted control.

3.
Wipers/screenwash/trip computer
control stalk.

4.
Central adjustable air vents.

5.
Head-up display.

6.
Multifunction screen.

7.
Passenger's airbag.

8.
Side adjustable air vent.

9.
Glove box - Audio/video sockets -
Passenger's airbag deactivation.

10.
Storage compartment with net.

11 .
HYbrid4 mode selector.

12.
12 V accessory socket.

13.
Grab handle.

14.
Heating/air conditioning controls.

15.
Audio and telematics system.

16.
Buttons:
- head-up display,
- hazard warning lamps,
- central locking.
