PRACTICAL INFORMATION

)
Connect the compressor's electric
plug to the vehicle's 12 V socket.

)
Start the vehicle again and leave the
engine running.

)
Visit a PEUGEOT dealer
as soon as possible.
You must inform the technician that
you have used this kit. After inspec-
tion, the technician will inform you
whether the tyre can be repaired or
must be replaced.



)
Turn the selector A
to the
"Air" position.

)
Uncoil the black pipe H
fully.

)
Connect the black pipe to
the valve of the wheel.
2. Infl ation

)
Adjust the pressure using the com-
pressor (to infl ate: switch B
in
position "I"
; to defl ate: switch B
in
position "O"
and press button C
), in
accordance with the vehicle's tyre
pressure label (located on the left
hand door aperture).
A loss of pressure indicates that the
puncture has not been fully plugged;
contact a PEUGEOT dealer for as-
sistance.

)
Remove and stow the kit.

)
Drive at reduced speed (50 mph
[80
m/h] max) limiting the distance
travelled to approximately 120 miles
(200 km).

PRACTICAL INFORMATION
168

Removing the cartridge




)
Stow the black pipe.

)
Detach the angled base from the
white pipe.

)
Support the compressor vertically.

)

Unscrew the cartridge from the bottom.



)
Connect the compressor's electrical
connector to the vehicle's 12 V socket.

)
Start the vehicle and let the engine
run.

)
Adjust the pressure using the
compressor (to infl ate: switch B
in
position "I"
; to defl ate: switch B
in
position "O"
and press button C
),
according to the vehicle's tyre pres-
sure label or the accessory's pres-
sure label.

)
Remove the kit then stow it.


Beware of discharges of fl uid.
The expiry date of the fl uid is
indicated on the cartridge.
The sealant cartridge is designed for
single use; even if only partly used, it
must be replaced.
After use, do not discard the car-
tridge into the environment, take it to
an authorised waste disposal site or
a PEUGEOT dealer.
Do not forget to obtain a new sealant
cartridge, available from PEUGEOT
dealers.



Checking tyre pressures/
inflating accessories

You can also use the compressor, without
injecting any product, to:


- check or adjust the pressure of your
tyres,

- infl ate other accessories.


)
Turn the selector A
to the
"Air" position.

)
Uncoil the black pipe H
fully.

)
Connect the black pipe to
the valve of the wheel or accessory.
If necessary, fi t one of the adaptors
supplied with the kit fi rst.

PRACTICAL INFORMATION
169
CHANGING A WHEEL
The tools are stowed in the boot.


Access to the tools

Procedure for changing a faulty wheel
for the spare wheel using the tools pro-
vided with the vehicle.
All of these tools are specifi c to your
vehicle. Do not use them for other
purposes.


1.
Wheelbrace *

.
For removing the wheel trim and
removing the wheel fi xing bolts.

2.
Jack with integral handle *

.
For raising the vehicle.

3.
"Bolt cover" tool (according to
equipment) *

.
For removing the bolt protectors
(covers) on alloy wheels.

4.
Centring guide *

.
For refi tting an alloy wheel to the
hub.
List of tools

Other accessories
5.
Socket for the security bolts
(located in the glove box) *

.
For adapting the wheelbrace to
the special "security" bolts.

6.
Two chocks to immobilise the
vehicle.


7.
Removable towing eye.
Refer to "Electric parking brake"
in the "Driving" section.
Refer to the paragraph "Towing
the vehicle".

8.
Electric parking brake emergency
release control.
Before doing any work on your
vehicle, switch off the ignition
( Ready
lamp off) to avoid any
risk of injury resulting from automatic
operation of the engine.

*
According to country.
Take care to use the jacking
points provided for the jack to
avoid damaging the cables.

PRACTICAL INFORMATION
170

Parking the vehicle
Immobilise the vehicle where
it does not block traffi c: the
ground must be level, stable and
non-slippery ground.
Apply the parking brake unless it
has been programmed to automatic
mode, switch off the ignition and put
the gear lever in the A
, M
or R
posi-
tion to lock the wheels.
Check that the braking warning lamp
and the P
warning lamp on the park-
ing brake control come on.
If necessary, place a chock under the
wheel diagonally opposite the wheel
to be changed.
The occupants must get out of the ve-
hicle and wait where they are safe.
Never go underneath a vehicle raised
using a jack; use an axle stand.










Removing a wheel

List of operations


)
Remove the chromed bolt cover from
each of the bolts using the tool 3

(according to equipment).

)
Fit the security socket 5
on the
wheelbrace 1
to slacken the security
bolt (if your vehicle has them).

)
Slacken the other bolts using the
wheelbrace 1
only.

)
Place the jack 2
in contact with one
of the two front A
or rear B
locations
provided on the underbody, which-
ever is closest to the wheel to be
changed.

)
Extend the jack 2
until its base plate
is in contact with the ground. Ensure
that the centreline of the jack base
plate is directly below the location A

or B
used.

)
Raise the vehicle until there is suf-
fi cient space between the wheel and
the ground to admit the spare (not
punctured) wheel easily.

)
Remove the bolts and store them in
a clean place.

)
Remove the wheel.

PRACTICAL INFORMATION
171

Fitting a wheel

List of operations


)
Put the wheel in place on the hub.

)
Screw in the bolts by hand to the
stop.

)
Pre-tighten the security bolt (if your
vehicle has them) using the wheel-
brace 1
fi tted with the security
socket 5
.

)
Pre-tighten the other bolts using the
wheelbrace 1
only.

)
Lower the vehicle fully.

)
Fold the jack 2
and detach it.

)

Tighten the security bolt (if your vehicle has them) using the wheelbrace 1

fi tted with the security socket 5
.

)
Tighten the other bolts using the
wheelbrace 1
only.

)
Refi t the chromed bolt covers on
each of the bolts (according to
equipment).

)
Stow the tools.


After changing a wheel
To store the punctured wheel
in the boot correctly, fi rst remove the
central cover.
Have the tightening of the bolts and
the pressure of the spare wheel
checked by a PEUGEOT dealer with-
out delay.
Have the punctured wheel repaired
and replace it on the vehicle as soon
as possible.

PRACTICAL INFORMATION
172







Changing dipped/main beam
headlamp bulbs


)
Remove the protective plastic cover
by pulling on the tab.

)
Disconnect the bulb connector.

)
Turn the bulb holder.

)
Pull out the bulb and change it.
To r efi t, carry out these operations in re-
verse order.
CHANGING A BULB










1.
Direction indicators
(PY21W-21W).


2.
Dipped/main beam headlamps
(H9-12V-65W).


3.
Sidelamps/daytime running
lamps (light emitting
diodes - LEDs).


4.
Foglamps (PS24-24W).



The headlamps are fi tted with
polycarbonate glass with a
protective coating:


)
do not clean them using a dry
or abrasive cloth, nor with a
detergent or solvent product,


)
use a sponge and soapy water,

)
when using a high pressure
washer on persistent marks, do
not direct at the lamps or their
outlines for too long, so as not to
damage their protective coating
and seals.


Front lamps




)
Do not touch the bulb directly with
your fi ngers, use lint-free cloths.
Changing a bulb should only be
done after the headlamp has been
switched off for a few minutes (risk of
serious burns).
It is imperative to use only anti-ultra-
violet (UV) type bulbs in order not to
damage the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specifi cation.


Changing the light emitting
diode-LED lamps
For replacement, contact a PEUGEOT
dealer or qualifi ed workshop.

Before doing any work on your
vehicle, switch off the ignition
( Ready
lamp off) to avoid any
risk of injury resulting from automatic
operation of the motor.

PRACTICAL INFORMATION
173

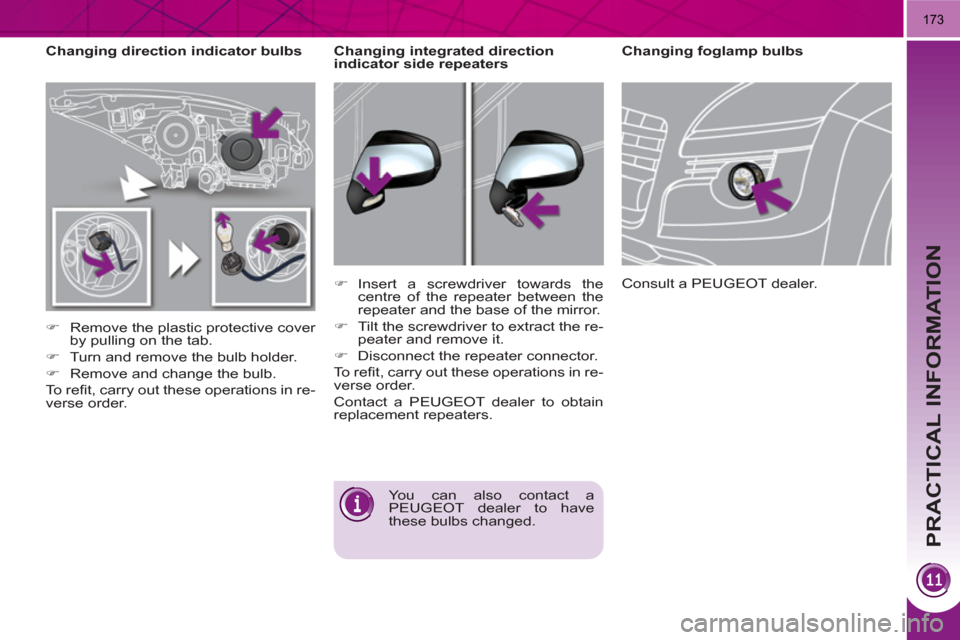

Changing direction indicator bulbs


)
Remove the plastic protective cover
by pulling on the tab.

)
Turn and remove the bulb holder.

)
Remove and change the bulb.
To r efi t, carry out these operations in re-
verse order.







Changing foglamp bulbs

You can also contact a
PEUGEOT dealer to have
these bulbs changed.
Consult a PEUGEOT dealer.



)
Insert a screwdriver towards the
centre of the repeater between the
repeater and the base of the mirror.

)
Tilt the screwdriver to extract the re-
peater and remove it.

)
Disconnect the repeater connector.
To r efi t, carry out these operations in re-
verse order.
Contact a PEUGEOT dealer to obtain
replacement repeaters.






Changing integrated direction
indicator side repeaters

PRACTICAL INFORMATION
174

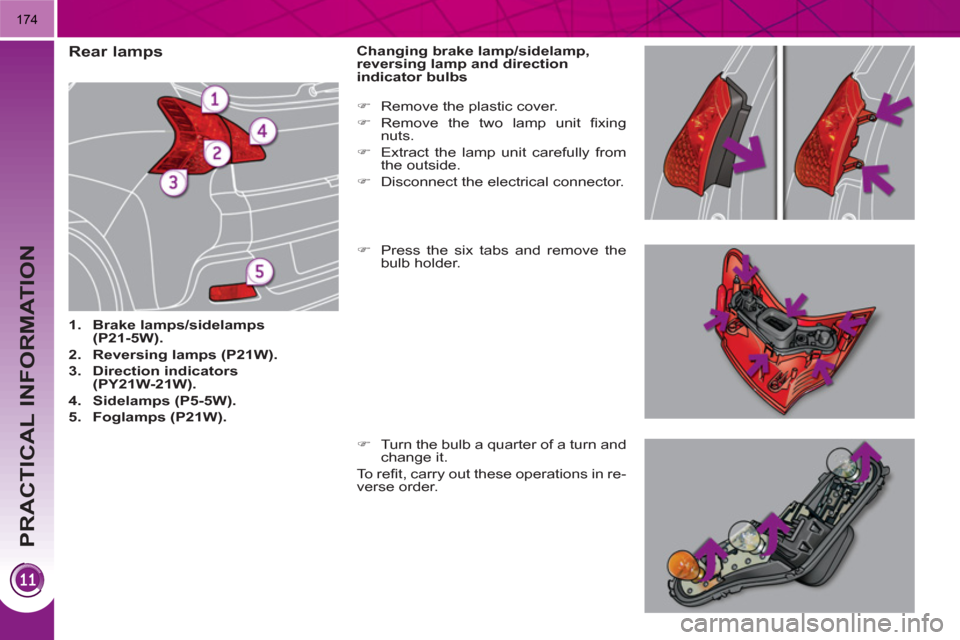

Rear lamps



1.
Brake lamps/sidelamps
(P21-5W).


2.
Reversing lamps (P21W).


3.
Direction indicators
(PY21W-21W).


4.
Sidelamps (P5-5W).


5.
Foglamps (P21W).




Changing brake lamp/sidelamp,
reversing lamp and direction
indicator bulbs

)
Press the six tabs and remove the
bulb holder.

)
Remove the plastic cover.

)
Remove the two lamp unit fi xing
nuts.

)
Extract the lamp unit carefully from
the outside.

)
Disconnect the electrical connector.

)
Turn the bulb a quarter of a turn and
change it.
To r efi t, carry out these operations in re-
verse order.
