2011 Peugeot 3008 Hybrid 4 Owner's Manual

55
Following this operation, if you
wish to disconnect the battery,
lock the vehicle and wait at
least fi ve minutes for the zero reset
to be taken into account.






Service indicator zero reset
After each service, the service indicator
must be reset to zero.
The procedure for resetting to zero is as
follows:


)
switch off the ignition,

)
press and hold the trip distance re-
corder zero reset button,

)
switch on the ignition; the distance
recorder display begins a count-
down,

)
when the display indicates "=0"
, re-
lease the button; the spanner disap-
pears.
The distance remaining may
be weighted by the time fac-
tor, depending on the driving
conditions.
Therefore, the spanner may also
come on if you have exceeded the
two year service interval.

Service overdue
For 5 seconds after the ignition is
switched on, the spanner fl ashes
to
indicate that the service must be carried
out as soon as possible.

Example:
the service is overdue by
186 miles (300 km).
For 5 seconds after the ignition is
switched on, the screen indicates:
5 seconds after the ignition is switched
on, the distance recorder resumes its
normal operation. The spanner re-
mains on
.
Retrieving the service information
You can access the service information
at any time.


)
Press the trip distance recorder zero
reset button.
The service information is displayed
for a few seconds, then disappears.

56

The level shown will only be
correct if the vehicle is on
level ground and the engine
has been off for more than
30 minutes.
Engine oil level indicator
System which informs the driver whether
the engine oil level is correct or not. This information is indicated for a few
seconds when the ignition is switched
on, after the service information.

Oil level correct

Oil level low
Oil level indicator fault

Dipstick
This is indicated by the fl ashing of "OIL"
,
linked with the service warning lamp, ac-
companied by an audible signal and a
message in the multifunction screen.
If the low oil level is confi rmed by a
check using the dipstick, the level must
be topped up to prevent damage to the
engine.

This is indicated by the fl ashing of "OIL --"
.
Contact a PEUGEOT dealer or a qualifi ed
workshop.

Refer to the "Checks" section to locate
the dipstick and the oil fi ller cap on your
engine.
There are 2 marks on the
dipstick:


- A
= max; never exceed
this level (risk of dam-
age to the engine),

- B
= min; top up the level
via the oil fi ller cap, us-
ing the grade of oil suit-
ed to your engine.

57
Total distance recorder
System which measures the total dis-
tance travelled by the vehicle during its
life.
Lighting dimmer
System for manual adjustment of the
brightness of the instrument panel in re-
lation to the exterior brightness.
The total and trip distances are dis-
played for thirty seconds when the ig-
nition is switched off, when the driver's
door is opened and when the vehicle is
locked or unlocked.
Trip distance recorder

System which measures a distance
travelled during a day or other period
since it was reset to zero by the driver.


)
With the ignition on, press the button
until zeros appear.

Activation
When the vehicle lighting is on:


)
press the button to change the
brightness of the instrument panel,

)
when the lighting reaches the mini-
mum setting, release the button,
then press again to increase it,
or


)
when the lighting reaches the maxi-
mum setting, release the button,
then press again to reduce it,

)
when the lighting reaches the level
of brightness required, release the
button.

When the vehicle lighting is
on, you cannot switch the in-
strument panel lighting off but
you can adjust it to minimum.

Deactivation
When the lighting is off, or in day mode
on vehicles fi tted with daytime running
lamps, pressing the button does not
have any effect.

58

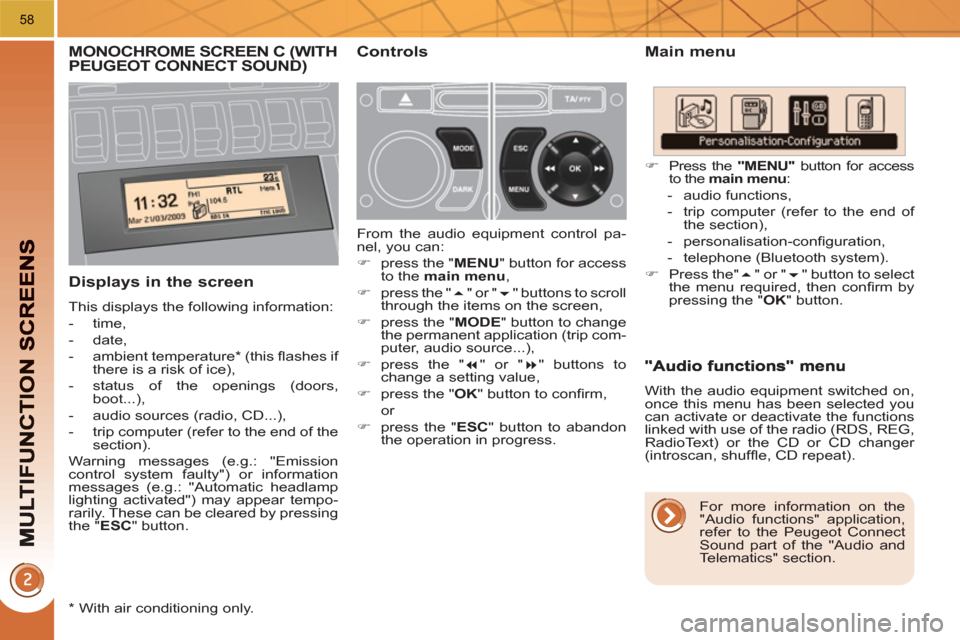

MONOCHROME SCREEN C (WITH PEUGEOT CONNECT SOUND) Main menu

Displays in the screen

This displays the following information:


- time,

- date,

- ambient temperature * (this fl ashes if
there is a risk of ice),

- status of the openings (doors,
boot...),

- audio sources (radio, CD...),

- trip computer (refer to the end of the
section).
Warning messages (e.g.: "Emission
control system faulty") or information
messages (e.g.: "Automatic headlamp
lighting activated") may appear tempo-
rarily. These can be cleared by pressing
the " ESC
" button.

With the audio equipment switched on,
once this menu has been selected you
can activate or deactivate the functions
linked with use of the radio (RDS, REG,
RadioText) or the CD or CD changer
(introscan, shuffl e, CD repeat).
Controls

From the audio equipment control pa-
nel, you can:


)
press the " MENU
" button for access
to the main menu
,

)
press the "
" or "
" buttons to scroll
through the items on the screen,

)
press the " MODE
" button to change
the permanent application (trip com-
puter, audio source...),

)
press the "
" or "
" buttons to
change a setting value,

)
press the " OK
" button to confi rm,
or

)
press the " ESC
" button to abandon
the operation in progress.


)
Press the "MENU"
button for access
to the main menu
:


- audio functions,

- trip computer (refer to the end of
the section),

- personalisation-confi guration,

- telephone (Bluetooth system).



)
Press the"
" or "
" button to select
the menu required, then confi rm by
pressing the " OK
" button.


*
With air conditioning only. For more information on the
"Audio functions" application,
refer to the Peugeot Connect
Sound part of the "Audio and
Telematics" section.

59

"Trip computer" menu



)
Press the "MENU"
button to gain
access to the general menu.

)
Press the arrows, then the "OK"

button to select the "Trip computer"

menu.

)
On the "Trip computer"
menu,
select one of the following applica-
tions:


Alert log
This summarises the active warning
messages, displaying them in succes-
sion in the multifunction screen Once this menu has been selected, you
can consult information concerning the
status of the vehicle (alert log, status of
the functions...).

Defi ne the vehicle parameters
Once this menu has been selected, you
can activate or deactivate the following
equipment (according to country):


- wiper linked with reverse gear (refer
to the "Visibility" section),

- selective unlocking (refer to the
"Access" section),

- guide-me-home lighting (refer to the
"Visibility" section),

- interior mood lighting (refer to the
"Visibility" section),

- daytime running lamps (refer to the
"Visibility" section),

- directional headlamps (refer to the
"Visibility" section),

- automatic or manual parking brake
(refer to the "Driving" section),

- ...
"Personalisation-
Configuration" menu
Once this menu has been selected, you
can gain access to the following func-
tions:


- defi ne the vehicle parameters,

- display confi guration,

- choice of language.


Status of functions
This summarises the active or inactive
status of the functions present on the
vehicle.

Enter the distance to the destination
This allows you to enter an approximate
value for the distance to the fi nal desti-
nation.

60

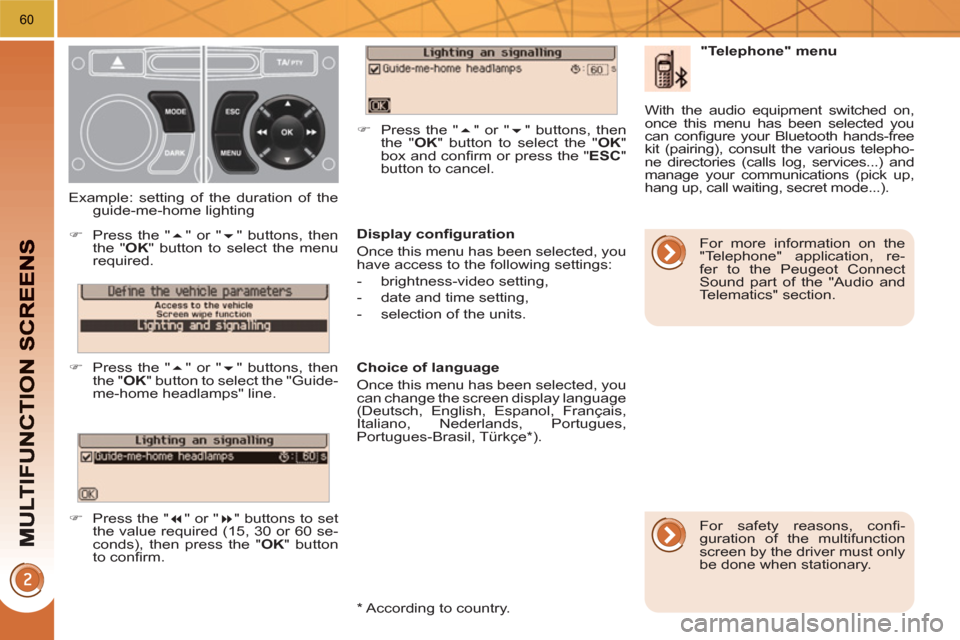

Display confi guration
Once this menu has been selected, you
have access to the following settings:


- brightness-video setting,

- date and time setting,

- selection of the units.


Choice of language
Once this menu has been selected, you
can change the screen display language
(Deutsch, English, Espanol, Français,
Italiano, Nederlands, Portugues,
Portugues-Brasil, Türkçe * ). Example: setting of the duration of the
guide-me-home lighting



)
Press the "
" or "
" buttons, then
the " OK
" button to select the menu
required.

)
Press the "
" or "
" buttons, then
the " OK
" button to select the "Guide-
me-home headlamps" line.

)
Press the "
" or "
" buttons to set
the value required (15, 30 or 60 se-
conds), then press the " OK
" button
to confi rm.
)
Press the "
" or "
" buttons, then
the " OK
" button to select the " OK
"
box and confi rm or press the " ESC
"
button to cancel.



"Telephone" menu
With the audio equipment switched on,
once this menu has been selected you
can confi gure your Bluetooth hands-free
kit (pairing), consult the various telepho-
ne directories (calls log, services...) and
manage your communications (pick up,
hang up, call waiting, secret mode...).

* According to country. For safety reasons, confi -
guration of the multifunction
screen by the driver must only
be done when stationary. For more information on the
"Telephone" application, re-
fer to the Peugeot Connect
Sound part of the "Audio and
Telematics" section.

61

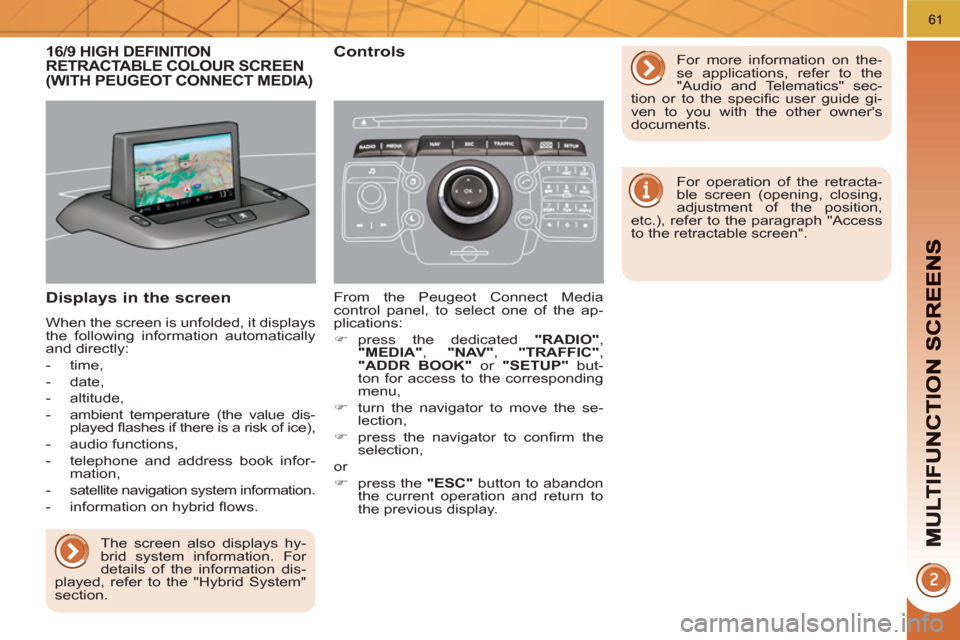

16/9 HIGH DEFINITION
RETRACTABLE COLOUR SCREEN
(WITH PEUGEOT CONNECT MEDIA)
Displays in the screen
When the screen is unfolded, it displays
the following information automatically
and directly:


- time,

- date,

- altitude,

- ambient temperature (the value dis-
played fl ashes if there is a risk of ice),

- audio functions,

- telephone and address book infor-
mation,

-
satellite navigation system information.


- information on hybrid fl ows.



Controls

From the Peugeot Connect Media
control panel, to select one of the ap-
plications:


)
press the dedicated "RADIO"
,
"MEDIA"
, "NAV"
, "TRAFFIC"
,
"ADDR BOOK"
or "SETUP"
but-
ton for access to the corresponding
menu,

)
turn the navigator to move the se-
lection,

)
press the navigator to confi rm the
selection,
or

)
press the "ESC"
button to abandon
the current operation and return to
the previous display. For more information on the-
se applications, refer to the
"Audio and Telematics" sec-
tion or to the specifi c user guide gi-
ven to you with the other owner's
documents.
For operation of the retracta-
ble screen (opening, closing,
adjustment of the position,
etc.), refer to the paragraph "Access
to the retractable screen".

The screen also displays hy-
brid system information. For
details of the information dis-
played, refer to the "Hybrid System"
section.

62

*
According to country.

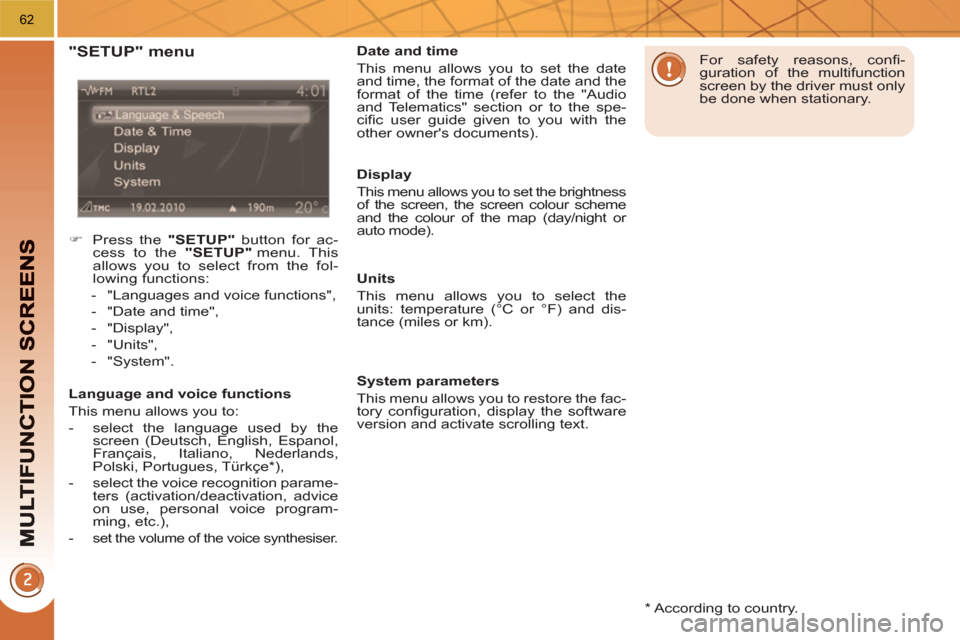

"SETUP" menu



)
Press the "SETUP"
button for ac-
cess to the "SETUP"
menu. This
allows you to select from the fol-
lowing functions:


- "Languages and voice functions",

- "Date and time",

- "Display",

- "Units",

- "System".


Language and voice functions
This menu allows you to:


- select the language used by the
screen (Deutsch, English, Espanol,
Français, Italiano, Nederlands,
Polski, Portugues, Türkçe * ),

- select the voice recognition parame-
ters (activation/deactivation, advice
on use, personal voice program-
ming, etc.),

-
set the volume of the voice synthesiser.



Date and time
This menu allows you to set the date
and time, the format of the date and the
format of the time (refer to the "Audio
and Telematics" section or to the spe-
cifi c user guide given to you with the
other owner's documents).

Display
This menu allows you to set the brightness
of the screen, the screen colour scheme
and the colour of the map (day/night or
auto mode).

Units
This menu allows you to select the
units: temperature (°C or °F) and dis-
tance (miles or km).

System parameters
This menu allows you to restore the fac-
tory confi guration, display the software
version and activate scrolling text.

For safety reasons, confi -
guration of the multifunction
screen by the driver must only
be done when stationary.
