2011 Peugeot 3008 Hybrid 4 Owner's Manual

CHILD SAFETY
119
INSTALLING CHILD SEATS WITH A STAY
Precautions must be taken when installing a child seat with a stay (or drop down leg). In particular, take care when there is a
storage compartment present in the rear footwells.

At the bottom of the storage
compartment
If the stay is long enough, you can place
it in contact with the bottom of the stor-
age compartment. Remove all objects
before installing the stay.


Outside the storage
compartment area
One other possibility, where the stay is
long enough and can be inclined suffi -
ciently (while observing the recommen-
dations in the fi tting instructions for the
child seat), is to position the stay so that
it is in contact with the fl oor away from
the storage compartment. Remember
to use the adjustment of the seat posi-
tion to obtain a satisfactory position for
the stay which is away from the storage
compartment.
If you cannot fi t the stay in the way de-
scribed, we recommend that you do not
fi t a child seat with a stay in this position. Do not place the stay on the
storage compartment cover,
it could break in a serious im-
pact. Where the range of adjustment
for the stay allows, we suggest two
other possibilities for installation.

CHILD SAFETY
120
INSTALLING CHILD SEATS ATTACHED USING THE SEAT BELT
In accordance with European regulations, this table indicates the options for installing child seats secured using a seat belt
and universally approved (a)
in accordance with the weight of the child and the seat in the vehicle.

a:
universal child seat, child seat that can be installed in all vehicles using a seat belt.

b:
group 0, from birth to 10 kg. Shell seats and baby carriers cannot be installed in the front passenger seat.

c:
consult the legislation in force in your country before installing your child on this seat.

U:
seat suitable for the installation of a child seat secured using a seat belt and universally approved, "rearwards-facing"
and/or "forwards-facing".

U (R):
as for U
, with the vehicle's seat adjusted to the highest position and as far back as possible.

L-:
only the child seats indicated can be installed on the seat concerned (according to country).

X:
seat position not suitable for installation of a child seat for the weight class indicated.

Weight of the child and indicative age




Seat



Under 13 kg


(groups 0 (b)
and
0+)
Up to approx 1 year

From 9 to 18 kg


(group 1)
1 to 3 years approx

From 15 to 25 kg


(group 2)
3 to 6 years approx

From 22 to 36 kg


(group 3)
6 to 10 years approx
Front passenger
seat (c)
with
height adjuster


U (R)



U (R)



U (R)



U (R)


Front passenger
seat (c)
without
height adjuster

X



X



X



X


Outer rear seats


U

*


U

*


U

*


U

*

Centre rear seat

L1



L2, L3, L4



L3, L4, L5



L3, L4, L5



*
Child seats with a
stay
(or drop down leg) should be fi tted to your vehicle with care. Refer to the page on fi tting a child seat
with a stay.

CHILD SAFETY

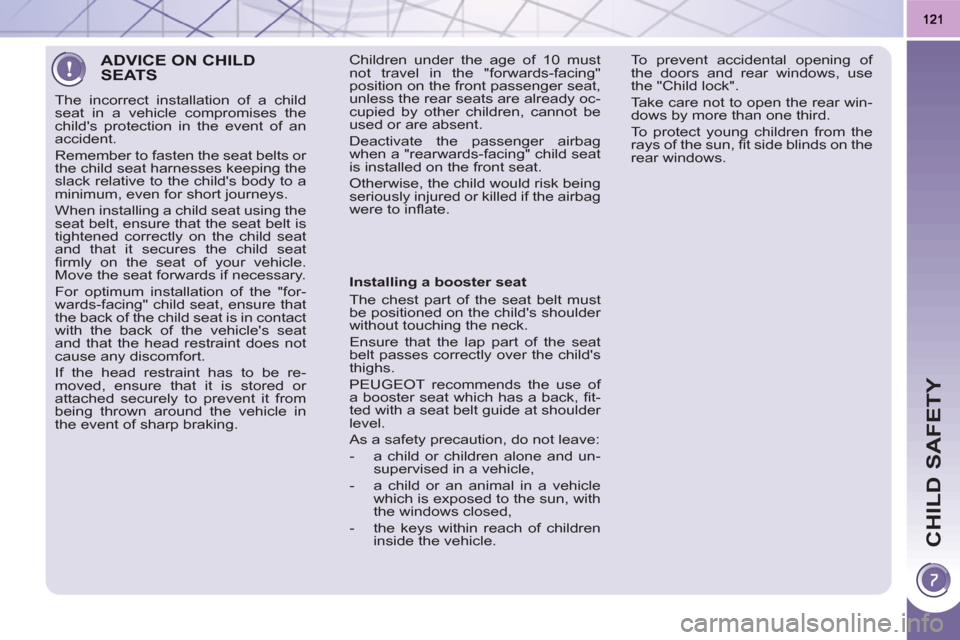

ADVICE ON CHILDSEATS

The incorrect installation of a child
seat in a vehicle compromises the
child's protection in the event of an
accident.
Remember to fasten the seat belts or
the child seat harnesses keeping the
slack relative to the child's body to a
minimum, even for short journeys.
When installing a child seat using the
seat belt, ensure that the seat belt is
tightened correctly on the child seat
and that it secures the child seat
fi rmly on the seat of your vehicle.
Move the seat forwards if necessary.
For optimum installation of the "for-
wards-facing" child seat, ensure that
the back of the child seat is in contact
with the back of the vehicle's seat
and that the head restraint does not
cause any discomfort.
If the head restraint has to be re-
moved, ensure that it is stored or
attached securely to prevent it from
being thrown around the vehicle in
the event of sharp braking.
Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat
belt passes correctly over the child's
thighs.
PEUGEOT recommends the use of
a booster seat which has a back, fi t-
ted with a seat belt guide at shoulder
level.
As a safety precaution, do not leave:


- a child or children alone and un-
supervised in a vehicle,

- a child or an animal in a vehicle
which is exposed to the sun, with
the windows closed,

- the keys within reach of children
inside the vehicle. To prevent accidental opening of
the doors and rear windows, use
the "Child lock".
Take care not to open the rear win-
dows by more than one third.
To protect young children from the
rays of the sun, fi t side blinds on the
rear windows.
Children under the age of 10 must
not travel in the "forwards-facing"
position on the front passenger seat,
unless the rear seats are already oc-
cupied by other children, cannot be
used or are absent.
Deactivate the passenger airbag
when a "rearwards-facing" child seat
is installed on the front seat.
Otherwise, the child would risk being
seriously injured or killed if the airbag
were to infl ate.

CHILD SAFETY
122
"ISOFIX" MOUNTINGS
Your vehicle has been approved in ac-
cordance with the latest
ISOFIX regu-
lation

s
.
The seats, represented below, are fi tted
with regulation ISOFIX mountings: There are three rings for each seat:


- two rings A
, located between the
vehicle seat back and cushion, indi-
cated by a label,

- a ring B
, behind the seat, referred to
as the TOP TETHER
for fi xing the
upper strap. This ISOFIX mounting system provides
fast, reliable and safe fi tting of the child
seat in your vehicle.
The ISOFIX child seats
are fi tted with
two latches which are easily secured on
the two rings A
.
Some also have an upper strap
which
is attached to ring B
.
To attach this strap, raise the vehicle
seat's head restraint then pass the hook
between its rods. Then fi x the hook on
ring B
and tighten the upper strap.
The incorrect installation of a child seat
in a vehicle compromises the child's
protection in the event of an accident.
For information regarding the ISOFIX
child seats which can be installed in
your vehicle, refer to the table showing
the locations for installing ISOFIX child
seats.

CHILD SAFETY
123
This child seat can also be
used on seats which are not
fi tted with ISOFIX mountings.
In this case, it must be attached to
the vehicle seat using the three point
seat belt.

Follow the instructions for fi tting
the child seat given in the seat
manufacturer's installation guide.

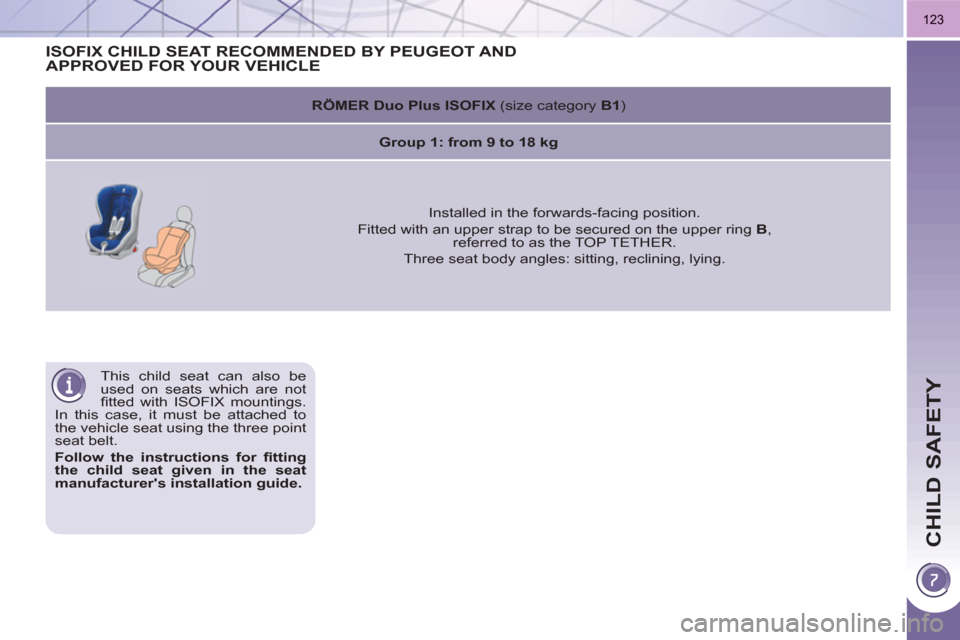

ISOFIX CHILD SEAT RECOMMENDED BY PEUGEOT ANDAPPROVED FOR YOUR VEHICLE



RÖMER Duo Plus ISOFIX
(size category B1
)


Group 1: from 9 to 18 kg





Installed in the forwards-facing position.
Fitted with an upper strap to be secured on the upper ring B
,
referred to as the TOP TETHER.
Three seat body angles: sitting, reclining, lying.

CHILD SAFETY
124

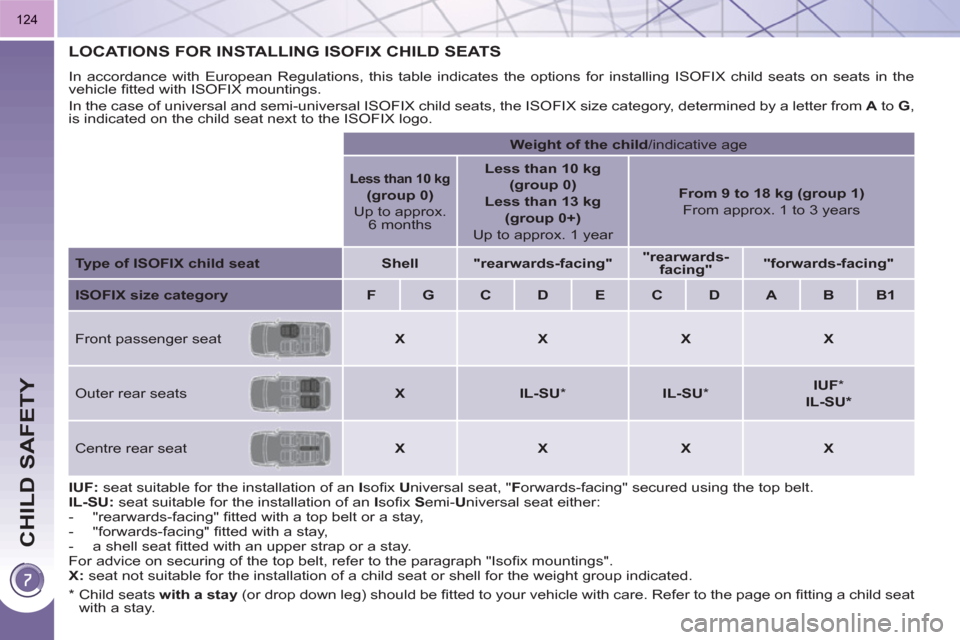

LOCATIONS FOR INSTALLING ISOFIX CHILD SEATS
In accordance with European Regulations, this table indicates the options for installing ISOFIX child seats on seats in the
vehicle fi tted with ISOFIX mountings.
In the case of universal and semi-universal ISOFIX child seats, the ISOFIX size category, determined by a letter from A
to G
,
is indicated on the child seat next to the ISOFIX logo.

IUF:
seat suitable for the installation of an I
sofi x U
niversal seat, " F
orwards-facing" secured using the top belt.

IL-SU:
seat suitable for the installation of an I
sofi x S
emi- U
niversal seat either:


- "rearwards-facing" fi tted with a top belt or a stay,

- "forwards-facing" fi tted with a stay,

- a shell seat fi tted with an upper strap or a stay.
For advice on securing of the top belt, refer to the paragraph "Isofi x mountings".

X:
seat not suitable for the installation of a child seat or shell for the weight group indicated.



Weight of the child
/indicative age



Less than 10 kg
(group 0)


Up to approx.
6 months

Less than 10 kg


(group 0)
Less than 13 kg


(group 0+)


Up to approx. 1 year

From 9 to 18 kg (group 1)


From approx. 1 to 3 years


Type of ISOFIX child seat



Shell



"rearwards-facing"



"rearwards-
facing"



"forwards-facing"




ISOFIX size category



F



G



C



D



E



C



D



A



B



B1



Front passenger seat

X



X



X



X



Outer rear seats

X



IL-SU

*


IL-SU

*


IUF

*

IL-SU *



Centre rear seat

X



X



X



X



*
Child seats with a

stay
(or drop down leg) should be fi tted to your vehicle with care. Refer to the page on fi tting a child seat
with a stay.

CHILD SAFETY

This system is independent
and in no circumstances does
it take the place of the central
locking control.
Check the status of the child lock
each time you switch on the ignition.
Always remove the key from the igni-
tion when leaving the vehicle, even
for a short time.
In the event of a serious impact, the
electric child lock is deactivated auto-matically to permit the exit of the rear
passengers.

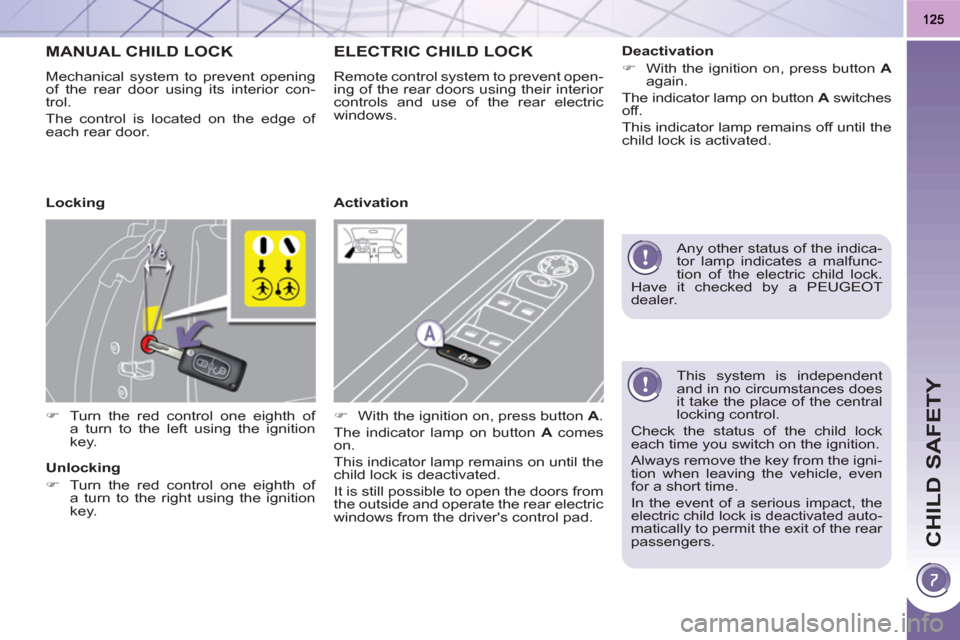

MANUAL CHILD LOCK

Mechanical system to prevent opening
of the rear door using its interior con-
trol.
The control is located on the edge of
each rear door.


)
Turn the red control one eighth of
a turn to the left using the ignition
key.


ELECTRIC CHILD LOCK

Remote control system to prevent open-
ing of the rear doors using their interior
controls and use of the rear electric
windows.


)
With the ignition on, press button A
.
The indicator lamp on button A
comes
on.
This indicator lamp remains on until the
child lock is deactivated.
It is still possible to open the doors from
the outside and operate the rear electric
windows from the driver's control pad.
Locking

Unlocking


)
Turn the red control one eighth of
a turn to the right using the ignition
key.




Activation
Deactivation


)
With the ignition on, press button A

again.
The indicator lamp on button A
switches
off.
This indicator lamp remains off until the
child lock is activated.

Any other status of the indica-
tor lamp indicates a malfunc-
tion of the electric child lock.
Have it checked by a PEUGEOT
dealer.

126

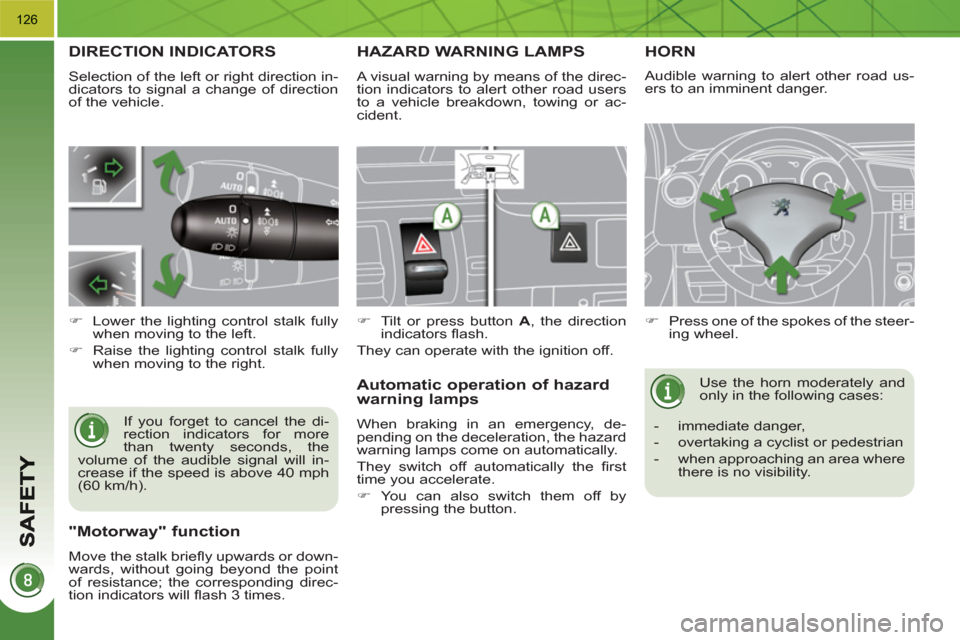

DIRECTION INDICATORS

Selection of the left or right direction in-
dicators to signal a change of direction
of the vehicle.
If you forget to cancel the di-
rection indicators for more
than twenty seconds, the
volume of the audible signal will in-
crease if the speed is above 40 mph
(60 km/h).

)
Lower the lighting control stalk fully
when moving to the left.

)
Raise the lighting control stalk fully
when moving to the right.
HAZARD WARNING LAMPS

A visual warning by means of the direc-
tion indicators to alert other road users
to a vehicle breakdown, towing or ac-
cident.


)
Tilt or press button A
, the direction
indicators fl ash.
They can operate with the ignition off.
Automatic operation of hazard
warning lamps
When braking in an emergency, de-
pending on the deceleration, the hazard
warning lamps come on automatically.
They switch off automatically the fi rst
time you accelerate.


)
You can also switch them off by
pressing the button.

HORN



)
Press one of the spokes of the steer-
ing wheel.
Use the horn moderately and
only in the following cases:


- immediate danger,

- overtaking a cyclist or pedestrian

- when approaching an area where
there is no visibility.

Audible warning to alert other road us-
ers to an imminent danger.

"Motorway" function

Move the stalk briefl y upwards or down-
wards, without going beyond the point
of resistance; the corresponding direc-
tion indicators will fl ash 3 times.
