178(b) Inspect the combination meter assembly speed input signal
1Inspect voltage
yHold the front wheels up
yPush the shift lever to NEUTRAL
yTurn the ignition switch to ON
ySlowly turn the front wheel, measure the voltage between terminal A9 and A11
Standard voltage is as follows:
Voltage changes alternately
Result and solution:
Normal Replace the combination meter assembly
If abnormal, inspect the speed sensor
2Inspect the speed sensor
y Inspect continuity
Inspect continuity between terminals
Standard:Tester connection Condition Standard condition
2 - ground Normal c ondition ContinuityTurning WheelsBelow 0.5V

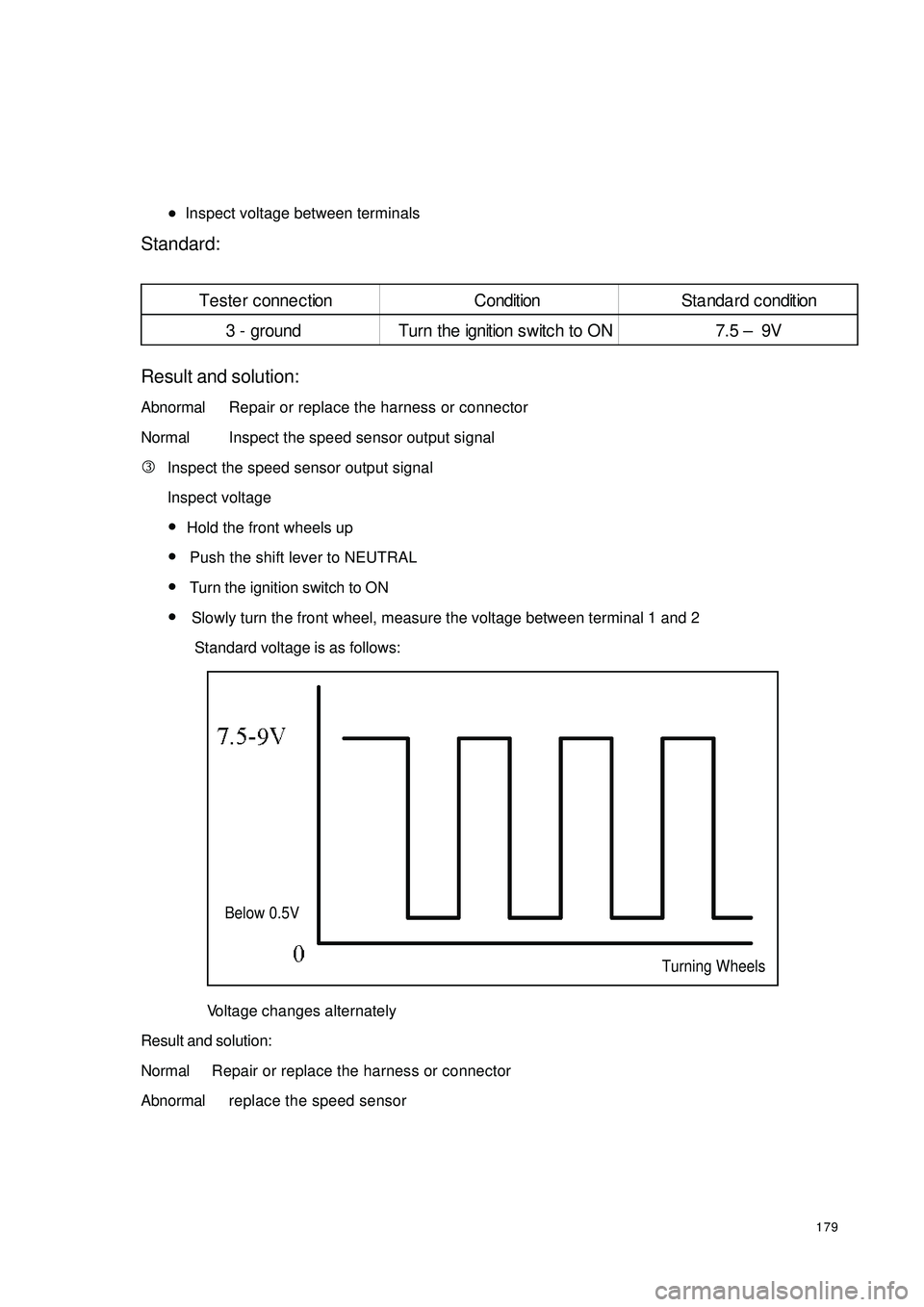

179yInspect voltage between terminals
Standard:
Result and solution:
AbnormalRepair or replace the harness or connector
NormalInspect the speed sensor output signal
3Inspect the speed sensor output signal
Inspect voltage
yHold the front wheels up
yPush the shift lever to NEUTRAL
yTurn the ignition switch to ON
ySlowly turn the front wheel, measure the voltage between terminal 1 and 2
Standard voltage is as follows:
Voltage changes alternately
Result and solution:
NormalRepair or replace the harness or connector
Abnormalreplace the speed sensorTurning WheelsBelow 0.5VTe ste r c onne c tion Condition Sta nda rd c ondition
3 - ground Turn the ignition switch to ON 7.5 – 9V

180(c) Inspect the combination meter assembly
1Remove the combination meter assembly and disconnect connectors.
2 Inspect continuity
yInspect continuity between terminals
Standard:
3Inspect voltage between terminals
Result and solution:
AbnormalRepair or replace the harness or connector
NormalReplace the combination meter assemblyTeste r c onne ction Condition Sta ndard c ondition
B7 - ground Normal c ondition Continuity
B8 - ground Normal c ondition ContinuityTe ste r c onne c tion Condition Sta nda rd c ondition
B4 - ground Turn the ignition switch to ON 10 – 14V

1813. TACHOMETER MALFUNCTION
CIRCUIT DIAGRAM
Inspection procedure
(a) Inspect the combination meter assembly revolution input signal
1Remove the combination meter assembly and retain the connection of connectors.
2Connect the oscilloscope to the terminal B11 and
ground.
3Start the engine
4Inspect the signal wave form
Standard:
Show the correct wave form
Result and solution:
NormalInspect and replace the combination
meter assembly
AbnormalInspect the engine ECU revolution out-
put signalEngine ECUCombined Meter Assembly
Engine Revolution Signal

182(b) Inspect the engine ECU revolution output signal
1Remove the engine ECU and retain the connection of connectors.
2Connect the oscilloscope to the terminal 54 and ground.
3Start the engine
4Inspect the signal wave form
Standard:
Show the correct wave form
Result and solution:
NormalRepair or replace the harness or
connector
AbnormalInspect the engine control system

1834. WATER TEMPERATURE GAUGE MALFUNCTION
CIRCUIT DIAGRAM
(a) Get the value of water temperature with the diagnosis tester
1Connect the diagnosis tester to the diagnosis interface
2Turn the ignition switch to ON
3Read the value of engine water temperature displayed on the diagnosis tester
Standard: The same with the actual engine coolant temperature.
Result and solution:
If it is normal, the water temperature gauge has no malfunction
If abnormal, Inspect the combination meter assembly
(b) Inspect the combination meter assembly
1Inspect resistance
yRemove the combination meter assembly and disconnect connectors
yInspect continuity between terminalsWater Temperature SensorCombined Meter Assembly
Water
Temperature
Signal

184Standard:
Result and solution:
NormalReplace the combination meter assembly
If abnormalinspect the water temperature sensor
2Inspect the water temperature sensor
yRemove the water temperature sensor and put it into the constant temperature cabinet.
yAdjust the temperature in the constant temperature cabinet and measure the resistance of the
water temperature sensor.
Standard:
Result and solution:
NormalRepair or replace the harness and connector
If abnormalreplace the water temperature sensorTe ste r c onne c tion Condition Standa rd condition
C(60℃
)164.5±5Ω
1/2C(90℃
) 56±3Ω
H(115℃
)28.7±2Ω B5 - groundC ondit ion S t a nda r d c ondit ion
C(60℃
) 164.5±5Ω
1/2C(90℃
)56±3Ω
H(115℃
) 28.7±2Ω

1855. FUEL GAUGE MALFUNCTION
CIRCUIT DIAGRAM
(a) Inspect the combination meter assembly
1Inspect resistance
yRemove the combination meter assembly and disconnect connectors
yInspect continuity between terminals
Standard:
Result and solution:
NormalReplace the combination meter assembly
If abnormal inspect the fuel level sensor
2Inspect the fuel level sensor
yRemove the fuel level sensor
yAdjust the height of the fuel level sensor and measure its resistance.Te ster connec tionC ondit ionSta ndard c onditionE110±6Ω
1/2 32.5±3Ω
F3±2Ω A12 - groundFuel Level SensorCombined Meter Assembly
Fuel Signal
