2008 GEELY CK Workshop Manual

2108. REAR ROW READING LAMP ASSEMBLY
Inspect rear row reading lamp switch assembly continuity
Inspect continuity between the 2 terminals when the switch operates
If it is not as specified, replace the switch.
9. Front fog lamp relay
Inspect front fog lamp relay for continuity
(a) Inspect continuity between terminals
If it is not as specified, replace the relay.
(b) Impose a battery voltage (10V~14V) between terminal 86 and terminal 85, then inspect continuity
between terminal 30 and terminal 87. If not, replace the relay.S w it c h pos it ion T e s t e d t e r mina l C ondit ion
ON 1/2 Continuity
OFF 1/2 No continuityTe ste d te rmina l Condition
86-85 Continuity
30-87 No c ontinuity

211Section 3 Headlamp ReplacementI. REMOVAL1. Remove front bumper (See bumper replacement).
2. Remove the 3 mounting bolts (A, B, C as shown in the illustration) on the headlamp.
3. Remove the electrical connector.
4. Move the assembly forwards and upwards then remove it.Electrical Connector

212II.INSTALLATION1. Install the electrical connector of the headlamp assembly.
2. Install the headlamp assembly and the 3 mounting bolts.
3. Install the front bumper.
4. Adjust the condition of the vehicle.
5. Adjust the headlamp beam.III.HEADLAMP BULB REPLACEMENT1 - LOW BEAM DUST COVER 2 - HIGH BEAM DUST COVER 3 - TURN SIGNAL LAMP DUST
COVER 4 - HEADLAMP HOLDER
1. Replace the high and low beam bulbs
y Turn and remove the dust cover counter-clockwise
y Pull out the bulb plug
y Press and release the wire clip
y Pull out the lamp-holder, and remove the bulb
y Replace the bulb
2. Replace the turn signal lamp bulbs
y Remove the 3 screws on the dust cover with screwdriver
yTurn the lamp-holder counter-clockwise. Pull out the lamp-holder, and remove the bulb
yReplace the bulb
3. Replace the headlamp bulbs
yTurn the lamp-holder counter-clockwise. Pull out the lamp-holder, remove the bulb, and replace the
bulb.1 2 3 4

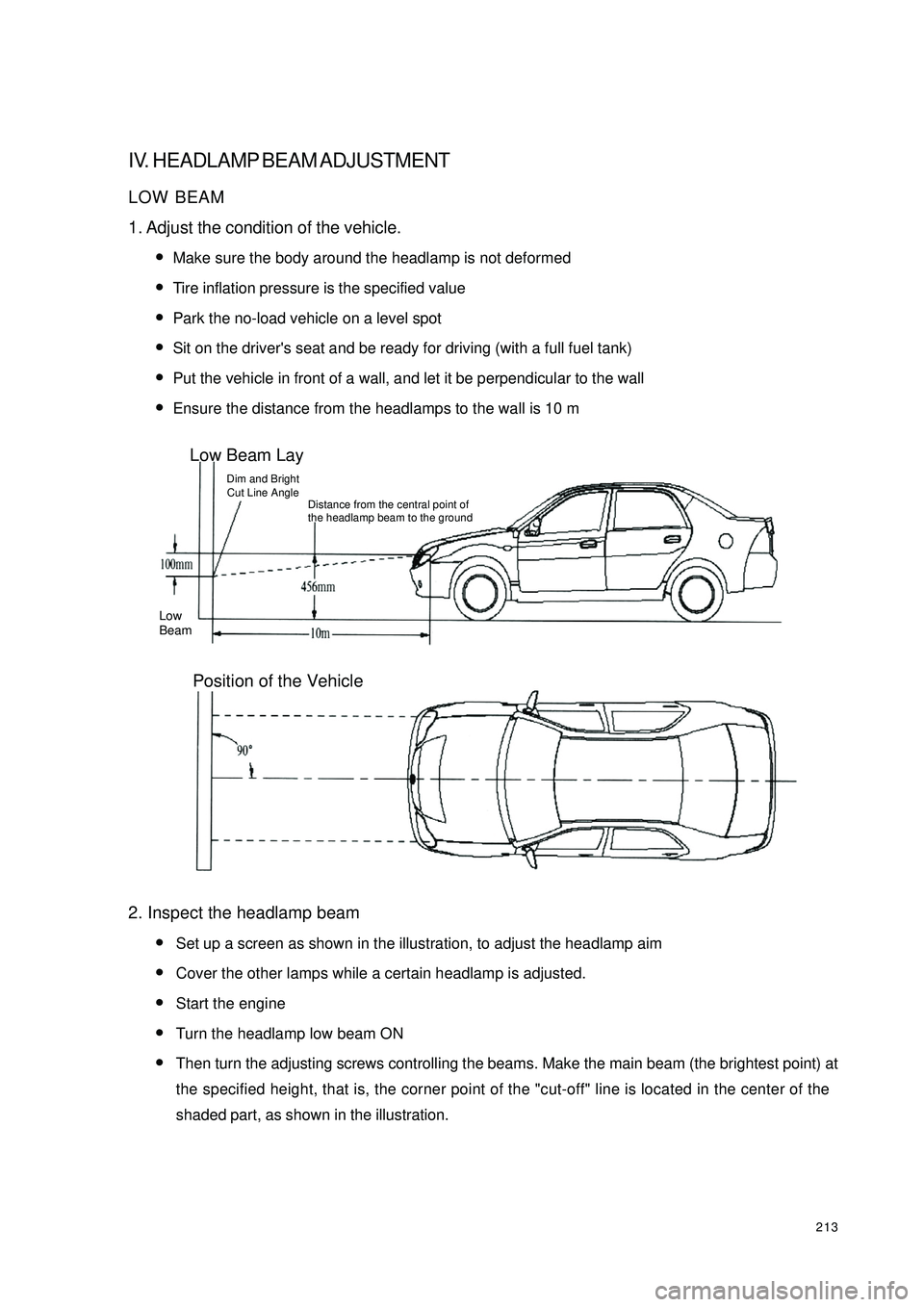

213IV. HEADLAMP BEAM ADJUSTMENTLOW BEAM
1. Adjust the condition of the vehicle.
yMake sure the body around the headlamp is not deformed
yTire inflation pressure is the specified value
yPark the no-load vehicle on a level spot
ySit on the driver's seat and be ready for driving (with a full fuel tank)
yPut the vehicle in front of a wall, and let it be perpendicular to the wall
yEnsure the distance from the headlamps to the wall is 10 m
2. Inspect the headlamp beam
ySet up a screen as shown in the illustration, to adjust the headlamp aim
yCover the other lamps while a certain headlamp is adjusted.
yStart the engine
yTurn the headlamp low beam ON
yThen turn the adjusting screws controlling the beams. Make the main beam (the brightest point) at
the specified height, that is, the corner point of the "cut-off" line is located in the center of the
shaded part, as shown in the illustration.Low Beam LayDim and Bright
Cut Line AngleDistance from the central point of
the headlamp beam to the groundLow
BeamPosition of the Vehicle

214NOTICE:
The screw must be tightened when adjusting the headlamps. If it needs loosening for adjusting, you should
completely loosen it and then begin to tighten it.
(1) Adjust the positions of the screw bolts, as shown in the illustration below.
yTurn A for adjustment in horizontal direction within an allowed scope.
yTurn B for adjustment in vertical direction within an allowed scope.V LHV RHV-lineCentral of the HeadlampCentral of the HeadlampCorner Point of
the "Cut-off" LineDim and Bright
Cut Line AngleA
B

215Section 4 Front Fog Lamp ReplacementI. REMOVAL1. Remove the front bumper.(See bumper replacement)
2. Remove the electrical connector.
3. Remove the mounting bolts (A, B as shown in the illustration).
4. Remove the front fog lamp assembly.II. INSTALLATION1. Install the front fog lamp assembly.
2. Install the mounting bolts.
3. Install the electrical connector.
4. Install the front bumper.
5. Adjust the condition of the vehicle.
6. Adjust the front fog lamp beam.III. FRONT FOG LAMP BULB REPLACEMENT1. Press and Turn counter-clockwise, then remove the dust cover
2. Pull out the bulb
3. Replace the bulbABElectrical
Connection

216IV. FRONT FOG LAMP BEAM ADJUSTMENT1. Adjust the tire inflation pressure with the standard value
2. Start the engine
3. Turn the fog lamp switch ON
4. Adjust the fog lamp beam.
Turn the bolt A for adjusting fog lamp beam in vertical direction.
NOTES:
Turn the screwdriver counter-clockwise to make the light beam up, clockwise make the light beam down.

217Section 5 Rear Combination Lamp ReplacementI. REMOVAL1. Remove rear trunk seal strip and interior trimming.
2. Remove the 3 mounting bolts (A, B, C as shown in the illustration).
3. Remove the rear combination lamp electrical connector.
4. Pull the rear combination lamp assembly backwards.Seal Strip
Interior Trimming
Buckle and PlugA
B
CElectrical
Connector
