2008 GEELY CK Workshop Manual

338(VIII) Instrument panel and auxiliary console1. Instrument Panel Removal / Installation(1) Disconnect the negative (--) terminal cable from the
battery.
(2) Remove the instrument panel compartment.
(3) Remove the front and rear auxiliary console.
(4) Remove combination meter panel.
(5) Remove instrument cluster.
(6) Remove the steering column cover.
(7) Remove the undercover.
(8) Remove the steering column.
(9) Remove A pillar frame.
(10) Remove intermediate instrument panel.
(11) Remove right side shield.
(12) Remove left side shield.
(13) As to the vehicle installed with A/C control mechanism, disconnect the front A/C wire.
(See the removal and installation of A/C control mechanism)
(14) Disconnect the instrument panel wire harness connector.
(15) Remove the bolt.
(16) Take out the instrument panel from the open driver side door.
(17) The installation is in the reverse order of the removal.
Warning
It is dangerous to remove the instrument panel before supporting it. The instrument panel may
drop and result in body injury. Have at least one assistant for help to implement the procedures.
Remove the supporting pin from the vehicle body to remove the instrument panelPin

3392. Instrument Panel Removal/Installation(1) Remove the airbag actuator at the driver side.
(2) Remove the intermediate instrument panel.
(3) Remove the audio device
(4) Remove A/C control mechanism.
(5) Remove in the order below in the figure.
(6) The installation is in the reverse order of the removal.
Torque: 18.6--25.5 N.m1 instrument panel w ire harness
2 instrument panel c ross member3instrument panel 123

3403.Side Panel Removal/Installation
(1) Using the flat screwdriver wrapped with vinyl tape, disconnect the
clip.
(2) Pull the side panel towards yourself and remove the plate from the
instrument panel and remove the side panel.
(3) The installation is in the reverse order of the removal.
4.Steering Column Cover Removal/Installation
(1) Remove upper cover.
(2) Remove the ignition key.
(3) Remove the screw.
(4) Remove lower cover.
(5) The installation is in the reverse order of the removal.
5.Combination Instrument Panel Removal/Installation
(1) Remove the screw.
(2) Using the flat screwdriver wrapped with vinyl tape, disconnect the clip.
(3) Pull combination instrument panel towards yourself. Remove pillar.
(4) The installation is in the reverse order of the removal.
6.Lower End Shield Removal/Installation
(1) Using the flat screwdriver wrapped with vinyl tape, disconnect the
clip.
(2) Pull the lower end shield towards yourself and remove clipA and
plate B from the instrument panel and remove lower end shield.
(3) Disconnect the engine hood cable.
The installation is in the reverse order of the removal.

3417.Intermediate Instrument Panel Removal/Installation
(1) Disconnect the negative (--) terminal cable from the battery.
(2) Remove intermediate instrument panel.
(3) Remove the screw.
(4) Using the flat screwdriver wrapped with vinyl tape, disconnect
the clip.
(5) Pull the intermediate instrument panel forward and then remove
the clip.
(6) Remove LDC (Liquid Crystal Display) component connector.
(7) The installation is in the reverse order of the removal.
8.Glove Compartment Removal/Installation
(1) Open the glove compartment;
(2) Pull the glove compartment up and separate it from the instrument panel;
(3) The installation is in the reverse order of the removal.

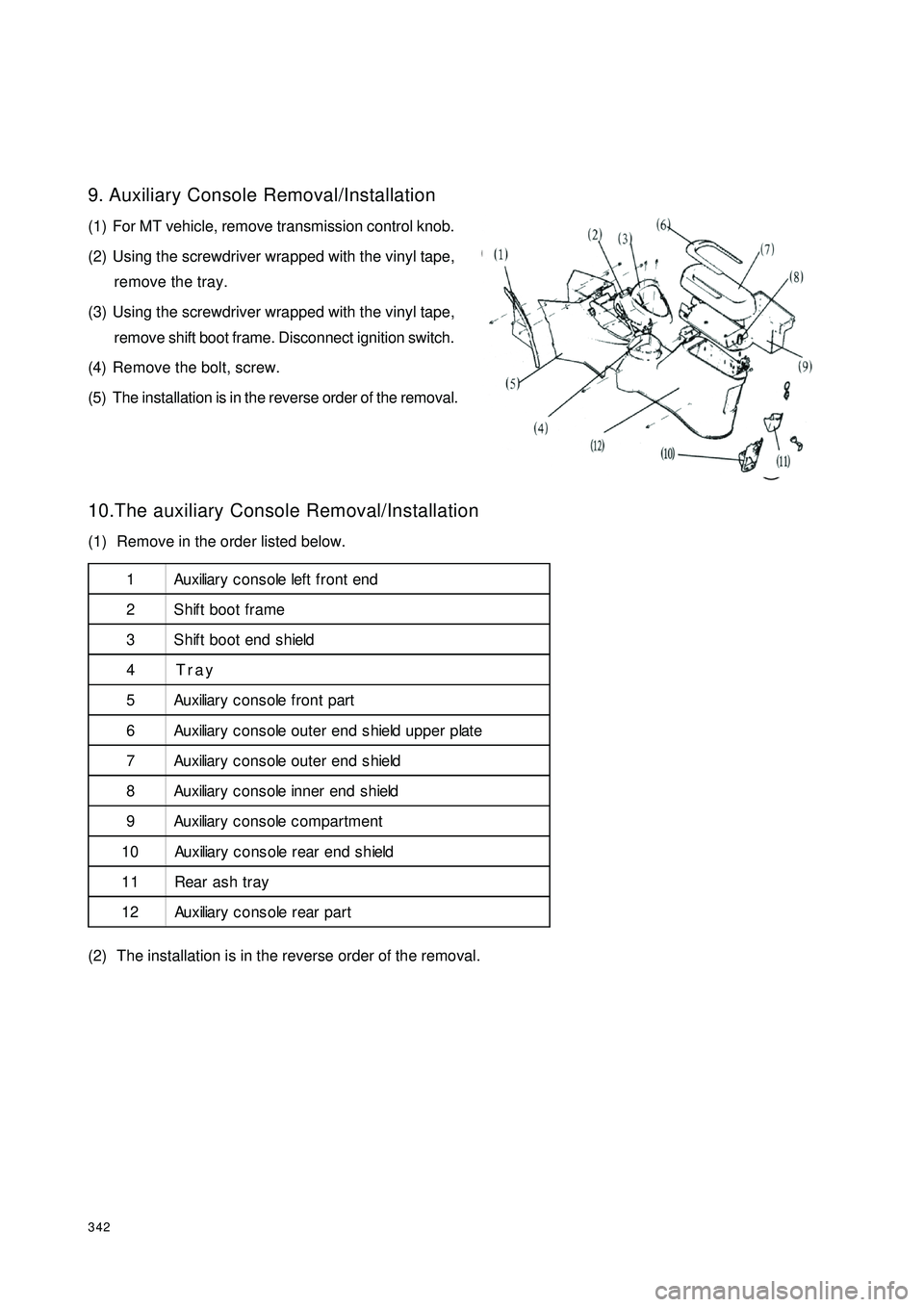

3429. Auxiliary Console Removal/Installation
(1) For MT vehicle, remove transmission control knob.
(2) Using the screwdriver wrapped with the vinyl tape,
remove the tray.
(3) Using the screwdriver wrapped with the vinyl tape,
remove shift boot frame. Disconnect ignition switch.
(4) Remove the bolt, screw.
(5) The installation is in the reverse order of the removal.
10.The auxiliary Console Removal/Installation
(1) Remove in the order listed below.
(2) The installation is in the reverse order of the removal.11
2 3
4 5 6
7
8
9
10
11 121 Au x iliar y c o n s o le lef t f r o n t e n d
2 Shift boot frame
3 Shift boot end shield
4Tray
5 Au x iliar y c o n s o le f r o n t p ar t
6 Au x iliar y c o n s o le o u t e r e n d s h ie ld u p p e r p lat e
7 Au x iliar y c o n s o le o u t e r e n d s h ie ld
8 Au x iliar y c o n s o le in n e r en d s h ield
9 Au x iliar y c o n s o le c o m p ar t m e n t
1 0 Au x iliar y c o n s o le r e ar e n d s h ie ld
11 Rear ash tray
1 2 Au x iliar y c o n s o le r e ar p a r t

343(IX) A pillar inside trim and front door sillA pillar inside trim and front door sill diagram
A pillar inside trim and front door sill diagram
1. Right A Pillar Inside Trim 2. Left A Pillar Inside Trim 3. Right Front Door Sill
4. Left Front Door Sill5.D-Clip 6. Steel Clip7. Cross Slot Head Self-tapping Screw
1. Removal
1Remove the installed right front door sill, left front door sill self-tapping screw cross screwdriver;
2Use an opener to remove the right A pillar inside trim, A pillar inside trim, right front door sill, left frontdoor sill.
2. Installation
1 Install the right A pillar inside trim, A pillar inside trim, right front door sill , left front door sill to the
corresponding position with clip and steel clip;
2Fix the right front door sill , left front door sill with a tapping screw. 1 2
3
6
4 57

344(X) B pillar inside trimB pillar inside trim diagram:
B Pillar Inside Trim Diagram
1. Right B Pillar Upper Inside Trim 2. Left B Pillar Upper Inside Trim 3. Right Deflector
4. Left Deflector5. Right B Pillar Lower Inside Trim 6. Left B Pillar Lower Inside Trim
7. Right B Pillar Lower Inside Trim Sound Insulator 8. Left B Pillar Lower Inside Trim Sound Insulator
9. Cross Pan Head Tapping Screw10. Steel Clip
1.Removal
1Remove the installed left B pillar lower inside trim, right B pillar lower inside trim tapping screw with a
cross screwdriver;
2Remove the left B pillar lower inside trim, right B pillar lower inside trim with a opener ;
3Remove the seat belt swing ring;
4Remove the right B pillar upper inside trim, leftB pillar upper inside trim tapping screw with the cross
screwdriver;
5Remove the right B pillar upper inside trim, leftB pillar upper inside trim with a opener.
2.Installation
1Clip B pillar inside trim to the corresponding position with clip and steel clip in order;
2Fix the upper inside trim and lower inside trim to the vehicle body with a tapping screw.
2
453
1
6
10
8 79

345(XI) Cpillar inside trim and rear door sillC pillar inside trim and rear door sill diagram:
C pillar inside trim& rear door sill diagramdiagram
1.Right C Pillar Upper Inside Trim 2.Left C Pillar Upper Inside Trim 3. Right C Pillar Upper Inside
Trim Sound Insulator 4. Left Sound Insulator 5. Right C Pillar Lower Inside Trim 6. Left C Pillar
Lower Inside Trim 7. Right Rear Door Sill 8. Left Rear Door Sill9. E-Clip10. Cross Pan
Head Self-tapping Screw 11. D-Clip
1. Removal
1Remove the installed door sill and C pillar lower inside trim tapping screw and E-clip with a cross
screwdriver;
2Remove C pillar upper inside trim with a opener ;
3Remove C pillar lower inside trim with a opener
2.Installation
1 Clip C pillar inside trim and rear door sill onto the corresponding position in order;
2Tap C pillar upper inside trim and C pillar lower inside trim lightly with a rubber hammer to ensure D-clip
clipped in the vehicle inner panel;
3Fix the rear door sill onto the vehicle body with a tapping screw.112 110843
57
96
