2008 GEELY CK Workshop Manual

1222. Remove the strut rod components
Remove the thread connecting strut rod and No. 2 transverse arm assembly
3. Disassemble the strut rod components
4. Disassemble the rear stabilizer bar assembly
(1) Remove the rear stabilizer bar clamp
(2) Remove the rear stabilizer bar rubber bushing
5. The installation is in the reverse order of the removal.
Caution:
(1) The torque of the bolt attaching the stabilizer bar assembly to the body: 22~25N.m
(2) The torque of the bolt attaching the strut rod components to No. 2 the transverse arm
assembly: 22~25N.m
(3) The torque of the nut attaching the rear stabilizer bar to the strut rod components:
22~25N.m

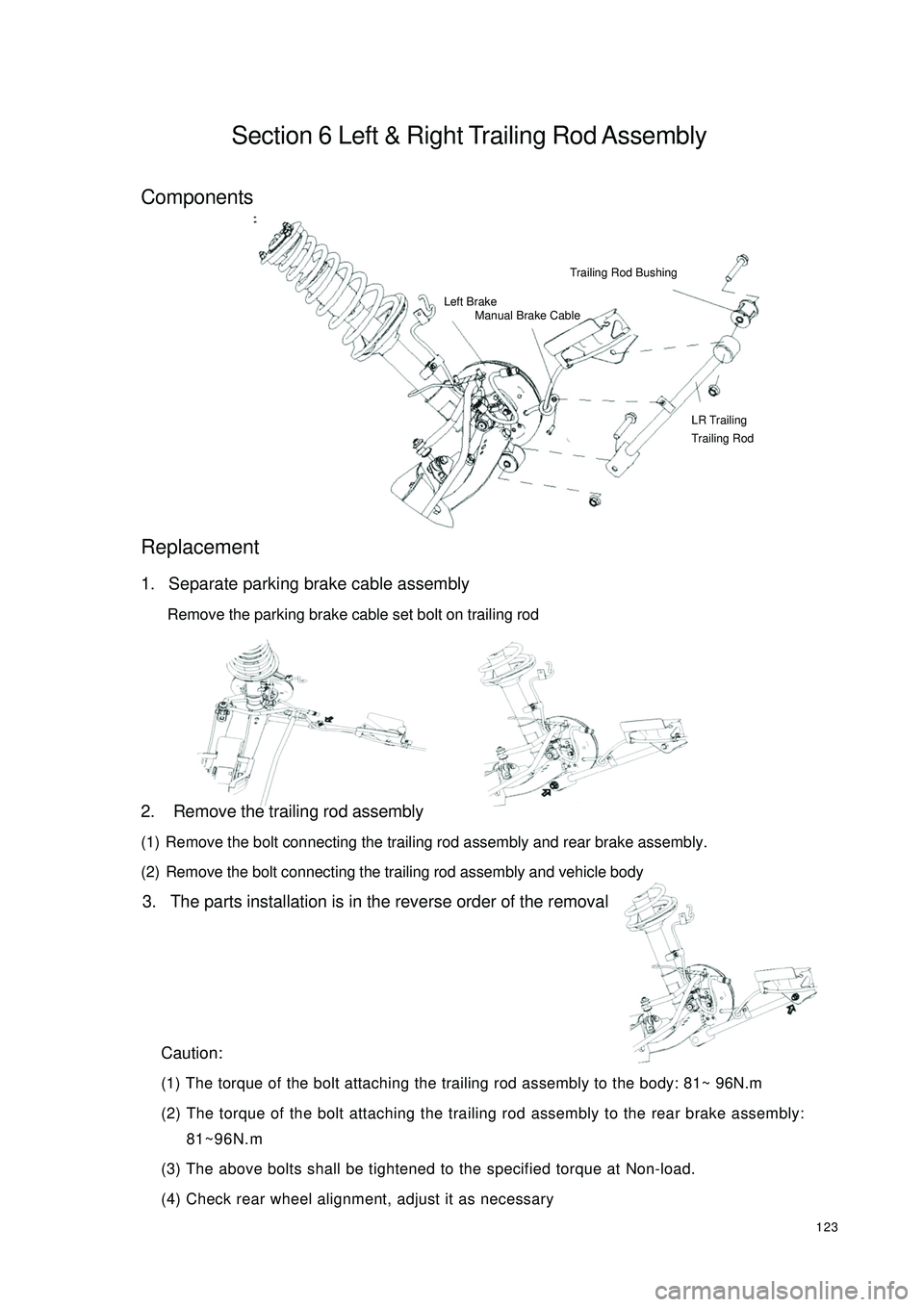

123Section 6 Left & Right Trailing Rod AssemblyComponents
Replacement1. Separate parking brake cable assembly
Remove the parking brake cable set bolt on trailing rod
2. Remove the trailing rod assembly
(1) Remove the bolt connecting the trailing rod assembly and rear brake assembly.
(2) Remove the bolt connecting the trailing rod assembly and vehicle body
3. The parts installation is in the reverse order of the removal
Caution:
(1) The torque of the bolt attaching the trailing rod assembly to the body: 81~ 96N.m
(2) The torque of the bolt attaching the trailing rod assembly to the rear brake assembly:
81~96N.m
(3) The above bolts shall be tightened to the specified torque at Non-load.
(4) Check rear wheel alignment, adjust it as necessaryLeft Brake
Manual Brake Cable Trailing Rod Bushing LR Trailing
Trailing Rod

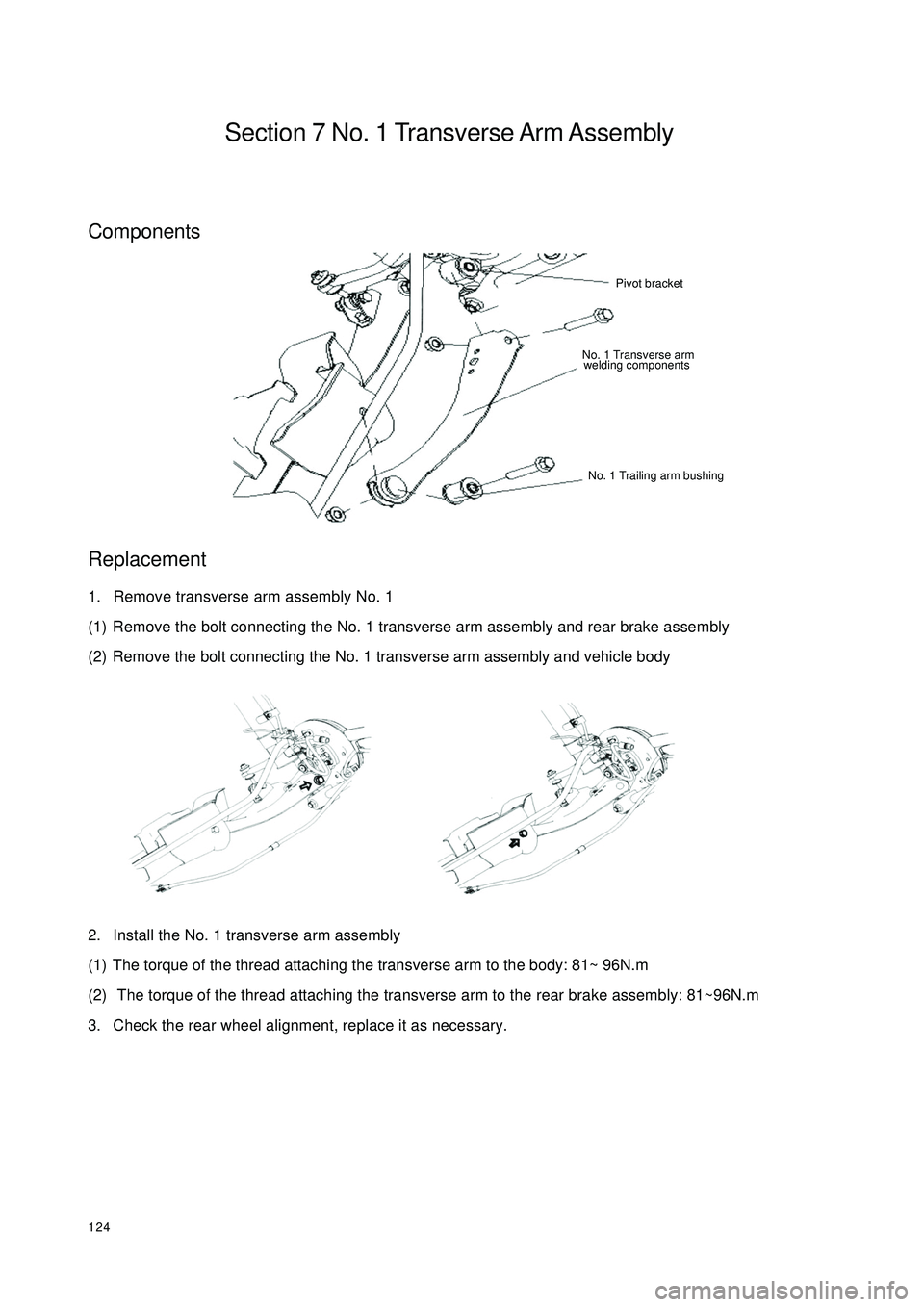

124Section 7 No. 1 Transverse Arm AssemblyComponents
Replacement1. Remove transverse arm assembly No. 1
(1) Remove the bolt connecting the No. 1 transverse arm assembly and rear brake assembly
(2) Remove the bolt connecting the No. 1 transverse arm assembly and vehicle body
2. Install the No. 1 transverse arm assembly
(1) The torque of the thread attaching the transverse arm to the body: 81~ 96N.m
(2) The torque of the thread attaching the transverse arm to the rear brake assembly: 81~96N.m
3. Check the rear wheel alignment, replace it as necessary.Pivot bracket
No. 1 Transverse arm
welding components
No. 1 Trailing arm bushing

125Section 8 No. 2 Transverse Arm AssemblyComponents
Replacement1. Remove the strut rod mount component
Remove the strut rod mount component bolt on the No. 2 transverse arm assembly
2. Remove transverse arm assembly No. 2
(1) Remove the bolt connecting the No. 2 transverse arm assembly and rear brake assembly
(2) Remove the bolt connecting the No. 2 transverse arm assembly and vehicle body, rear wheel toe-in
adjust plate and rear wheel toe-adjust cam
3. Install No. 2 transverse arm assembly
(1) Use the nut, rear wheel toe-in adjust cam, rear wheel toe-in adjust plate to attach the No. 2 transverse
arm assembly to the body
(2) Install the No. 2 transverse arm assembly to the rear brake wheel hub. Torque : 81~96N.m
(3) Use the bolt to attach the strut rod component to the No. 2 transverse arm assembly. Torque :
22~25N.m
4. Check the rear wheel alignment, adjust it by adjusting the rear wheel toe-in adjust cam and adjust plate.
After the adjustment, tighten the bolts to torque 45~55N.mRear Stabilizer Bar
Strut Rod ComponentPivot BracketBody
Bottom PlateNo. 2 Transverse Arm
Welding Component
No. 2 Transverse Arm BushingRear Wheel Toe-in Adjust PlateRear Wheel Toe-in
Adjust Cam

126Chapter 7 WheelSection 1 Tire InspectionInspection1. Check the tires for appearance and proper inflation pressure.
Check for inflation pressure after the vehicle stops for over 15min.
2. Using a dial gauge, check the runout of tire.
The tire runout should be no more than 3.0mm
Notice
(1) You must use specified tire and special wheel rim provided by the authorized service
center, otherwise it may affect the normal safe running of the vehicle and even result in
accidents!
(2) If the wheel rim is damaged, you must go to the authorized service center for service and
replacement! Never use the wheel rim of any other model!
3. Changing tire position
It is recommended to change the tire for each 10000km driving. See the figure for where to change each
tire
4. Inspect wheel dynamic balance
The imbalance should be no more than 8.0g. Otherwise, there will be extra vibration and noise when
driving.Tire module Tire inflationpressure
（Kpa
）
175/65 R14 82H 220Front

127Section 2 Wheel ReplacementReplacement(1) Pry the edge of the wheel rim trim cover with screwdriver to remove the wheel rim trim cover
(2) Loose every tire nut with tire nut wrench.
(3) Four jacks support the vehicle body, two at each side as shown in the figure.
The jack should be near to the to-be-replaced wheel with solid base.
(4) Remove the wheel nut.
Caution:
(1) Make sure the parking brake control handle has been pulled up before jacking up the
vehicle
(2) Wheel nut torque : 95~115N.m
(3) Check the four wheel alignment when necessary

128Chapter 8 Power Steering SystemSection 1 Power Steering SystemPower Steering System DescriptionPower Steering System consists of the steering wheel, steering transmit device, power steering fixed device
and steering pipelines. The steering gear is rack and pinion type.
Major parameters for steering system:
Cautions:
1. Cautions for steering system
Make sure of the correct replacement of parts, incorrect replacement might affect the performance of
the steering system and lead to driving accidents.
2. Cautions for SRS System
This vehicle is equipped with SRS (Supplemental Restraint System), driver side air bag and front passenger
side air bag.
Failure to carry out service operations in the correct sequence could cause the unexpected deployment of
the air bag during servicing, possibly leading to a serious accident.Parameter
3.26
Inner 37.6°
Outer 33.3°
≤
10.5m Item
Steering Wheel total revolutions
Ma ximum Front
Wheel Turn Angle
Minimum Turning Dia me ter

129Symptom TableThe table below is helpful to find the cause of the problem. The numbers indicate the priority of the likely
cause of the problem. Check each part in order. Repair or replace these parts or assemblies if necessary.On-vehicle inspection1. Check steering wheel free stroke
(1) Stop vehicle and keep the tires straight ahead.
(2) Rotate the steering wheel lightly, check the steering wheel free stroke.
Maximum free stroke: 30mmSymptom Like ly Ca us e
1．
Tire (imprope rly infla te d)
2．
P owe r ste ering fluid (insuffic ie nt)
3．
Front whe e l a lignme nt (inc orre c t)
4．
Ste e ring knuckle (worn)
5．
Swing a rm ba ll stud pin joint (worn)
6．
St e e r ing c olumn ( be nt or binding)
7．
P owe r ste ering pump a ssembly (Worn)
8．
Power steering gear assembly (Fault)
1．
Tire (imprope rly infla te d)
2．
Front whe e l a lignme nt (inc orre c t)
3．
St e e r ing c olumn ( be nt or binding)
4．
Power steering gear assembly (Oil pressure too low)
1．
Ste e ring knuckle (worn)
2．
Swing a rm ba ll stud pin joint (worn)
3．
Inte rmediate sha ft, sliding yoke (worn)
4．
Front whe e l be a ring (w orn)
5．
P owe r ste ering ge a r asse mbly (worn)
1．
P owe r ste ering pump fluid leve l (low)
2．
St e e r ing s ys t e m ba ll joint ( w or n)
3．
Power steering pump assembly (damaged)
4．
Power steering gear assembly (damaged) He avy ste eringPoor returnExcessive
clearance and
play
A bnor ma l nois eMaximum Free Stroke
