Replacing bulbs
High beam headlamp bulbs
Turn cover 1 counterclockwise.
Remove cover 1.
Turn bulb socket 4 counterclockwise.
Pull bulb socket 4 out of the head-
lamp housing.
Pull the high beam bulb out of bulb
socket 4.
Insert the new high beam bulb into bulb
socket 4.
Insert bulb socket 4 into the head-
lamp housing.
Turn bulb socket 4 clockwise until it
engages.
Place cover 1 on the opening in the
headlamp housing.
Turn cover 1 clockwise until it
engages.Front turn signal lamp bulbs
Pull bulb socket 2 out of the head-
lamp housing.
Pull the turn signal bulb out of bulb
socket 2.
Insert the new turn signal bulb into bulb
socket 2.
Insert bulb socket 2 into the head-
lamp housing.Bi-Xenon headlamps*

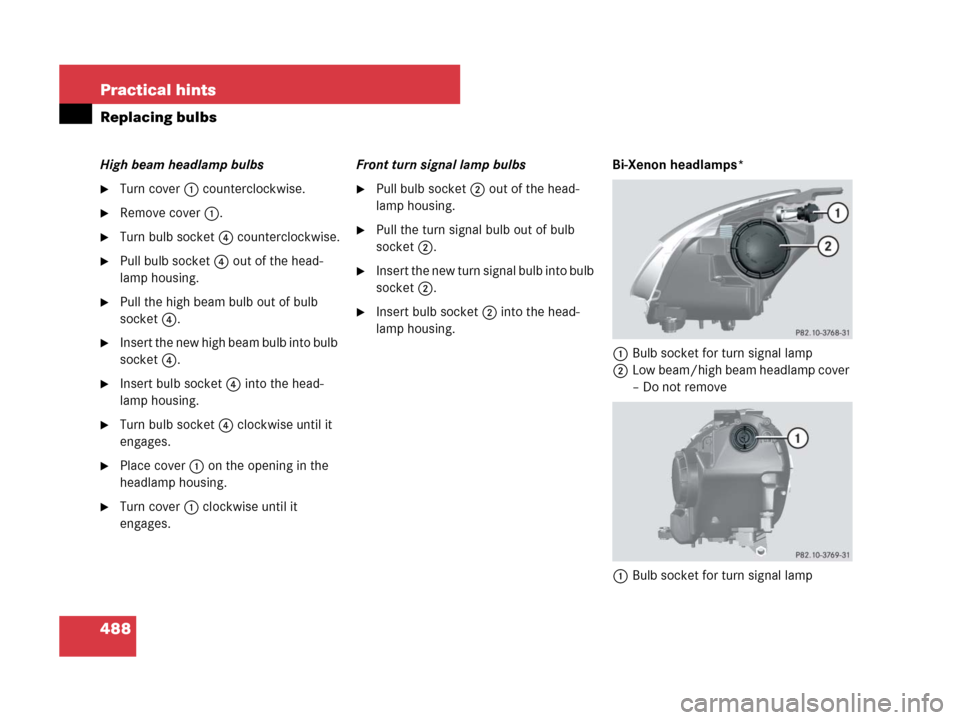

1Bulb socket for turn signal lamp
2Low beam/high beam headlamp cover
– Do not remove
1Bulb socket for turn signal lamp

489 Practical hints
Replacing bulbs
Low beam and high beam flasher spot
bulbs
Front turn signal lamp bulbs
Pull bulb socket 1 out of the head-
lamp housing.
Pull the turn signal bulb out of bulb
socket 1.
Insert the new turn signal bulb into bulb
socket 1.
Insert bulb socket 1 into the head-
lamp housing.Parking and standing lamp bulbs
1Bulb socket for parking and standing
lamp
Turn bulb socket 1 counterclockwise.
Pull bulb socket 1 out of the housing.
Pull the bulb out of bulb socket 1.
Insert the new parking and standing
lamp bulb into bulb socket 1.
Insert bulb socket 1 into the housing.
Turn bulb socket 1 clockwise until it
engages.Corner-illuminating front fog lamp*
bulbs
Example illustration (except R 63 AMG)

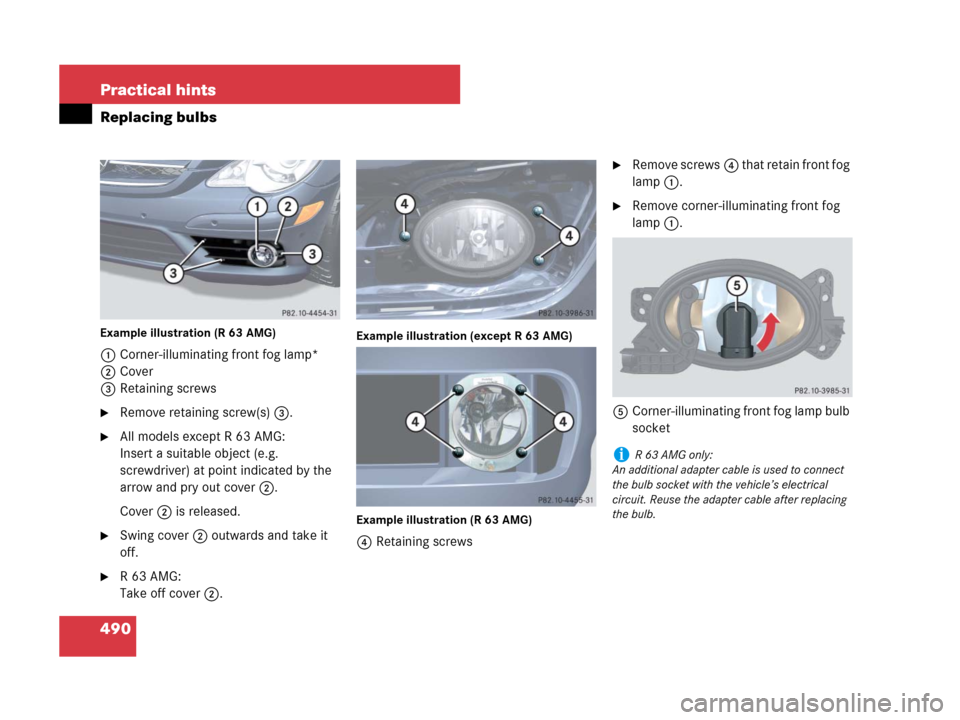

1Corner-illuminating front fog lamp*
2Cover
3Retaining screw
Warning!G
Do not remove the low beam/high beam
cover for the Bi-Xenon* headlamp. Because
of high voltage in Bi-Xenon* lamps, it is dan-
gerous to replace the bulb or repair the lamp
and its components. We recommend that
you have such work done by a qualified
technician.

490 Practical hints
Replacing bulbs
Example illustration (R 63 AMG)
1Corner-illuminating front fog lamp*
2Cover
3Retaining screws
Remove retaining screw(s)3.
All models except R 63 AMG:
Insert a suitable object (e.g.
screwdriver) at point indicated by the
arrow and pry out cover 2.
Cover 2 is released.
Swing cover 2 outwards and take it
off.
R63AMG:
Take off cover 2.
Example illustration (except R 63 AMG)
Example illustration (R 63 AMG)
4Retaining screws
Remove screws4 that retain front fog
lamp 1.
Remove corner-illuminating front fog
lamp 1.
5Corner-illuminating front fog lamp bulb
socket
iR 63 AMG only:
An additional adapter cable is used to connect
the bulb socket with the vehicle’s electrical
circuit. Reuse the adapter cable after replacing
the bulb.

491 Practical hints
Replacing bulbs
Turn bulb socket 5 counterclockwise.
Pull bulb socket 5 out of the housing.
Pull the bulb out of bulb socket 5.
Insert the new corner-illuminating front
fog lamp bulb into bulb socket 5.
Insert bulb socket 5 into the housing.
Turn bulb socket 5 clockwise until it
engages.
Insert corner-illuminating front fog
lamp 1 back into bumper.
Fasten retaining screws4.
Reinsert cover 2 and press it in until it
engages.
Fasten retaining screw(s)3.Additional turn signal lamps bulbs
The additional turn signal lamps in the
exterior rear view mirrors have LEDs.
If a malfunction occurs or LEDs fail to
function, the entire turn signal unit must
be replaced. Have the turn signal unit re-
placed by an authorized Mercedes-Benz
Light Truck Center.
Front side marker lamp bulbs
Since replacing the side marker lamp bulbs
is a technically highly demanding process,
we recommend you have the side marker
lamp bulbs replaced by an authorized
Mercedes-Benz Light Truck Center.
Replacing bulbs for rear lamps
Before you start to replace a bulb for a rear
lamp, do the following first:
Turn the combination switch to
positionM (
page 146).
Tail lamp unit
Open the tailgate (page 123).
iTo access the tail lamp units, you have to
remove the cover in the corresponding side trim
panel of the cargo compartment.

492 Practical hints
Replacing bulbs
Opening the side trim panels
1Lock
2Cover in left side trim panel
1Lock
2Cover in right side trim panelInsert a suitable object such as a coin
into the slot of lock1.
Turn lock1 clockwise (left side trim
panel) or counterclockwise (right side
trim panel) by 90° in direction of arrow.
Remove cover2.
Replacing bulbs
1Tail, side marker, standing, and parking
lamp bulb socket
2Turn signal lamp bulb socket
3Fog lamp bulb socket
(driver’s side only)
4Backup lamp bulb socket
Depending on which bulb needs to be
replaced, turn the respective bulb
socket 1 - 4 counterclockwise.
Pull the bulb socket out of the housing.
Similarly turn the bulb counterclock-
wise carefully and pull the bulb out of
bulb socket.
Insert the new bulb into the bulb
socket.
Turn the bulb in the bulb socket clock-
wise carefully.
Insert the bulb socket into the housing.
Turn the bulb socket clockwise until it
engages.

493 Practical hints
Replacing bulbs

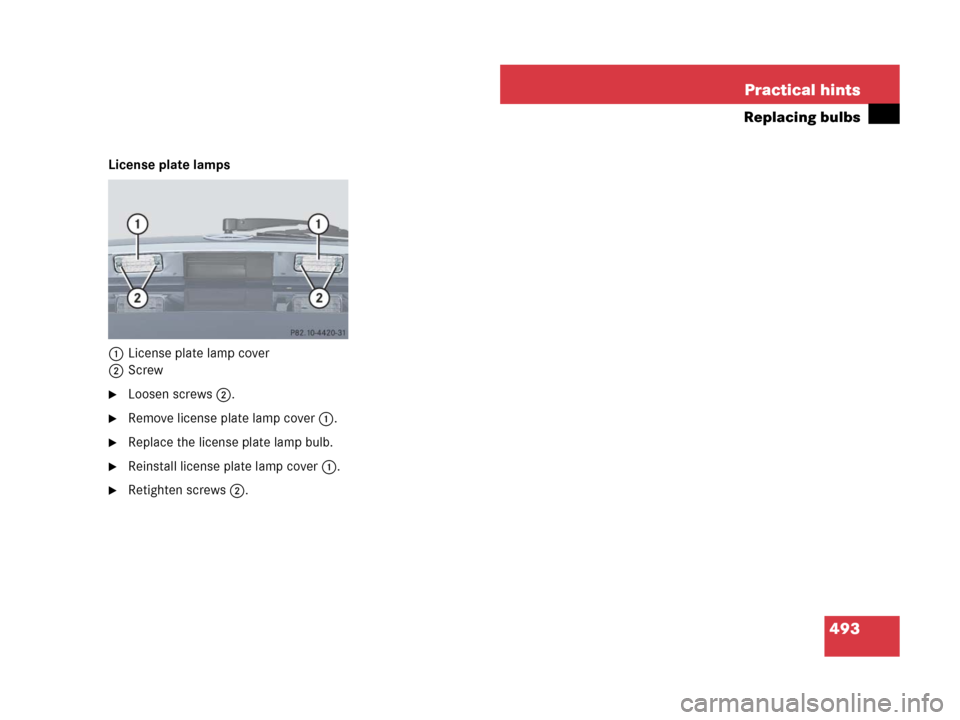

License plate lamps
1License plate lamp cover
2Screw
Loosen screws2.
Remove license plate lamp cover1.
Replace the license plate lamp bulb.
Reinstall license plate lamp cover1.
Retighten screws2.

494 Practical hints
Replacing wiper blades
Front wiper blades
Removing
Remove the SmartKey from the starter
switch.
Vehicles with KEYLESS-GO*:
Make sure the vehicle’s on-board
electronics have status0
(
page 41).
Fold the wiper arms forward until they
engage.
1Wiper blade
2Tab
3Wiper arm
Press tabs2 together.
Tilt wiper blade 1 away from wiper
arm 3.
Take off wiper blade 1 in direction of
arrow.
Warning!G
For safety reasons, switch off wipers and
remove the SmartKey from starter switch
(vehicles with KEYLESS-GO*: Make sure the
vehicle’s on-board electronics have
status0) before replacing a wiper blade.
Otherwise the motor could suddenly turn on
and cause injury.
Warning!G
Wiper blades are components that are sub-
ject to wear and tear. Change the wiper
blades twice a year, preferably in the spring
and fall. Otherwise the windows will not be
properly wiped. As a result, you may not be
able to observe surrounding traffic condi-
tions and could cause an accident.
!Never open the hood when the wiper arms
are folded forward.
Hold on to the wiper when folding the wiper arm
back. If released, the force of the impact from
the tensioning spring could crack the windshield.
Do not allow the wiper arms to contact the wind-
shield glass without a wiper blade inserted.
Make sure the wiper blades are properly in-
stalled. Improperly installed wiper blades may
cause windshield damage.
For your convenience, we recommend that you
have this work carried out by an authorized
Mercedes-Benz Light Truck Center.
!Do not pull on the wiper blade inserts. They
could tear.

495 Practical hints
Replacing wiper blades
Installing
1Wiper blade
2Attachment
3Guide tab
4Opening
With guide tab 3 sliding into
opening4, place wiper blade 1 onto
wiper arm in direction of arrow.
Fold wiper blade 1 towards wiper
arm.
Tabs 2 (
page 494) must engage
into both recesses of attachment 2.
Check whether the wiper blade is
securely fastened.
Fold the wiper arm backward to rest on
the windshield.
Make sure to hold on to the wiper when
folding the wiper arm back.
Rear wiper blade
Warning!G
For safety reasons, switch off wipers and
remove SmartKey from starter switch
(vehicles with KEYLESS-GO*: Make sure the
vehicle’s on-board electronics have
status0) before replacing a wiper blade.
Otherwise the motor could suddenly turn on
and cause injury.
!Hold on to the wiper when folding the wiper
arm back. If released, the force of the impact
from the tensioning spring could crack the rear
window.
Do not allow the wiper arms to contact the rear
window glass without a wiper blade inserted.
For your convenience, we recommend that you
have this work carried out by an authorized
Mercedes-Benz Light Truck Center.
Make sure the wiper blades are properly in-
stalled. Improperly installed wiper blades may
cause rear window damage.
