2007 MERCEDES-BENZ R350 Owner's Manual

480 Practical hints
Unlocking / locking in an emergency
Insert a suitable object such as a coin
into the slot of lock1.
Turn lock1 counterclockwise by 90°
in direction of arrow.
Remove cover2.
3Fuel filler flap release
Pull red fuel filler flap release 3 in
direction of arrow.
The fuel filler flap is unlocked.
Open the fuel filler flap (page 360).
iThe fuel filler flap release may differ,
depending on production date. If your vehicle is
not equipped with the fuel filler flap release as
illustrated, pulling a red fabric cord instead
unlocks the fuel filler flap.


481 Practical hints
Opening / closing in an emergency
Opening / closing in an emergency
Power tilt/sliding sunroof*
You can open or close the tilt/sliding
sunroof manually should an electrical
malfunction occur.
The tilt/sliding sunroof drive is located
behind a cover on the overhead control
panel.
1Cover
Remove the SmartKey from the starter
switch.Vehicles with KEYLESS-GO*:
Turn off the engine by pressing the
KEYLESS-GO start/stop button
(
page 67).
Open the driver’s door (this puts
the starter switch to position0,
same as with the SmartKey
removed from starter switch).
The driver’s door can then be
closed again.
Press on cover1 at the position
indicated by the arrow.
Take off cover 1.
2Crank
Take crank 2 out of the Operator’s
Manual pouch.
Insert crank2 into hole.
Turn crank2 clockwise to

slide sunroof closed

raise sunroof at the rear
Turn crank2 counterclockwise to

slide sunroof open

lower sunroof at the rear
iTurn crank2 slowly and smoothly.
The tilt/sliding sunroof must be synchronized if
it has been operated manually (
page 260).
iThe panorama roof with power tilt/sliding
panel* cannot be operated as described.
Contact Roadside Assistance or an authorized
Mercedes-Benz Light Truck Center.

482 Practical hints
Resetting activated head restraints
If the active head restraints have been
triggered in a rear-end collision, the active
head restraints must be reset. Otherwise,
the active head restraints cannot offer any
additional protection in the event of anoth-
er rear-end collision.
You can tell that the active head restraints
have been activated when they have been
moved forward and cannot be adjusted.
1Reset tool
2Active head restraint
Take the reset tool1 out of the
Mercedes-Benz vehicle literature
pouch.
Guide reset tool1 into the rect-
angular opening of active head
restraint2.
Press reset tool1 downward in
direction of arrow until you hear the
head restraint release mechanism
audibly disengage.
Pull out reset tool1.
Firmly press the active head restraint
cushion backward towards the head re-
straint cover in direction of arrow until
it engages.
Repeat this procedure on the active
head restraint for the second front
seat.
After resetting the active head
restraints store reset tool1 in the
Mercedes-Benz vehicle literature
pouch.
For information on active head restraints,
see “Active head restraints” (
page 83).
For information on head restraint adjust-
ment, see “Seats” (
page 43).
iFor your convenience, we recommend that
you have this work carried out by an authorized
Mercedes-Benz Light Truck Center.
You will find the reset tool for manually operating
the active head restraints in the Mercedes-Benz
vehicle literature pouch.
Warning!G
When pushing back the head restraint
cushion, take care that your fingers do not
become caught between the head restraint
cushion and the cover. Failing to do so may
lead to injury.
Warning!G
For safety reasons, have the active head
restraints checked by an authorized
Mercedes-Benz Light Truck Center after a
rear-end collision.
!Be careful not to damage upholstery.

483 Practical hints
Replacing SmartKey batteries
Replacing SmartKey batteries
If the batteries in the SmartKey or the
SmartKey with KEYLESS-GO* are
discharged, the vehicle can no longer be
locked or unlocked. It is recommended to
have the batteries replaced at an autho-
rized Mercedes-Benz Light Truck Center.
Batteries contain materials that can harm
the environment if disposed of improperly.
Recycling of batteries is the preferred
method of disposal. Many states require
sellers of batteries to accept old batteries
for recycling.Replacement batteries: Lithium, type
CR 2025 or equivalent.
Remove the mechanical key from the
SmartKey (
page 478).
1Mechanical key
2Battery compartment
Insert mechanical key 1 into opening.
Press mechanical key 1 in direction of
arrow.
The battery compartment is unlatched.
Pull battery compartment 2 out of the
SmartKey housing.
3Batteries
4Contact springs
Pull out batteries3.
Using a line-free cloth, insert new bat-
teries 3 under contact springs 4 with
the positive terminal (+) side facing up.
Return battery compartment 2 into
housing until it locks into place.
Slide mechanical key 1 back into
SmartKey.
Check the operation of the SmartKey
or SmartKey with KEYLESS-GO*.
Warning!G
Keep the batteries out of reach of children.
If a battery is swallowed, seek medical help
immediately.
iWhen replacing batteries, make sure they
are clean and free of lint.
iWhen replacing batteries, always replace
both batteries. The required replacement
batteries are available at any Mercedes-Benz
Light Truck Center.

484 Practical hints
Replacing bulbs
Bulbs
Safe vehicle operation depends on proper
exterior lighting and signaling. It is there-
fore essential that all bulbs and lamp
assemblies are in good working order at
all times.
Correct headlamp adjustment is extremely
important. Have headlamps checked and
readjusted at regular intervals and when a
bulb has been replaced. See an authorized
Mercedes-Benz Light Truck Center for
headlamp adjustment.iIf the headlamps or front fog lamps are
fogged up on the inside as a result of high humid-
ity, driving the vehicle a distance with the lights
on should clear up the fogging.iSubstitute bulbs will be brought into use
when the following lamps malfunction:

Turn signal lamps

Brake lamps

Parking lamps

Tail lamps
Read and observe messages in the multifunction
display (
page 463).

485 Practical hints
Replacing bulbs
Front lamps Rear lamps
LampType
1Parking/standing lampW 5 W
2Turn signal lampPY 21 W
3Additional turn signal
lamp
LED
4Headlamps:
Low beam
H7 (55 W)
Bi-Xenon headlamps*:
Low beam1
1Vehicles with Bi-Xenon* headlamps: Do not
replace the Bi-Xenon bulbs yourself. Contact an
authorized Mercedes-Benz Light Truck Center.
D2S-35 W
5Headlamps:
High beam/high beam
flasher
H7 (55 W)
Bi-Xenon headlamps*:
High beam/high beam
flasher spot lamp
H7 (55 W)
6Side marker lampWY 5 W
7Corner-illuminating
front fog lamp*
H11 (55 W)
LampType
8High-mounted brake
lamp
LED
9Tail, brake, and side
marker lamp
P 21 W
aTurn signal lampPY 21 W
bBackup lampP 21 W
cRear fog lamp (driver’s
side only)
P 21 W
dLicense plate lampsC 5 W

486 Practical hints
Replacing bulbs
Notes on bulb replacement

Only use 12-volt bulbs of the same type
and with the specified watt rating.

Switch the lights off before changing a
bulb to prevent short circuits.

Always use a clean lint-free cloth when
handling bulbs.

Your hands should be dry and free of oil
and grease.

If the newly installed bulb does not
come on, contact an authorized
Mercedes-Benz Light Truck Center.Have the LEDs and bulbs for the following
lamps replaced by an authorized
Mercedes-Benz Light Truck Center:

the additional turn signal lamps in the
exterior rear view mirrors

the high mounted brake lamp

the Bi-Xenon* low beam lamps

the Bi-Xenon* high beam flasher spot-
light

the front side marker lamps

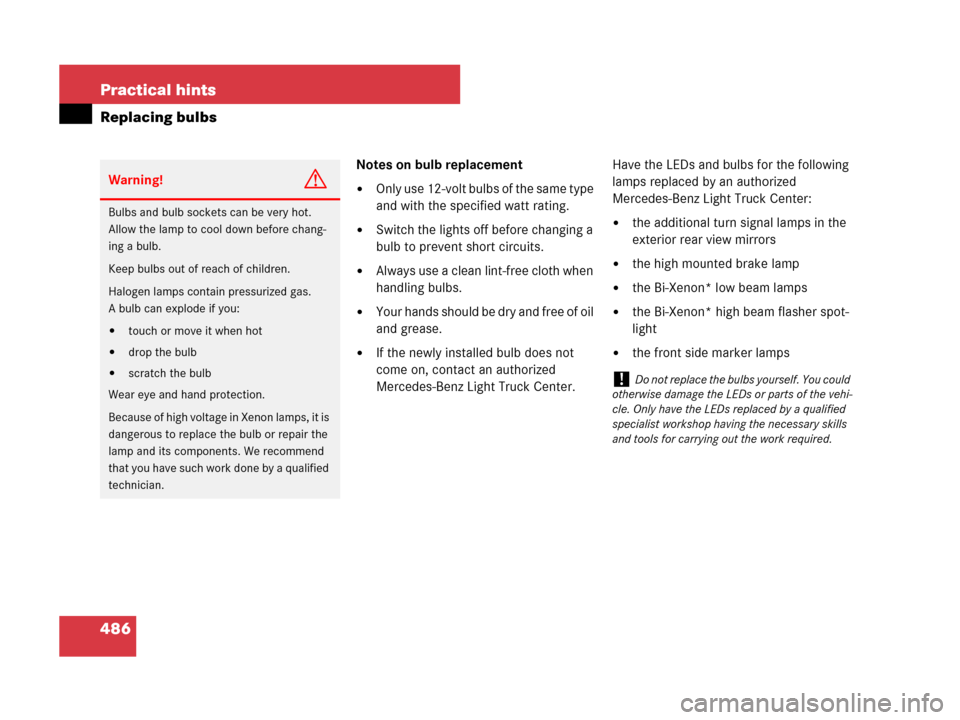

Warning!G
Bulbs and bulb sockets can be very hot.
Allow the lamp to cool down before chang-
ing a bulb.
Keep bulbs out of reach of children.
Halogen lamps contain pressurized gas.
A bulb can explode if you:

touch or move it when hot

drop the bulb

scratch the bulb
Wear eye and hand protection.
Because of high voltage in Xenon lamps, it is
dangerous to replace the bulb or repair the
lamp and its components. We recommend
that you have such work done by a qualified
technician.!Do not replace the bulbs yourself. You could
otherwise damage the LEDs or parts of the vehi-
cle. Only have the LEDs replaced by a qualified
specialist workshop having the necessary skills
and tools for carrying out the work required.

487 Practical hints
Replacing bulbs
Replacing bulbs for front lamps
Before you start to replace a bulb for a
front lamp, do the following first:
Turn the exterior lamp switch to
positionM (
page 146).
Open the hood (page 364).
Halogen headlamps
1Low beam/high beam headlamp cover2Bulb socket for turn signal lamp
2Bulb socket for turn signal lamp
3Bulb socket for low beam headlamp
4Bulb socket for high beam headlampLow beam headlamp bulbs
Turn cover 1 counterclockwise.
Remove cover 1.
Turn bulb socket 3 counterclockwise.
Pull bulb socket 3 out of the head-
lamp housing.
Pull the low beam bulb out of bulb
socket 3.
Insert the new low beam bulb into bulb
socket 3.
Insert bulb socket 3 into the head-
lamp housing.
Turn bulb socket 3 clockwise until it
engages.
Place cover 1 on the opening in the
headlamp housing.
Turn cover 1 clockwise until it
engages.
