2007 MERCEDES-BENZ R350 Owner's Manual

504 Practical hints
Flat tire
6Wheel wrench
Tighten the five wheel bolts evenly, fol-
lowing the diagonal sequence illustrat-
ed (1 to 5), until all bolts are tight.
Observe a tightening torque of
110 lb-ft (150 Nm).
Store jack and all other vehicle tool kit
items back into the storage well.
Warning!G
Have the tightening torque checked after
changing a wheel. The wheels could come
loose if they are not tightened to a torque of
110 lb-ft (150 Nm).
iThe removed road wheel cannot be stored in
the spare wheel well under the cargo compart-
ment floor, but should be transported in the
cargo compartment wrapped in a protective
wrap.
Vehicles with TPMS or Advanced TPMS*:
Do not activate the tire inflation pressure moni-
tor until a full size wheel/tire with functioning
sensor has been placed back into service on the
vehicle.

505 Practical hints
Bleeding the fuel system (diesel engine only)
Bleeding the fuel system (diesel engine only)
Driving the vehicle until the fuel tank is
empty is not recommended. Otherwise, air
may be sucked into the fuel system. If this
happens, the? malfunction indicator
lamp (USA only) or the ± malfunction
indicator lamp (Canada only) comes on
and the engine may not start immediately
after refueling the vehicle.
After refueling:
Make sure the automatic transmission
is set toP.
The gear position indicator in the multi-
function display should be on
P.
Do not depress the accelerator.
Turn the SmartKey in the starter switch
to position 2 for at least 10 seconds
(
page 40).
Return the SmartKey in the starter
switch to position 0 (
page 40).
Turn the SmartKey in the starter switch
to position 3 (
page 41) and hold it
there for a maximum of 40 seconds or
until the engine runs surge-free.
If the engine does not start:
Wait for approximately 2 minutes.
Turn the SmartKey in the starter switch
to position 3 (
page 41) and hold it
there for a maximum of 40 seconds or
until the engine runs surge-free.
If the engine still does not start, do not
make any further attempts to start the en-
gine. Contact an authorized
Mercedes-Benz Light truck Center or call
Roadside Assistance (
page 333).iVehicles with KEYLESS-GO*: If necessary,
remove the KEYLESS-GO start/stop button from
the starter switch (
page 41).iWhen the? malfunction indicator lamp
(USA only) or the ± malfunction indicator
lamp (Canada only) has been illuminated for the
above condition, it will remain illuminated until
the engine was cycled on and off four times in a
row.

506 Practical hints
Battery
The battery is located under the front
passenger seat.
The battery should always be sufficiently
charged in order to achieve its rated ser-
vice life.
If you use your vehicle mostly for
short-distance trips, you will need to have
the battery charge checked more
frequently.
When replacing the battery, always use
batteries approved by Mercedes-Benz.
If you do not intend to operate your vehicle
for an extended period of time, consult an
authorized Mercedes-Benz Light Truck
Center about steps you need to observe.Batteries contain materials that can harm
the environment if disposed of improperly.
Recycling of batteries is the preferred
method of disposal. Many states require
sellers of batteries to accept old batteries
for recycling.
iMercedes-Benz recommends to have the
battery replaced at authorized Mercedes-Benz
Light Truck Center.

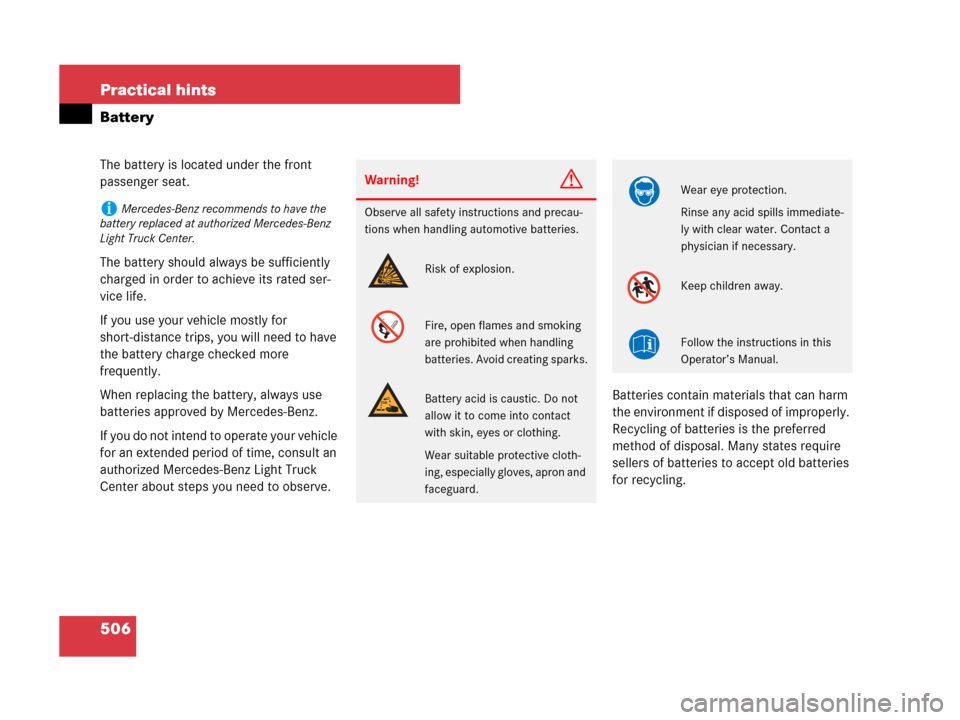

Warning!G
Observe all safety instructions and precau-
tions when handling automotive batteries.
Risk of explosion.
Fire, open flames and smoking
are prohibited when handling
batteries. Avoid creating sparks.
Battery acid is caustic. Do not
allow it to come into contact
with skin, eyes or clothing.
Wear suitable protective cloth-
ing, especially gloves, apron and
faceguard.
Wear eye protection.
Rinse any acid spills immediate-
ly with clear water. Contact a
physician if necessary.
Keep children away.
Follow the instructions in this
Operator’s Manual.

507 Practical hints
Battery
!The battery is a valve-regulated lead acid
(VRLA) battery, also referred to as “fleece”
battery. Such batteries do not require topping-up
of the electrolyte level. VRLA batteries therefore
do not have cell caps and the battery cover is
non-removable. Do not attempt to open the
battery as otherwise the battery will be dam-
aged.
Even though VRLA batteries do not require
topping-up of the electrolyte level and cannot be
opened to check the electrolyte level, the
battery condition must be checked periodically
by performing a battery conductance test. Refer
to Maintenance Booklet for battery condition
testing intervals.
As with any other battery, the battery may
discharge if the vehicle is not operated for an
extended period of time. You can connect a
battery maintenance charge unit tested and
approved for use on your vehicle model or dis-
connected the battery to prevent battery dis-
charge. Contact an authorized Mercedes-Benz
Light Truck Center for more information.!The factory-equipped VRLA battery is
leak-proofed. Only use a battery as replacement
that has the same security features and is of
identical size, voltage, and capacity as the
factory-equipped battery.
The battery, the battery ventilation and the later-
al plug must always be securely installed when
the vehicle is in operation.
Warning!G
Jump starting must only be done using the
jump-start contacts located in the engine
compartment (
page 514).
Warning!G
Failure to follow these instructions can re-
sult in severe injury or death.
Observe all safety instructions and precau-
tions when handling automotive batteries
(
page 506).
Never lean over batteries while connecting,
you might get injured.
Battery fluid contains sulfuric acid. Do not
allow this fluid to come in contact with eyes,
skin or clothing. In case it does, immediately
flush affected area with water and seek
medical help if necessary.
A battery will also produce hydrogen gas,
which is flammable and explosive. Keep
flames or sparks away from battery, avoid
improper connection of jumper cables,
smoking etc.

508 Practical hints
Battery
Disconnecting, removing, reinstalling
and reconnecting the battery
Step 1 (Disconnecting)
Set the automatic transmission to
positionP (
page 199).
Firmly depress the parking brake
(
page 66).
Turn off the engine (page 67).
Leave the ignition switched on
(
page 39).
!Never loosen or detach battery terminal
clamps while the engine is running or the
SmartKey is in the starter switch. Otherwise the
alternator and other electronic components
could be severely damaged.
Have the battery checked regularly by an autho-
rized Mercedes-Benz Light Truck Center.
Contact your authorized Mercedes-Benz Light
Truck Center for further information.
Warning!G
Do not place metal objects on the battery as
this could result in a short circuit.
Use leak-proof battery only to avoid the risk
of acid burns in the event of an accident.
Warning!G
Disconnecting, removing, reinstalling and
reconnecting the battery is a complicated
and technically demanding procedure that
a l s o r e q u i r e s s a f e t y p r e c a u t i o n s t o a v o i d t h e
risk of injury. We strongly recommend that it
be performed by a qualified technician or an
authorized Mercedes-Benz Light Truck
Center only. Please read the instructions
fully before beginning operation and only
undertake it if you feel fully capable of
performing all of the tasks involved as
described in these instructions. Observe all
safety instructions and precautions when
handling automotive batteries
(
page 506). Performing the tasks involved
incorrectly can cause damage to the vehicle
and impair the operating safety of the
vehicle, and/or cause severe injury to you
or others.
iWith a disconnected battery you will no long-
er be able to turn the SmartKey in the starter
switch and pressing the KEYLESS-GO*
start/stop button will have no effect.
iIf your battery is discharged, the vehicle
must be jump started (
page 514) using the
jump start contacts in the engine compartment,
or an accessory battery charge unit* approved
by Mercedes-Benz must be connected using the
jump start contacts in the engine compartment
(see separate instructions for the accessory
battery charge unit*) before any of the following
steps can be performed. If the battery cannot be
jumped or charged, please contact an autho-
rized Mercedes-Benz Light Truck Center.

509 Practical hints
Battery
Switch off all electrical consumers.
Read and observe safety instructions
and precautions (
page 506).
Open the front passenger door.
Move the front passenger seat to the
most rearward position (
page 45).Step 2 (Disconnecting)
1Seat rail cover, front right
2Seat rail cover, front left
Pull off right seat rail cover 1 in direc-
tion of arrow.
Pull left seat rail cover 2 in direction
of arrow as far as it will go.
Left seat rail cover 2 cannot be re-
moved.3Battery cover mounting nuts
Using a 6 mm T-handle hex key (not
supplied with vehicle) with a minimum
shaft length of 12 in (30 cm), unfasten
and remove battery cover mounting
nuts 3 located at the floor carpet per-
foration.
Move the front passenger seat to the
most forward position (
page 45).
iIf the vehicle battery is discharged and you
had the vehicle jump started:

Leave the engine running.

Complete step 1, starting with switching off
all electrical consumers.

Continue with step 2.

When the font passenger seat is in the most
forward position, turn off the engine.
iOpen doors only when conditions are safe to
do so.


510 Practical hints
Battery
Switch off the ignition (page 40).
Remove the SmartKey from the starter
switch.
Vehicles with KEYLESS-GO*:
Make sure the vehicle’s on-board
electronics have status 0.
After turning off the engine with the
KEYLESS-GO start/stop button,
with the driver’s door closed, the
starter switch is in position1.
With the driver’s door opened, the
starter switch is set to position0,
same as SmartKey removed from
starter switch (
page 41).Step 3 (Disconnecting)
4Seat rail, rear
5Seat rail cover, rear
Pull seat rail cover 5 away from seat
rail 4 on both sides as indicated by
arrows.
Pull off seat rail cover 5 to the rear as
indicated by arrow.Step 4 (Disconnecting)
6Floor carpet
Pull back and fold floor carpet6 in
direction of the arrow.
iIf the vehicle battery is discharged and you
had the vehicle jump started, turn off the engine.
iTo release the floor carpet perforations (see
dotted line in above illustration), you will have to
apply somewhat greater force when pulling the
floor carpet back.


511 Practical hints
Battery
Step 5 (Disconnecting)
7Battery cover mounting nuts
Unfasten and remove battery cover
mounting nuts 7.Step 6 (Disconnecting)
8Battery cover with integrated air
channel
9Pulling battery cover out
aLifting battery cover
Lift battery cover 8 slightly in direc-
tion of arrow a.
Pull battery cover 8 in direction of
arrow 9.
Remove battery cover 8.Step 7 (Disconnecting)
bBattery ventilation hose
cBattery
dBattery attachment
eAttachment nuts
Pull battery ventilation hose b out of
battery c.
Unfasten and remove attachment
nutse.
Remove battery attachment d.
Push battery c to the left.
