2007 MERCEDES-BENZ R350 Owner's Manual

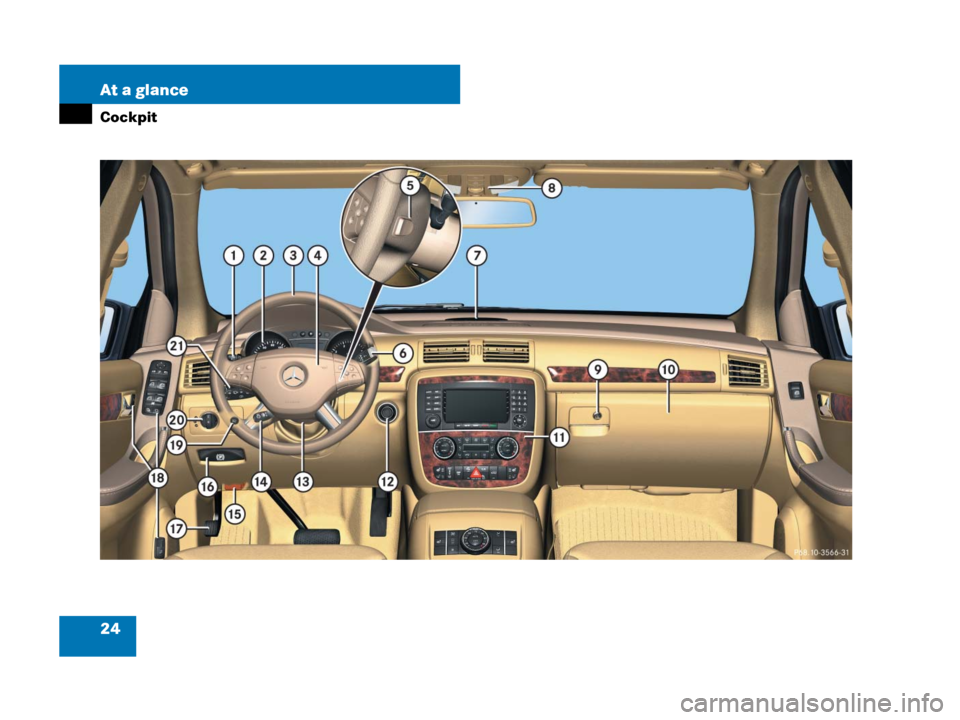

24 At a glance
Cockpit

25 At a glance
Cockpit
ItemPage
1Cruise control lever267
2Instrument cluster26
3Multifunction steering
wheel30
4Horn
5Steering wheel gearshift
buttons207
6Gear selector lever for
automatic transmission54
7Front Parktronic* warning
indicators293
8Overhead control panel33
9Glove box release
Glove box lock311
312
ItemPage
aGlove box
CD changer*
AUX-socket311
311
311
bCenter console31
cStarter switch39
dSteering wheel adjustment,
manual46
eSteering wheel adjustment,
electrical*47
Heated steering wheel*326
fHood lock release364
gParking brake release57
hParking brake pedal66
ItemPage
jDoor control panel36
kHeadlamp washer switch*212
lExterior lamp switch146
mCombination switch

Turn signals60

High beam59

Windshield wipers60

Rear window wiper62

26 At a glance
Instrument cluster

27 At a glance
Instrument cluster
ItemPage
1LLeft turn signal
indicator lamp
2To dim instrument cluster
illumination157
3Reset button156
4To brighten instrument clus-
ter illumination157
5KRight turn signal
indicator lamp
6Clock
ItemPage
7Speedometer with:
-Antilock Brake
System (ABS)
indicator lamp420
’Variable speed limiter
indicator lamp1
lDistance warning
lamp2
1Lamp without function. It illuminates when the
ignition is on. It should go out when the engine is
running.
2Vehicles without Distronic*: Warning lamp without
function. It illuminates when the ignition is on.
It should go out when the engine is running.
ItemPage
;Brake warning lamp,
USA only421
3Brake warning lamp,
Canada only421
vElectronic Stability
Program (ESP®)
warning lamp
425
HCombination low tire
pressure/TPMS
malfunction telltale,
USA only
Low tire pressure
telltale*, Canada only428
428

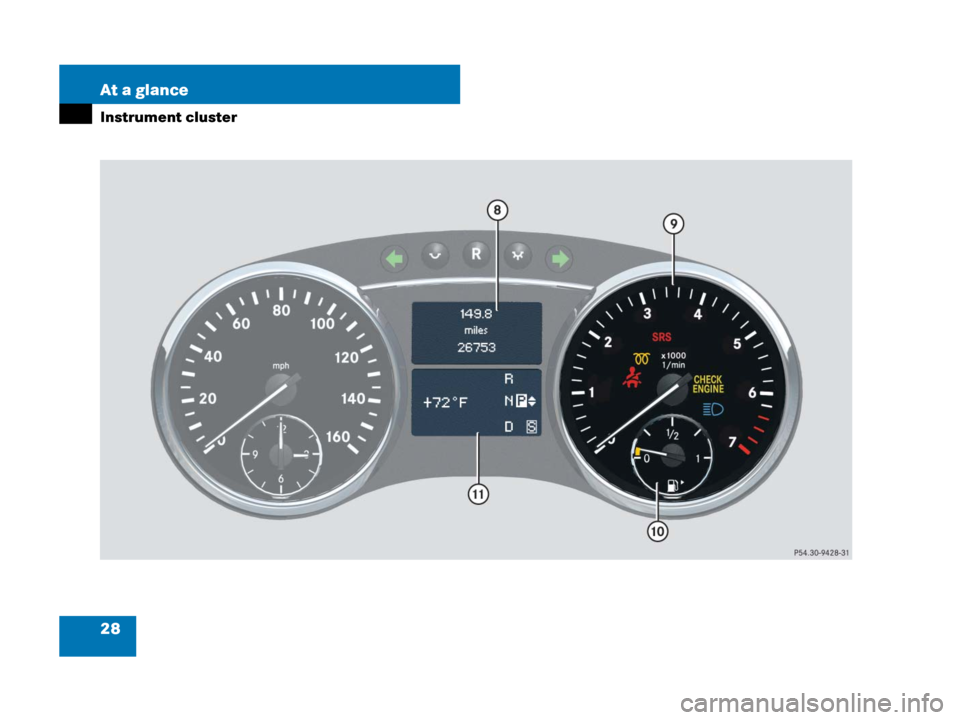

28 At a glance
Instrument cluster

29 At a glance
Instrument cluster
ItemPage
8Multifunction display with:

Trip odometer157

Main odometer159
9Tachometer with:
426
1Supplemental
Restraint System
(SRS) indicator lamp72,
430
?Engine malfunction in-
dicator lamp,
USA only423
±Engine malfunction in-
dicator lamp,
Canada only423
ItemPage
AHigh beam headlamp
indicator150
qPreglow indicator
lamp1
aFuel gauge with:
Fuel tank reserve warning
lamp430
4Fuel filler flap indica-
tor: The fuel filler flap
is located on the rear
right-hand side360
1Vehicles with diesel engine only.
ItemPage
bMultifunction display with:

Outside temperature
display or digital speed-
ometer (depending on
selected setting in the
control system)159,
180

Transmission position
indicator201

Gear range indicator205

Selected program mode
indicator206

Distance warning function
indicator*284

Rear window wiper
indicator62

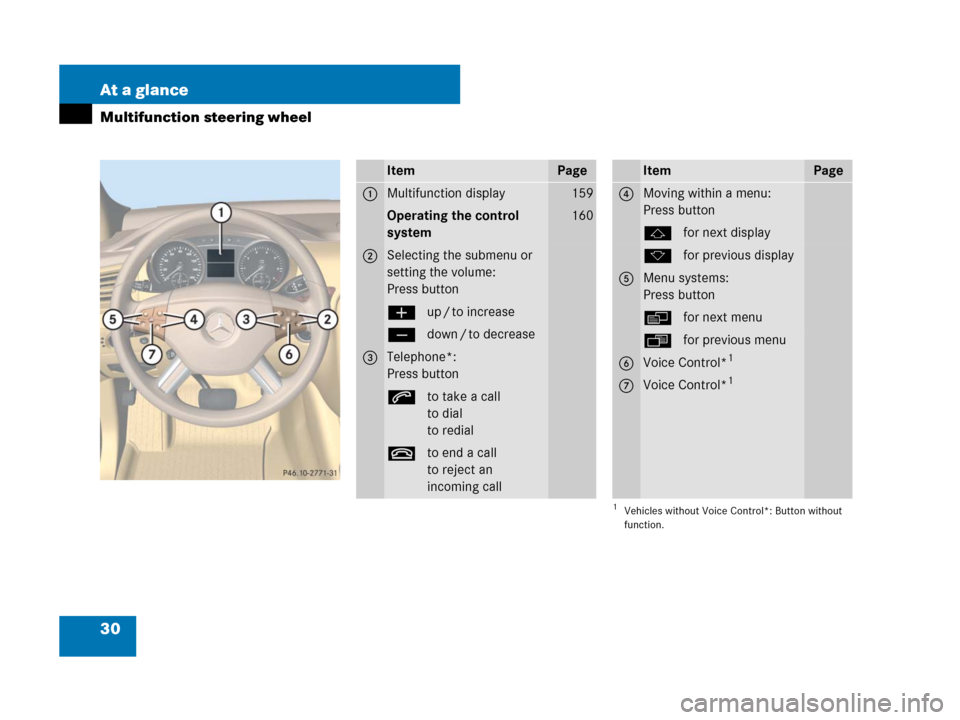

30 At a glance
Multifunction steering wheel
ItemPage
1Multifunction display159
Operating the control
system160
2Selecting the submenu or
setting the volume:
Press button
æup / to increase
çdown / to decrease
3Telephone*:
Press button
sto take a call
to dial
to redial
tto end a call
to reject an
incoming call
ItemPage
4Moving within a menu:
Press button
jfor next display
kfor previous display
5Menu systems:
Press button
èfor next menu
ÿfor previous menu
6Voice Control*1
7Voice Control*1
1Vehicles without Voice Control*: Button without
function.

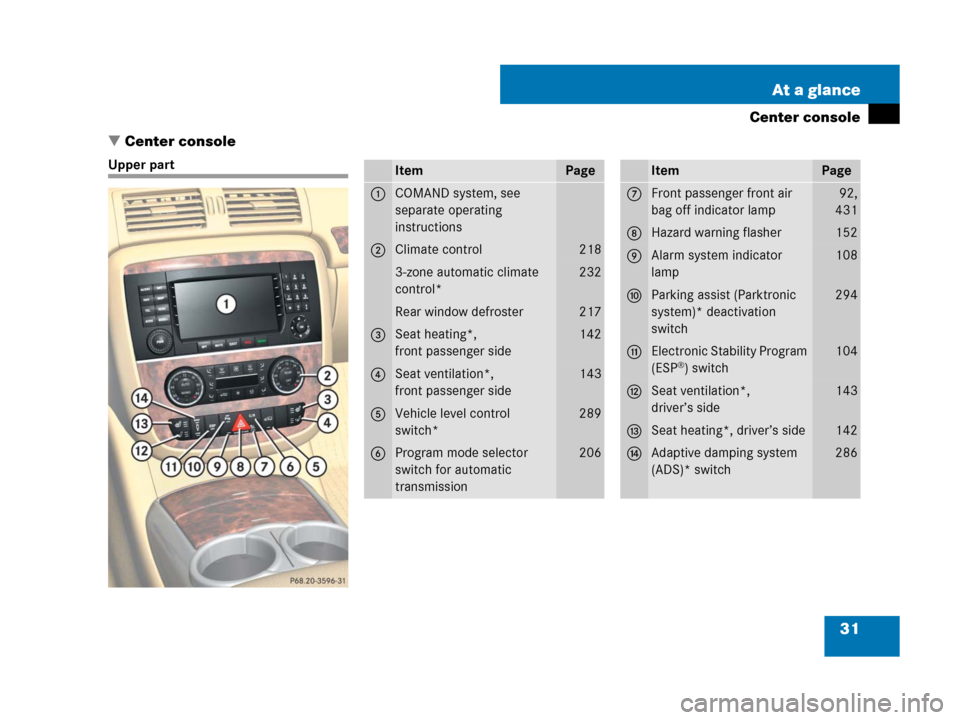

31 At a glance
Center console
Center console
Upper partItemPage
1COMAND system, see
separate operating
instructions
2Climate control218
3-zone automatic climate
control*232
Rear window defroster217
3Seat heating*,
front passenger side142
4Seat ventilation*,
front passenger side143
5Vehicle level control
switch*289
6Program mode selector
switch for automatic
transmission206
ItemPage
7Front passenger front air
bag off indicator lamp 92,
431
8Hazard warning flasher152
9Alarm system indicator
lamp108
aParking assist (Parktronic
system)* deactivation
switch294
bElectronic Stability Program
(ESP®) switch
104
cSeat ventilation*,
driver’s side143
dSeat heating*, driver’s side142
eAdaptive damping system
(ADS)* switch286
