2007 MERCEDES-BENZ R350 Owner's Manual

216 Controls in detail
Good visibility
Vanity mirror
Swing sun visor1 down.
Flip up cover4 to access vanity
mirror5.
Vanity mirror lamp3 comes on.
After using vanity mirror 5, flip down
cover4.
Swing sun visor 1 up.
Glare through a side window
1Sun visor
2Additional sun visor*
Swing sun visor1 down.
Disengage sun visor1 from
mounting7 (
page 215).
Pivot sun visor1 to the side.
Swing down additional sun visor*2
when you experience additional glare
through the windshield.
Rear door window sunshade*
1Holder
2Tab
To raise sunshade, pull on tab 2 and
engage it in holder 1.
To lower sunshade, disengage tab 2
from holder 1 and guide retraction.
!To avoid damage to vanity mirror cover4
(
page 215), make sure it is closed before
pivoting sun visor 1 to the side.
!Always guide the sunshade. Do not let it
snap back abruptly, as the retractor could be
damaged.

217 Controls in detail
Good visibility
Rear window defroster
The rear window defroster uses a large
amount of power. To keep battery drain to
a minimum, switch off the defroster as
soon as the rear window is clear. The de-
froster is automatically deactivated after
approximately 6 to 17 minutes of
operation depending on the outside tem-
perature.
Switch on the ignition (page 39).Activating
Press button1 on the climate con-
trol panel (
page 220) or the automat-
ic climate control* panel (
page 234).
The indicator lamp on the button
comes on.
Deactivating
Press button1 once more.
The indicator lamp on the button goes
out.
!With the sunshade raised and the respective
door window open, the sunshade could disen-
gage and snap back when driving at high vehicle
speeds, e.g. on highways, and damage the
retractor. You should therefore always either
close the door window or lower the sunshade
when driving at high speed.
Warning!G
Any accumulation of snow and ice should be
removed from the rear window before driv-
ing. Visibility could otherwise be impaired,
endangering you and others.!If the rear window defroster switches off too
soon and the indicator lamp starts flashing, too
many electrical consumers are operating simul-
taneously and there is insufficient voltage in the
battery. The system responds automatically by
switching the rear window defroster off.
As soon as the battery has sufficient voltage, the
rear window defroster switches back on auto-
matically.

218 Controls in detail
Climate control

219 Controls in detail
Climate control
1Left side air vent, adjustable
2Thumbwheel for air volume control
for left side and door air vent
3Left center air vent, adjustable
4Right center air vent, adjustable
5Thumbwheel for air volume control
for left center air vent
6Thumbwheel for air volume control
for right center air vent
7Thumbwheel for air volume control
for right side and door air vent
8Right side air vent, adjustable
9Front passenger door air vent, fixed
aClimate control panel
bDriver’s door air vent, fixed
iFor draft-free ventilation, move the sliders
for center air vents and side air vents to the
middle position.

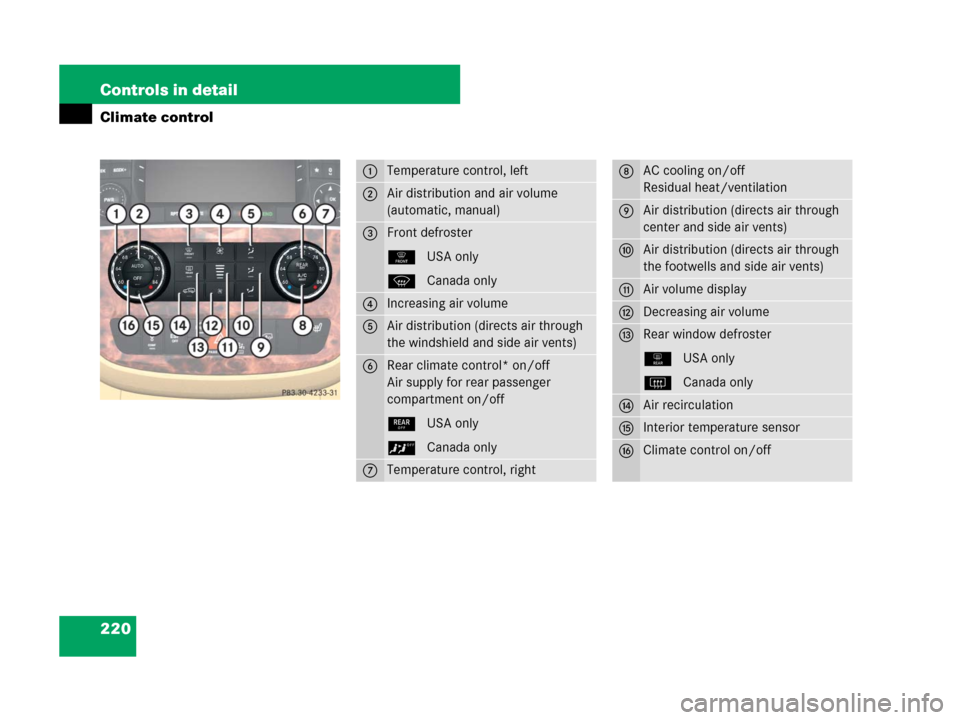

220 Controls in detail
Climate control
1Temperature control, left
2Air distribution and air volume
(automatic, manual)
3Front defroster
0USA only
P Canada only
4Increasing air volume
5Air distribution (directs air through
the windshield and side air vents)
6Rear climate control* on/off
Air supply for rear passenger
compartment on/off
:USA only
7Temperature control, right
8AC cooling on/off
Residual heat/ventilation
9Air distribution (directs air through
center and side air vents)
aAir distribution (directs air through
the footwells and side air vents)
bAir volume display
cDecreasing air volume
dRear window defroster
1 USA only
F Canada only
eAir recirculation
fInterior temperature sensor
gClimate control on/off

221 Controls in detail
Climate control
The climate control is operational whenev-
er the engine is running. You can operate
the climate control system in either the
automatic or manual mode. The system
cools or heats the interior depending on
the selected interior temperature and the
current outside temperature.Nearly all dust particles, pollutants and
odors are filtered out before outside air en-
ters the passenger compartment through
the air distribution system.
The air conditioning will not engage (no
cooling) if the A/C mode is deactivated
(
page 228).
Warning!G
When operating the climate control, the air
that enters the passenger compartment
through the air vents can be very hot or very
cold (depending on the set temperature).
This may cause burns or frostbite to unpro-
tected skin in the immediate area of the air
vents.
Always keep sufficient distance between un-
protected parts of the body and the air
vents. If necessary, use the air distribution
controls (
page 220) to direct the air to air
vents in the vehicle interior that are not in
the immediate area of unprotected skin.
Warning!G
Follow the recommended settings for heat-
ing and cooling given on the following pag-
es. Otherwise the windows could fog up,
impairing visibility and endangering you and
others.
iSevere conditions (e.g. strong air pollution)
may require replacement of the filter before its
scheduled interval. A clogged filter will reduce
the air volume to the interior.
If the vehicle interior is hot, ventilate the interior
before driving off, see “Summer opening fea-
ture” (
page 254). The climate control will then
adjust the interior temperature to the set value
much faster.
Keep the air intake grille in front of the wind-
shield free of snow and debris.

222 Controls in detail
Climate control
Deactivating the climate control
system
Deactivating
Press button´ (page 220).
The indicator lamp on the button
comes on.Reactivating
Press buttonU (page 220).
Operating the climate control system
in automatic modeActivating
Press buttonU (page 220) while
the engine is running.
The indicator lamp on the button
comes on. The air volume and air distri-
bution are adjusted automatically.
Use temperature controls1 and7
(
page 220) to separately adjust the
air temperature on each side of the
passenger compartment.
The interior air temperature is adjusted
automatically.
Warning!G
When the climate control system is
switched off, the outside air supply and cir-
culation are also switched off. Only choose
this setting for a short time. Otherwise the
windows could fog up, impairing visibility
and endangering you and others.
iYou can also press button´
(
page 220) on the climate control panel.
If you press button0 (
page 220) to reacti-
vate the climate control system, the defrosting
mode is activated.
iWhen operating the climate control system
in automatic mode, you will only rarely need to
adjust the temperature, air volume and air distri-
bution.
In automatic mode, cooling with dehumidify is
switched on. This function can be switched off if
necessary (
page 228).
iThe settings for the passenger side are also
used for the rear passenger compartment.

223 Controls in detail
Climate control
Deactivating
Press button
orQ
(
page 220).
The indicator lamp on buttonU
goes out. The automatic operation of
air volume switches off. The selected
blower speed is shown in the air
volume displayb (
page 220).
or
Press air distribution button 5,9,
ora (
page 220).
The indicator lamp on buttonU
goes out. The automatic operation of
air distribution switches off.
Setting the temperature
Use temperature controls1 and7
(
page 220) to separately adjust the air
temperature on each side of the passenger
compartment. You should raise or lower
the temperature setting in small incre-
ments, preferably starting at 72°F (22°C).
The climate control will adjust to the set
temperature as fast as possible.
Increasing
Turn temperature control1and/or
7 (
page 220) slightly clockwise.
The climate control system will corre-
spondingly adjust the interior air
temperature.
Decreasing
Turn temperature control1 and/or
7 (
page 220) slightly counterclock-
wise.
The climate control system will corre-
spondingly adjust the interior air
temperature.
Adjusting air distribution
Press air distribution button5,9, ora
(
page 220) to adjust the air distribution.
The following symbols are found on the
buttons:
Press the desired air distribution
button5,9, ora (
page 220).
The indicator lamp on buttonU
goes out.
SymbolFunction
aDirects air through the center
and side air vents
ZDirects air to the windshield
and side air vents
YDirects air to the footwells and
side air vents
