2007 MERCEDES-BENZ R350 Owner's Manual

88 Safety and Security
Occupant safety
Occupant Classification System
The Occupant Classification System (OCS)
automatically turns the front passenger
front air bag on or off based on the classi-
fied occupant weight category determined
by weight sensor readings from the front
passenger seat.
Occupants must sit properly belted in a
nearly upright position with their back
against the seat backrest and feet on the
floor to be correctly classified. If the occu-
pant’s weight is transferred to another
object in the vehicle (e.g. by leaning on
armrests), the OCS may not be able to
properly approximate the occupant’s
weight category.Furthermore, the occupant weight may
appear to increase or decrease due to
objects hanging on the seat, other passen-
gers pushing on the seat, objects lodged
underneath the seat or stuffed between
seat and middle console or between seat
and door or due to objects applying pres-
sure on the back of the seat. Always make
sure the seat has clearance in all direc-
tions at all times.
Both, driver and the front passenger
should always use the 59 in-
dicator lamp as an indication of whether or
not the front passenger is properly posi-
tioned.Children too big for a toddler restraint must
ride in seats using regular seat belts. Posi-
tion shoulder belt across chest and shoul-
der, not face or neck. A booster seat may be
necessary to achieve proper belt positioning
for children over 41 lbs until they reach a
height where a lap/shoulder belt fits proper-
ly without a booster.
When the child restraint is not in use, re-
move it from the vehicle or secure it with the
seat belt to prevent the child restraint from
becoming a projectile in the event of an ac-
cident.
Do not leave children unattended in the ve-
hicle, even if the children are secured in a
child restraint system. Unsupervised chil-
dren in a child restraint system may use
vehicle equipment and may cause an acci-
dent and/or serious personal injury.
iThe system does not deactivate the front
passenger side impact air bag, the window cur-
tain air bag, and the emergency tensioning de-
vice.
iIf your seat, including your trim cover and
cushion needs to be serviced in any way, take
the vehicle to an authorized Mercedes-Benz
Light Truck Center.
Only seat accessories approved by
Mercedes-Benz may be used.


89 Safety and Security
Occupant safety
Warning!G
If the 59indicator lamp illumi-
nates when an adult or someone larger than
a small individual is in the front passenger
seat, have the front passenger reposition
himself or herself in the seat until the
59 indicator lamp goes out, or
check whether objects are caught under or
around the seat.
More information about air bag display
messages (
page 445).
In the event of a collision, the air bag control
unit will not allow front passenger front air
bag deployment when the OCS classified
the front passenger seat occupant as being
up to or less than the weight of a typical
12-month-old child in a standard child re-
straint or if the front passenger seat is
sensed as being empty.
When the OCS senses that the front passen-
ger seat occupant is classified as being up
to or less than the weight of a typical
12-month-old child in a standard child
restraint, the 59indicator
lamp will illuminate when the engine is
started and remain illuminated, indicating
that the front passenger front air bag is de-
activated.
When the OCS senses that the front passen-
ger seat is classified as being empty, the
59indicator lamp will illumi-
nate when the engine is started and remain
illuminated, indicating that the front passen-
ger front air bag is deactivated.When the OCS senses that the front passen-
ger seat occupant is classified as being
heavier than the weight of a typical
12-month-old child seated in a standard
child restraint or as being a small individual
(such as a young teenager or a small adult),
the 59 indicator lamp will illu-
minate for approximately 6 seconds when
the engine is started and then, depending on
occupant weight sensor readings from the
seat, remain illuminated or go out. With the
59 indicator lamp illuminated,
the front passenger front air bag is deacti-
vated. With the 59indicator
lamp out, the front passenger front air bag is
activated.
When the OCS senses that the front passen-
ger seat occupant is classified as an adult or
someone larger than a small individual, the
59 indicator lamp will illumi-
nate for approximately 6 seconds when the
engine is started and then go out, indicating
that the front passenger front air bag is acti-
vated.

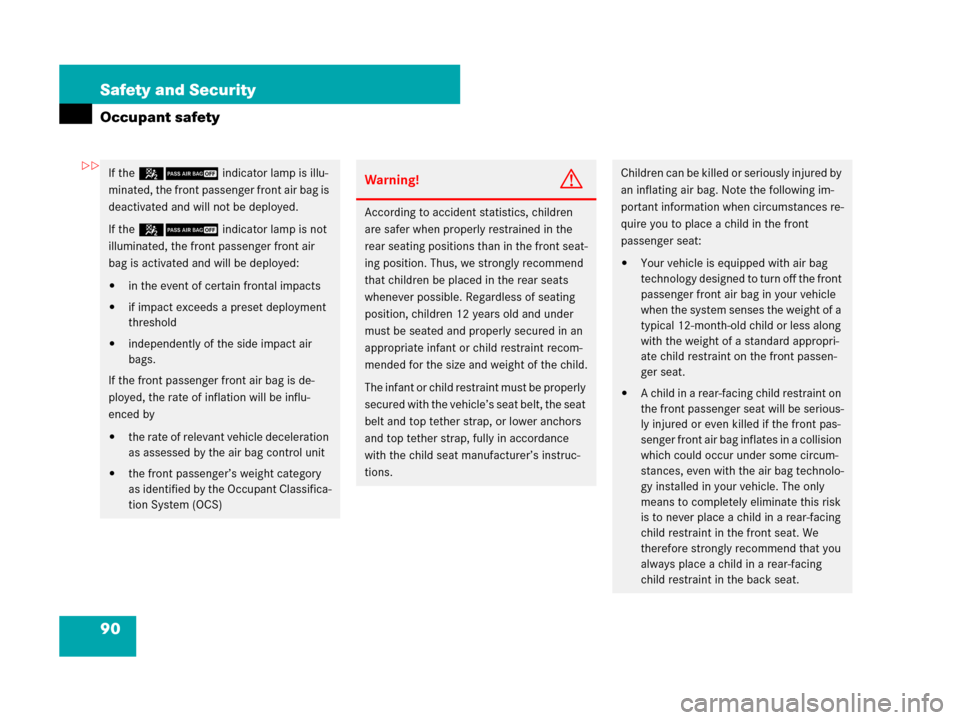

90 Safety and Security
Occupant safety
If the 59indicator lamp is illu-
minated, the front passenger front air bag is
deactivated and will not be deployed.
If the 59indicator lamp is not
illuminated, the front passenger front air
bag is activated and will be deployed:

in the event of certain frontal impacts

if impact exceeds a preset deployment
threshold

independently of the side impact air
bags.
If the front passenger front air bag is de-
ployed, the rate of inflation will be influ-
enced by

the rate of relevant vehicle deceleration
as assessed by the air bag control unit

the front passenger’s weight category
as identified by the Occupant Classifica-
tion System (OCS)
Warning!G
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing position. Thus, we strongly recommend
that children be placed in the rear seats
whenever possible. Regardless of seating
position, children 12 years old and under
must be seated and properly secured in an
appropriate infant or child restraint recom-
mended for the size and weight of the child.
The infant or child restraint must be properly
secured with the vehicle’s seat belt, the seat
belt and top tether strap, or lower anchors
and top tether strap, fully in accordance
with the child seat manufacturer’s instruc-
tions.
Children can be killed or seriously injured by
an inflating air bag. Note the following im-
portant information when circumstances re-
quire you to place a child in the front
passenger seat:

Your vehicle is equipped with air bag
technology designed to turn off the front
passenger front air bag in your vehicle
when the system senses the weight of a
typical 12-month-old child or less along
with the weight of a standard appropri-
ate child restraint on the front passen-
ger seat.

A child in a rear-facing child restraint on
the front passenger seat will be serious-
ly injured or even killed if the front pas-
senger front air bag inflates in a collision
which could occur under some circum-
stances, even with the air bag technolo-
gy installed in your vehicle. The only
means to completely eliminate this risk
is to never place a child in a rear-facing
child restraint in the front seat. We
therefore strongly recommend that you
always place a child in a rear-facing
child restraint in the back seat.

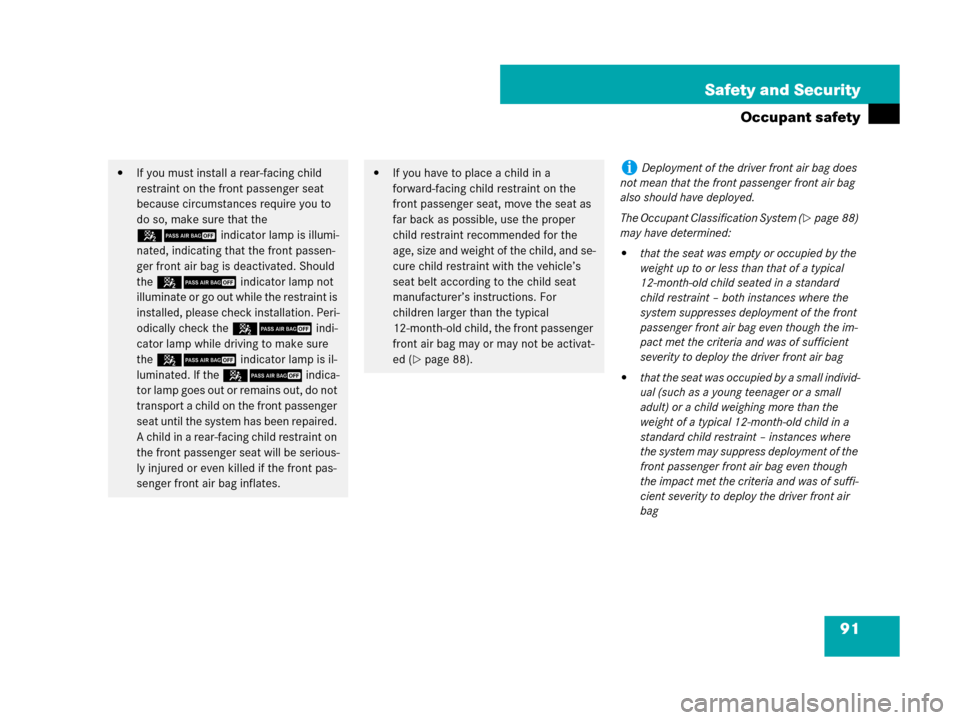

91 Safety and Security
Occupant safety

If you must install a rear-facing child
restraint on the front passenger seat
because circumstances require you to
do so, make sure that the
59 indicator lamp is illumi-
nated, indicating that the front passen-
ger front air bag is deactivated. Should
the 59 indicator lamp not
illuminate or go out while the restraint is
installed, please check installation. Peri-
odically check the 59 indi-
cator lamp while driving to make sure
the 59 indicator lamp is il-
luminated. If the 59 indica-
tor lamp goes out or remains out, do not
transport a child on the front passenger
seat until the system has been repaired.
A child in a rear-facing child restraint on
the front passenger seat will be serious-
ly injured or even killed if the front pas-
senger front air bag inflates.
If you have to place a child in a
forward-facing child restraint on the
front passenger seat, move the seat as
far back as possible, use the proper
child restraint recommended for the
age, size and weight of the child, and se-
cure child restraint with the vehicle’s
seat belt according to the child seat
manufacturer’s instructions. For
children larger than the typical
12-month-old child, the front passenger
front air bag may or may not be activat-
ed (
page 88).
iDeployment of the driver front air bag does
not mean that the front passenger front air bag
also should have deployed.
The Occupant Classification System (
page 88)
may have determined:

that the seat was empty or occupied by the
weight up to or less than that of a typical
12-month-old child seated in a standard
child restraint – both instances where the
system suppresses deployment of the front
passenger front air bag even though the im-
pact met the criteria and was of sufficient
severity to deploy the driver front air bag

that the seat was occupied by a small individ-
ual (such as a young teenager or a small
adult) or a child weighing more than the
weight of a typical 12-month-old child in a
standard child restraint – instances where
the system may suppress deployment of the
front passenger front air bag even though
the impact met the criteria and was of suffi-
cient severity to deploy the driver front air
bag

92 Safety and Security
Occupant safety
The 59indicator lamp is lo-
cated in the center console.
159 indicator lamp
The 59indicator lamp1 will
be illuminated, except with the SmartKey
removed from the starter switch or with
the starter switch in position0
(
page 39).
Warning!G
If the 1indicator lamp and the
59indicator lamp are lit at the
same time, there is a malfunction in the
Occupant Classification System. The front
passenger front air bag will be deactivated
in this case. Have the system checked as
soon as possible by qualified technicians.
Contact an authorized Mercedes-Benz Light
Truck Center.
In order to ensure proper operation of the
air bag system and OCS:

Do not place more than 4.4 lbs (2 kg)
into the parcel net on the back of the
front passenger seat. Otherwise, the
OCS may not be able to properly approx-
imate the occupant weight category.

Do not place objects under and/or
around the front passenger seat.

Do not hang anything from or attach any
items to the seats.

Do not stuff objects such as books be-
tween the middle console and the front
passenger seat.

Do not move the front passenger seat
backwards against stiff objects.

Sit properly belted in a nearly upright
position with your back against the seat
backrest.

Do not lean on the armrests or lift your-
self from the seat by using the handle
over the door as this may cause the OCS
to be unable to correctly approximate
the occupant weight category.

Only have the seat repaired or replaced
by an authorized Mercedes-Benz Light
Truck Center.

Read and observe all warnings in this
chapter.

93 Safety and Security
Occupant safety
Self-test Occupant Classification Sys-
tem
After turning the SmartKey in the starter
switch to position1or2or pressing the
KEYLESS-GO* start/stop button once or
twice, the59indicator lamp
(
page 92) located in the center console
illuminates. If an adult occupant is properly
sitting on the front passenger seat and the
system senses the occupant as being an
adult, the59indicator lamp
will illuminate and go out after approxi-
mately 6 seconds.
If the seat is not occupied and the system
senses the front passenger seat as being
empty, the59indicator lamp
will illuminate and not go out.For more information, see the “Practical
hints” section (
page 431).Child seat anchors – LATCH type
This vehicle is equipped with two LATCH
(L
ower Anchors and Tethers for CHildren)
type anchors (at each of the second and
third-row seats) for the installation of a
LATCH child seat with matching mounting
fittings.
Warning!G
If the 59 indicator lamp should
not illuminate, the system is not functioning.
You must see an authorized Mercedes-Benz
Light Truck Center before seating any child
on the front passenger seat.
Warning!G
Never place anything between seat cushion
and child seat (e.g. pillow), since it reduces
the effectiveness of the Occupant
Classification System. The bottom of the
child seat must make full contact with the
passenger seat cushion. An incorrectly
mounted child seat could cause injuries to
the child in case of an accident, instead of
increasing protection for the child.
Follow the manufacturer’s instructions for
installation of child seats.
Warning!G
Children too big for a toddler restraint must
ride in seats using regular seat belts. Posi-
tion shoulder belt across chest and shoul-
der, not face or neck.
A booster seat may be necessary to achieve
proper belt positioning for children over
41 lbs until they reach a height where a
lap/shoulder belt fits properly without a
booster.
Install child seat according to manufactu-
rer’s instructions.
The child seat must be firmly attached to the
right and left side anchors.


94 Safety and Security
Occupant safety
The LATCH anchors on the second-row
seats are covered with upholstery blends.
1Anchors second-row seats
2Indicates the position of the anchors
Move the respective second-row seat
backrest to an upright position
(
page 138).
Push the upholstery blend to the side.
Install a LATCH type child seat accord-
ing to the manufacturer’s instructions.
The LATCH anchors on the third-row seats
are blended with covers.
3Anchorage ring covers, third-row seats
Remove anchorage ring cover3 from
third-row seat on which a child seat is
to be installed.4Anchors third-row seats
Install a LATCH type child seat accord-
ing to the manufacturer’s instructions.
An incorrectly mounted child seat may come
loose during an accident which could result
in serious injury or death to the child.
Damaged or impact damaged child seats or
child seat mounting fittings must be re-
placed.
Do not leave children unattended in the
vehicle, even if the children are secured in a
child restraint system.
iNon-LATCH type child seats may also be
used and can be installed using the vehicle’s
seat belt system. Install child seat according to
the manufacturer’s instructions.


95 Safety and Security
Occupant safety
Installation of infant and child restraint
system
This vehicle is equipped with tether an-
chorages for a top tether strap at each of
the rear seat backrests.
1Anchorage ring cover
Remove anchorage ring cover 1 from
seat backrest of the seat on which a
child seat is to be installed.2Anchorage rings
3Hook
Move the respective head restraint to
its uppermost position (
page 139).
Release the respective seat backrest
(
page 133).
The seat backrest folds down.2Anchorage ring
3Hook
4Top tether strap
Guide top tether strap4 between
head restraint and top of seat backrest.
iFor safety, make sure hook 3 has attached
to anchorage ring 2 beyond the safety catch, as
illustrated (
page 95).
