The rear view camera is an optical parking
aid. It shows you the area behind the vehi-
cle in the COMAND system display when
reverse gear R is engaged, for example
during parallel parking.

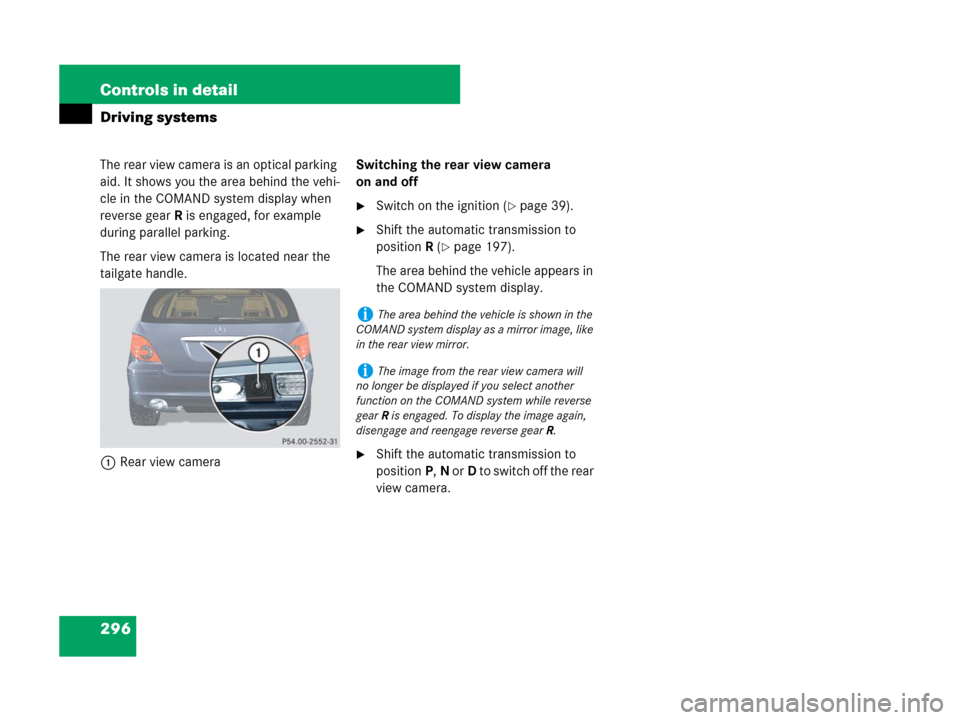

The rear view camera is located near the
tailgate handle.
1Rear view cameraSwitching the rear view camera
on and off
Switch on the ignition (page 39).
Shift the automatic transmission to
positionR (
page 197).
The area behind the vehicle appears in
the COMAND system display.
Shift the automatic transmission to
positionP,N orD to switch off the rear
view camera.
iThe area behind the vehicle is shown in the
COMAND system display as a mirror image, like
in the rear view mirror.
iThe image from the rear view camera will
no longer be displayed if you select another
function on the COMAND system while reverse
gear R is engaged. To display the image again,
disengage and reengage reverse gear R.

297 Controls in detail
Loading
Loading
Roof rack*

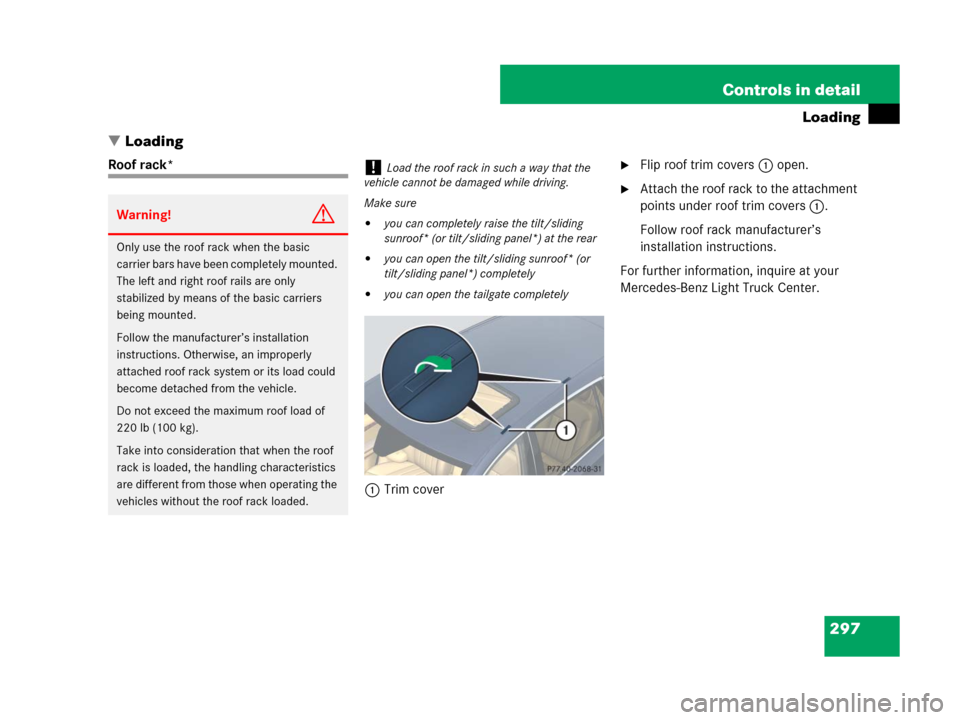

1Trim coverFlip roof trim covers 1 open.
Attach the roof rack to the attachment
points under roof trim covers 1.
Follow roof rack manufacturer’s
installation instructions.
For further information, inquire at your
Mercedes-Benz Light Truck Center.
Warning!G
Only use the roof rack when the basic
carrier bars have been completely mounted.
The left and right roof rails are only
stabilized by means of the basic carriers
being mounted.
Follow the manufacturer’s installation
instructions. Otherwise, an improperly
attached roof rack system or its load could
become detached from the vehicle.
Do not exceed the maximum roof load of
220 lb (100 kg).
Take into consideration that when the roof
rack is loaded, the handling characteristics
are different from those when operating the
vehicles without the roof rack loaded.
!Load the roof rack in such a way that the
vehicle cannot be damaged while driving.
Make sure

you can completely raise the tilt/sliding
sunroof* (or tilt/sliding panel*) at the rear

you can open the tilt/sliding sunroof* (or
tilt/sliding panel*) completely

you can open the tailgate completely

298 Controls in detail
Loading
Loading instructions
Load distribution
The gross vehicle weight which is the
weight of the vehicle including fuel, tools,
spare wheel, installed accessories, pas-
sengers, and luggage/cargo must never
exceed the load limit and the Gross Vehicle
Weight Rating (GVWR) for your vehicle as
specified on the placard located on the
driver’s door B-pillar (
page 526). In addi-
tion, the load must be distributed in such a
way so that the weight on each axle never
exceeds the Gross Axle Weight Rating
(GAWR) for the front and rear axle. The
GVWR and GAWR for your vehicle are indi-
cated on the certification label which can
be found on the driver’s door B-pillar
(
page 526).
For more information, see “Tire and Load-
ing Information” (
page 377).
The handling characteristics of a fully
loaded vehicle depend greatly on the load
distribution. It is therefore recommended

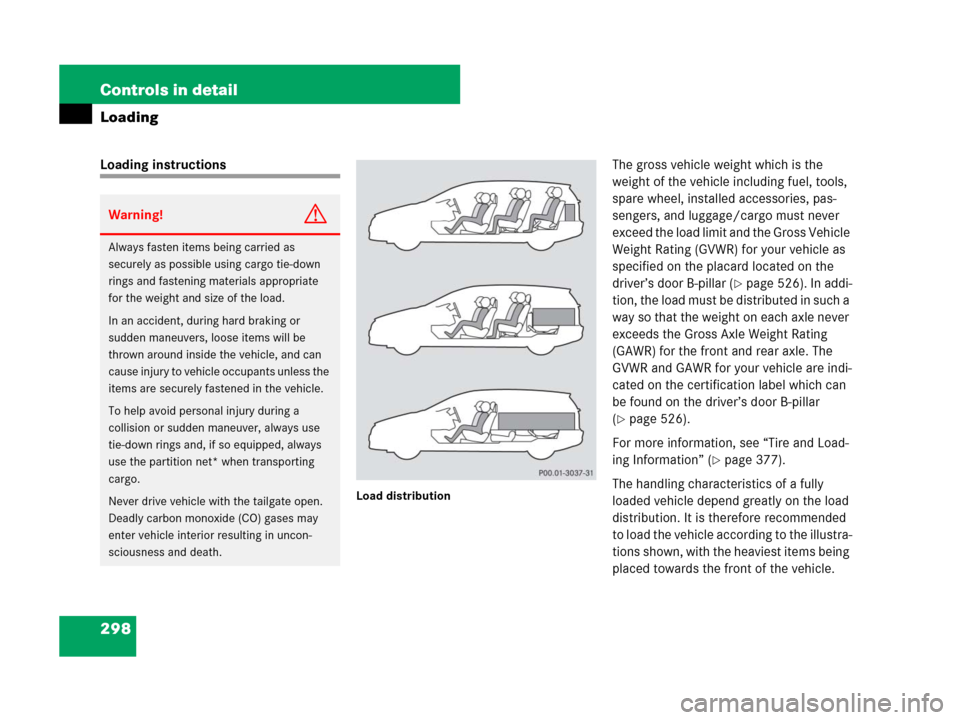

to load the vehicle according to the illustra-
tions shown, with the heaviest items being
placed towards the front of the vehicle.
Warning!G
Always fasten items being carried as
securely as possible using cargo tie-down
rings and fastening materials appropriate
for the weight and size of the load.
In an accident, during hard braking or
sudden maneuvers, loose items will be
thrown around inside the vehicle, and can
cause injury to vehicle occupants unless the
items are securely fastened in the vehicle.
To help avoid personal injury during a
collision or sudden maneuver, always use
tie-down rings and, if so equipped, always
use the partition net* when transporting
cargo.
Never drive vehicle with the tailgate open.
Deadly carbon monoxide (CO) gases may
enter vehicle interior resulting in uncon-
sciousness and death.

299 Controls in detail
Loading
Please pay attention to and comply with
the following instructions when loading the
vehicle and transporting cargo:

Always place items being carried
against front or rear seat backrests,
and fasten them as securely as possi-
ble.

The heaviest portion of the cargo
should always be kept as low as possi-
ble against front or rear seat backrests.
Cargo tie-down rings
Your vehicle is equipped with eight cargo
tie-down rings.
Carefully secure cargo by applying even
load on all rings with rope of sufficient
strength to hold down the cargo.Cargo compartment
Four cargo tie-down rings are located in
the cargo compartment.

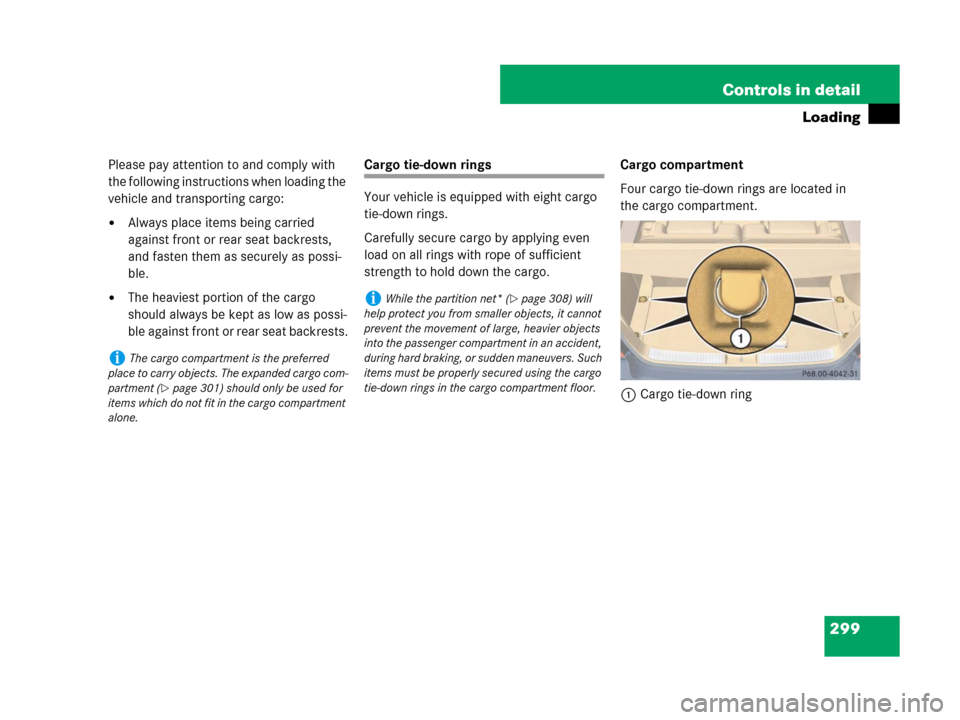

1Cargo tie-down ring
iThe cargo compartment is the preferred
place to carry objects. The expanded cargo com-
partment (
page 301) should only be used for
items which do not fit in the cargo compartment
alone.
iWhile the partition net* (page 308) will
help protect you from smaller objects, it cannot
prevent the movement of large, heavier objects
into the passenger compartment in an accident,
during hard braking, or sudden maneuvers. Such
items must be properly secured using the cargo
tie-down rings in the cargo compartment floor.

300 Controls in detail
Loading
Second seat-row
Two cargo tie-down rings are located in the
footwell behind the driver’s and passenger
seat.
1Cargo tie-down ringThird seat-row
Two cargo tie-down rings are located in the
footwell behind the second-row seats.
1Cargo tie-down ringHooks
Two hooks are located on the rear com-
partment trim panels, one on each side.
1Hook
Use the hooks to secure light weight items
only. The maximum permissible weight per
hook is 9 lbs (4 kg).

301 Controls in detail
Loading
Expanding cargo compartment
You can separately fold each seat of the
rear passenger compartment to expand
the cargo compartment.
Expanding cargo compartment in part
Folding third-row seats
Completely lower the head restraints of

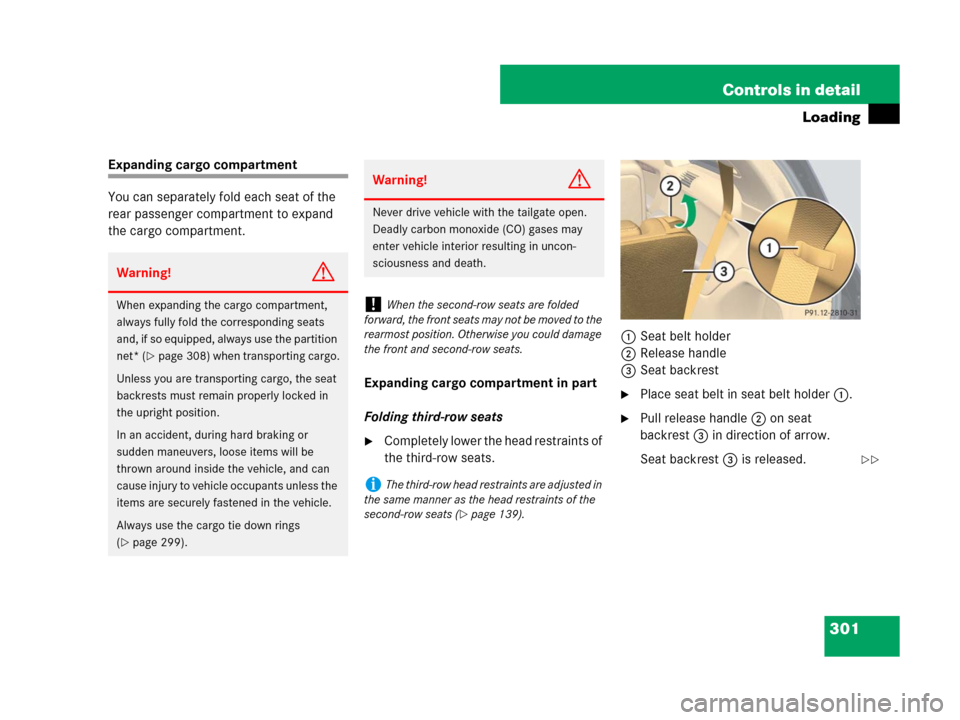

the third-row seats.1Seat belt holder
2Release handle
3Seat backrest
Place seat belt in seat belt holder 1.
Pull release handle 2 on seat
backrest3 in direction of arrow.
Seat backrest 3 is released.
Warning!G
When expanding the cargo compartment,
always fully fold the corresponding seats
and, if so equipped, always use the partition
net* (
page 308) when transporting cargo.
Unless you are transporting cargo, the seat
backrests must remain properly locked in
the upright position.
In an accident, during hard braking or
sudden maneuvers, loose items will be
thrown around inside the vehicle, and can
cause injury to vehicle occupants unless the
items are securely fastened in the vehicle.
Always use the cargo tie down rings
(
page 299).
Warning!G
Never drive vehicle with the tailgate open.
Deadly carbon monoxide (CO) gases may
enter vehicle interior resulting in uncon-
sciousness and death.
!When the second-row seats are folded
forward, the front seats may not be moved to the
rearmost position. Otherwise you could damage
the front and second-row seats.
iThe third-row head restraints are adjusted in
the same manner as the head restraints of the
second-row seats (
page 139).


302 Controls in detail
Loading

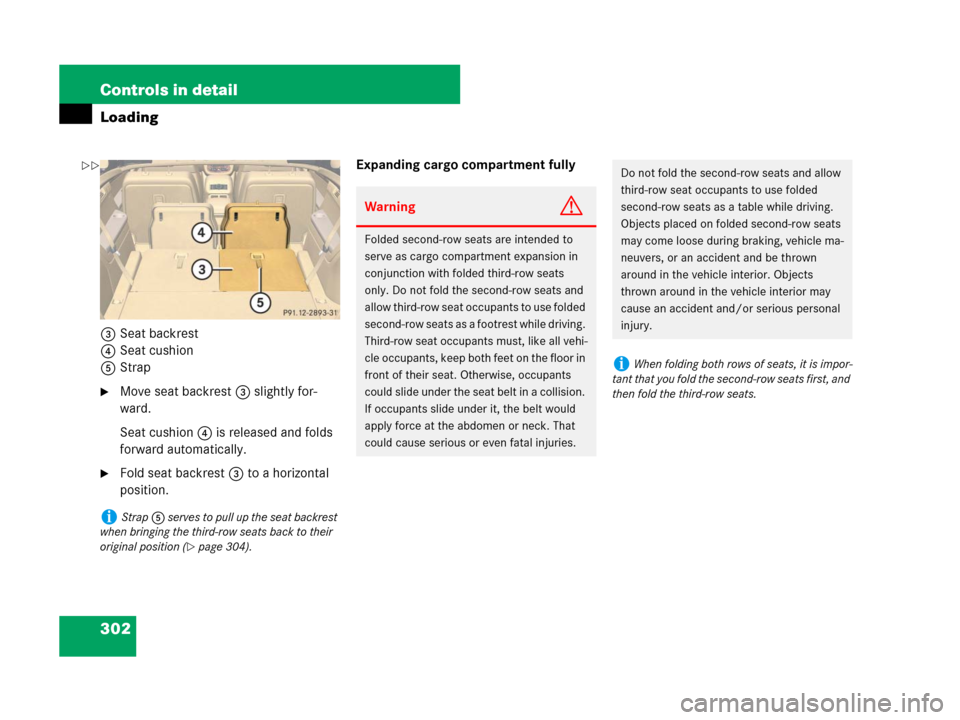

3Seat backrest
4Seat cushion
5Strap
Move seat backrest 3 slightly for-
ward.
Seat cushion 4 is released and folds
forward automatically.
Fold seat backrest 3 to a horizontal
position.Expanding cargo compartment fully
iStrap 5 serves to pull up the seat backrest
when bringing the third-row seats back to their
original position (
page 304).
WarningG
Folded second-row seats are intended to
serve as cargo compartment expansion in
conjunction with folded third-row seats
only. Do not fold the second-row seats and
allow third-row seat occupants to use folded
second-row seats as a footrest while driving.
Third-row seat occupants must, like all vehi-
cle occupants, keep both feet on the floor in
front of their seat. Otherwise, occupants
could slide under the seat belt in a collision.
If occupants slide under it, the belt would
apply force at the abdomen or neck. That
could cause serious or even fatal injuries.
Do not fold the second-row seats and allow
third-row seat occupants to use folded
second-row seats as a table while driving.
Objects placed on folded second-row seats
may come loose during braking, vehicle ma-
neuvers, or an accident and be thrown
around in the vehicle interior. Objects
thrown around in the vehicle interior may
cause an accident and/or serious personal
injury.
iWhen folding both rows of seats, it is impor-
tant that you fold the second-row seats first, and
then fold the third-row seats.


303 Controls in detail
Loading
Folding second-row seats
Move the seat to be folded to its rear-
most position (
page 138).
Remove the rear center console*, if so
equipped (
page 323).
Remove the head restraint from the
respective second-row seat
(
page 141).
1Seat backrest
2Seat cushion
3Release lever
Place the head restraint on the seat
cushion.
Relieve the load on seat backrest 1
and pull release lever 3 past the
resistance point in direction of arrow
as far as it will go.
Seat and seat backrest are unlocked.
Fold seat backrest 1 forward until it
fully rests on seat cushion 2 in a
horizontal position.
1Seat backrest
2Seat cushion
Push down on folded seat backrest 1
until seat cushion 2 engages in seat
base.
!When the second-row seats are folded
forward, the front seats may not be moved to the
rearmost position. Otherwise you could damage
the front and second-row seats.
iThe rear center console* can remain
installed, if installed in the most forward position
(
page 325). However, the cargo compartment
floor will then not be an even plane.
The storage compartment and the cupholders in
the rear center console* are only illuminated,
when the rear center console* is installed in the
most rearward position (position 0)
(
page 325).
